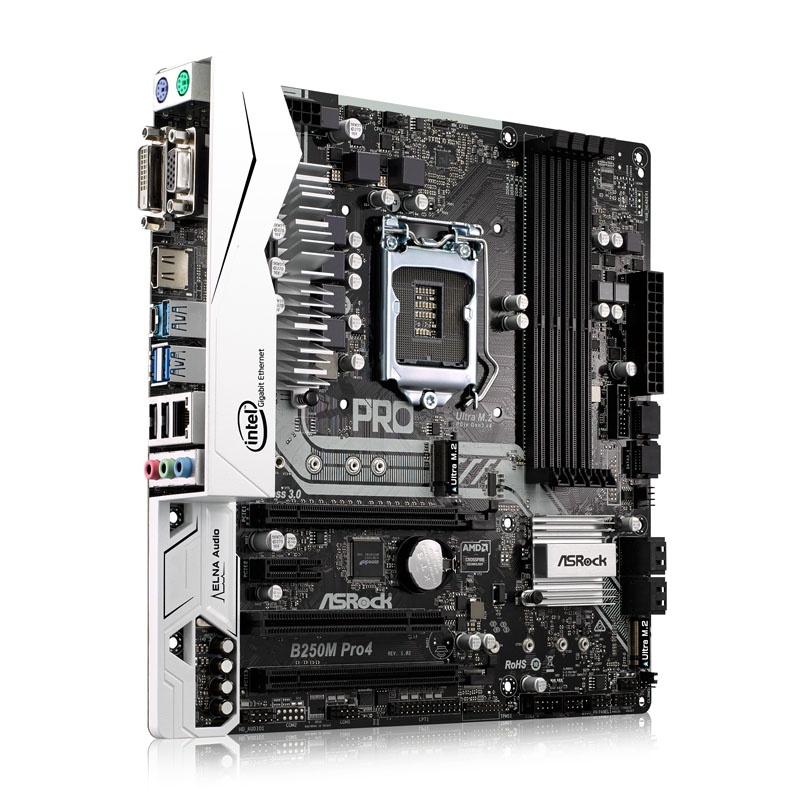

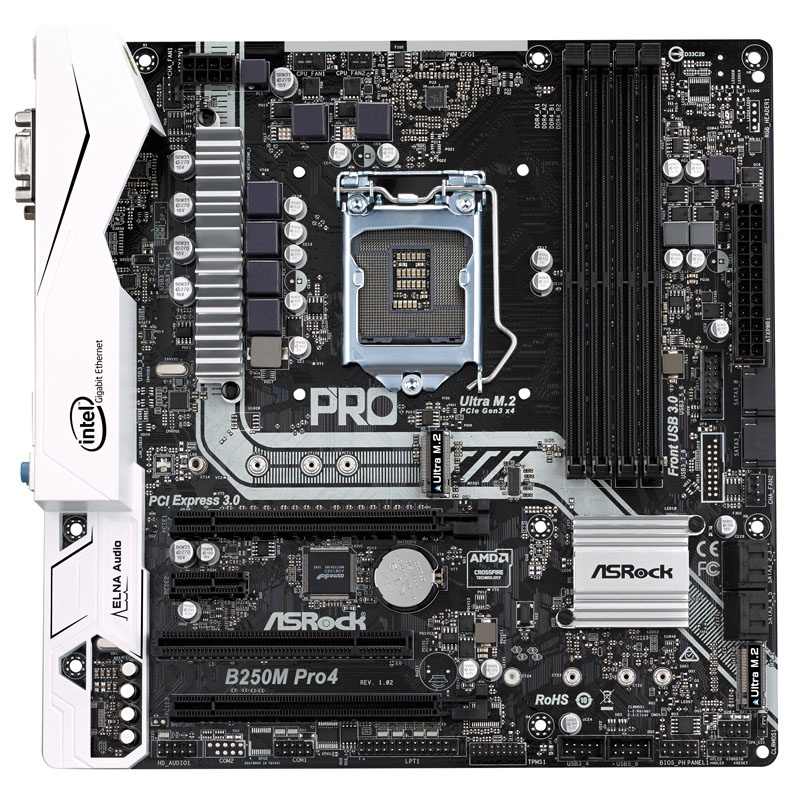

ASRock B250M Pro4, Intel B250 motherboard socket 1151

The features of the ASRock B250M Pro 4 at a glance:

2 x PCIe (3.0) x16 (x16 / x4) & 1 x PCIe (3.0) x1 & PCI slot
6 x USB 3.0 (Type A & Type C) / 6 x USB 2.0
2 x M.2 (PCIe 3.0 x4) / 6 x SATA 6G
Four DRR4 DIMM slots in dual-channel mode
Video output via HDMI, DVI-D or D-Sub (VGA)
Support for AMDs CrossFireX technology (2-way)
The ASRock B250M Pro 4 in detail

The ASRock B250M Pro 4 Micro ATX motherboard has four DIMM slots for DDR4 memory in fast dual-channel mode. The two PCIe x16 slots, one with full 16 lanes and the other with four lanes to the chipset, support AMDs CrossFireX technology and enable the operation of two AMD graphics cards. The board has a PCIe-x1 and a conventional PCI slot for plug and expansion cards.

Data storage in the form of HDDs or (M.2) SSDs can be connected via six SATA-6G connectors and two M.2 slots. The M.2 ports allow the use of M.2 SSDs and are typically connected to the chipset via four PCIe lanes, usually in the 3.0 standard. In combination with the NVMe protocol, a data transfer rate of just under 4 GB / s is possible. Thus, M.2 PCIe SSDs are up to eight times faster than SATA 6G SSDs!

The motherboard provides three USB 3.0 Type A, one USB 3.0 Type C-, and two USB 2.0 ports for input devices, headsets, and other gaming peripherals on the I / O panel. If no graphics card is available, monitors can be connected directly to the back of the motherboard, thanks to the integrated graphics processor of a Skylake or Kaby Lake CPU. HDMI, DVI-D and VGA have three connections.

In addition to the eye-catching design in black and white, the stylish I / O armor and the outstanding OnBoard sound (Realtek ALC892), the motherboard internally provides a print port, COM port, TPM, chassis intrusion and speaker Header. Two CPU fan connections (each 1 x 3-pin / 4-pin) and two 4-pin housing fan connections are also available for cooling solutions.

Technical details:
Format: Micro-ATX
Chipset: Intel B250 (Union Point)
Socket: 1151 (for Intel CPUs of the 6th and 7th core generation (Skylake / Kaby Lake)
RAM: 4 x DDR4 (Skylake: DDR4-2.133, Kaby Lake: DDR4-2.400)
Dual-Channel
Slots (physical):
1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (electrical x4)
Compatible multi-VGA configurations: 2-Way-CrossFireX (Quad-GPU)
1 x PCIe 3.0 x1
1 x PCI
Internal connections:
6 x SATA 6G
2 x M.2 (PCIe 3.0 x4, 2242/2260/2280)
1 x print port header
1 x COM port header
1 x TPM header
1 x chassis intrusion header
1 x Speaker header
2 x CPU fan (each 1 x 4-pin / 3-pin)
2 x Case Fan (4-Pin)
1 x Front Panel Audio Connector
2 x USB 3.0 (one header)
4 x USB 2.0 (two header)
External connections:
1 x PS / 2 keyboard
1 x PS / 2 mouse
4 x USB 3.0 (3 x Type-A / 1 x Type-C)
2 x USB 2.0 (1 x Type A / 1 x Fatal1ty mouse port)
1 x RJ45 LAN
1 x HDMI
1 x DVI-D
1 x D-Sub (VGA)
3 x audio (Realtek ALC892)
Power supply:
1 x 24 pin
1 x 8-pin
