Aquacomputer Aquaduct High Flow Set
No products found
With this high flow kit it is possibly to Significantly improve flow on the aquaduct and then to adjust comfortably. This kit contains, besides the powerful Laing DDC pump 12V DDC-1T/Plus (Swiftech MCP 355) and the amplifier module poweramp that is thicker 5m of 13/10mm PVC pants to optimize flow. All required cables are included with the adapter kit as well as two compression fittings in each size 13/10mm with G1 / 4 and 1/8 threads.
The pump included in this kit is to be integrated into the loop inside of the PC and will run in addition to the pump in the aquaduct. Negative effects by the simultaneous surgery are not caused as both pumps are rotary pumps.
The pump can be connected in this kit via the poweramp module to the aquaduct 360 XT mk II and III as well as to the aquaduct 720XT via the external socket of the fan auqaduct PC modules
This Allows stepless setting of the pump speed directly or via the aquaduct the aquasuite software. The pump can hence be regulated in power or even switched off completely as desired. In this configuration it is thus possible to regulate the pump according to the temperature.
On all other versions aquqaduct the pump can be connected via the poweramp module to a fan channel free of ec The motherboard or fan controller to allow adjustment of the pumps speed.

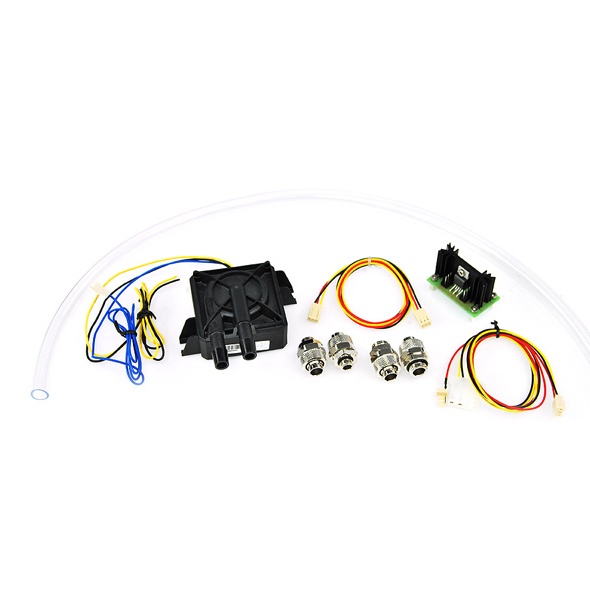

Extent of delivery:
1 x Laing DDC-Pump 12V DDC-1T/Plus
1 poweramp amplifier module
1 x Connection cable for Laing DDC pumps
2 x 13/10mm Compression fitting G 1/4 with O-ring
2 x 13/10mm Compression fitting G 1/8 with O-ring
5 x PVC pants 10×1, 5 mm (13/10 mm)
Please note:
Due to the higher flow should be the aquaduct filled completely to avoid possible noises during operation. We recommend the plexiglass top with filling opening Which will break the flow to avoid noises during operation.
In addition to this kit possibly further 13/10mm fittings are required, please order separately if needed. An aquaduct is not included!
