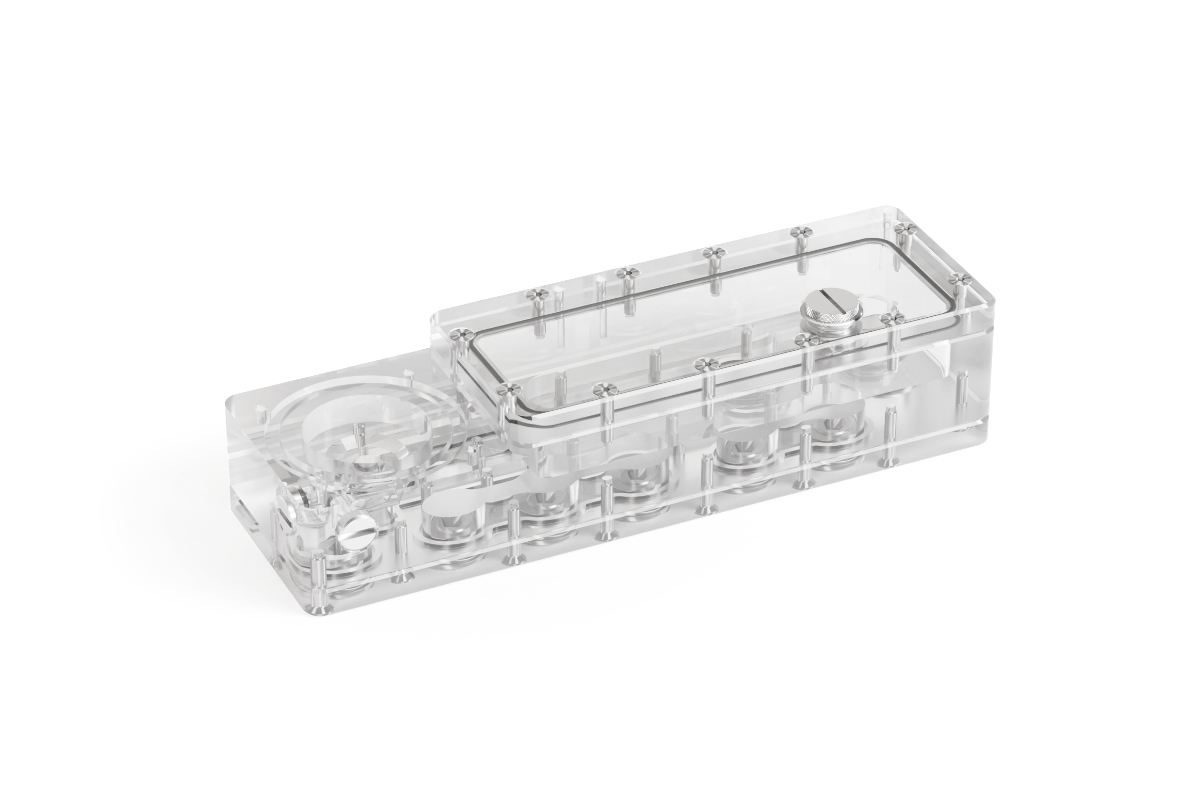

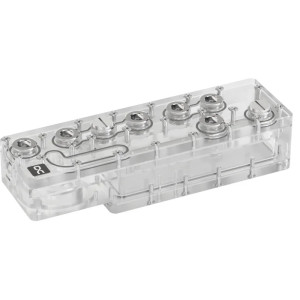

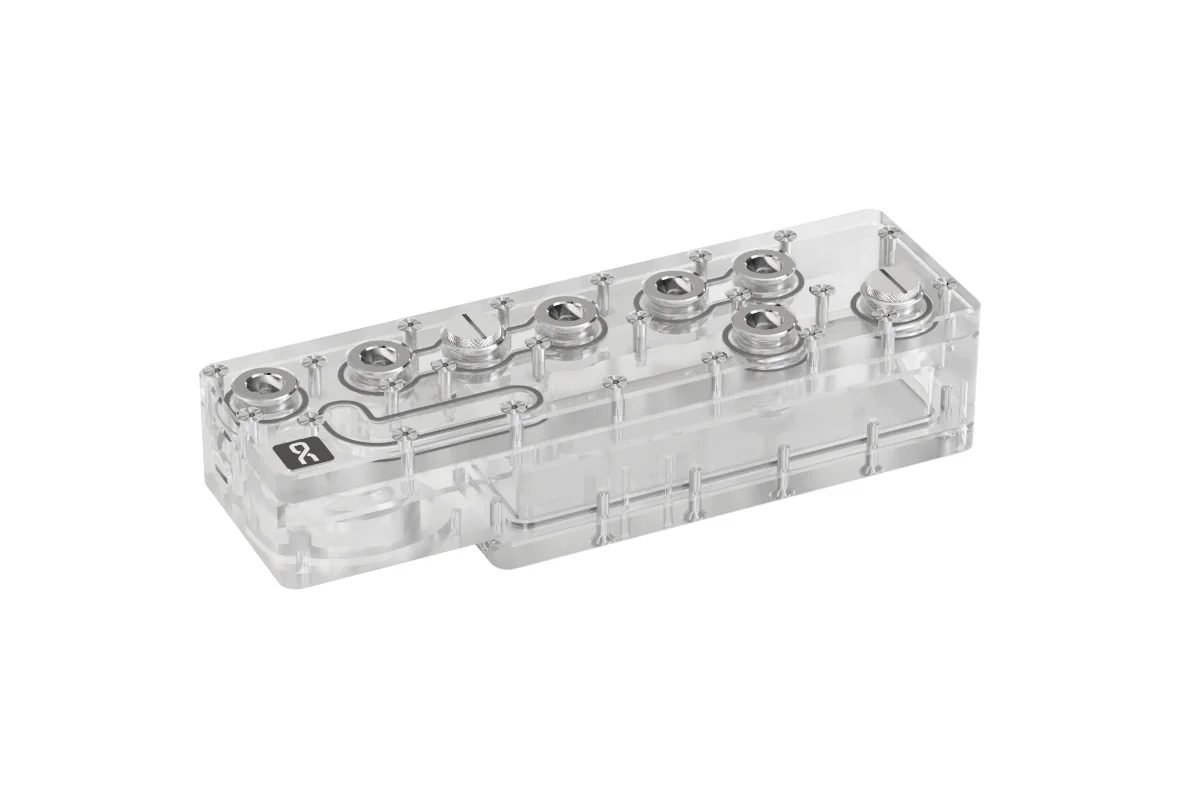

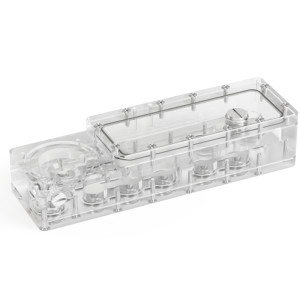

The Alphacool Core Distro Plate 240 XS is an absolute must-have for any custom water cooling setup! Unlike previous Core Distro Plates, it features a slimmer, more space-saving design. With its signature Core design, it’s not only a visual highlight, but also a functional masterpiece that simplifies the planning and installation of complex cooling loops.

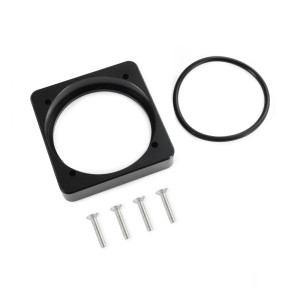

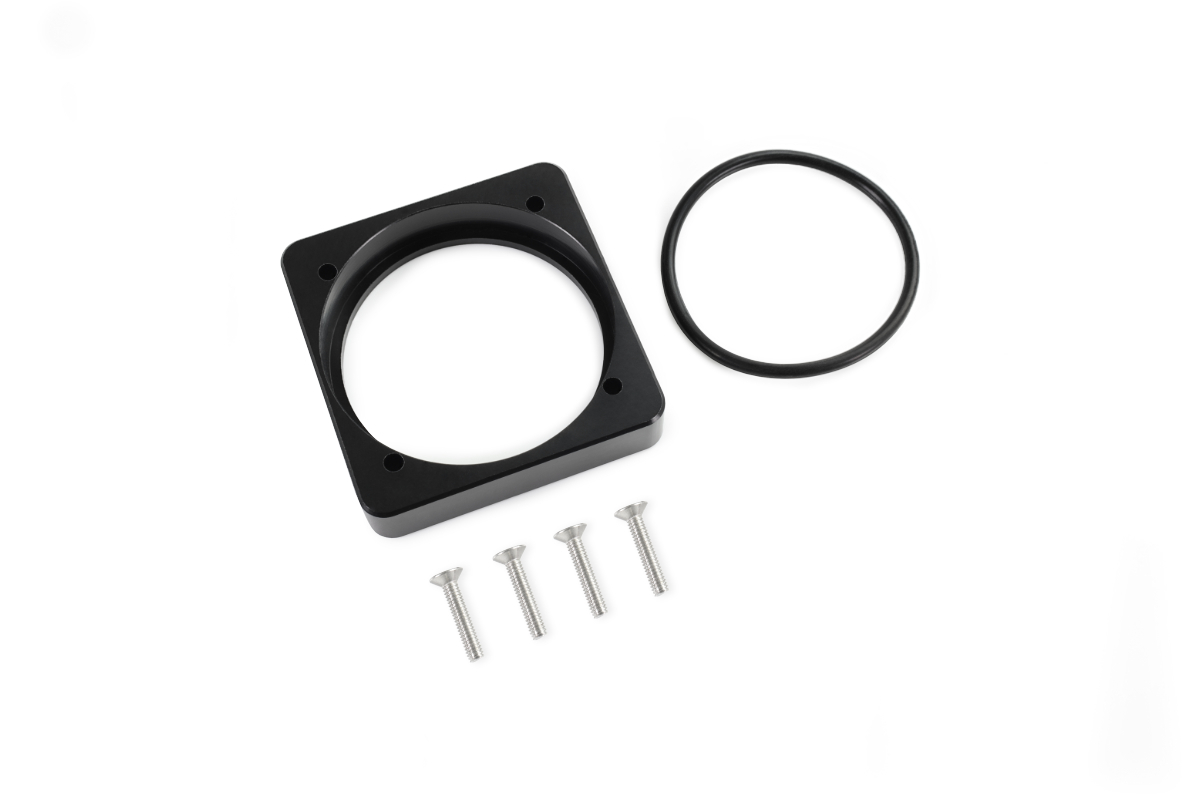

Thanks to a redesigned pump mount, this distro plate supports the installation of both VPP/D5 and DDC pumps, offering even greater flexibility for custom loop configurations.

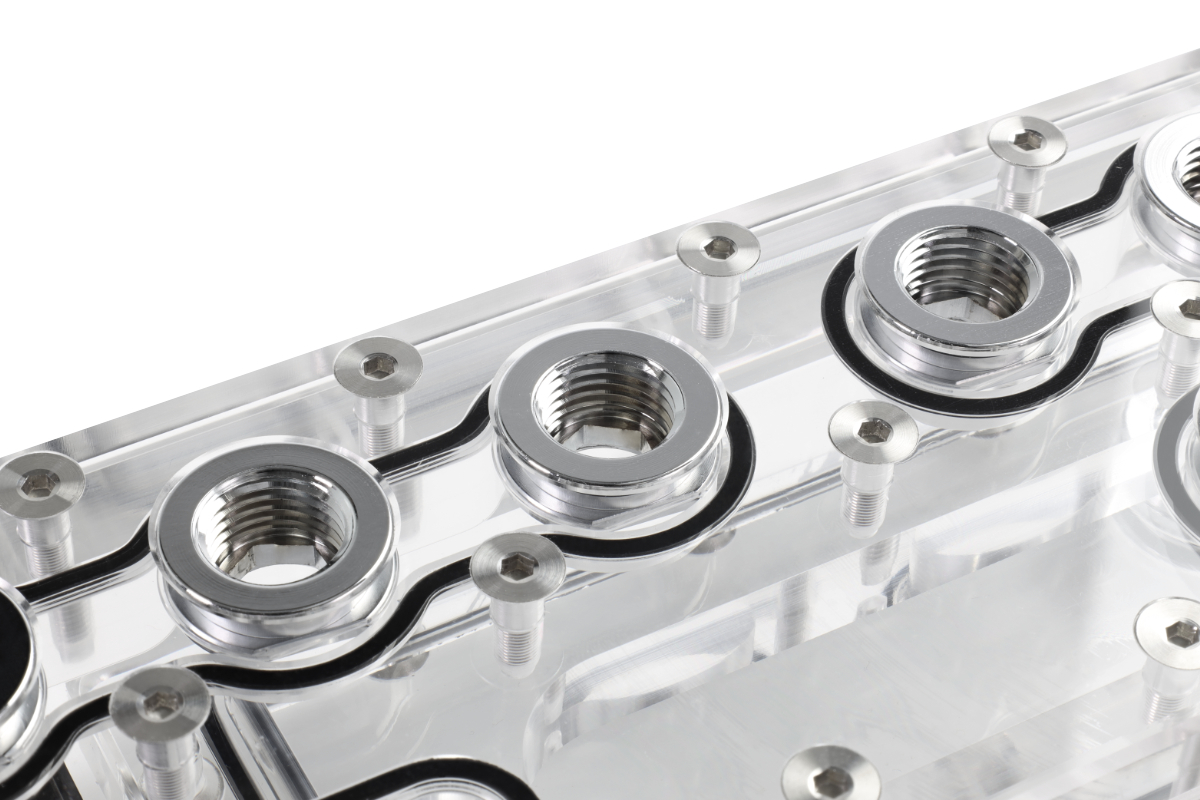

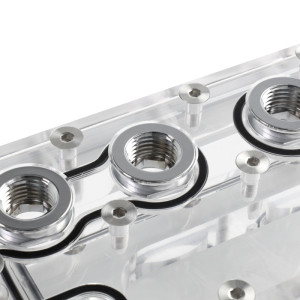

The Distro Plate is made of high-quality acrylic and fitted with chrome-plated G1/4” brass connections. These have been recessed and deliberately not screwed in to minimise the risk of cracks and leaks while increasing stability. This not only ensures absolute leak proofing of each connector, but also allows for the clean and functional look of Alphacool’s Core Design series.

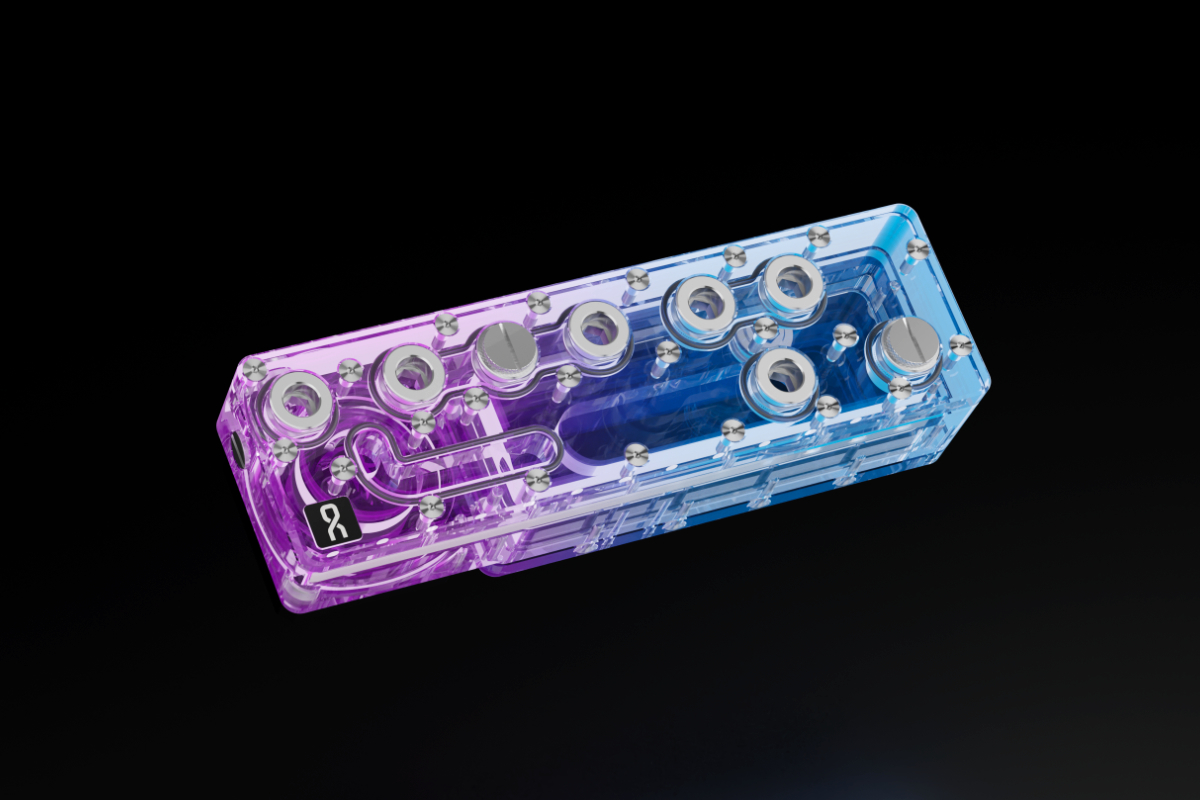

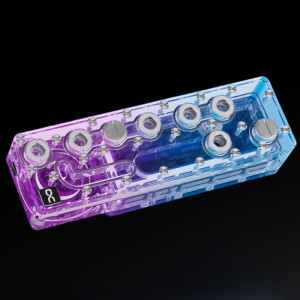

The arrangement of the connections is designed not only to optimise tube routing, but also to provide an attractive appearance. This is complemented by its integrated aRGB lighting, which provides impressive visual effects. The lighting can be controlled either via a digital aRGB header on the mainboard or optionally via the Alphacool Aurora Eiscontrol aRGB controller (article no.: 15360).
The Core Distro Plate is compact in design, making it ideal for custom water cooling configurations. Additional drain ports located on the side and bottom allow for quick and clean draining of the distro plate.
Installation is carried out using the included 90° universal mounting bracket, which enables easy and flexible positioning within the case.
| Technical Data | |
|---|---|
| Dimensions (L x W x H) | 240 x 73 x 59.6 mm |
| Material | Acrylic (and brass thread) |
| Pump Compatibility | D5/VPP | DDC |
| Threads | 11x G1/4″ (1x fill port and 2x drain port) |
| Volume | 147 ml |
| Maximum Working Temperature | 60°C |
| Pressure Tested | 0.8 Bar |
| Quantity Digital aRGB LEDs | 13 |
| Power Digital aRGB LEDs | 5V |
| Power Connection Digital aRGB LEDs | 3-pin JST + 3-pin 5V |
| Weight | 1074 g |
| Color | Transparent |
£199.99£166.66 Inc VatEx Vat
