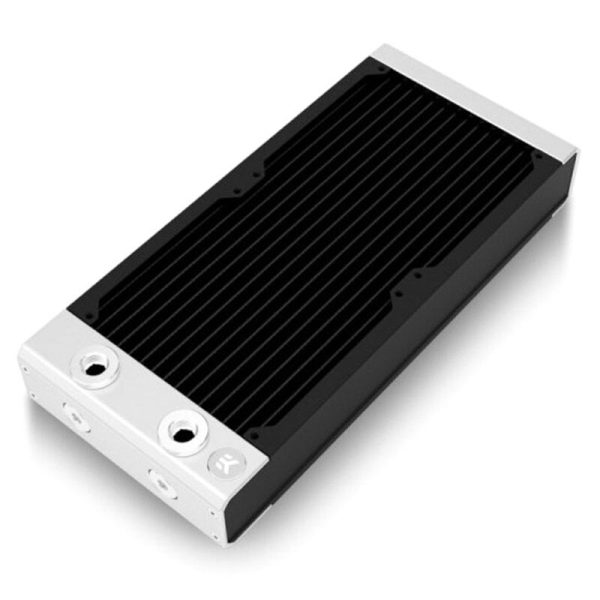

With a thickness of 44mm, the EK-Quantum P Series Surface radiators are the absolute all-rounders for low noise and high performance across the entire fan operational range.
- SKU: WAEK-2413
- MPN: 3831109838372
- EAN: 3831109838372
Revolutionise your system with the Eisbaer Extreme Core, the foundation of your new watercooled PC.

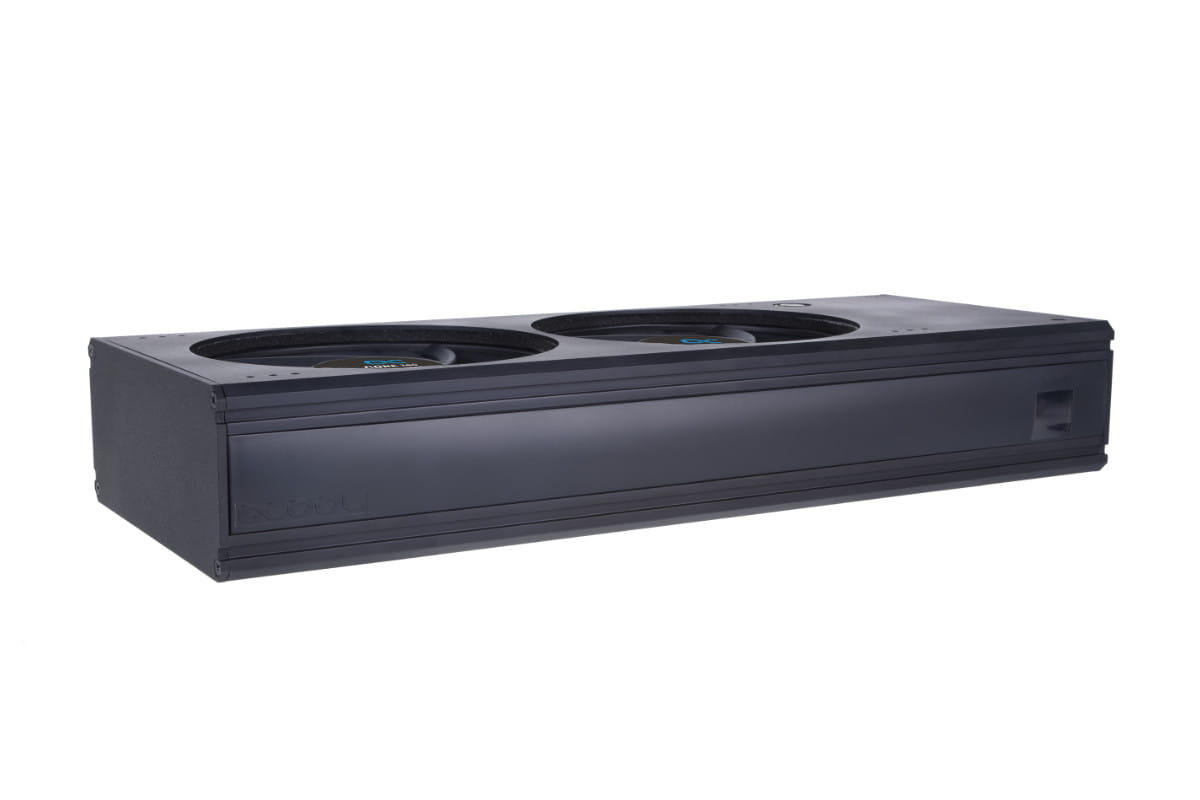

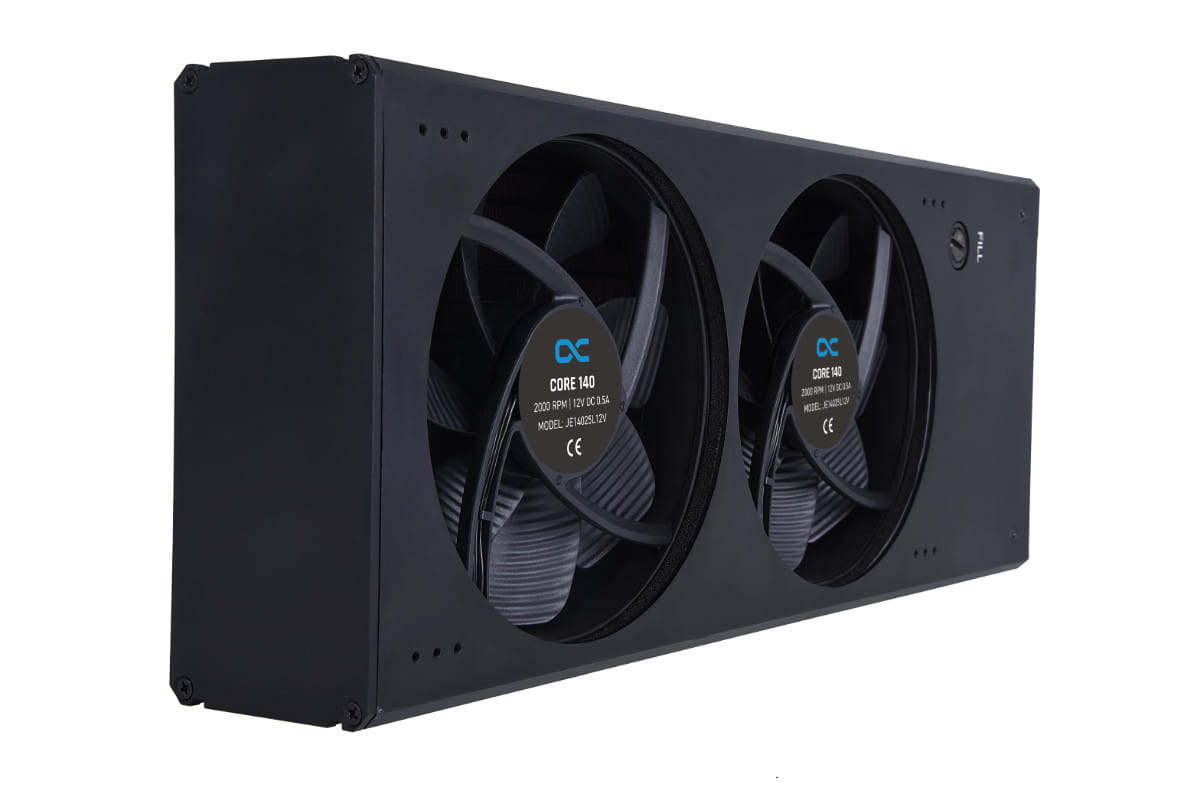

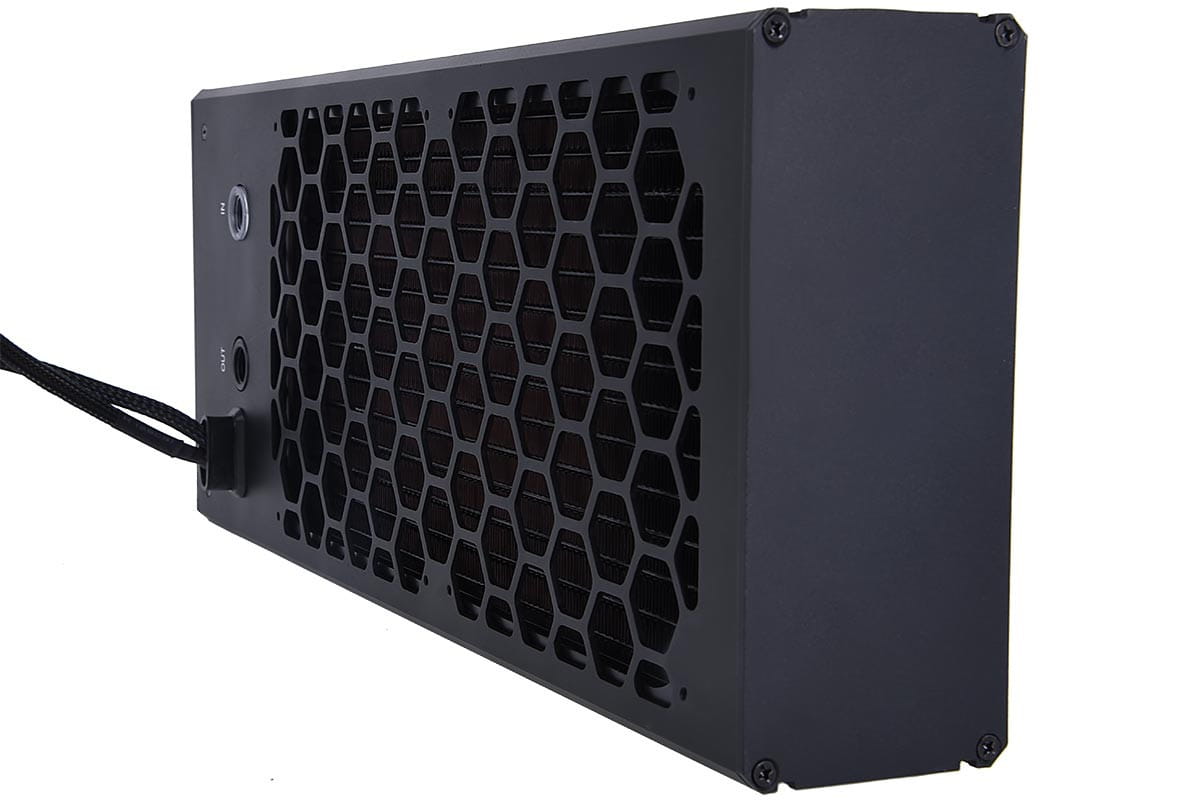

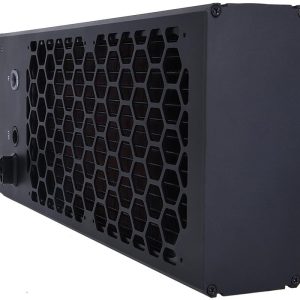

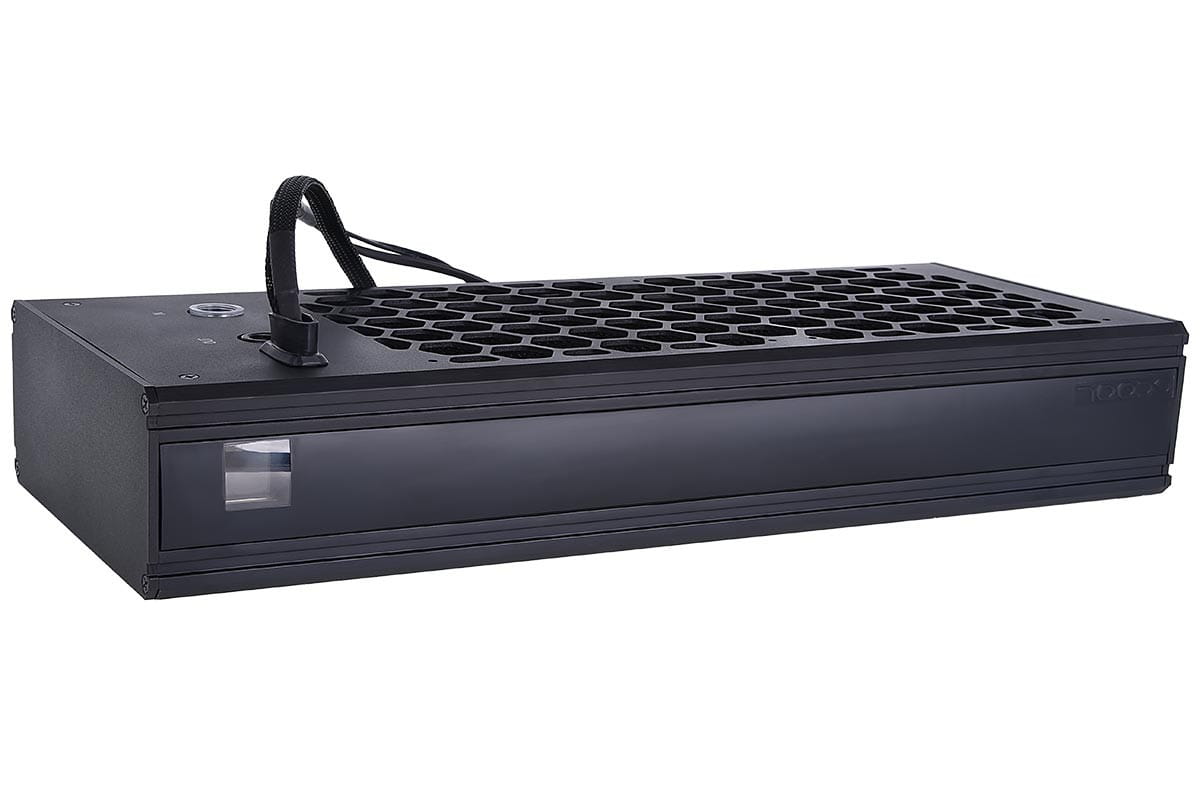

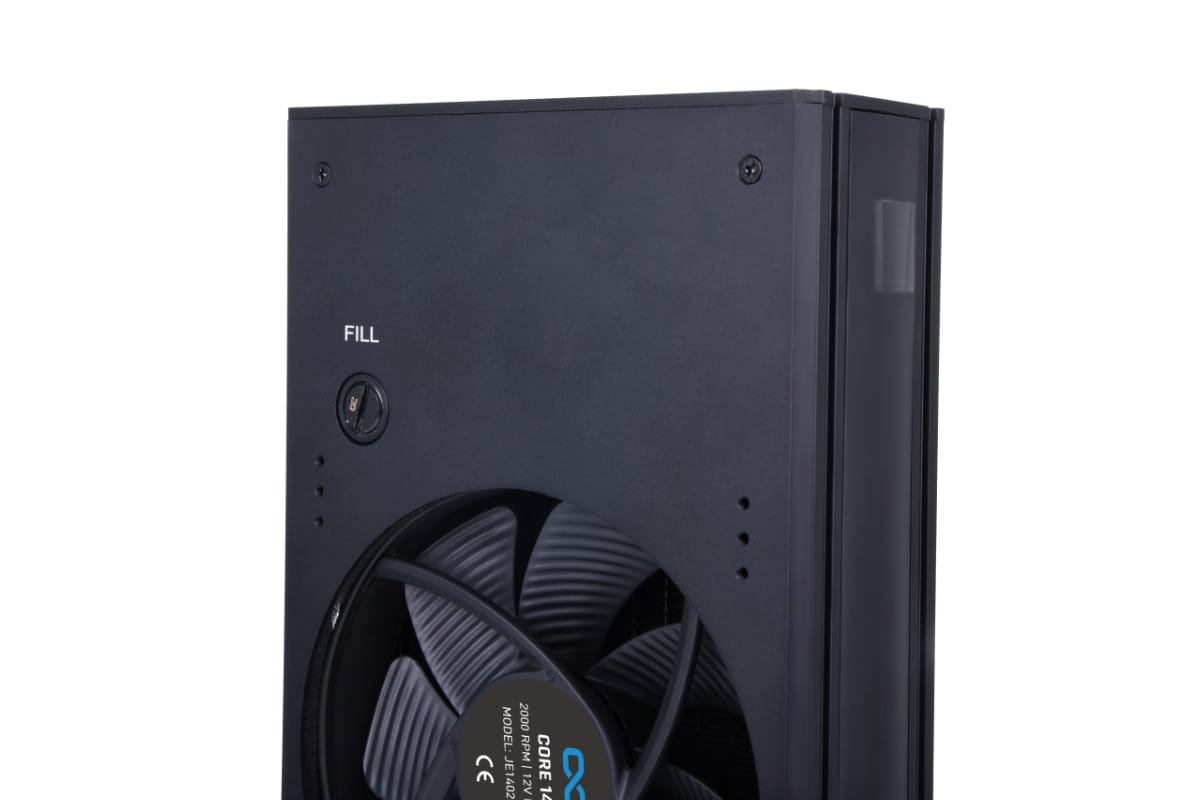

Alphacool Eisbaer Extreme liquid cooler core 280 - black edition
Revolutionise your system with the Eisbaer Extreme Core, the foundation of your new watercooled PC.
Revolutionise your system with the Eisbaer Extreme Core, the foundation of your new watercooled PC.
Earn 157 Points
We price match UK retailers. Try It Now!
- SKU: 1015204
- MPN: 11608
- EAN: 4250197116084
- Warranty: 12 Months
Details
We believe that the Alphacool EIsbaer Extreme Core Radiator with pump is stronger, more beautiful and quieter than anything youve ever known in water cooling.
Pure Performance – inc. Silent Wings powered by be quiet!
The Eisbaer Extreme is a brand new design for Alphacool. A high-quality housing encloses the radiator and fans as well as a patented pump/reservoir combination. In co-operation with the well-known manufacturer be quiet! the award winning Silent Wings 3 fans are alread installed on the Alphacool NexXxoS Radiator. With the Eisbaer Extreme you have the coolest cooling for your hardware.
Progress into a New Age
The redesigned, powerful VPP755 Eispump gives you the flow you need. Thanks to the ceramic axis and the external coils of the motor, the pump has a higher stability, which makes for smoother running. The connection options allow you to control your Eispump according to your wishes and needs.
Individual
With the Eisbaer Extreme Core, you decide how your system is structured. This radiator with pump can be expanded at any time with the CPU cooler of your choice or other components or converted and filled according to your wishes. Whether you install the Eisbaer Extreme Core horizontally or vertically, its up to you how you put it in your case.
| Fan Specifications | |
|---|---|
| Fan Model | Silent Wings 3 (powered by be quiet!) |
| Dimensions | 140 x 140 x 25 mm |
| Colour | Black |
| Bearing Type | HDB (Hydrodynamic Bearing) |
| Maximum Speed | 1300 RPM (±200) |
| Starting Voltage | 5 V (at 25°C) |
| Operating Voltage | 5 – 12 V |
| Power Consumption | 4.8 W (0.2 A) |
| Airflow | 64.81 CFM |
| Static Pressure | 1.84 mmH₂O |
| Noise Level | 31 dBA (max) |
| Service Life | 50,000 hours |
| Connector | 4-Pin PWM |
| Scope of Delivery | |
| • Radiator / Pump / Reservoir Unit • 2 x Silent Wings 3 Fans • Mounting material for radiator installation | |
| Technical Details – Reservoir & Housing | |
|---|---|
| Dimensions (L x W x H) | 385.5 x 156 x 64 mm |
| Housing Material | Aluminium |
| Reservoir Capacity | 138 ml |
| Fill Port | Fill port with patented screw plug |
| Technical Details – Alphacool Eispumpe VPP755 V.3 | |
| Pump Control | PWM controlled |
| Connections | 4-Pin PWM / 4-Pin Molex |
| Start Boost Function | Yes |
| Self-Venting | Yes |
| Software | Improved version |
| Bearing Type | Ceramic axis bearing |
| Adjustable Performance Levels | 5 steps |
| Performance – Level 1 | 2100 RPM / 120 L/h |
| Performance – Level 2 | 2700 RPM / 140 L/h |
| Performance – Level 3 | 3330 RPM / 280 L/h |
| Performance – Level 4 | 3950 RPM / 320 L/h |
| Performance – Level 5 | 4350 RPM / 340 L/h |
| Maximum Head Pressure | 4.25 m |
Customer Product Reviews
Overall rating
Earn
25 point when you review this product
Write a review
Select rating and write review
Related Guides
Related Products
£90.70£75.58 Inc VatEx Vat
Available
280mm radiator from Watercool in silver
- SKU: WACH-899
- MPN: 24126
- EAN: 4251312606329
£93.52£77.93 Inc VatEx Vat
Available

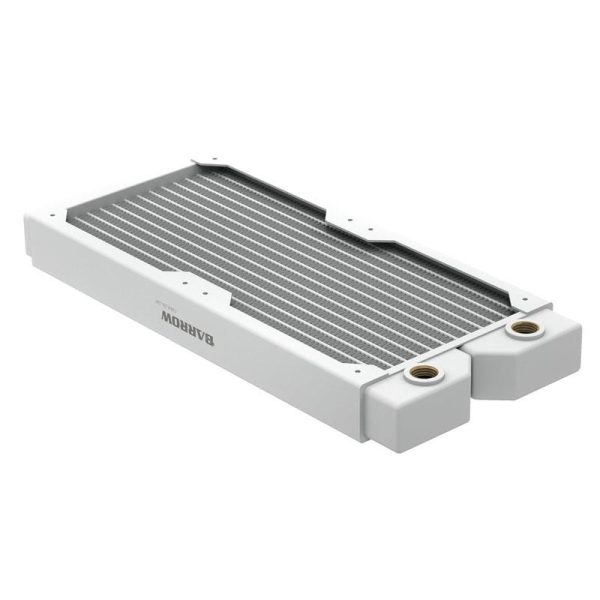

Barrow and Barrowch was established in 2010. It is an export-oriented and domestically-manufactured manufacturing enterprise specializing in computer and industrial water cooling equipment and precision hardware components. The advanced design concept and internal structure are deeply loved by domestic and...
