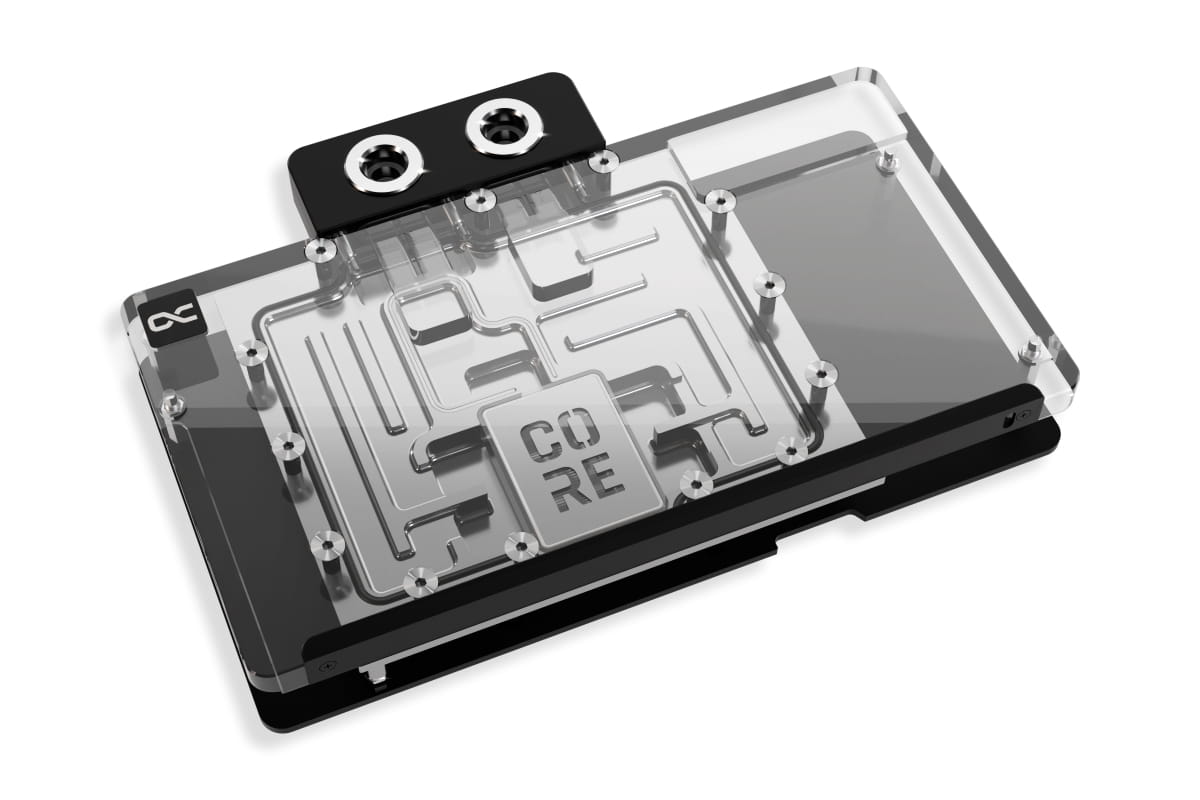

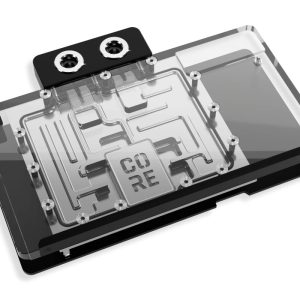

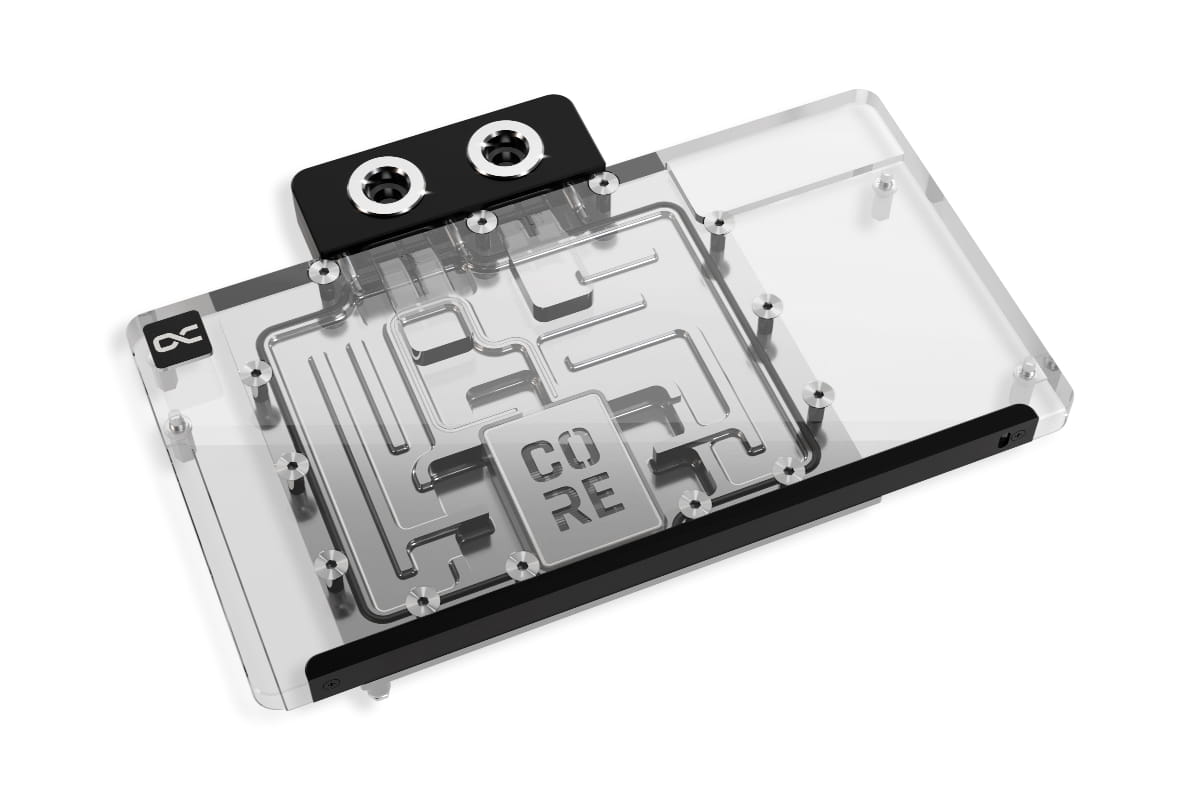

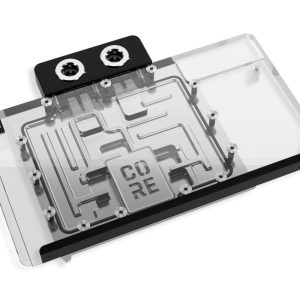

Alphacool presents its new graphics card water coolers for the latest AMD Radeon RX generation. Part of the Core product series, these coolers combine top quality with exceptional performance. Thanks to an optimized technical design, they offer superior cooling performance.

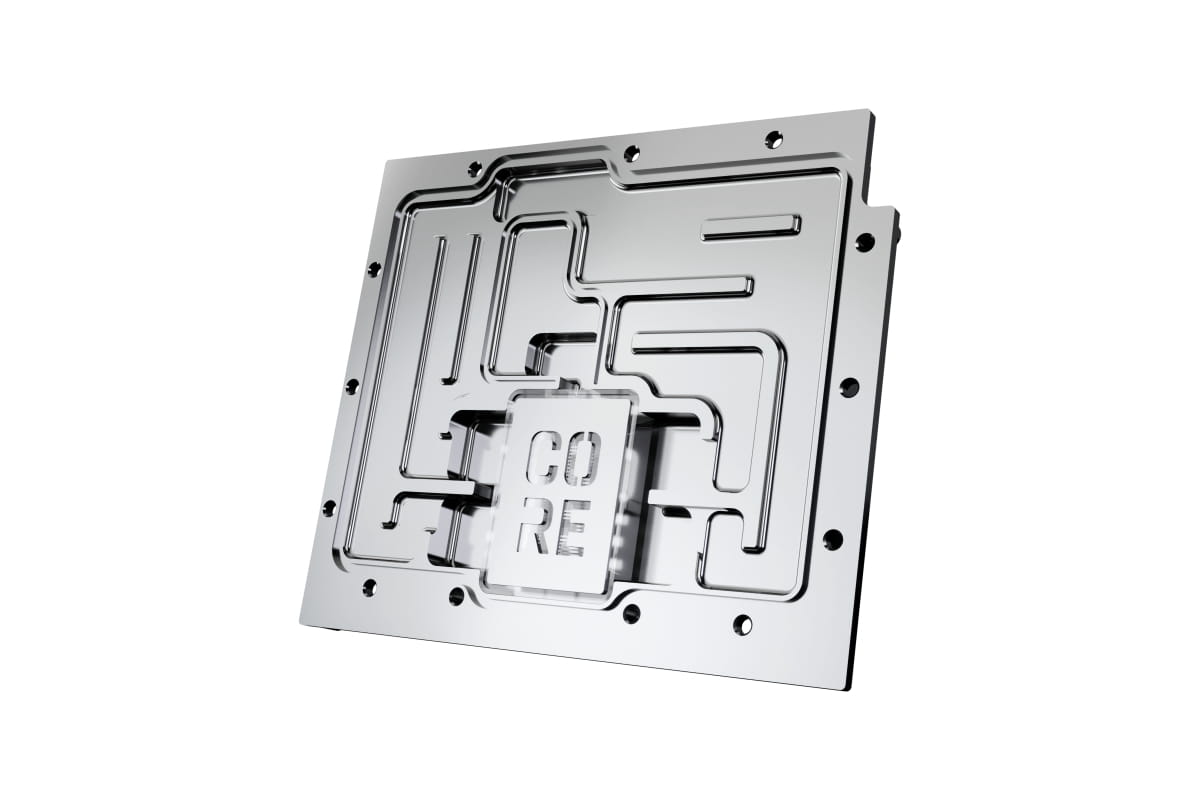

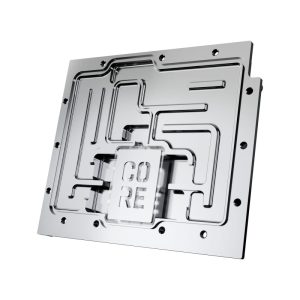

At the heart of the cooler is a one-piece milled copper heatsink, complemented by a precision-machined brass connection terminal with a nylon cover. Chrome plating makes the copper heatsink more durable and provides a smoother, more radiant surface than conventional nickel plating.
Alphacool presents its new graphics card water coolers for the latest AMD Radeon RX generation. Part of the Core product series, these coolers combine top quality with exceptional performance. Thanks to an optimized technical design, they offer superior cooling performance.
At the heart of the cooler is a one-piece milled copper heatsink, complemented by a precision-machined brass connection te...
Alphacool presents its new graphics card water coolers for the latest AMD Radeon RX generation. Part of the Core product series, these coolers combine top quality with exceptional performance. Thanks to an optimized technical design, they offer superior cooling performance.
At the heart of the cooler is a one-piece milled copper heatsink, complemented by a precision-machined brass connection te...

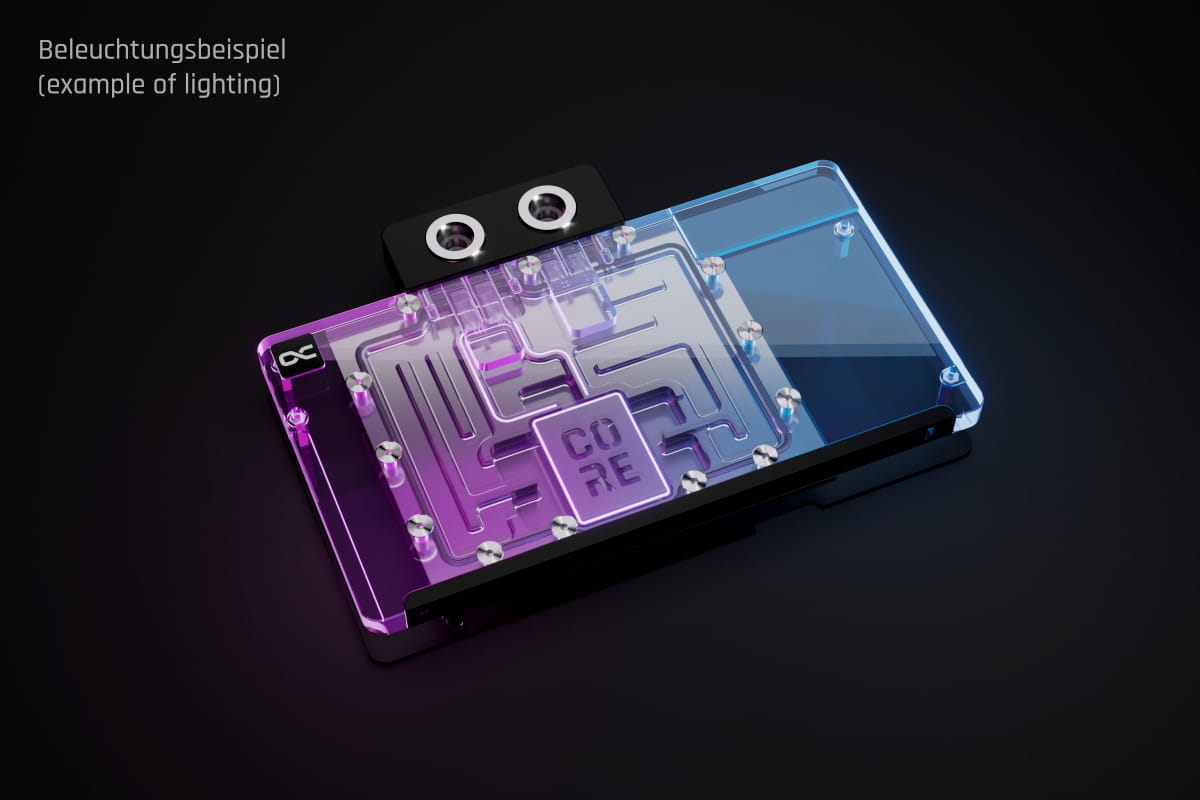

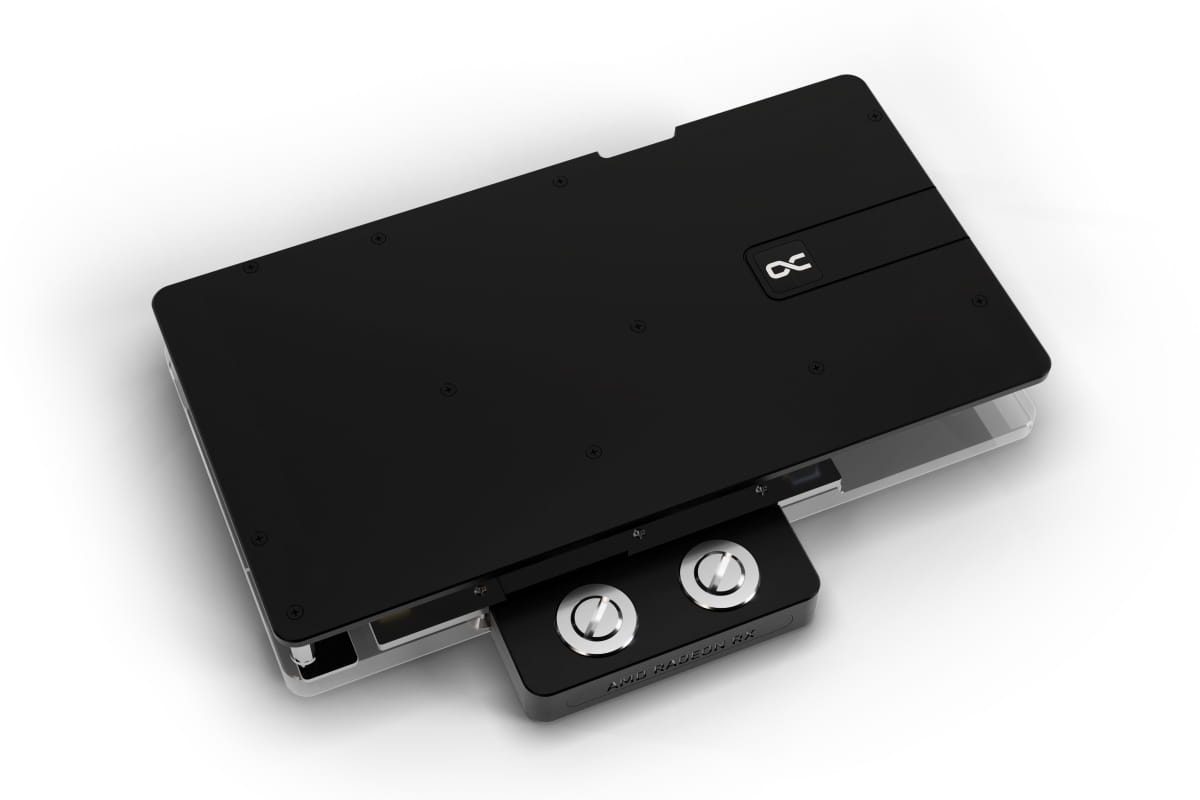

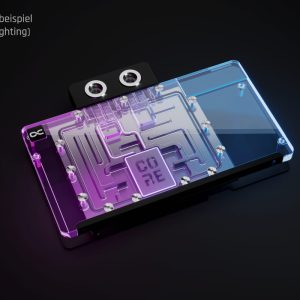

The visual design of the GPU water cooler has been only slightly modified. A particular highlight is the newly added Core emblem above the jet plate, which underscores its membership in the Core series and enhances the overall design. The series continues to utilize high-quality brass fittings, guaranteeing optimal quality and safety. The specially designed aluminum backplate covers the entire rear of the copper heatsink, ensuring a clean and uniform appearance. The acrylic, combined with the aRGB lighting, provides uniform and impressive illumination of the entire cooler.
Technically, the GPU water cooler has been completely redesigned. To optimize cooling performance, the distances between the cooler and the PCB components were redefined and tested. The water flow was simulated using state-of-the-art software and verified through practical trials. These extensive tests allowed for improvements to the cooler base and nozzle to ensure the best possible cooling performance for the new AMD Radeon RX generation.
Technically, the GPU water cooler has been completely redesigned. Compatibility:
– PowerColor Red Devil AMD Radeon™ RX 9070 16GB GDDR6 (RX9070 16G-E/OC)
– PowerColor Red Devil AMD Radeon™ RX 9070 XT 16GB GDDR6 (RX9070 XT 16G-E/OC)
Cooler Specifications
Dimensions (Complete) (L x W x H): 214.90 x 145.93 x 33.10 mm
Base Material: Chrome-plated copper
Top Material: Acrylic
Terminal Material: Nylon
Connection Thread Material: Brass
Maximum Operating Temperature: 60°C
Pressure Tested: 0.8 bar
Connections: 4 x G1/4″
Base Thickness: 3.25 mm
Fin Thickness: 0.4 mm
Fin Spacing: 0.4 mm
Lighting: Digital aRGB LEDs
Power Connector: 3-pin JST
Voltage digital aRGB LEDs 5V
Number of digital aRGB LEDs 10
Color transparent
Technical specifications backplate
Dimensions (L x W x H) 214.90 x 117.40 x 6.00 mm
Thickness of backplate without spacers 3 mm
Material aluminum
| Product Identification | |
| Article Number | 1026996 |
| Manufacturer Number | 14781 |
| EAN | 4250197147811 |
| Manufacturer Details | |
| Brand | Alphacool |
| Country of Origin | China |
| Compatibility | |
| Hardware Manufacturer | AMD |
| Hardware Model | Radeon RX 9070 XT |
| Dimensions & Weight | |
| Dimensions (L × W × H) | 214.90 × 145.93 × 33.10 mm |
| Weight | 1.45 kg |
| Materials | |
| Bottom Plate Material | Aluminum |
| Connections | |
| Connector Ports | 4 × G1/4″ |
| Availability | |
| Stock Status | Currently not available |
£190.00£158.33 Inc VatEx Vat
Compatibility
