Alphacool presents its new graphics card water coolers for the latest AMD Radeon RX generation. Part of the Core product series, these coolers combine top quality with exceptional performance. Thanks to an optimized technical design, they offer superior cooling performance.

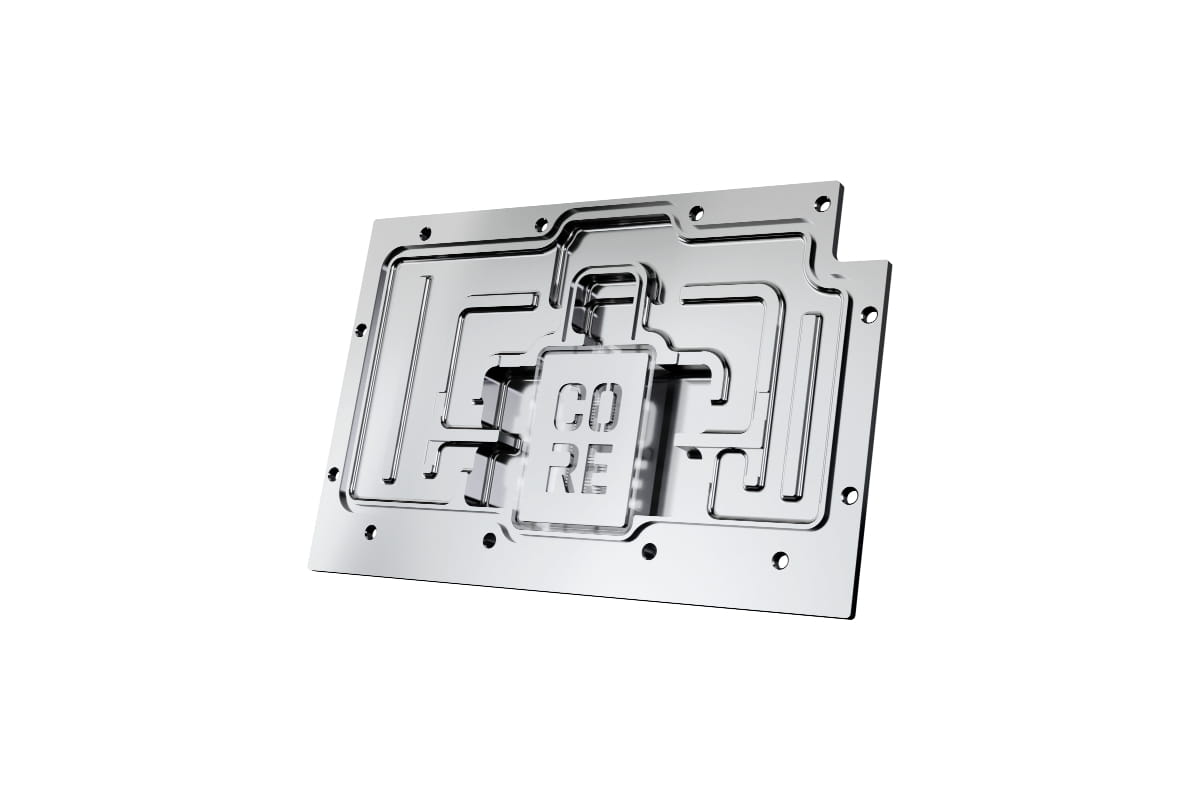

At the heart of the cooler is a one-piece milled copper heatsink, complemented by a precision-machined brass connection terminal with a nylon cover. Chrome plating makes the copper heatsink more durable and provides a smoother, more radiant surface than conventional nickel plating.

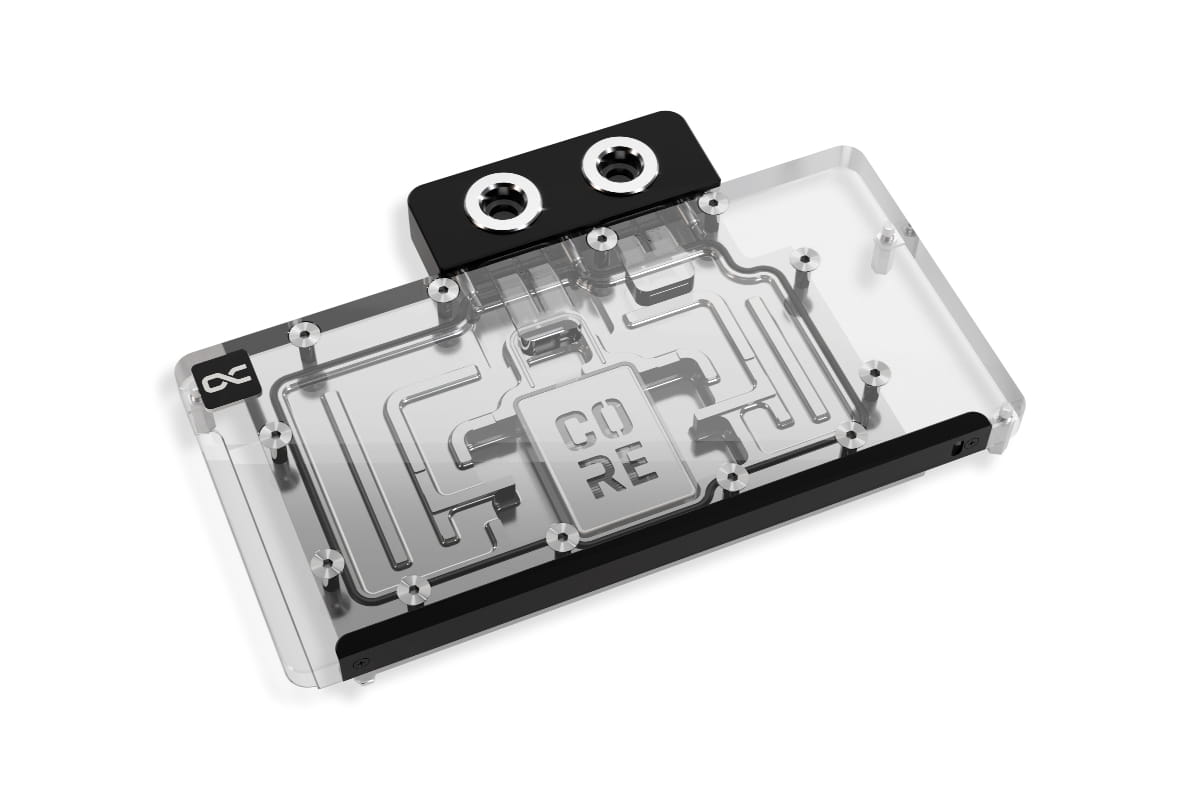

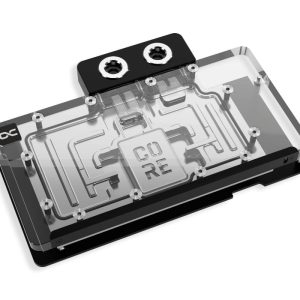

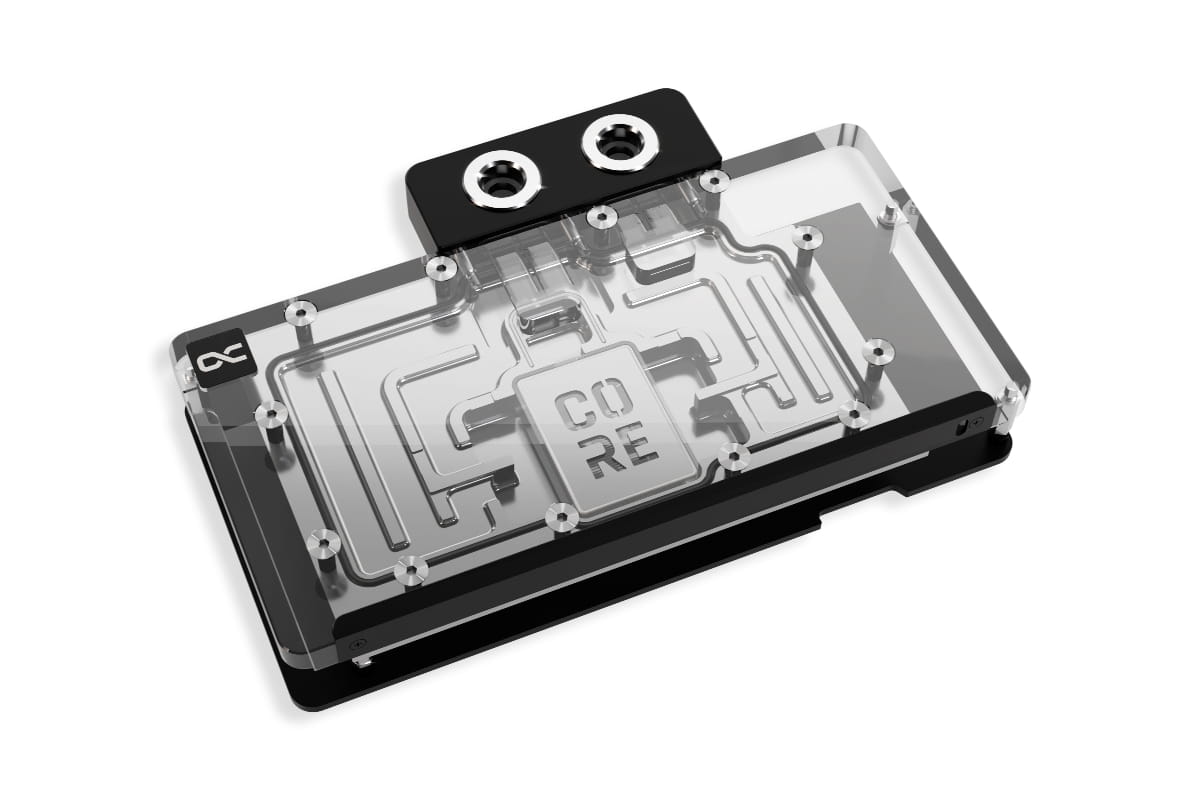

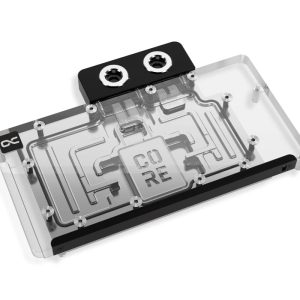

Alphacool Core RX 9070 XT Swift + Quicksilver with backplate
Alphacool presents its new graphics card water coolers for the latest AMD Radeon RX generation. Part of the Core product series, these coolers combine top quality with exceptional performance. Thanks to an optimized technical design, they offer superior cooling performance.
At the heart of the cooler is a one-piece milled copper heatsink, complemented by a precision-machined brass connection te...
Alphacool presents its new graphics card water coolers for the latest AMD Radeon RX generation. Part of the Core product series, these coolers combine top quality with exceptional performance. Thanks to an optimized technical design, they offer superior cooling performance.
At the heart of the cooler is a one-piece milled copper heatsink, complemented by a precision-machined brass connection te...
Earn 159 Points
We price match UK retailers. Try It Now!
- SKU: 1026994
- MPN: 14799
- EAN: 4250197147996
- Warranty: 12 Months
Details
The visual design of the GPU water cooler has been only slightly modified. A particular highlight is the newly added Core emblem above the jet plate, which underscores its membership in the Core series and enhances the overall design. The series continues to utilize high-quality brass fittings, guaranteeing optimal quality and safety. The specially designed aluminum backplate covers the entire rear of the copper heatsink, ensuring a clean and uniform appearance. The acrylic, combined with the aRGB lighting, provides uniform and impressive illumination of the entire cooler.
Technically, the GPU water block has been completely redesigned. To optimize cooling performance, the distances between the cooler and the PCB components were redefined and tested. The water flow was simulated using state-of-the-art software and verified through practical testing. These extensive tests allowed for improvements to the cooler base and nozzle to ensure the best possible cooling performance for the new AMD Radeon RX generation.
There are several PCB versions for the XFX Quicksilver and Swift AMD GPU variants. Our GPU water block is only compatible with version V2.0. Older PCB versions (e.g., A.0) are not supported.
Compatibility:
– XFX Quicksilver AMD Radeon RX 9070XT Gaming Edition (RX-97TQIC V2.0)
– XFX Quicksilver AMD Radeon RX 9070XT White Gaming Edition (RX-97TQICKW9)
– XFX Quicksilver AMD Radeon RX 9070XT White Triple Fan Gaming Edition (RX-97TSWF3W9 V2.0/V3.0)
Cooler Specifications
Dimensions (Complete) (L x W x H): 195.60 x 127.30 x 33.35 mm
Base Material: Chrome-plated copper
Top Material: Acrylic
Terminal Material: Nylon
Connection Thread Material: Brass
Maximum Operating Temperature: 60°C
Pressure Tested: 0.8 bar
Connections: 4 x G1/4″
Base Thickness: 3.25 mm
Fin Thickness: 0.4 mm
Fin Spacing: 0.4 mm

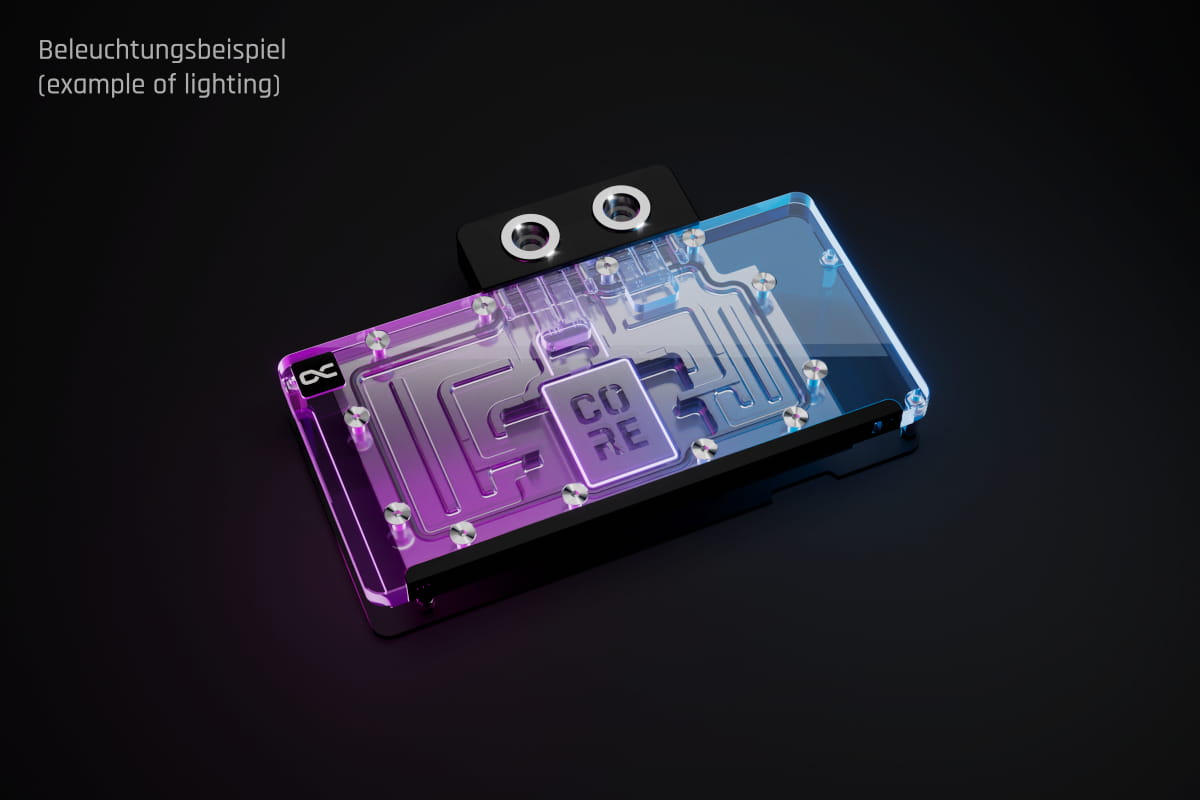

Lighting: Digital aRGB LEDs
Power connection for digital aRGB LEDs: 3-pin JST
Voltage for digital aRGB LEDs: 5V
Number of digital aRGB LEDs: 10
Color: Transparent

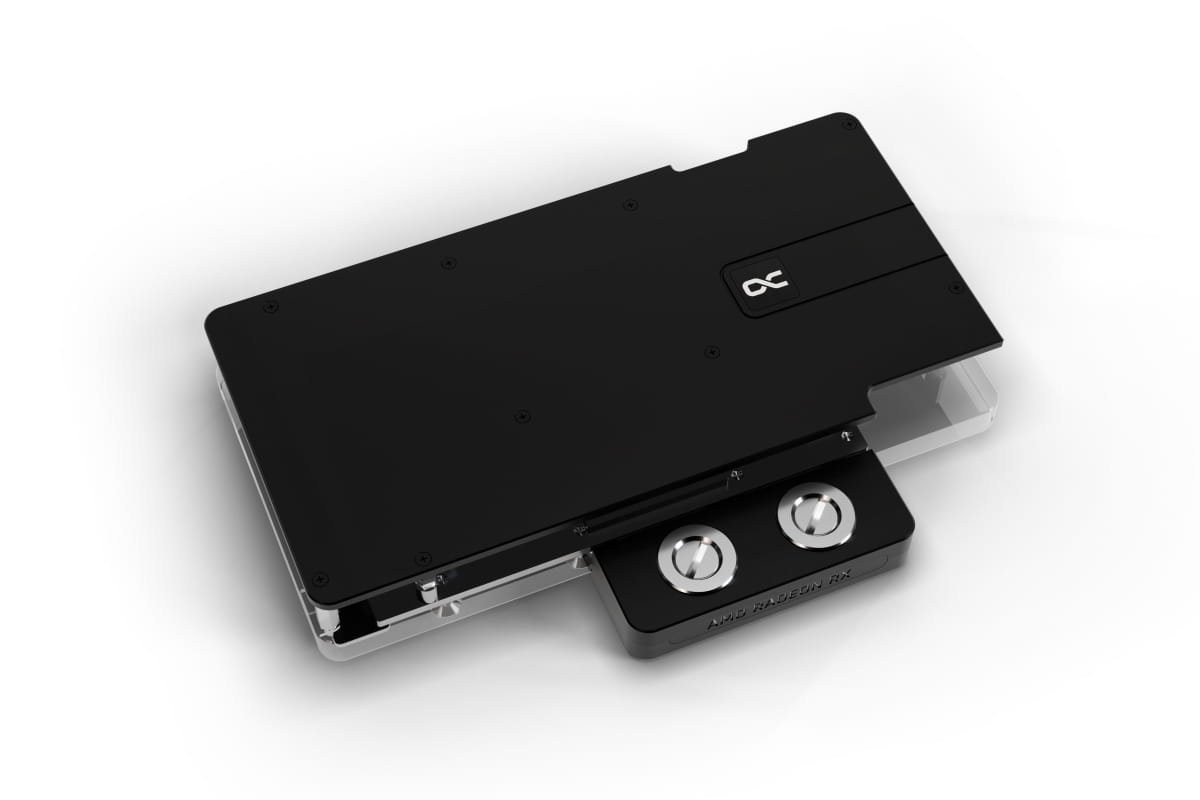

Technical specifications: Backplate
Dimensions (L x W x H): 195.60 x 98.80 x 6.00 mm
Thickness of backplate without spacers: 3 mm
Material: Aluminum
| Product Identification | |
| Article Number | 1026994 |
| Manufacturer Number | 14799 |
| EAN | 4250197147996 |
| Manufacturer Details | |
| Brand | Alphacool |
| Country of Origin | China |
| Compatibility | |
| Hardware Manufacturer | AMD |
| Hardware Model | Radeon RX 9070 XT |
| Dimensions & Weight | |
| Dimensions (L × W × H) | 195.60 × 127.30 × 33.35 mm |
| Weight | 1.45 kg |
| Materials | |
| Bottom Plate Material | Aluminum |
| Connections | |
| Connector Ports | 4 × G1/4″ |
| Availability | |
| Stock Status | In stock (more than 5 items available) |
