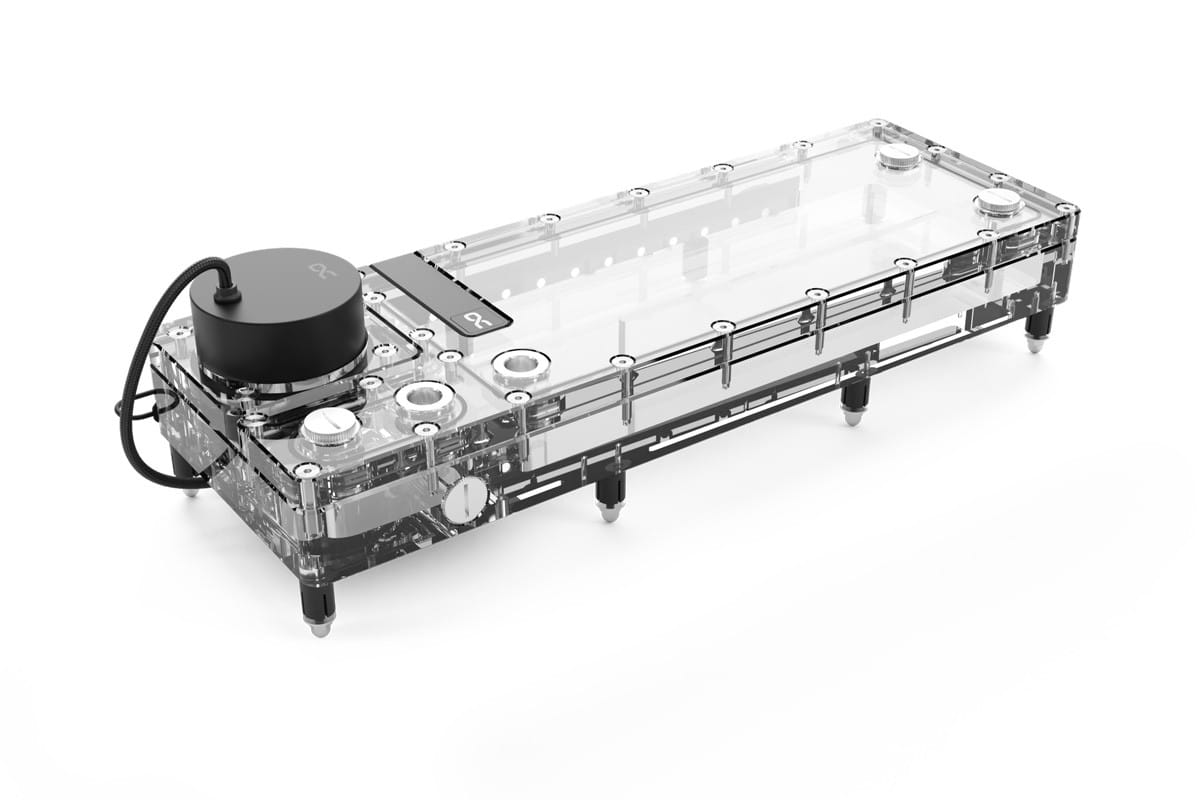

Alphacool Core Flat Reservoir 360 Right with VPP pump

The reservoir is made entirely of acrylic. Due to its flat design, the Core Flat Reservoir also fits in small cases. A VPP Pump is already pre-mounted.

Core Design
A key element of Alphacools Core Design series are the chrome-plated G1/4 connections made of brass. In the Core Flat Reservoir, the connections are recessed rather than screwed into a thread, bypassing the problem of possible leaks due to cracking from the direct screwing of the connections into the acrylic. The connections are in two parts, fitted with an O-ring and counter each other when mounted in the acrylic. This not only ensures absolute sealing of each connection, but also allows for the clear and functional appearance of the Alphacool Core Design series.

Easy installation

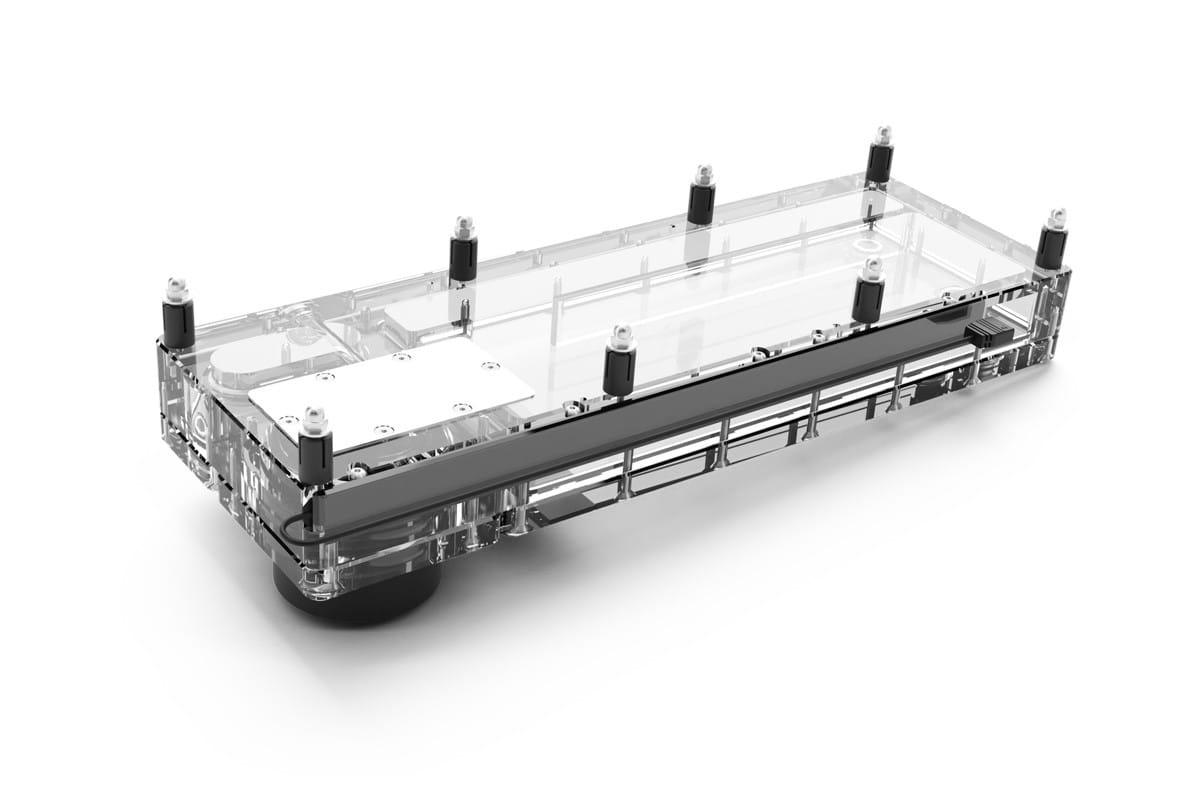

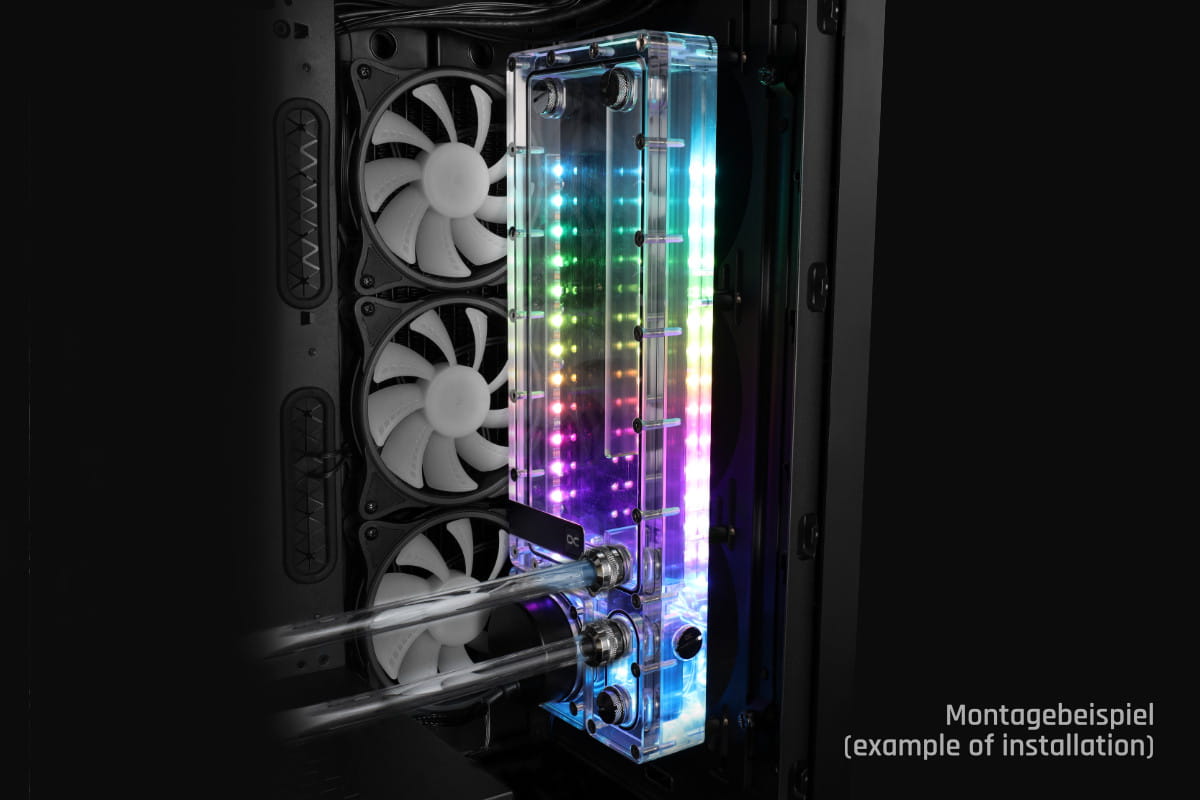

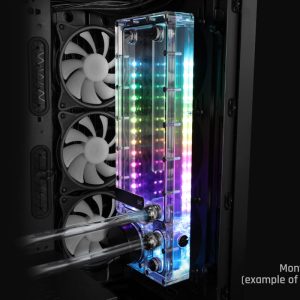

With the included Core Push Mounting kit, the Core Flat Reservoir can be mounted on the case panel or on a radiator. The metal pins are attached to the radiator or case panel and the matching female sleeves are attached to the Flat Reservoir (see manual). In the next installation step, the Flat Reservoir is simply and tool-free pushed onto the pins. Alphacools Push-Mounting allows for a secure fit of the reservoir on the case panel or on the radiator and allows for easy disassembly for maintenance or expansion projects.

Gamechanger
The Core Flat Reservoir is offered as a 240mm or 360mm version, with right positioning of the pump top. This makes the reservoir ideal for custom water loops. An additional drain port is located on the side, allowing for easy and uncomplicated draining of the Flat Reservoir.

High-quality material selection & brilliant lighting

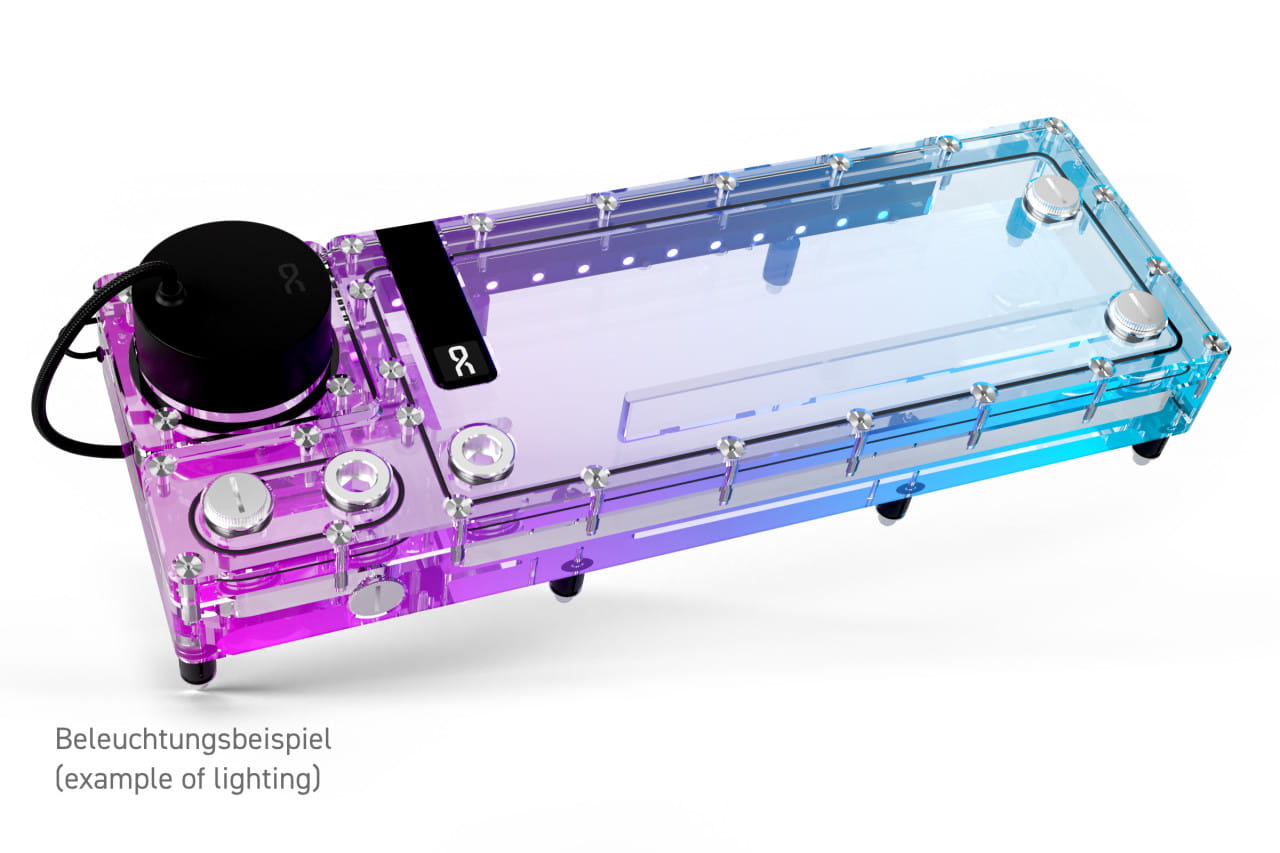

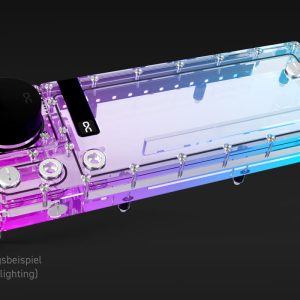

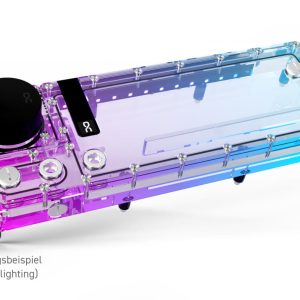

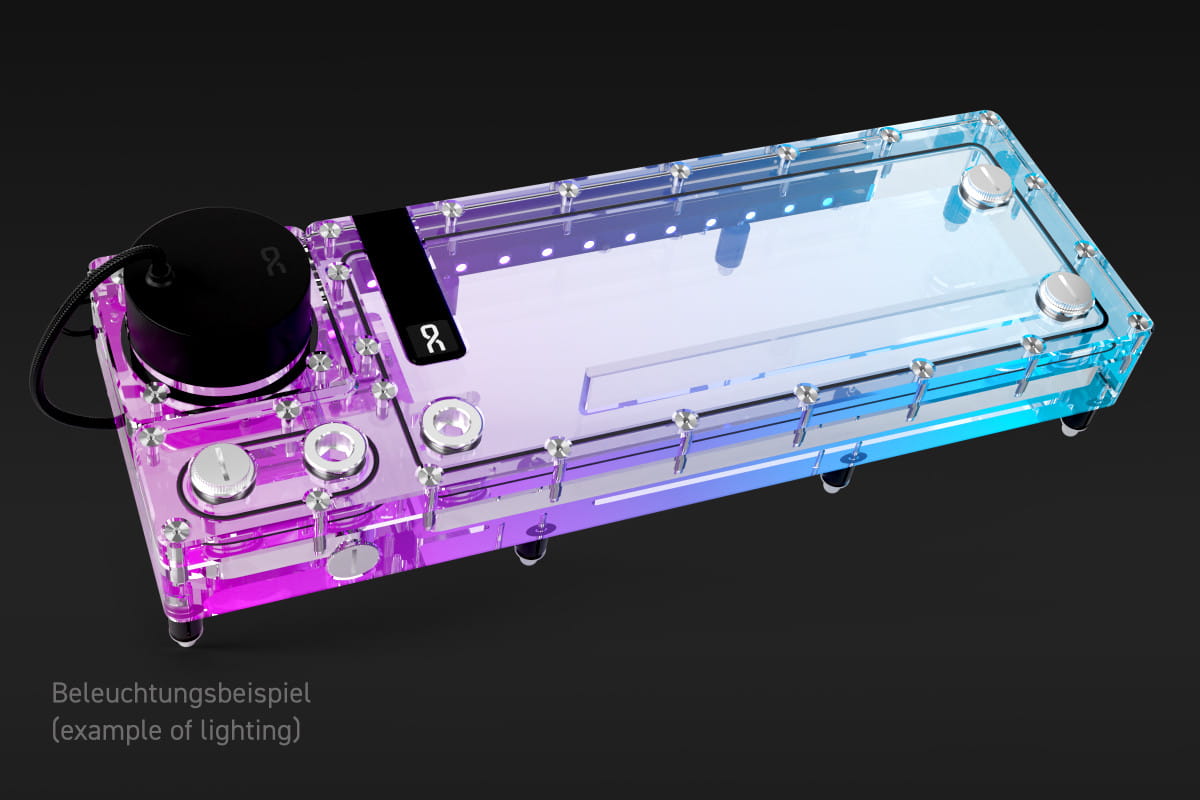

Alphacools Core Flat Reservoir is made of high-quality acrylic glass, allowing for an unobstructed view of the coolant and brilliant illumination by the built-in digital addressable aRGB LEDs. The lighting can be controlled via a digital aRGB header on the motherboard or optionally through Alphacools Aurora Eiscontrol aRGB controller (item number: 15360).

Compatibility:
– Can be mounted on the radiator or panel

Technical data
– Dimensions (L x W x H) 360,00 x 125,00 x 45,14mm
– Volume (reservoir) 500ml
– Material Acryl
– Pump compatibility D5/VPP
– Threads 5x G1/4 inner thread / 1x drain port
– Maximum working temperature 60 degreesC
– Pressure tested 0,8 Bar
– Quantity digital aRGB LEDs 17
– Voltage digital aRGB LEDs 5V
– Power connection digital aRGB LEDs 3-Pin JST + 3-Pin 5V
– Color transparent

Technical data pump
– Dimensions (Flat Reservoir with pump) (L x W x H) 360,00 x 125,00 x 91,79mm
– Material pump synthetic material
– Material pump cover aluminium
– Material axle ceramics
– Connections 4-Pin PWM | SATA
– Rotational speed 2500 – 4500 RPM
– Cable lengths 4-Pin PWM – 48cm | SATA – 48cm
– Operating voltage 8-13V DC / 14W IP32
– Starting voltage 12V DC
– Maximum pumping head 4,25m
– Maximum flow rate 340L/h
– Maximum working temperature 60 degreesC
– Weight 276g
– Color black

Warranty: 3 years
???? Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturers warranty as well.
