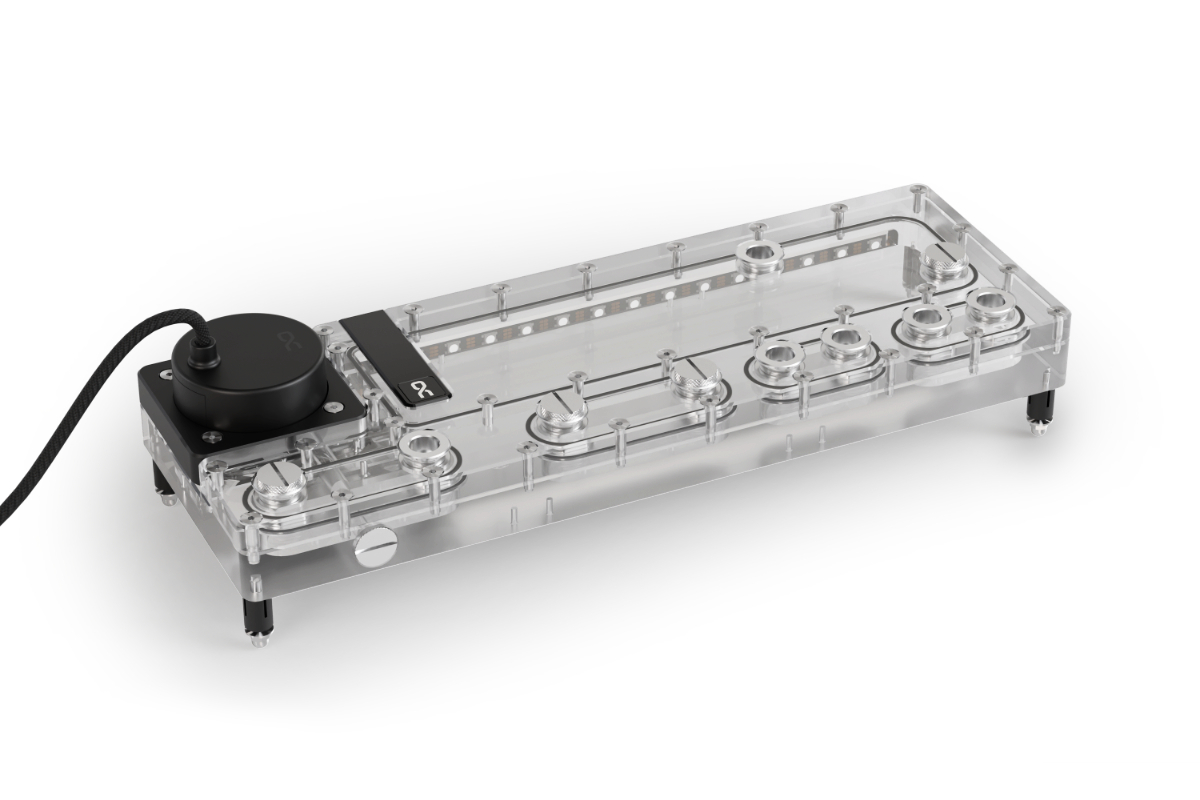

Alphacool Core Distro Plate V.2 (360mm) with VPP Apex Pump
The 360mm version of the Core Distro Plate V.2 is the ultimate distribution hub for large-scale custom loops. With its redesigned layout and the powerful VPP Apex pump, it offers maximum flexibility for integrating CPUs and multiple GPUs.
Alphacool Core Distro Plate V.2 (360mm) with VPP Apex Pump
The 360mm version of the Core Distro Plate V.2 is the ultimate distribution hub for large-scale custom loops. With its redesigned layout and the powerful VPP Apex pump, it offers maximum flexibility for integrating CPUs and multiple GPUs.
Alphacool Core Distro Plate V.2 (360mm) with VPP Apex Pump
The 360mm version of the Core Distro Plate V.2 is the ultimate distribution hub for large-scale custom loops. With its redesigned layout and the powerful VPP Apex pump, it offers maximum flexibility for integrating CPUs and multiple GPUs.
Alphacool Core Distro Plate V.2 (360mm) with VPP Apex Pump
The 360mm version of the Core Distro Plate V.2 is the ultimate distribution hub for large-scale custom loops. With its redesigned layout and the powerful VPP Apex pump, it offers maximum flexibility for integrating CPUs and multiple GPUs.
Highlights at a Glance:
– Smart Brass Fittings: Chrome-plated G1/4″ threads are embedded directly into the acrylic and counter-locked. This eliminates the risk of stress cracks and ensures absolute leak-tightness.
– Space-Saving & Efficient: Thanks to the slim design and 10 strategically placed ports, you can achieve extremely clean tubing paths.
– VPP Apex Power: The smooth-running pump with a ceramic shaft features precise PWM control and is reliably powered via a SATA connector.
– Push Mounting System: The included kit enables easy installation on radiators or chassis panels and quick removal for maintenance.

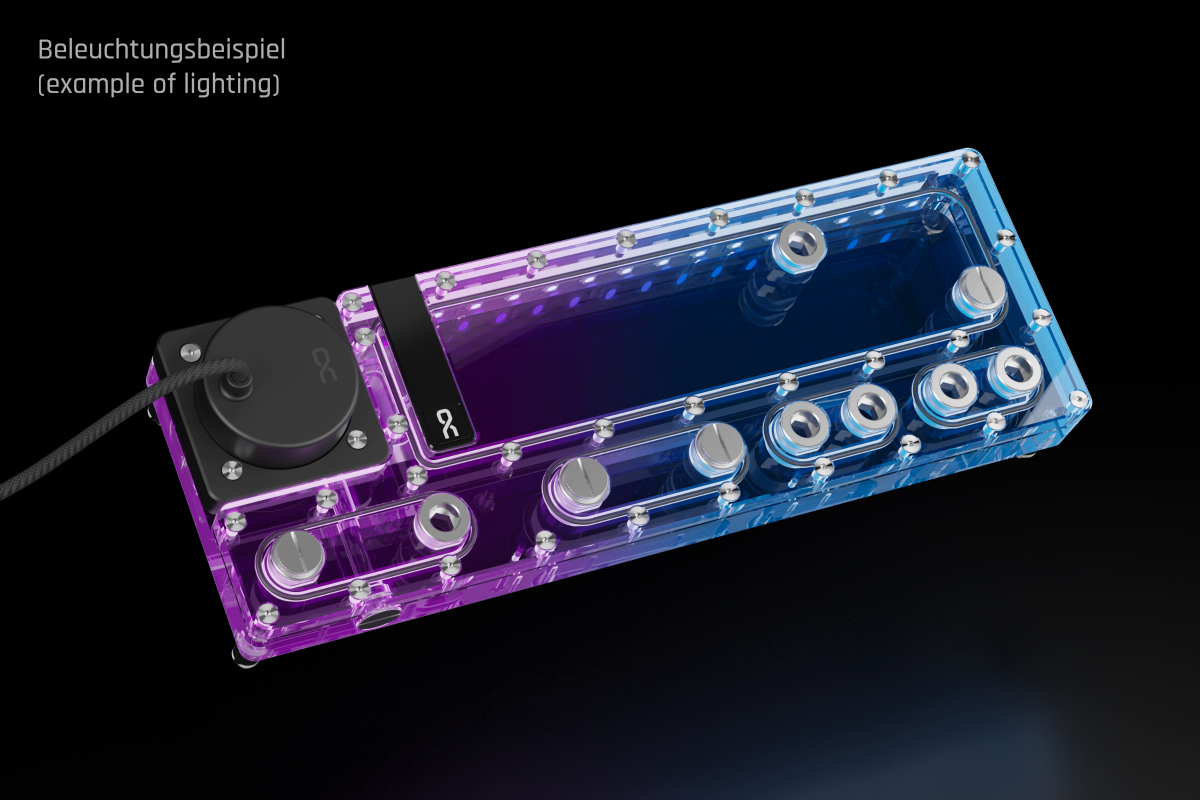

– Stunning Aesthetics: 19 digital aRGB LEDs illuminate the transparent acrylic and can be controlled via standard controllers or the motherboard.
– Easy Maintenance: A dedicated lateral drain port allows for controlled and easy draining of the loop.
| Dimensions (L x W x H) | 360 x 125 x 34.5 mm (without accessories) |
|---|---|
| Ports | 10x G1/4″ female thread | 1x Drain port |
| Volume | 190 ml |
| Pump | VPP Apex (2500 – 4500 RPM, 4.25m head) |
| Lighting | 19x digital aRGB LEDs (5V) |
| Note | Use only with clear coolants. Pastel fluids may damage the system and void the 3-year warranty. |
£259.98£216.65 Inc VatEx Vat
