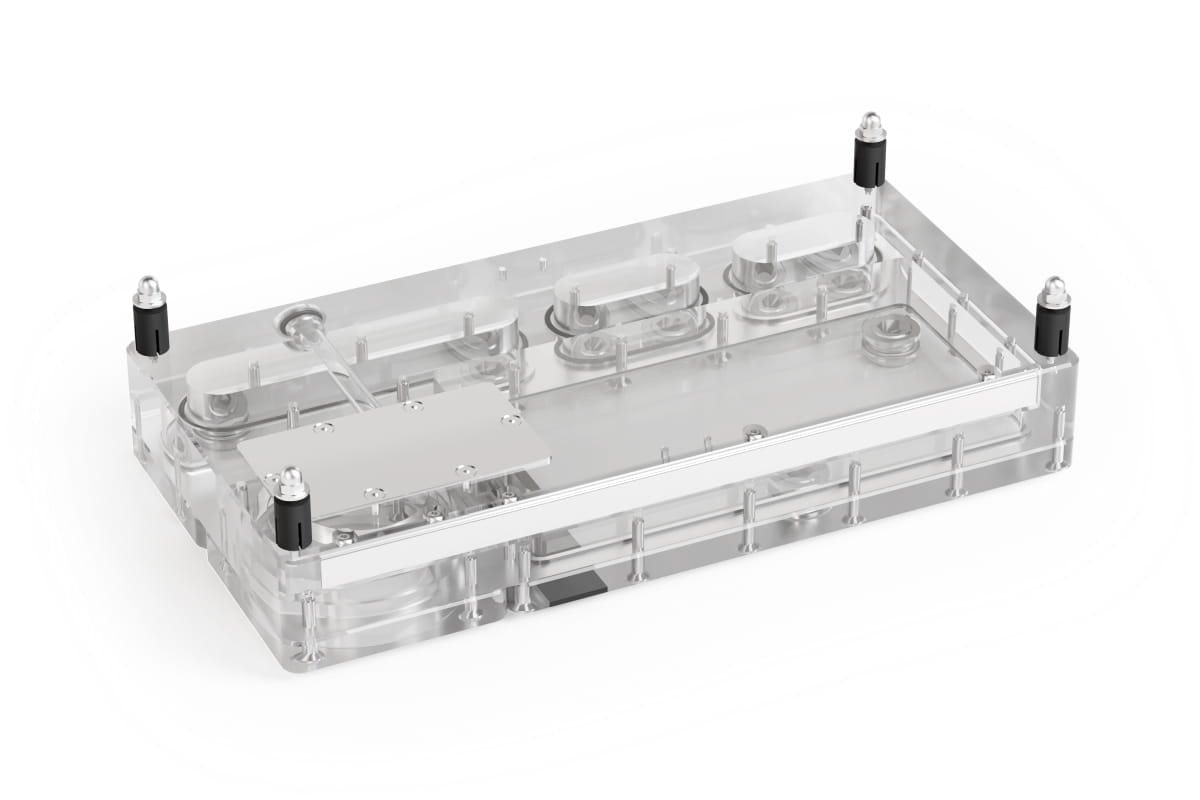

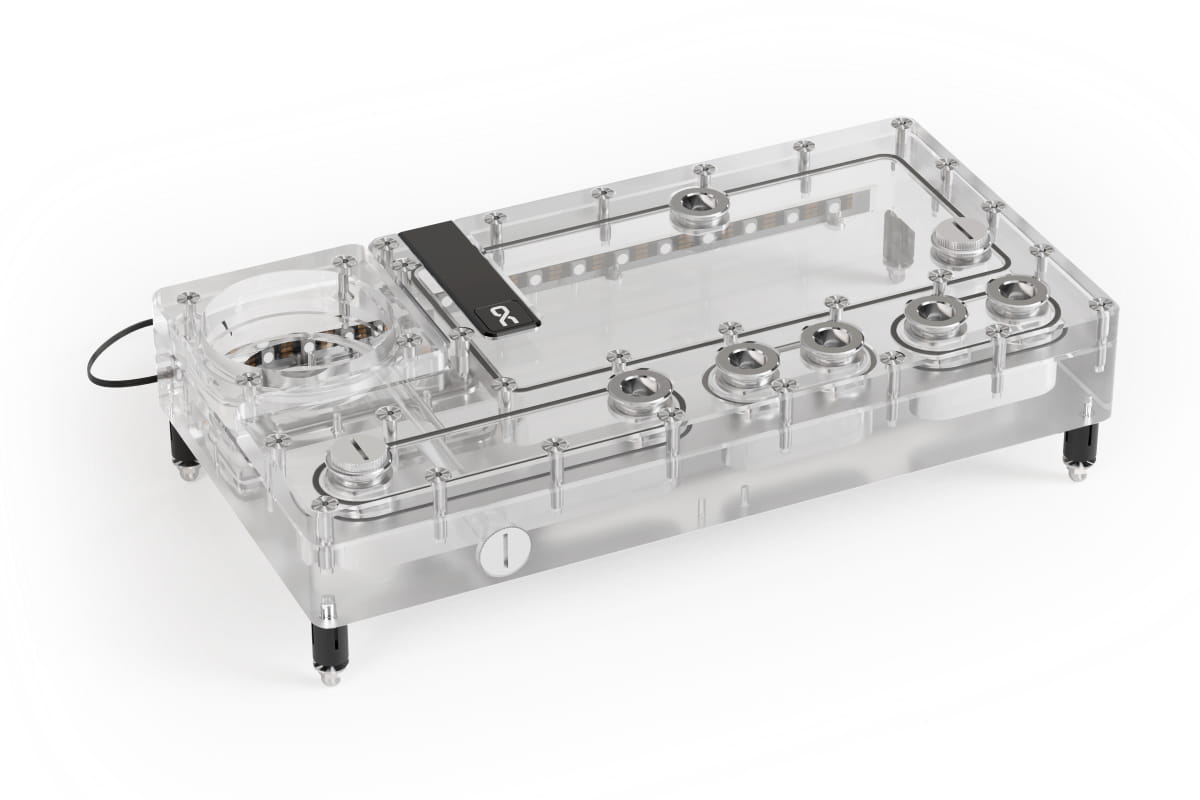

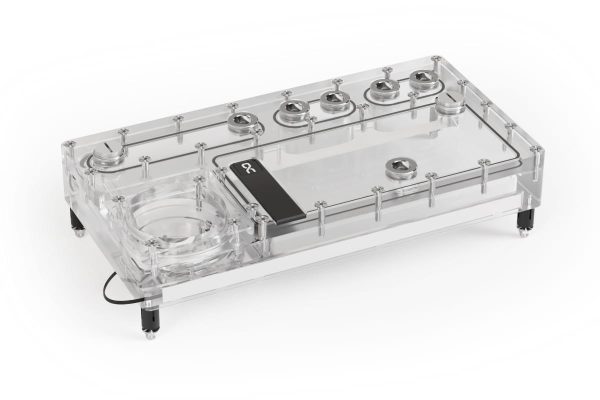

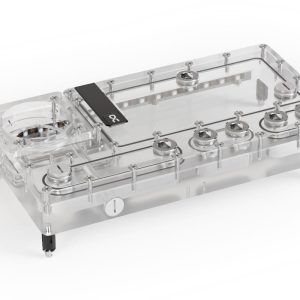

The Alphacool Core Distro Plate is an absolute must-have for all custom water cooling systems! With its core design, it is not only an absolute eye-catcher, but also a functional masterpiece that makes the construction and planning of complex water circuits easier and offers uncomplicated assembly.
The Alphacool Core Distro Plate is an absolute must-have for all custom water cooling systems! With its core design, it is not only an absolute eye-catcher, but also a functional masterpiece that makes the construction and planning of complex water circuits easier and offers uncomplicated assembly.
The Alphacool Core Distro Plate is an absolute must-have for all custom water cooling systems! With its core design, it is not only an absolute eye-catcher, but also a functional masterpiece that makes the construction and planning of complex water circuits easier and offers uncomplicated assembly.
The Alphacool Core Distro Plate is an absolute must-have for all custom water cooling systems! With its core design, it is not only an absolute eye-catcher, but also a functional masterpiece that makes the construction and planning of complex water circuits easier and offers uncomplicated assembly.
The Distro Plate is made of high-quality acrylic glass and has chrome-plated G1/4 brass connections. These were recessed and deliberately not screwed in to reduce the risk of cracks and leaks and at the same time increase stability. In addition, the connections are split in two and have an O-ring that ensures maximum tightness.

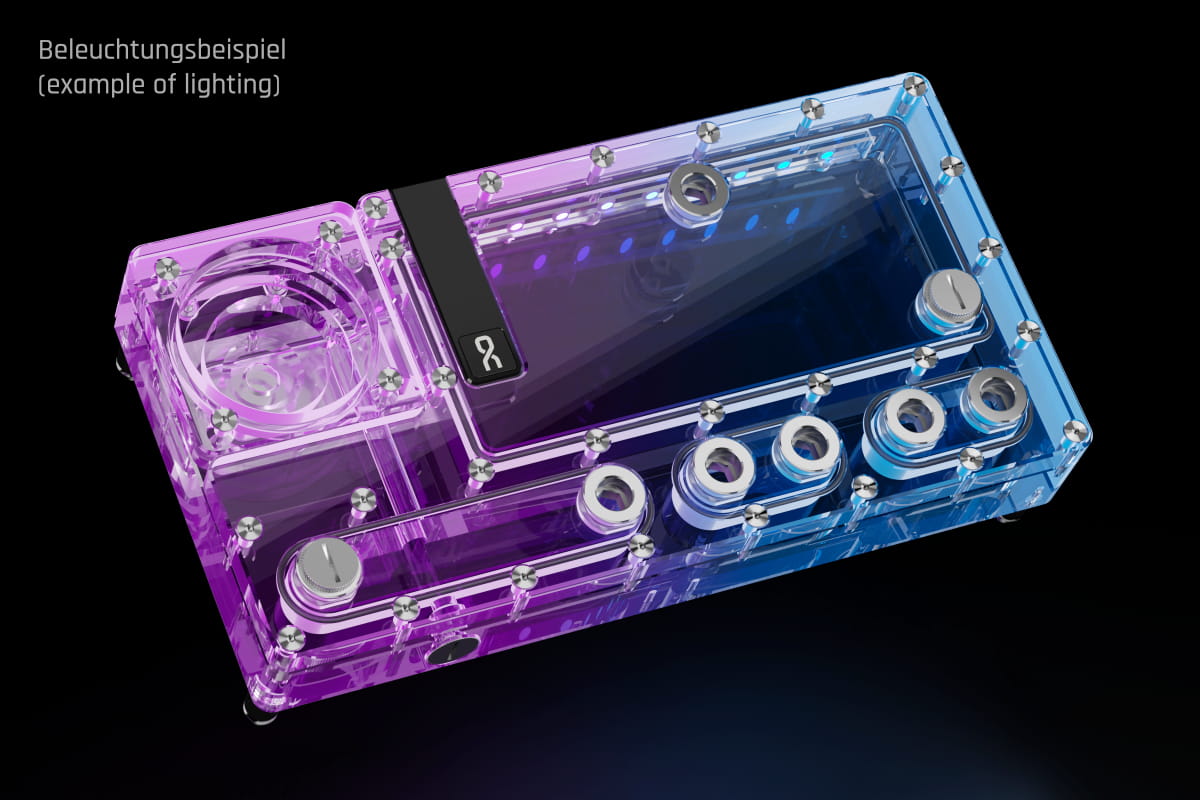

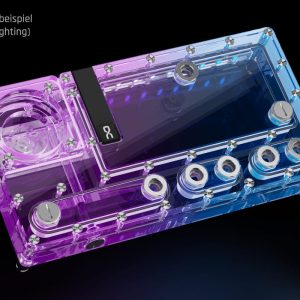

The arrangement of the connections is designed in such a way that it not only enables optimal hose routing, but also offers an attractive appearance. This is complemented by its integrated aRGB lighting, which delivers impressive visual effects. The lighting can be controlled either via a digital aRGB header on the mainboard or optionally via the Alphacool Aurora Eiscontrol aRGB controller (item no.: 15360).
The delivery includes the Alphacool Core Push Mounting Kit, which makes mounting the distro plate much easier. To do this, the metal pins are attached to the radiator or the panel of the PC case and the matching female sleeves are attached to the distro plate so that you only have to put them on the pins. The system ensures that the distro plate is securely in place and enables easy removal for maintenance or extensions. A detailed description can be found in the enclosed instructions.
Note on use
Please only use in conjunction with clear, transparent water cooling fluids. The particles and additives in pastel fluids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can also result in the manufacturers warranty being voided.
Technical Details
| General | |
| Dimensions (L × W × H) | 280.00 × 145.00 × 42.00 mm |
| With Pump | 280.00 × 145.00 × 61.00 mm |
| With Push Mounting | 280.00 × 145.00 × 72.80 mm |
| With Pump + Push Mounting | 280.00 × 145.00 × 88.80 mm |
| Color | Transparent |
| Volume | 360 ml |
| Weight Without Pump | 1594 g |
| Weight With Pump | 1870 g |
| Max. Working Temperature | 60 °C |
| Pressure Tested | 0.8 bar |
| Materials | |
| Body Material | Acrylic |
| Connections | |
| Threads | 8 × G1/4 internal / 1 × drain port |
| Pump Compatibility | D5 / VPP |
| RGB Lighting | |
| Number of LEDs | 12 |
| Voltage | 5V |
| Connector | 3-Pin JST + 3-Pin 5V |
| Warranty | |
| Duration | 3 years |
| Conditions | ? |
£180.65£150.54 Inc VatEx Vat
