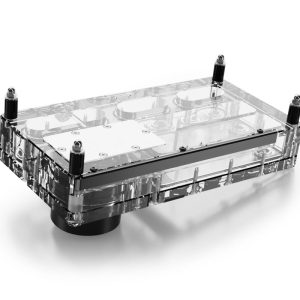

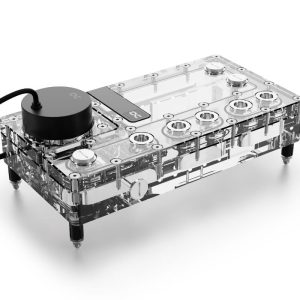

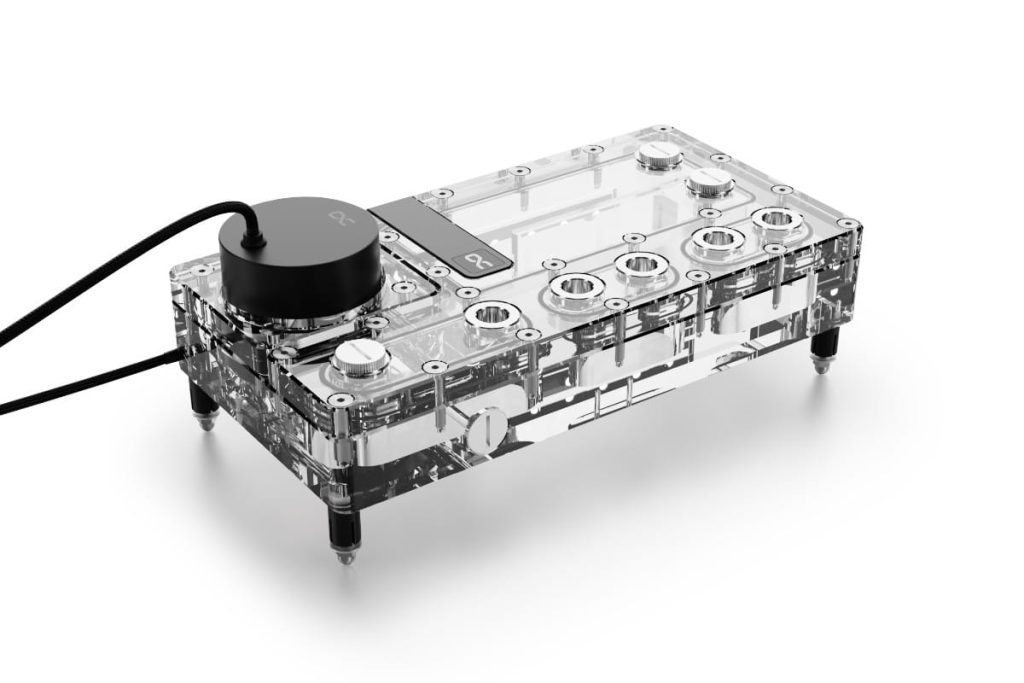

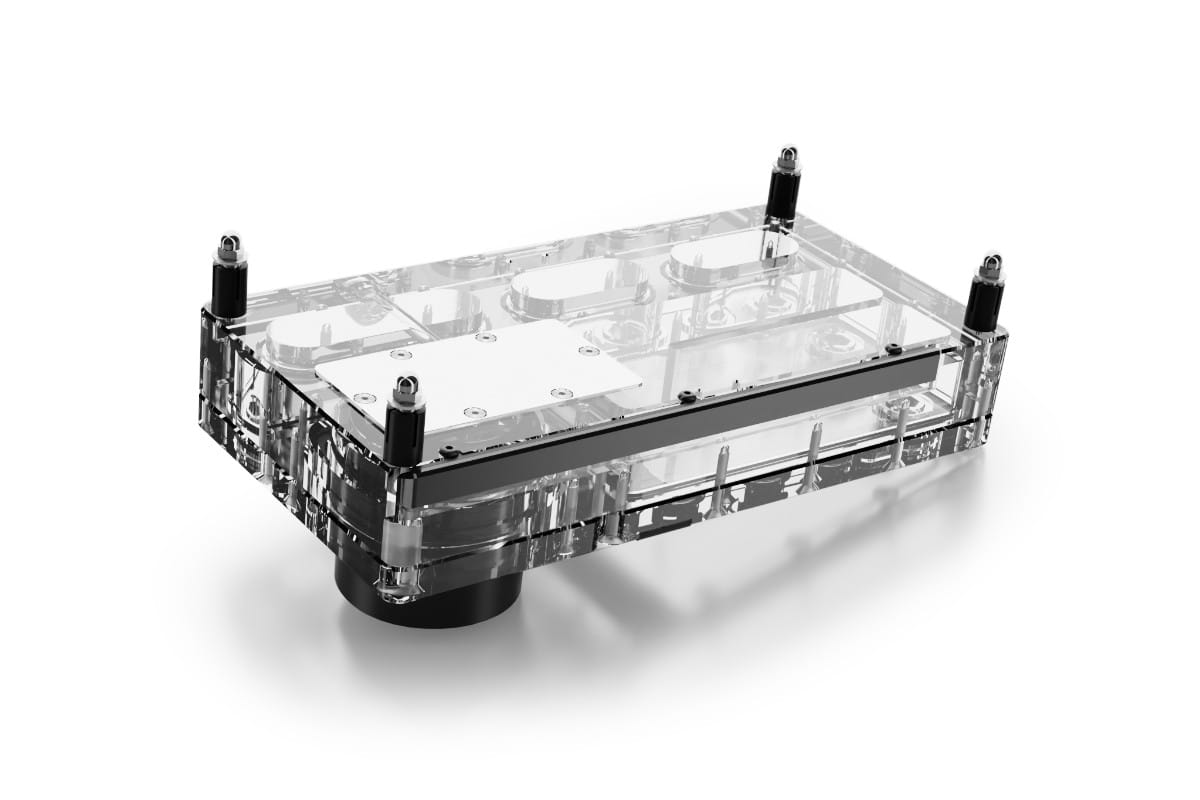

Alphacool Core Distro Plate 240 Right with VPP Pump and aRGB Lighting

Additionally, the VPP Apex ensures stable and quiet flow.

Core Design!
A key element of the Alphacool Core Design series are the chrome-plated G1/4 brass fittings. With the Core Distro Plate, the fittings are simply embedded and not screwed into a thread as usual, in order to avoid possible leaks due to cracking from direct threading into the acrylic. The two-piece fittings are equipped with an O-ring and counter each other during assembly in the acrylic, allowing for not only absolute tightness, but also a clear and functional look for the Alphacool Core Design series.

Easy installation

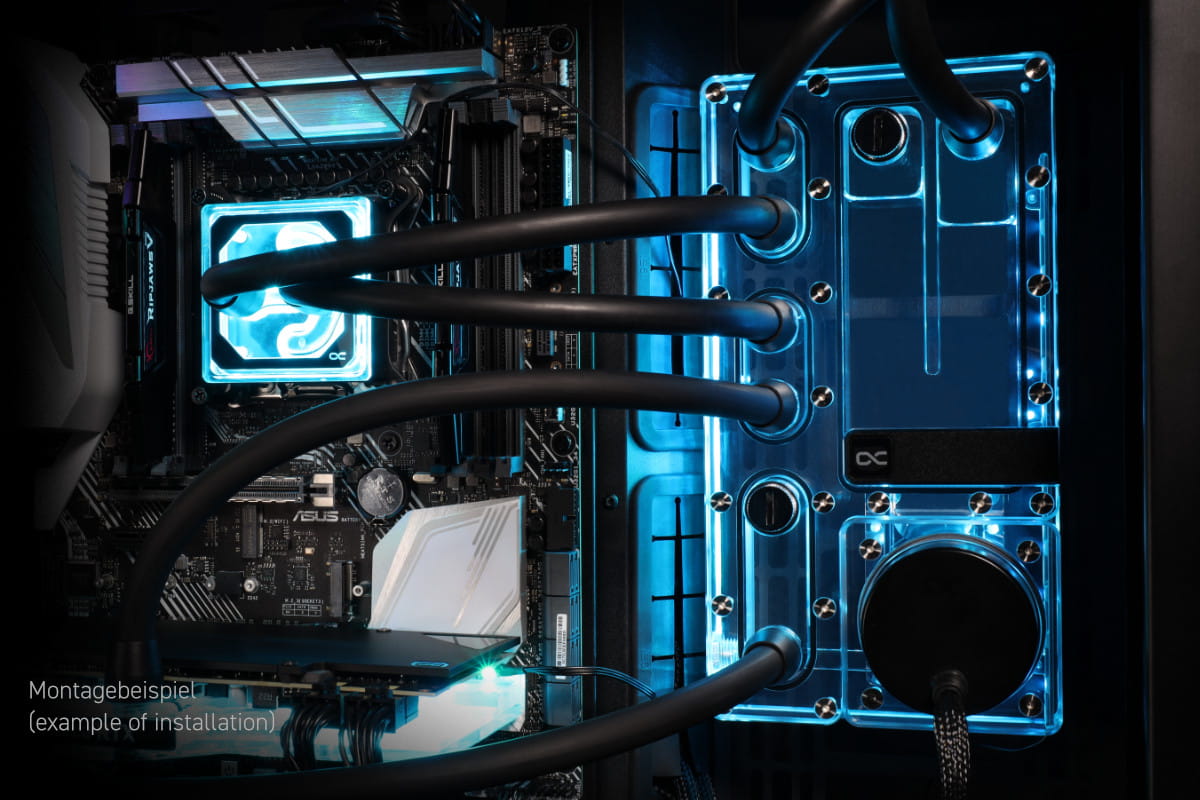

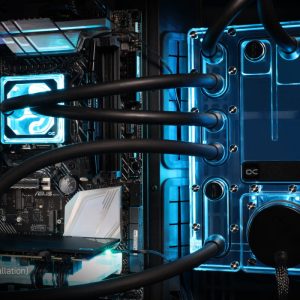

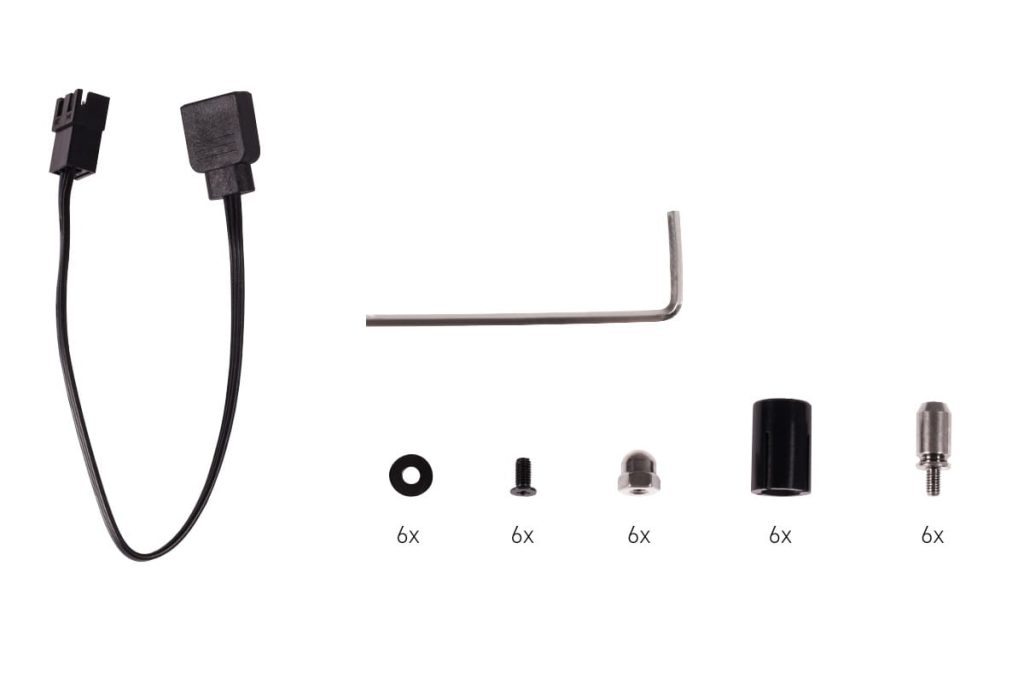

The Distro Plate can be easily and tool-free mounted to the case panel or radiator with the included Core Push Mounting kits. Alphacools Push Mounting allows for a secure fit of the Distro Plate on the case panel or radiator, and allows for easy removal for maintenance or expansion.

Gamechanger
The Core Distro Plate features an integrated reservoir and integrated VPP Apex pump, and is offered in 240mm or 360mm versions with left or right positioning of the pump top. This makes the Distro Plate ideal for custom water loops where the CPU and graphics card(s) should be cooled simultaneously. Thanks to the arrangement of the G1/4 fittings, complicated hose paths are a thing of the past. In addition, there is an additional drain port on the side, which allows for easy and uncomplicated emptying of the Distro Plate.

High-quality material selection & brilliant illumination

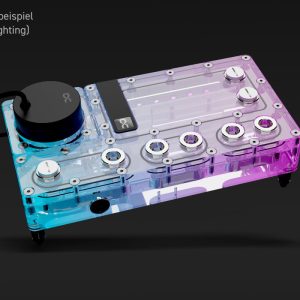

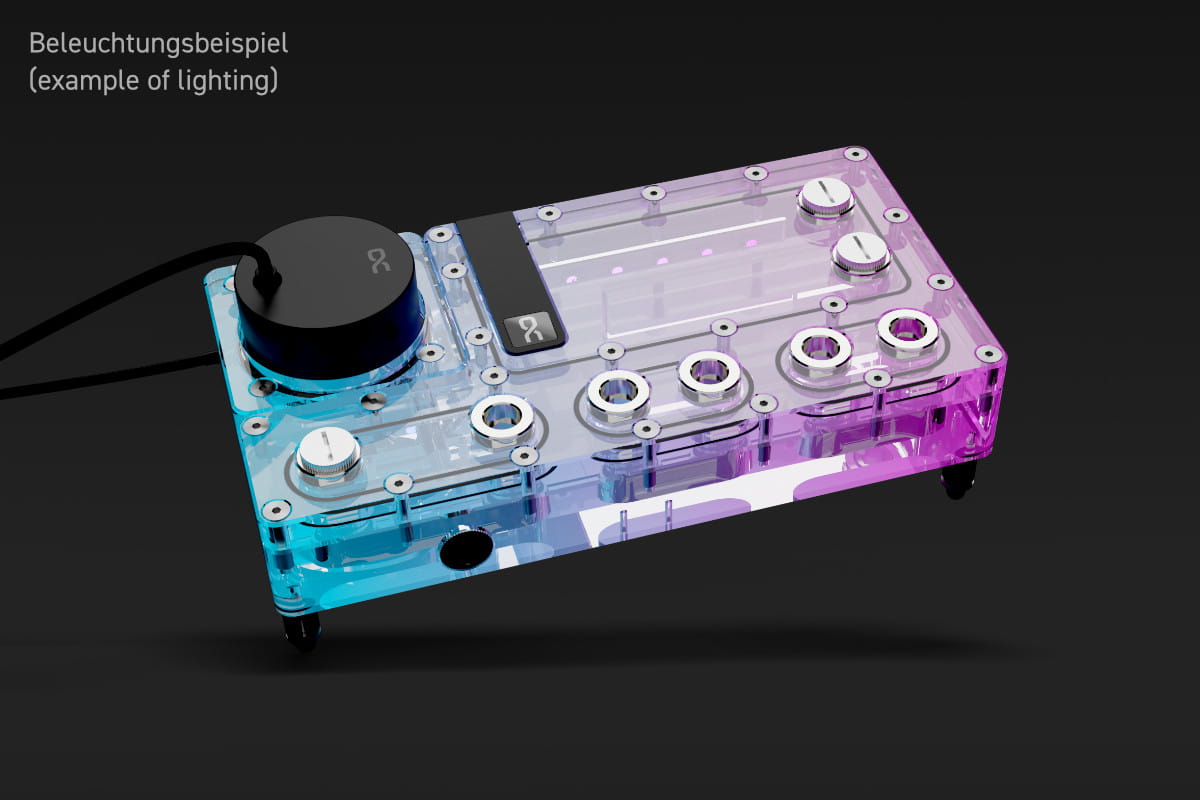

The Alphacool Core Distro Plate is made of high-quality acrylic glass, which allows for an unobstructed view of the coolant and creates a brilliant color display through the built-in digital addressable aRGB lighting. The lighting can be controlled via a digital aRGB header on the motherboard or optionally through Alphacools Aurora Eiscontrol aRGB controller (part number: 15360).

The pump
The Alphacool Apex VPP pump eschews a spherical bearing and instead uses a ceramic shaft. The motor coils were laid from the inside out to make the pump more stable and quiet, and to significantly reduce vibrations. Another positive side effect is that power consumption was nearly halved.

Control
The Apex VPP pump features a 4-pin fan connector that is connected to the motherboard or an external controller. This allows for PWM control and reading of the pumps speed range. The pump is powered by a SATA connector on the power supply.

Compatibility:
– Can be mounted on the radiator or panel

Technical data pump
– Dimensions (Distro Plate with pump) (L x W x H) 240 x 125 x 93,31mm
– Material pump synthetic material
– Material pump cover aluminium
– Material axle ceramics
– Connections 4-Pin PWM | SATA
– Rotational speed 2500 – 4500 RPM
– Cable lengths 4-Pin PWM – 48cm | SATA – 48cm
– Operating voltage 8-13V DC / 14W IP32
– Starting voltage 12V DC
– Maximum pumping head 4,25m
– Maximum flow rate 340L/h
– Maximum working temperature 60 degreesC
– Weight 276g
– Color black

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturers warranty as well.
