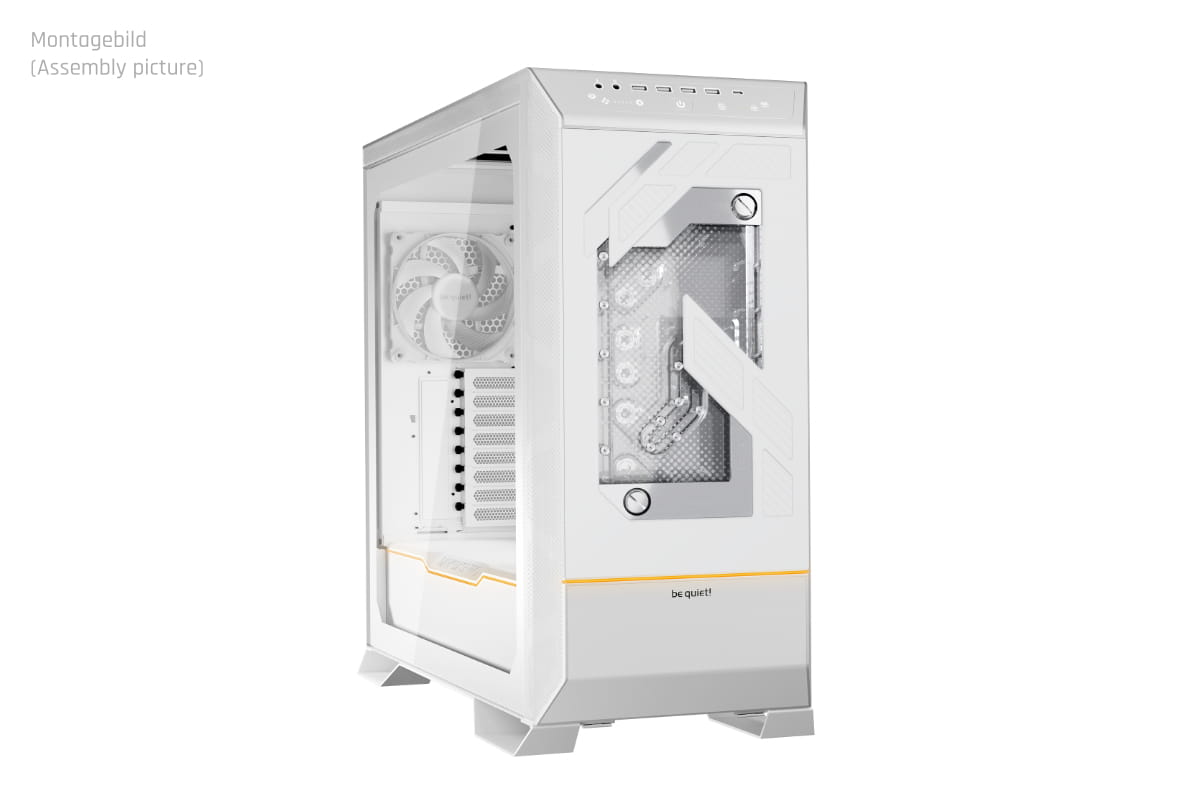

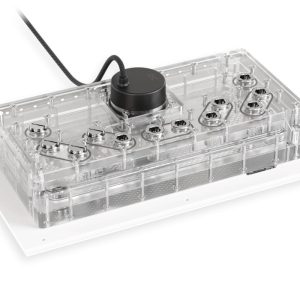

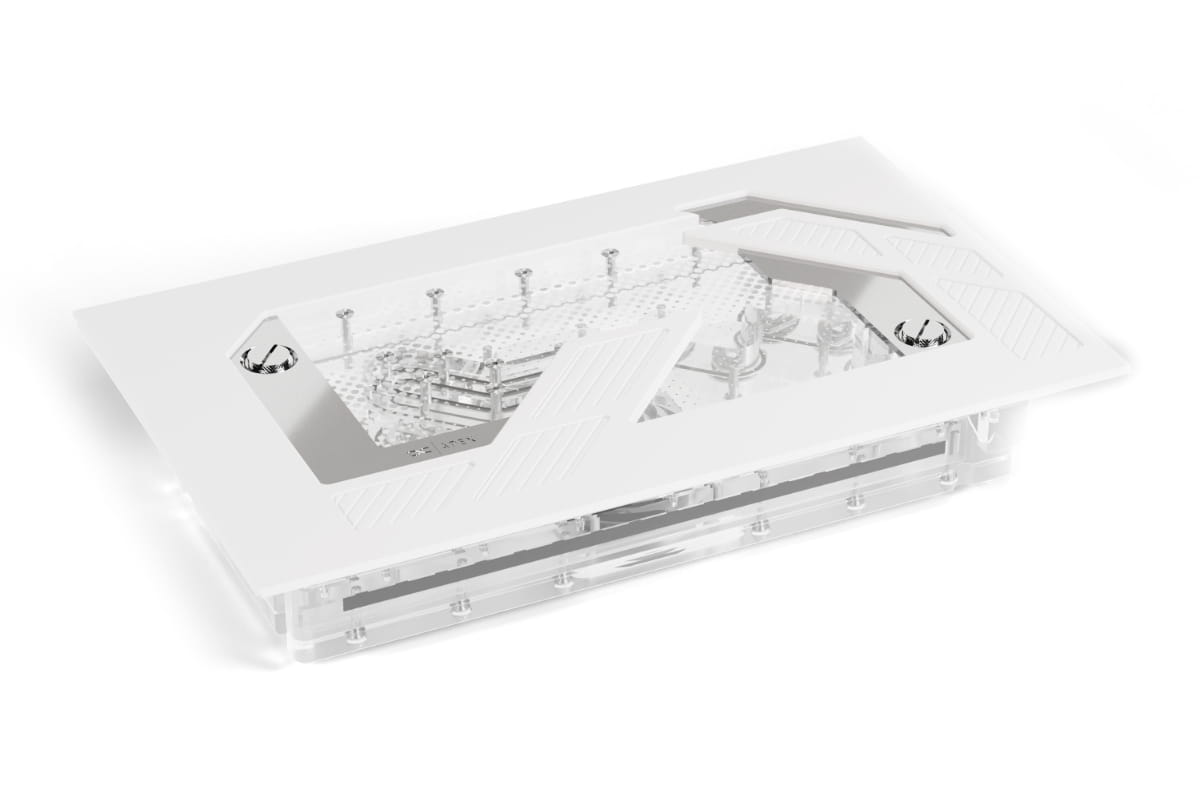

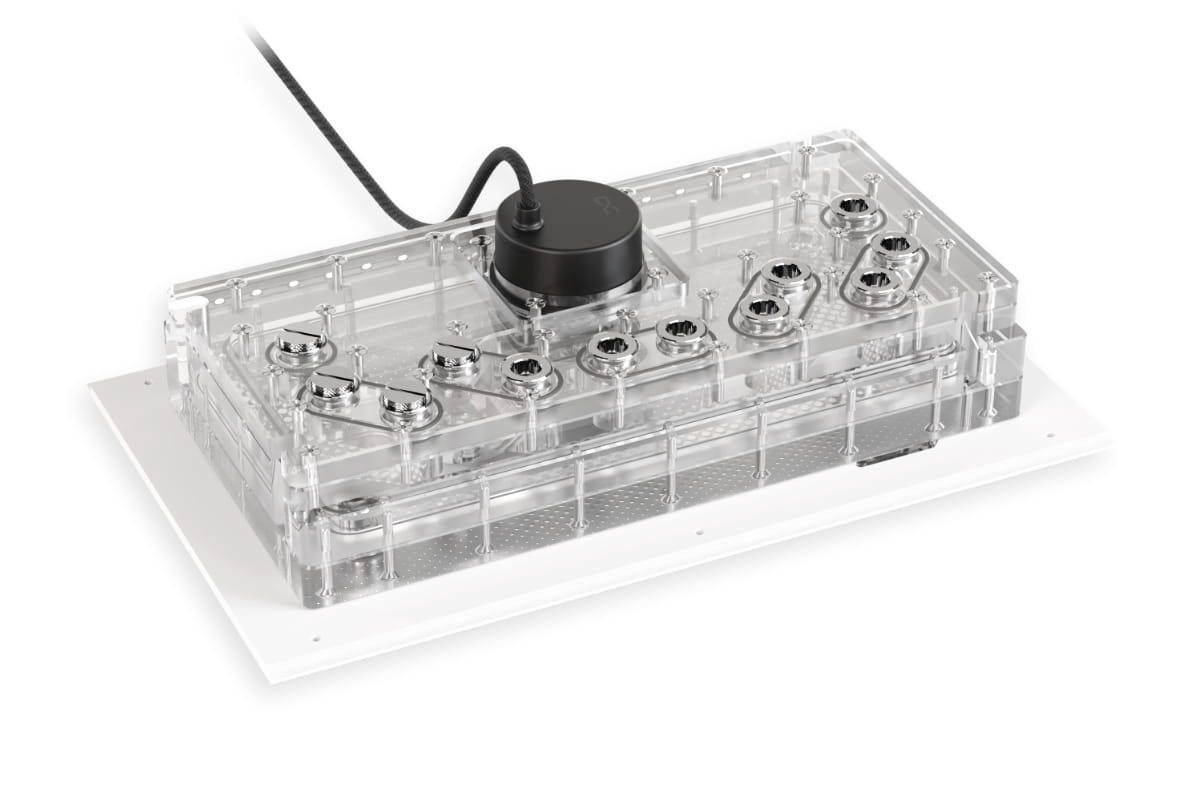

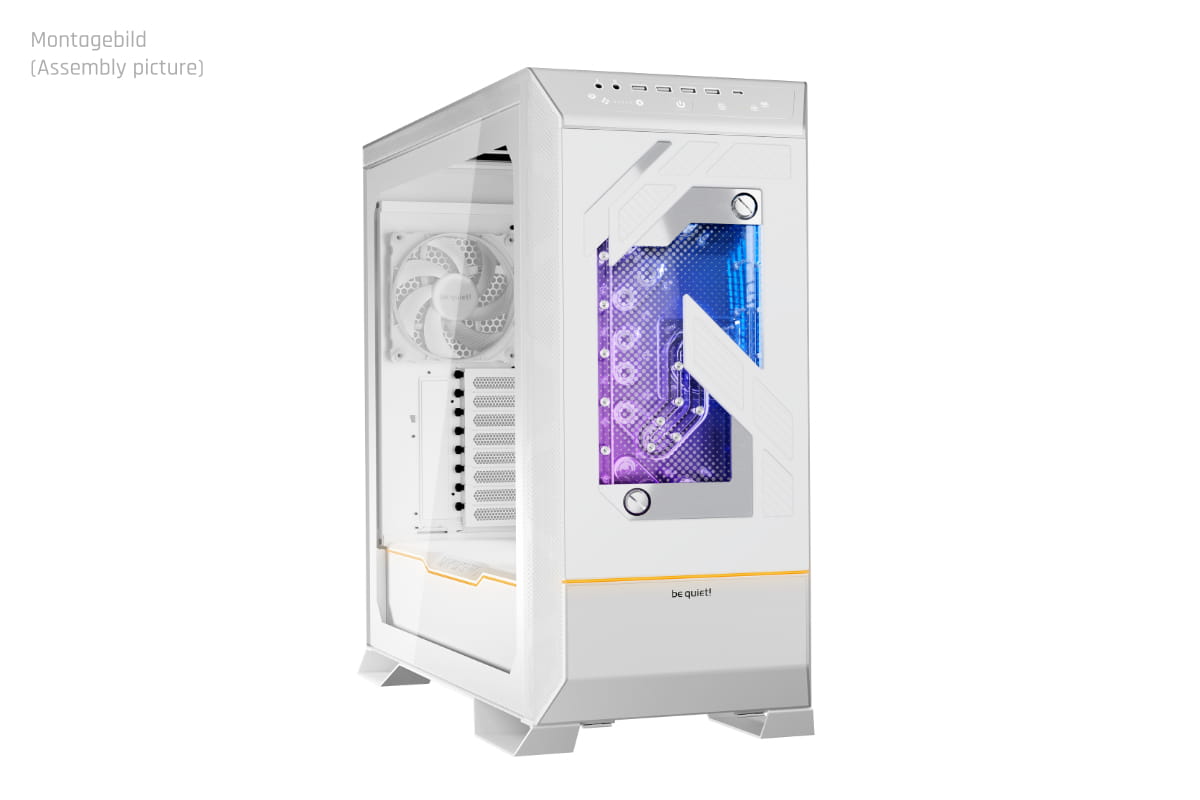

The Alphacool Apex Distro Plate is the ultimate visual upgrade for the Dark Base Pro 901. Specifically designed for this case, it replaces the front cover and takes any custom water cooling setup to the next level. A must-have for those who want to combine top performance with premium design.
The Alphacool Apex product line stands for absolute perfection. Crafted with premium materials and advanced engineering, the Distro Plate guarantees a truly high-end product. The chrome-plated G1/4 fittings, made from solid brass, prevent leaks caused by cracks as they are not screwed directly into the acrylic. Instead, the two-piece fittings feature an O-ring and interlock during installation, ensuring a secure and reliable seal within the acrylic.
The Alphacool Apex Distro Plate is the ultimate visual upgrade for the Dark Base Pro 901. Specifically designed for this case, it replaces the front cover and takes any custom water cooling setup to the next level. A must-have for those who want to combine top performance with premium design.
The Alphacool Apex product line stands for absolute perfection. Crafted with premium materials and adva...
The Alphacool Apex Distro Plate is the ultimate visual upgrade for the Dark Base Pro 901. Specifically designed for this case, it replaces the front cover and takes any custom water cooling setup to the next level. A must-have for those who want to combine top performance with premium design.
The Alphacool Apex product line stands for absolute perfection. Crafted with premium materials and adva...
The Alphacool Apex Distro Plate is the ultimate visual upgrade for the Dark Base Pro 901. Specifically designed for this case, it replaces the front cover and takes any custom water cooling setup to the next level. A must-have for those who want to combine top performance with premium design.
The Alphacool Apex product line stands for absolute perfection. Crafted with premium materials and advanced engineering, the Distro Plate guarantees a truly high-end product. The chrome-plated G1/4 fittings, made from solid brass, prevent leaks caused by cracks as they are not screwed directly into the acrylic. Instead, the two-piece fittings feature an O-ring and interlock during installation, ensuring a secure and reliable seal within the acrylic.

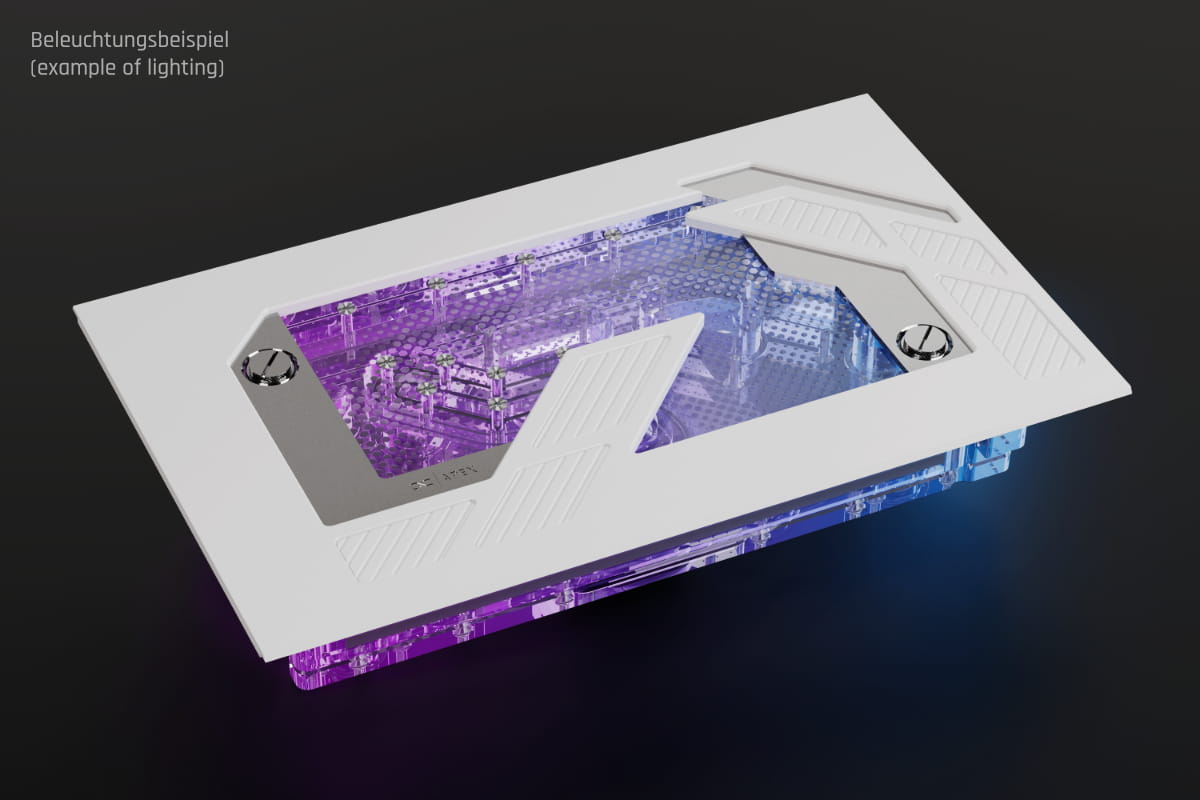

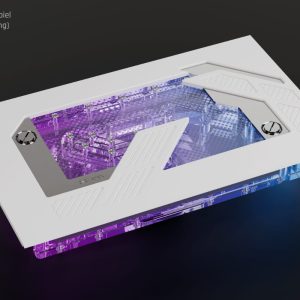

Made from high-grade acrylic glass, the Apex Distro Plate offers a clear view of the water cooling loop. Its integrated aRGB lighting creates an impressive play of colors, perfectly showcasing the case. The Distro Plate is available in two variants that differ only in color. Both the black and white versions perfectly match the Dark Base Pro 901s case colors and blend seamlessly into the design.
The Dark Base Pro 901 case offers numerous customization options, including an inverted layout. The Apex Distro Plate is perfectly adapted to these configurations. To ensure maximum flexibility, the Distro Plate features additional, specially designed ports that can be easily used even when the cases interior is built in an inverted orientation. The Distro Plate replaces the front cover and can be securely and easily mounted using the included M4x16 screws and mounting brackets. For an inverted layout, the Distro Plate must be rotated 180 degrees.
Note: The Apex Distro Plate for the Dark Base Pro 901 is exclusively compatible with this case.
Technical data pump
Material pump synthetic material
Material pump cover aluminium
Material axle ceramics
Connections 4-Pin PWM | SATA
Rotational speed 2500 – 4500 RPM
Cable lengths 4-Pin PWM – 48cm | SATA – 48cm
Operating voltage 8-13V DC / 14W IP32
Starting voltage 12V DC
Maximum pumping head 4,25m
Maximum flow rate 340L/h
Maximum working temperature 60 degreesC
Color black
| General | |
| Product Type | Reservoir / Pump Combo |
| Dimensions & Volume | |
| Total Dimensions (L × W × H) | 365.10 × 222 × 86.06 mm |
| Volume | 433 ml |
| Materials | |
| Material | Acrylic |
| Pump & Threads | |
| Pump Compatibility | VPP / D5 |
| Thread Ports | 12 × G1/4 + 1 fill port + 1 drain port |
| Maximum Working Temperature | 60 °C |
| Pressure Tested | 0.8 bar |
| Lighting | |
| Illumination | Digital aRGB LEDs |
| LED Count | 16 |
| LED Power | 5 V |
| Power Connector | 3-Pin JST + 3-Pin 5V |
| Other | |
| Weight | 3600 g |
| Color / Finish | White |
£355.90£296.58 Inc VatEx Vat
