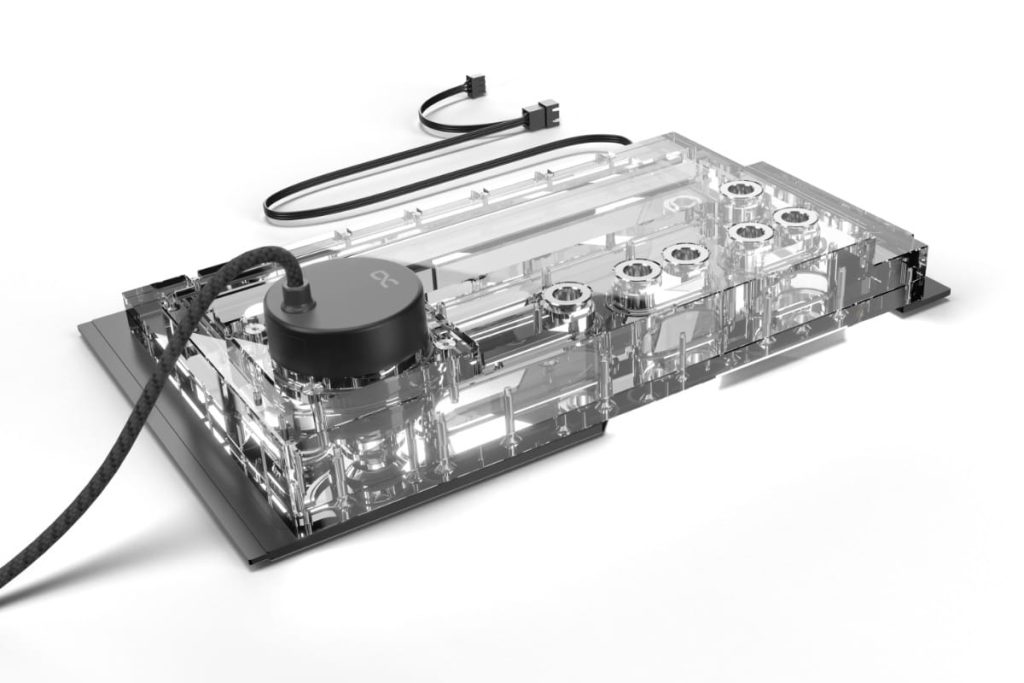

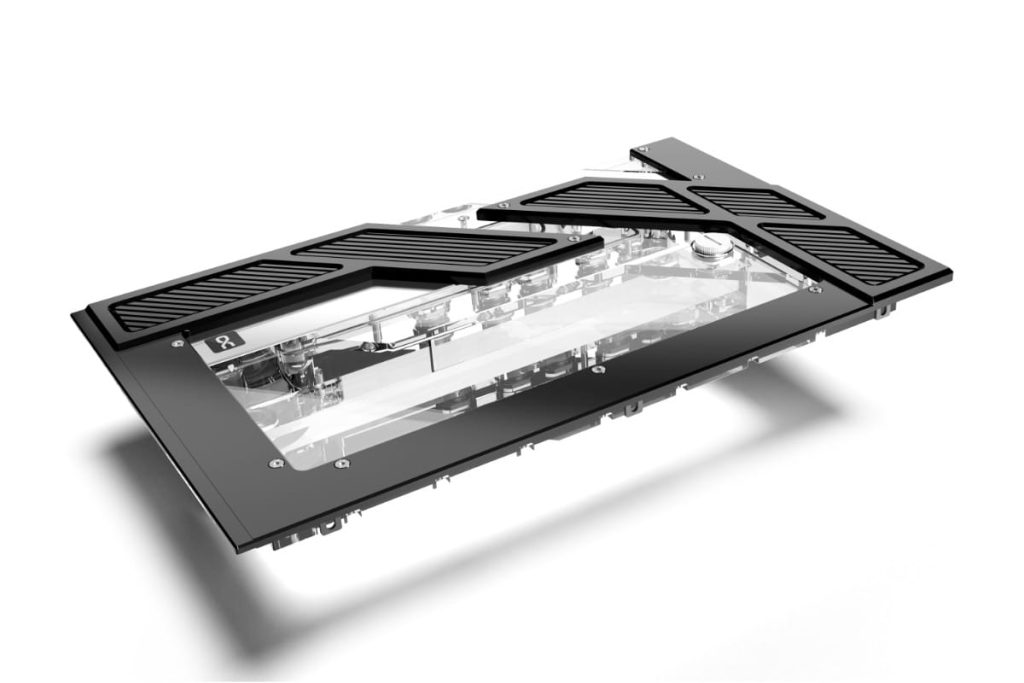

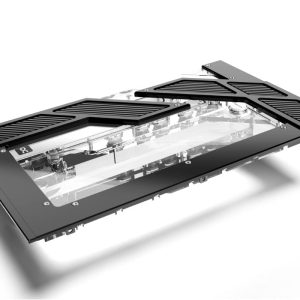

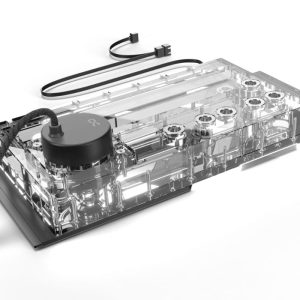

The Alphacool Apex Distro Plate is the visual upgrade for the Y60. It was specially designed for this case and replaces the front glass panel. A must-have for every custom water cooling system.
Apex Design
The Apex product line from Alphacool represents the highest level of perfection. First-class materials and innovative technologies guarantee a unique, premium product. A core element is the chrome-plated brass G1/4 connections. In this way, Alphacool avoids the problem of possible leaks due to cracking caused by screwing the connections directly into the acrylic. The connections are in two parts, fitted with an O-ring and counter each other when installed in the acrylic.
The Alphacool Apex Distro Plate is the visual upgrade for the Y60. It was specially designed for this case and replaces the front glass panel. A must-have for every custom water cooling system.
Apex Design
The Apex product line from Alphacool represents the highest level of perfection. First-class materials and innovative technologies guarantee a unique, premium product. A core element is the ...
The Alphacool Apex Distro Plate is the visual upgrade for the Y60. It was specially designed for this case and replaces the front glass panel. A must-have for every custom water cooling system.
Apex Design
The Apex product line from Alphacool represents the highest level of perfection. First-class materials and innovative technologies guarantee a unique, premium product. A core element is the ...
High-quality choice of materials & brilliant lighting

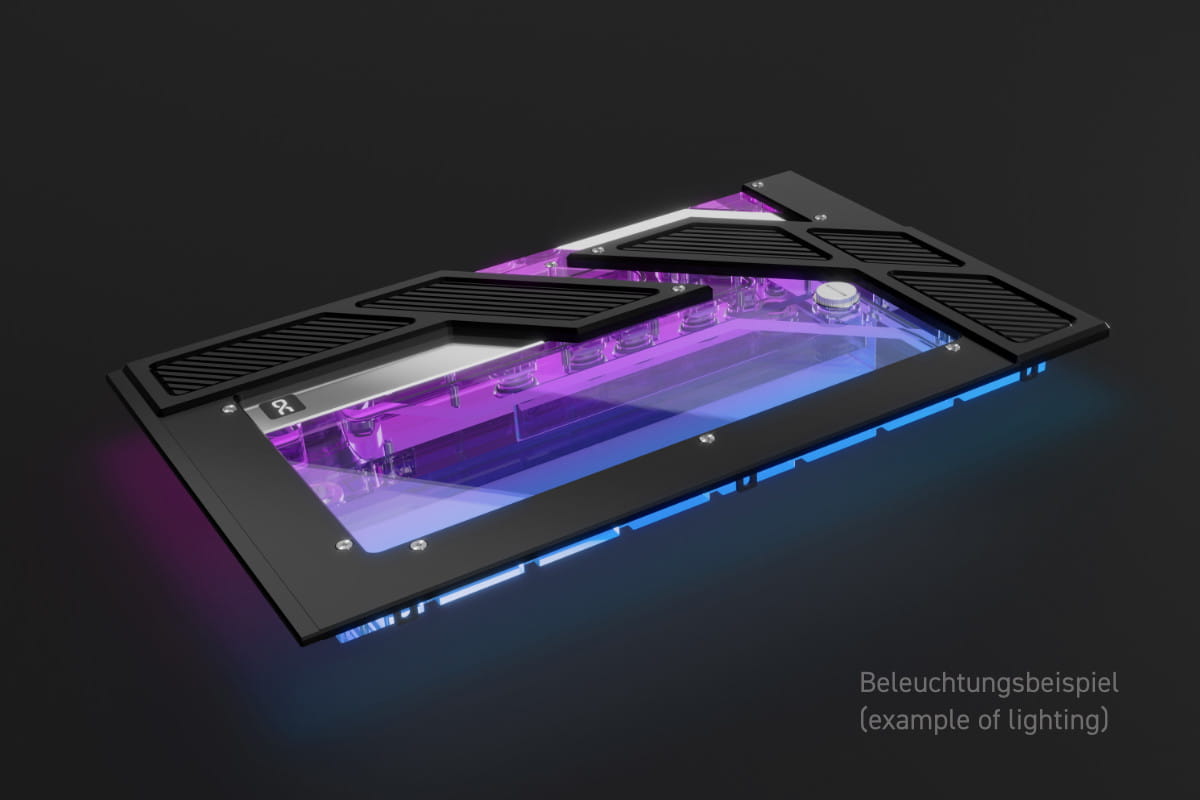

Alphacools Apex Distro Plate is made from high-quality acrylic glass. This allows a clear view of the coolant and enables brilliant illumination thanks to the built-in digitally addressable aRGB lighting. The lighting can be controlled via a digital aRGB header on the mainboard or optionally via Alphacools Aurora Eiscontrol aRGB controller (article no.: 15360).
Easy installation

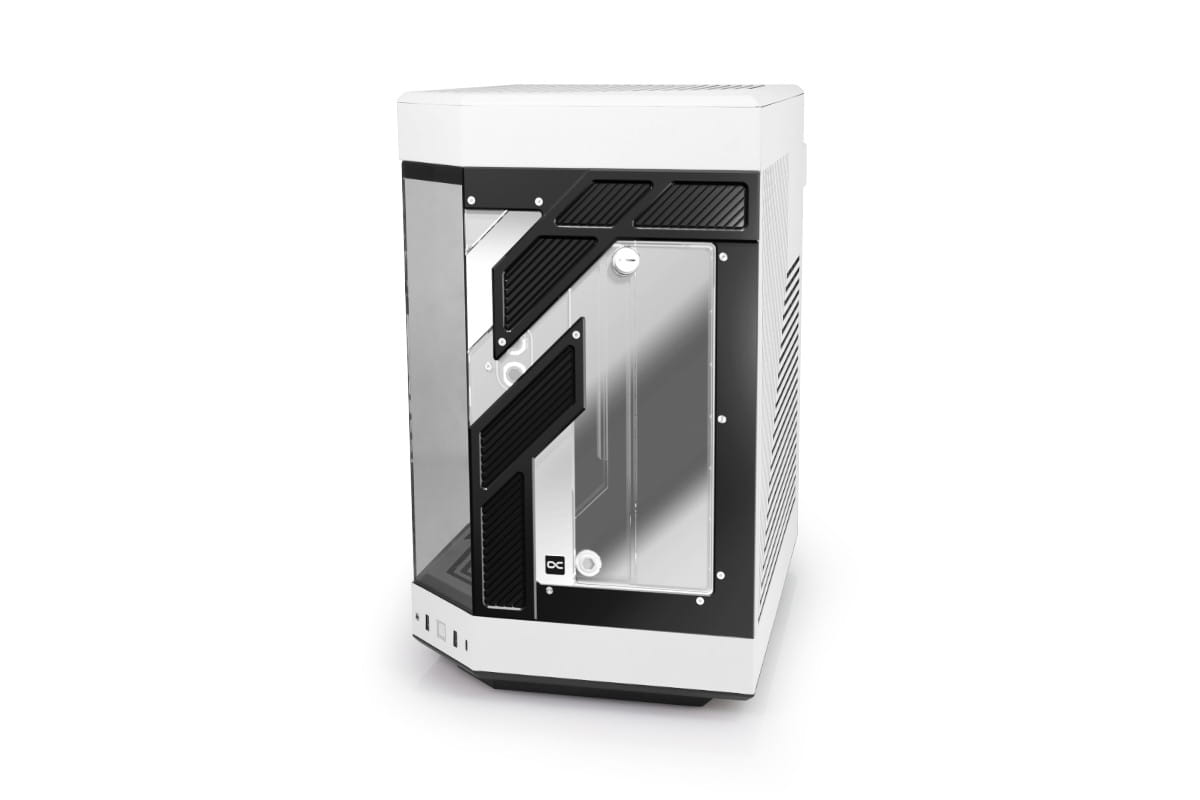

The Alphacool Apex Distro Plate Y60 replaces the front glass panel of the Y60 housing and is easy to install. It is mounted in place of the glass panel and securely fastened using the original screws. After installation, the distro plate is connected to the water cooling loop.
Note: The Apex Distro Plate Y60 is only compatible with the Y60 housing.
Attention: It is not possible to mount the Distro Plate if a 140 mm or 280 mm radiator is attached to the side.
Compatibility:
– Y60 Case
Technical data pump
Material pump synthetic material
Material pump cover aluminium
Material axle ceramics
Connections 4-Pin PWM | SATA
Rotational speed 2500 – 4500 RPM
Cable lengths 4-Pin PWM – 48cm | SATA – 48cm
Operating voltage 8-13V DC / 14W IP32
Starting voltage 12V DC
Maximum pumping head 4,25m
Maximum flow rate 340L/h
Maximum working temperature 60 degreesC
Color black
Warranty: 3 years
| General Specifications | |
|---|---|
| Dimensions (L × W × H) | 344.5 × 213.5 × 87.3 mm |
| Volume | Approx. 300 ml |
| Weight | 3000 g |
| Color | Transparent |
| Material & Compatibility | |
| Material | Acrylic |
| Pump Compatibility | VPP / D5 |
| Threads & Ports | |
| Threads | 6 × G1/4 |
| Additional Ports | 1 × Fill Port, 1 × Drain Port |
| RGB & Electrical | |
| aRGB LEDs | 11 × Digital aRGB |
| aRGB Voltage | 5V |
| aRGB Connector | 3-Pin JST + 3-Pin 5V |
| Operating Limits | |
| Max. Working Temperature | 60 °C |
| Pressure Tested | 0.8 bar |
£192.84£160.70 Inc VatEx Vat
