The EK-Quantum Torque Pass-Through G1/4 - Nickel is a panel-mounted adapter fitting.
- SKU: WAEK-2675
- MPN: 3831109905449
- EAN: 3831109905449
The DeltaMate fittings are water cooling hose connectors for the individual components of a custom water cooling system. Manufactured from brass with the usual Thermal Grizzly quality, the fittings are machined with precision. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being both harder and more corrosion-resistant than copper. The robust design of the DeltaMate fittings allows for installation using an 8 mm internal hex key. The uniform external diameter of all DeltaMate connectors enables seamless integration of the individual products.

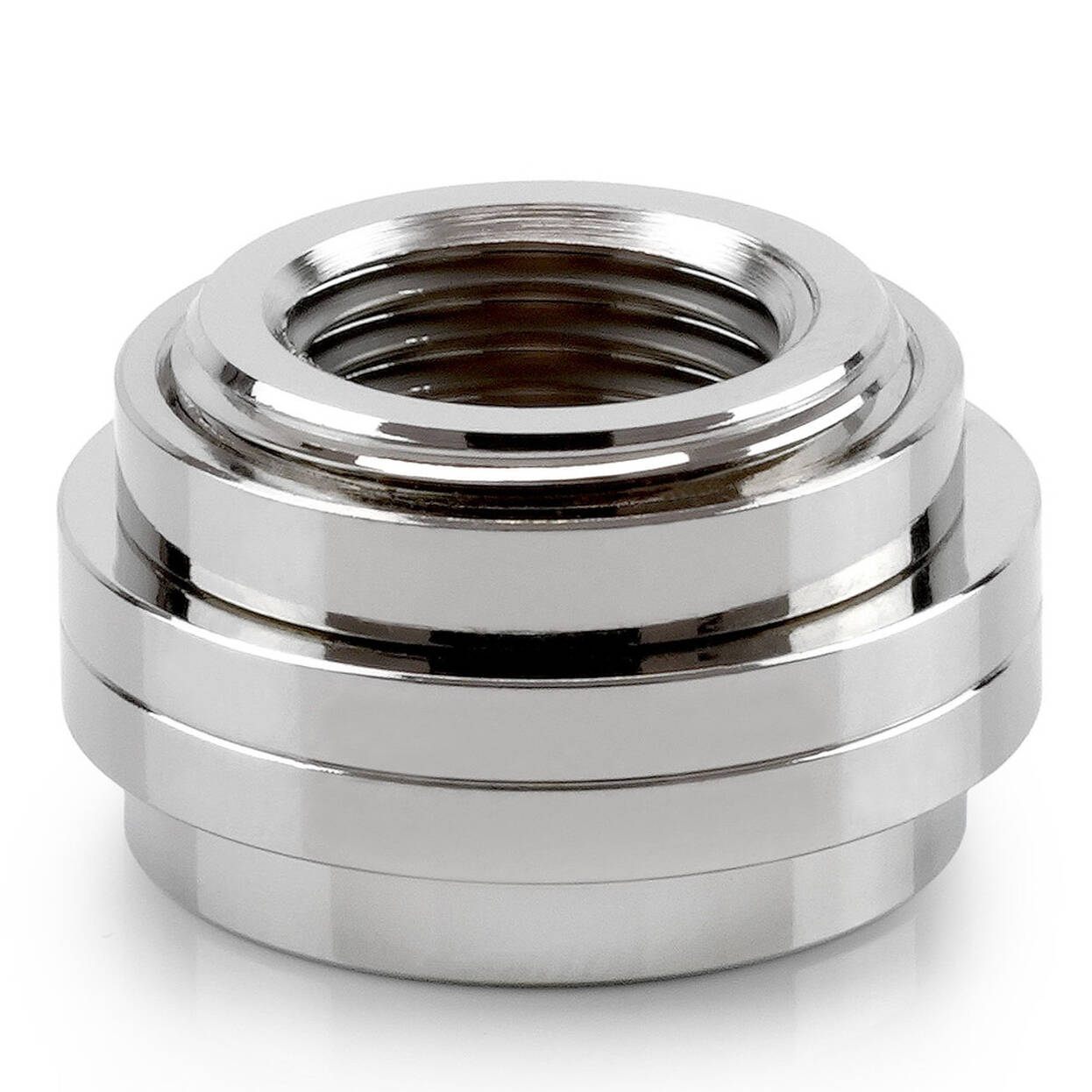

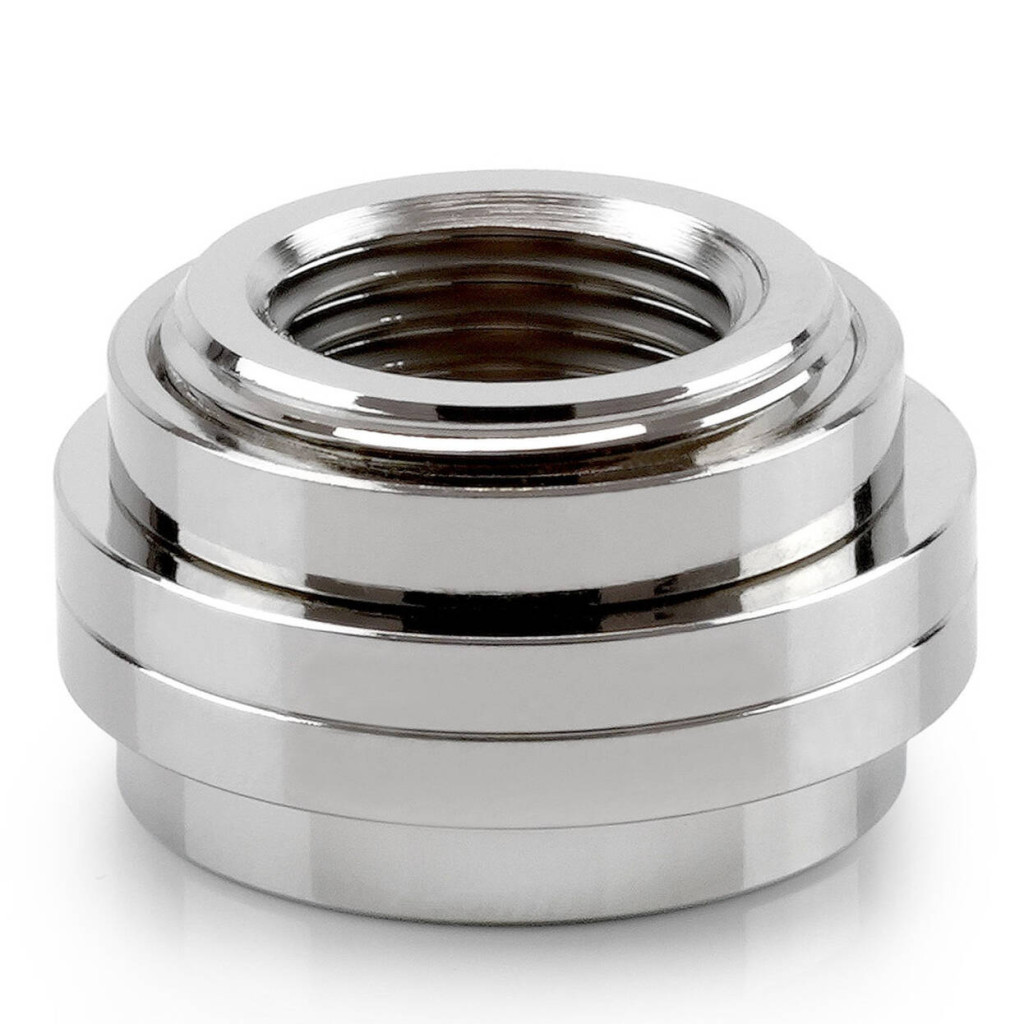

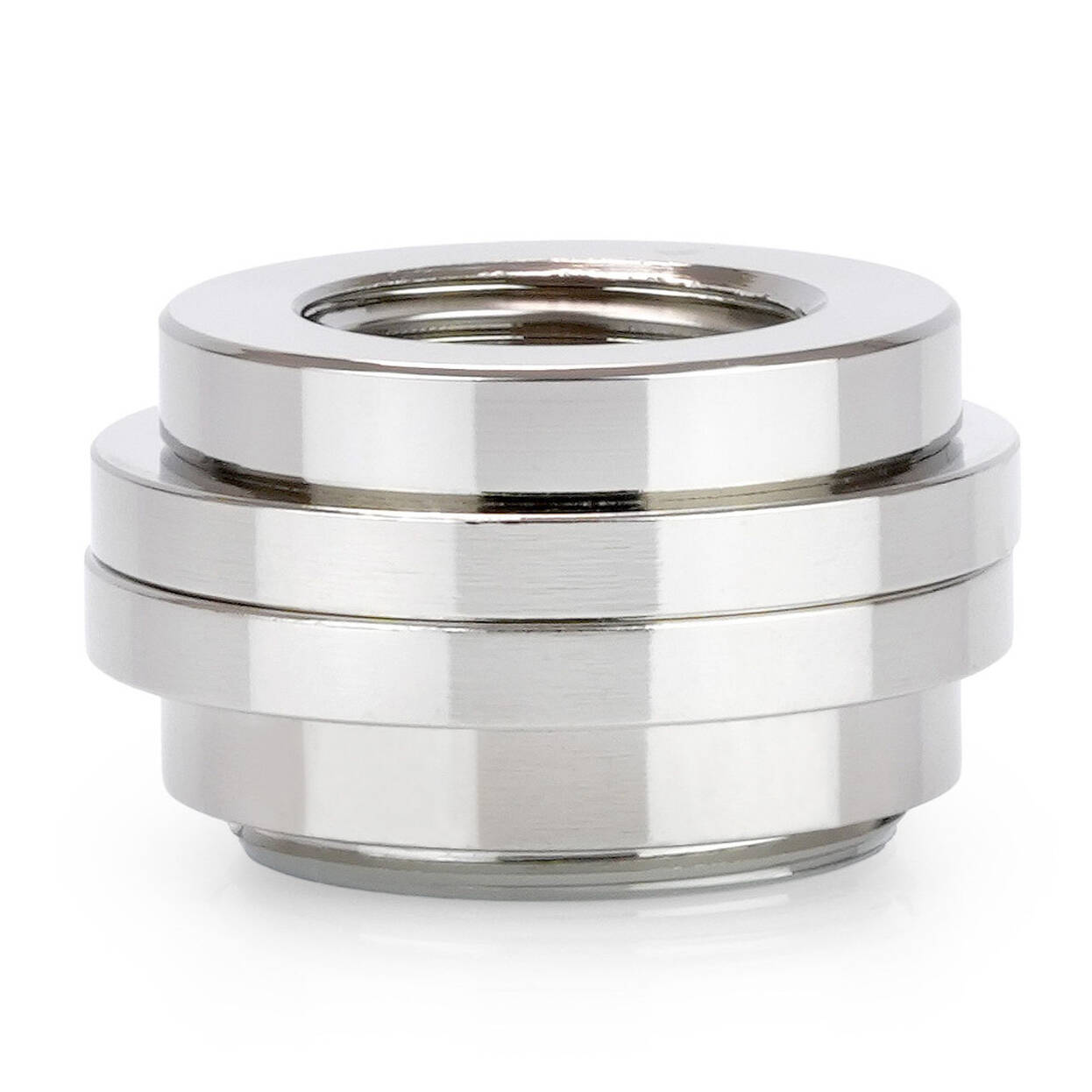

Thermal Grizzly DeltaMate Pass Through - Gloss Nickel
The DeltaMate fittings are water cooling hose connectors for the individual components of a custom water cooling system. Manufactured from brass with the usual Thermal Grizzly quality, the fittings are machined with precision. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being both harder and more corrosion-resistant than copper...
The DeltaMate fittings are water cooling hose connectors for the individual components of a custom water cooling system. Manufactured from brass with the usual Thermal Grizzly quality, the fittings are machined with precision. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being both harder and more corrosion-resistant than copper...
Earn 8 Points
We price match UK retailers. Try It Now!
- SKU: WAZU-1380
- MPN: TG-DM-FIT-0316
- EAN: 4260711993558
- Warranty: 12 Months
Details
The DeltaMate fittings are water cooling hose connectors for the individual components of a custom water cooling system. Manufactured from brass with the usual Thermal Grizzly quality, the fittings are machined with precision. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being both harder and more corrosion-resistant than copper. The robust design of the DeltaMate fittings allows for installation using an 8 mm internal hex key. The uniform external diameter of all DeltaMate connectors enables seamless integration of the individual products.
General information

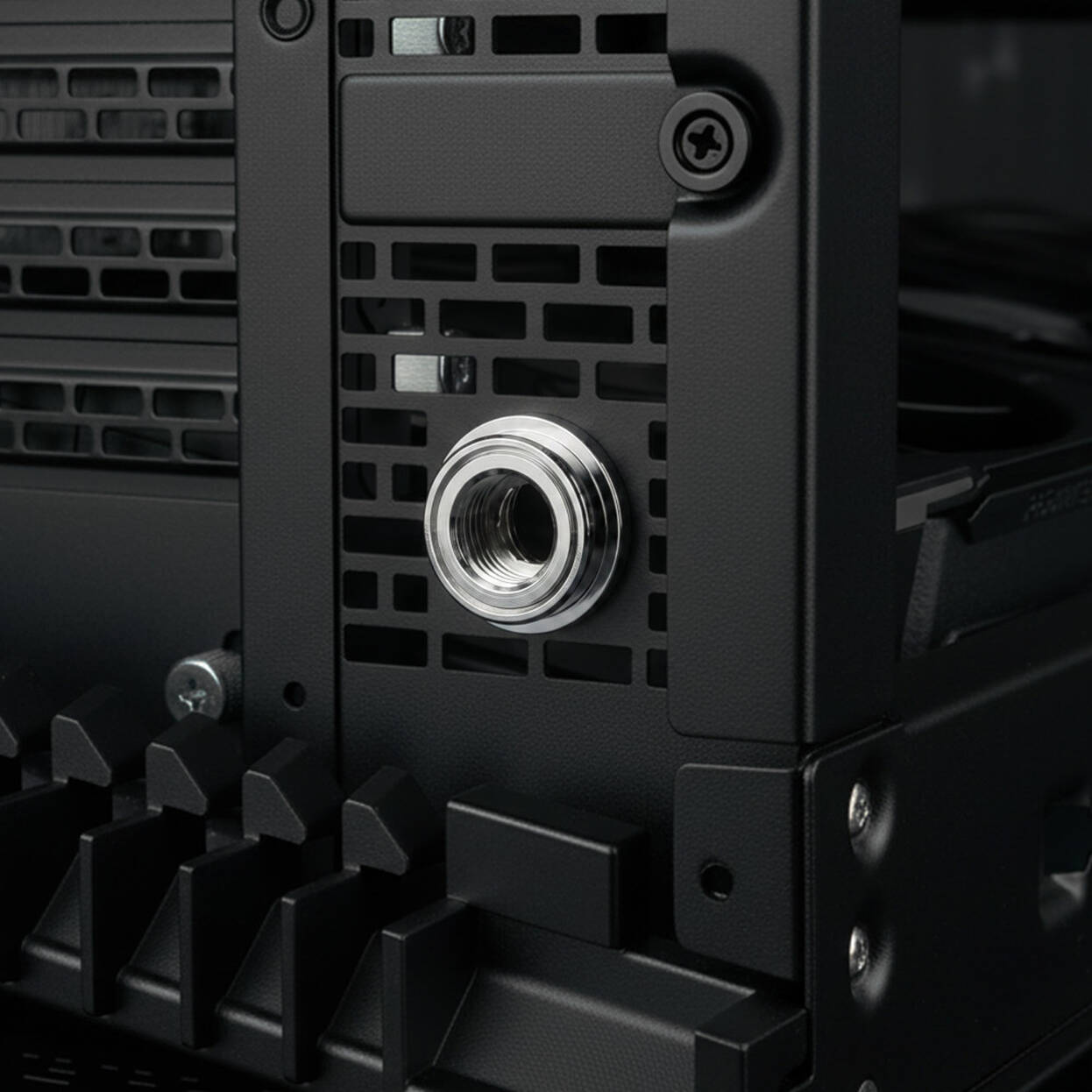

The shiny nickel-plated DeltaMate Pass Through fitting is used on a pass-through in a panel, such as a case wall or a PCI slot cover. The panel thickness can be up to 5.5 mm, and the diameter of the pass-through can range between 18 and 22 mm. Such pass-throughs are present in the case (usually at the rear) or can be retrofitted in the form of a PCI slot cover. They are designed to connect two chambers within a case or to allow the use of an external radiator.
Features
– Simple adapter that enables the connection of two external threaded fittings through a panel.
– Configurable spacers allow for a neat installation across a variety of different panel thicknesses.
– Uniform external diameter across all DeltaMate connectors for a completely seamless integration.
– Robust construction allows installation using an 8 mm hex key.
Technical Details
| General | |
|---|---|
| Primary Colour | Nickel |
| Dimensions & Weight | |
| Width | 24 mm |
| Height | 14 mm |
| Weight | 27 g |
| Water Cooling | |
| Purpose | Fillport / Housing Feedthrough |
| Connection Type | Screw Connection |
| Thread Connections | 2 × G1/4″ Female Threads |
| Design | |
| Angled | No |
| Rotatable | No |
| Materials | |
| Construction | Brass |
| Lighting | |
| RGB Lighting | No |
| Compatibility | |
| Compatibility Note | Please refer to the manufacturer’s website for the latest compatibility information. |
