The DeltaMate fittings are water cooling hose connectors for the individual components of a custom water cooling system. The fittings are machined from brass. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being both harder and more corrosion-resistant than copper.
The DeltaMate fittings are water cooling hose connectors for the individual components of a custom water cooling system. The fittings are machined from brass. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being both harder and more corrosion-resistant than copper.
The DeltaMate fittings are water cooling hose connectors for the individual components of a custom water cooling system. The fittings are machined from brass. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being both harder and more corrosion-resistant than copper.
The DeltaMate fittings are water cooling hose connectors for the individual components of a custom water cooling system. The fittings are machined from brass. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being both harder and more corrosion-resistant than copper.
– Adapter for connecting two fittings through a panel

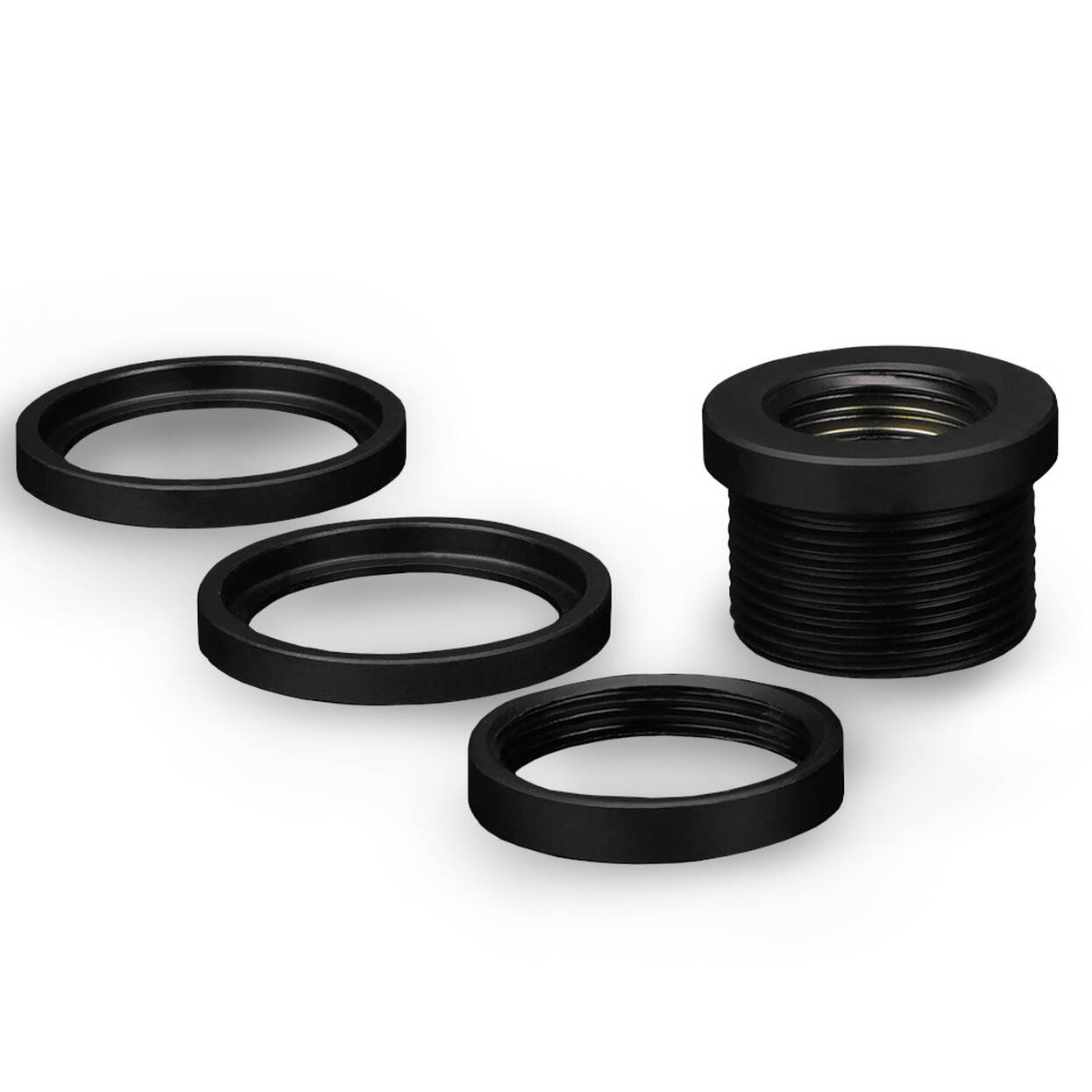

– Configurable spacers for a neat installation even with different panel thicknesses
– Uniform outer diameter on all DeltaMate fittings for seamless integration
– Robust design allows installation with an 8 mm hex key

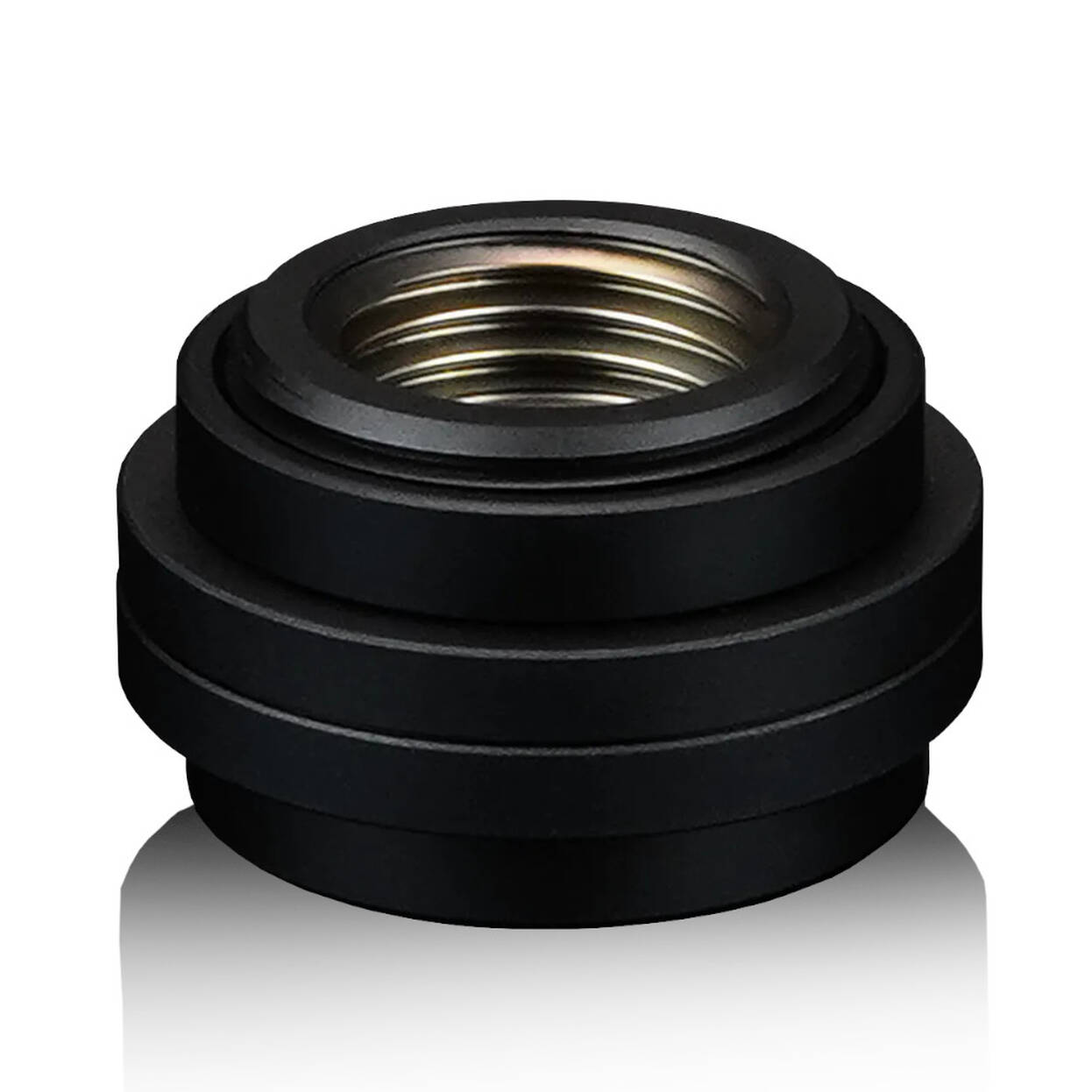

Thermal Grizzly Deltamate: Robust Brass Pass-Through Fitting

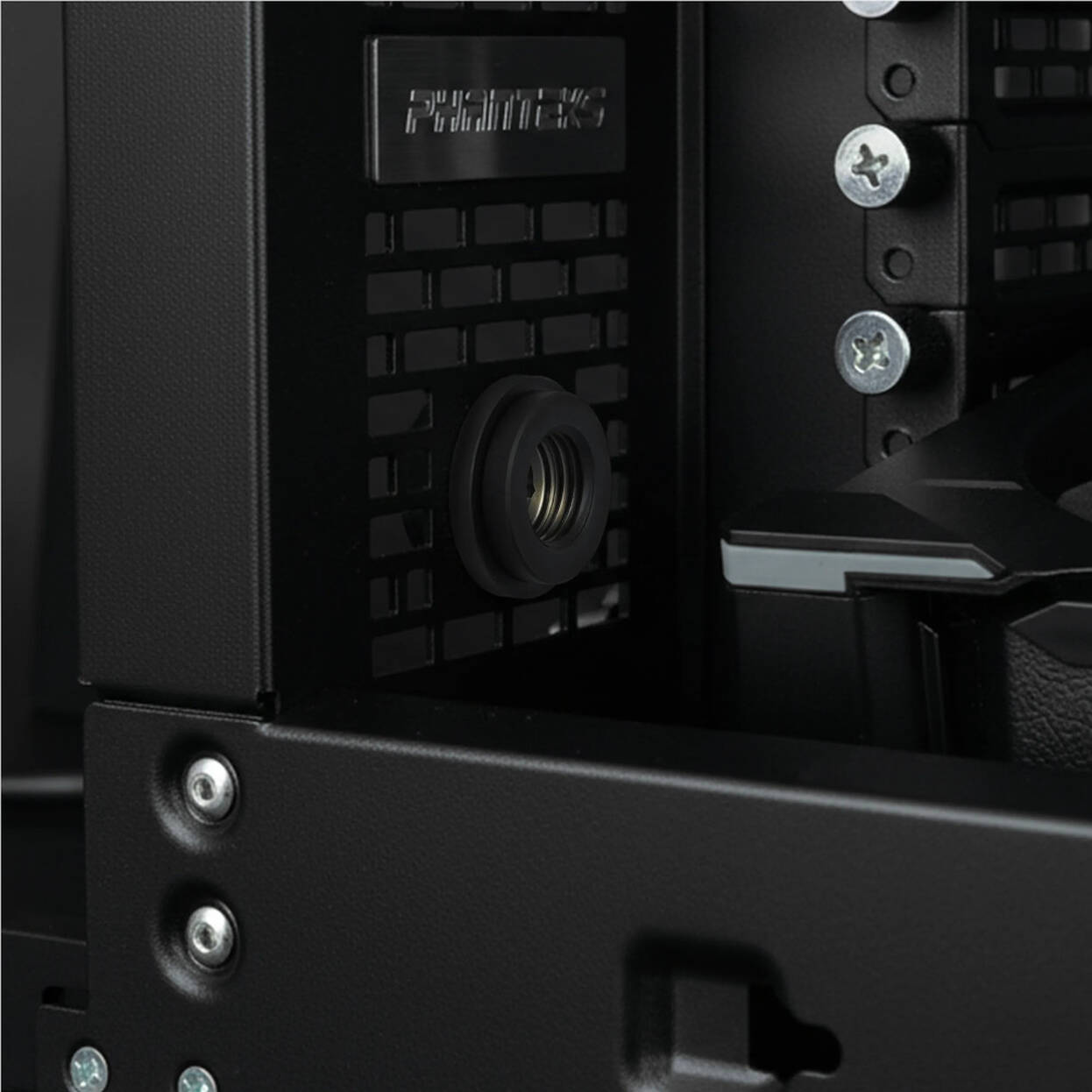

The black chrome-plated DeltaMate pass-through fitting is used in a panel cutout, for example in a case wall or a PCI slot cover. The panel thickness can be up to 5.5 mm and the diameter of the cutout between 18 and 22 mm.
Such cutouts are usually found in the case (mostly at the rear) or can be retrofitted as a PCI slot cover. They are designed to connect two chambers within a case or to allow the use of an external radiator.
Robust design – easy installation
The robust design of the DeltaMate fittings allows assembly with an 8 mm internal hex key. The uniform outer diameter of all DeltaMate fittings enables seamless integration of the individual products.
Technical Specifications
| Primary Colour | Black |
| Height | 14 mm |
| Weight | 27 g |
| Outer Diameter | 24 mm |
| Water Cooling Purpose | Adapter |
| Connection Type | Screw Connection |
| Water Cooling Connectors | 2x G1/4″ Inner Thread |
| Is Angled | No |
| Rotatable | No |
| Compatibility Note | Please refer to the manufacturer’s compatibility information. You can find the latest overview on the manufacturer’s website. |
| Materials | Brass |
| Lighting / RGB | No |
