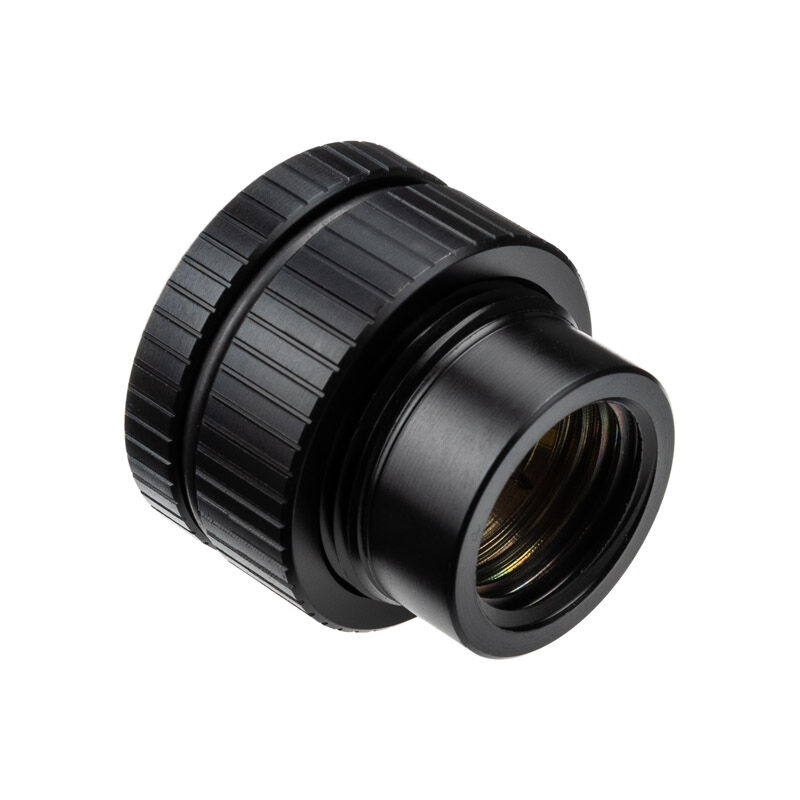

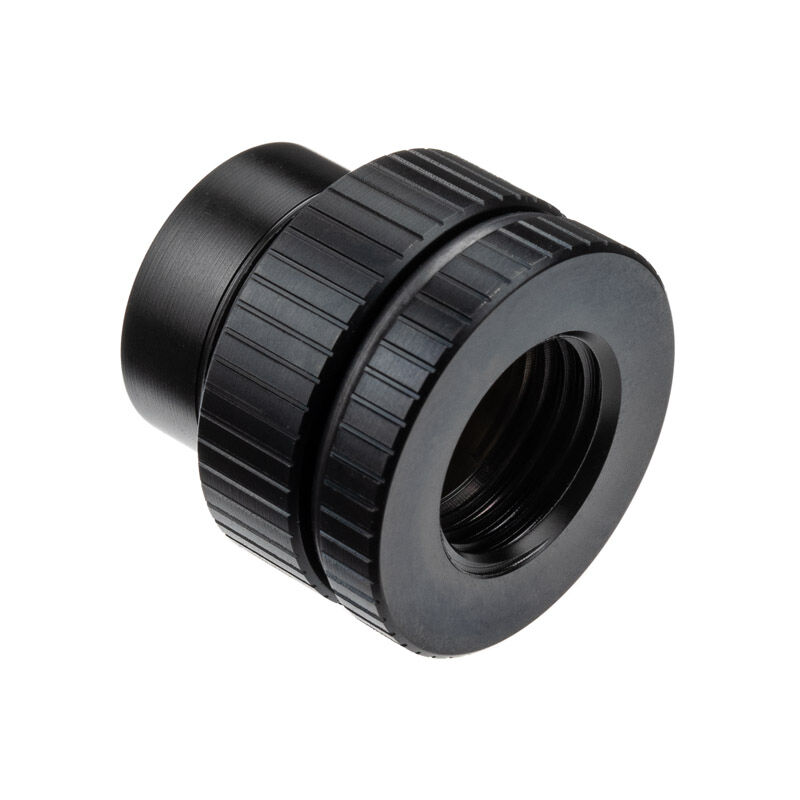

EK-Quantum Torque Pass-Through G1/4 - Black

Equipped with female G1/4 BSP threads on both ends, it enables seamless liquid interconnection between separate chassis compartments.

This fitting is particularly well-suited for compact small form factor (SFF) cases that lack space for internal radiator placement, necessitating external positioning.

This Adapter Fitting is secured to the panel with the enclosed grip nut.

It is constructed from CNC-machined brass with a high-quality Satin Black finish, ensuring durability and an appealing aesthetic.

Technical data:

– Threading: 2 x G 1/4 (Female-Female)
– Thread length: 4.5mm
– Hole Diameter: 20.0mm
– Max thickness of the wall to bridge: 6mm
– Installation height on the side of the screw: 4mm
– Installation height on the side of the nut: min 7mm/max 16mm
– Width: 23.0mm
– Length: 21.0mm
