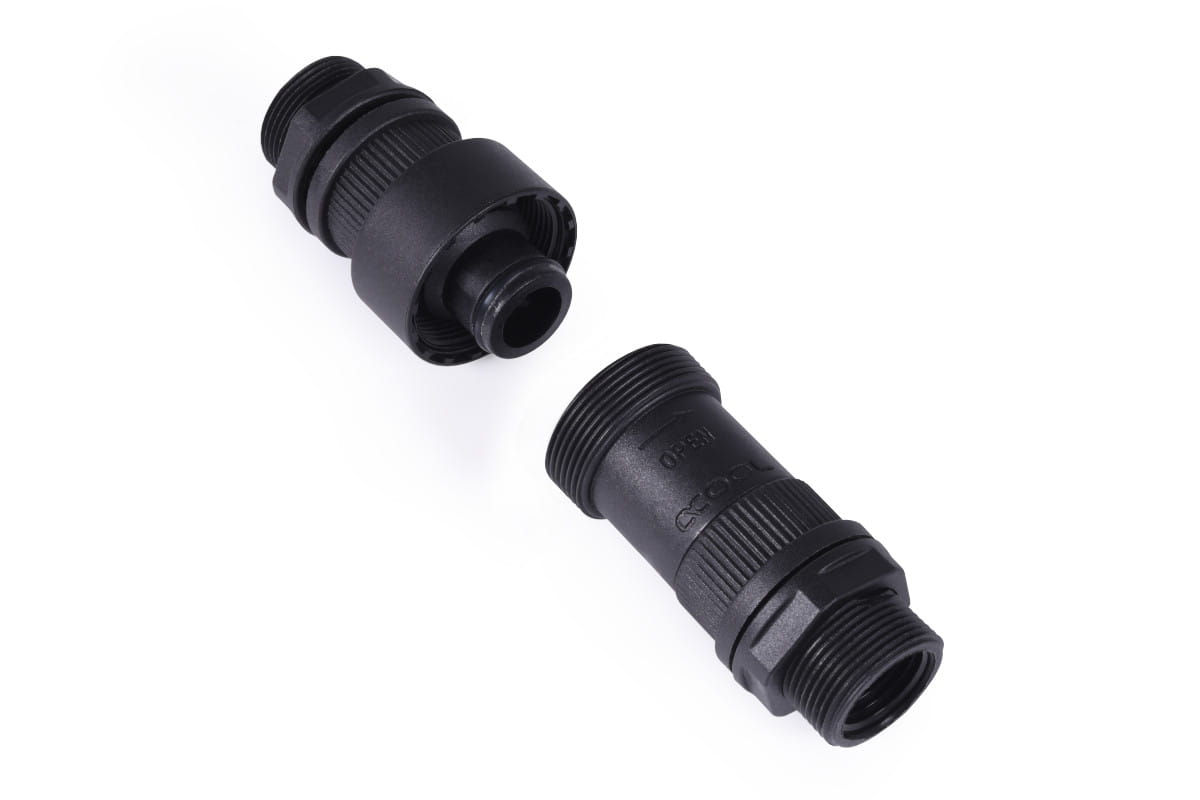

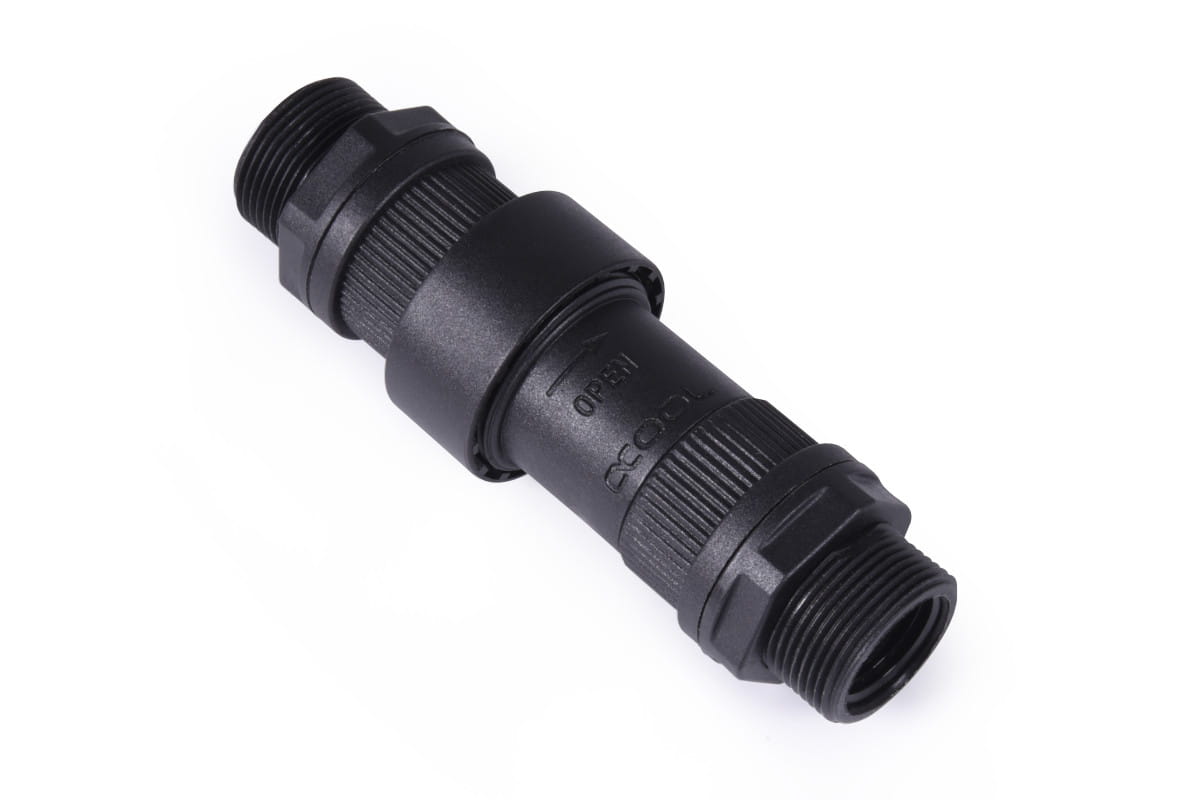

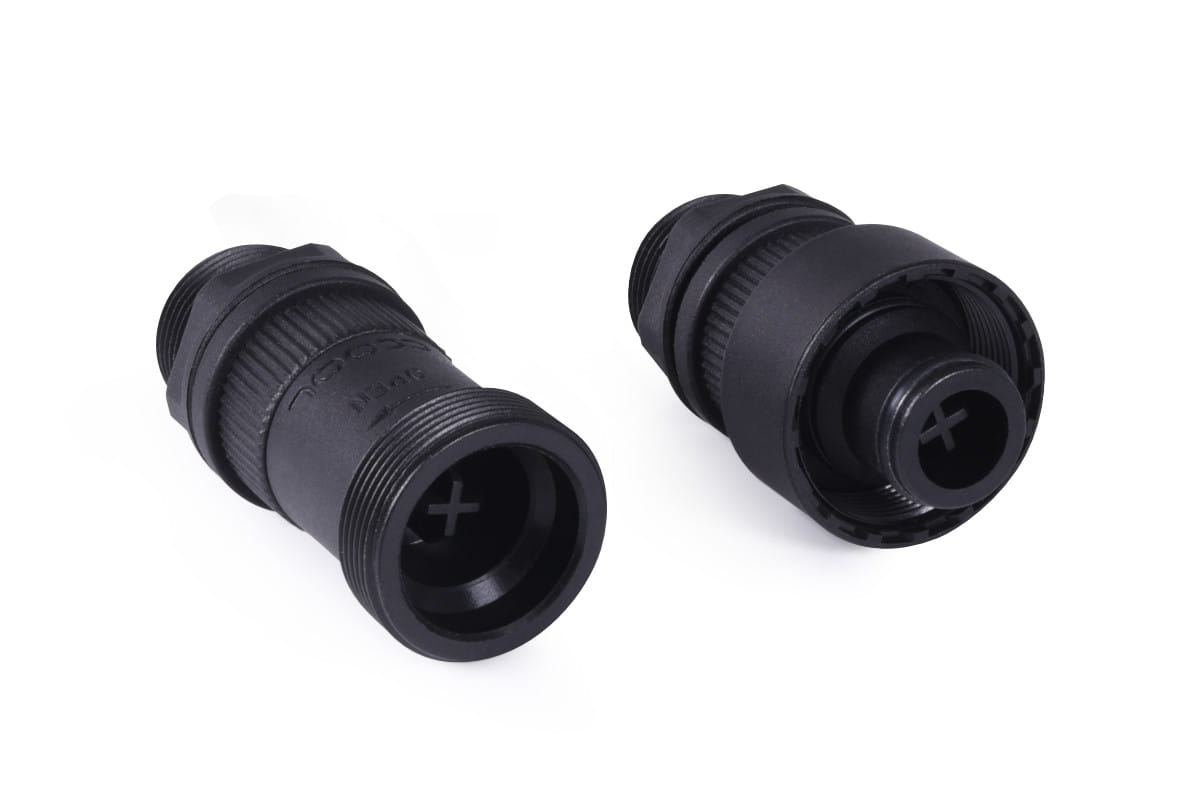

The Alphacool HF quick-release coupling set IT/IT - bulkhead is suitable for permanent installation on a PC or server case and works like a bulkhead screw connection. The quick-release coupling enables externally connected radiators or cooling systems to be quickly connected or disconnected.
The Alphacool HF quick-release coupling set IT/IT - bulkhead is suitable for permanent installation on a PC or server case and works like a bulkhead screw connection. The quick-release coupling enables externally connected radiators or cooling systems to be quickly connected or disconnected.
The Alphacool HF quick-release coupling set IT/IT - bulkhead is suitable for permanent installation on a PC or server case and works like a bulkhead screw connection. The quick-release coupling enables externally connected radiators or cooling systems to be quickly connected or disconnected.
The Alphacool HF quick-release coupling set IT/IT – bulkhead is suitable for permanent installation on a PC or server case and works like a bulkhead screw connection. The quick-release coupling enables externally connected radiators or cooling systems to be quickly connected or disconnected.
Installation

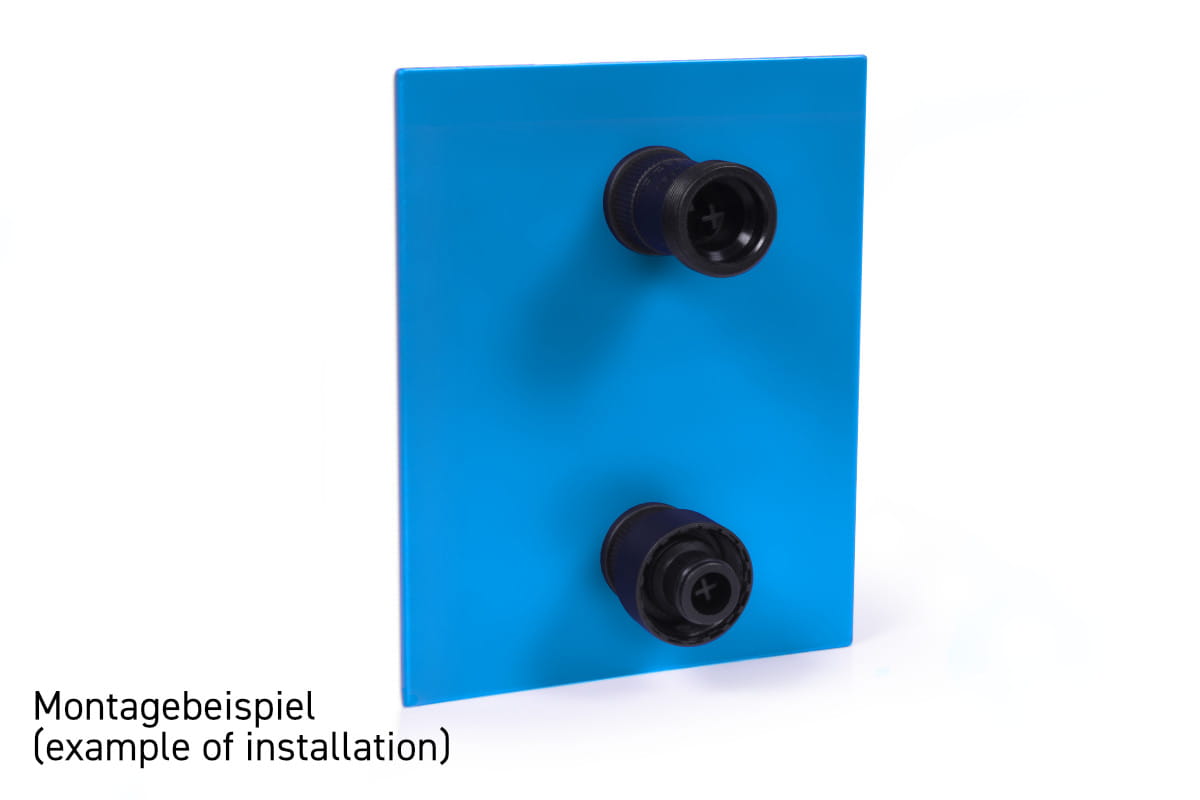

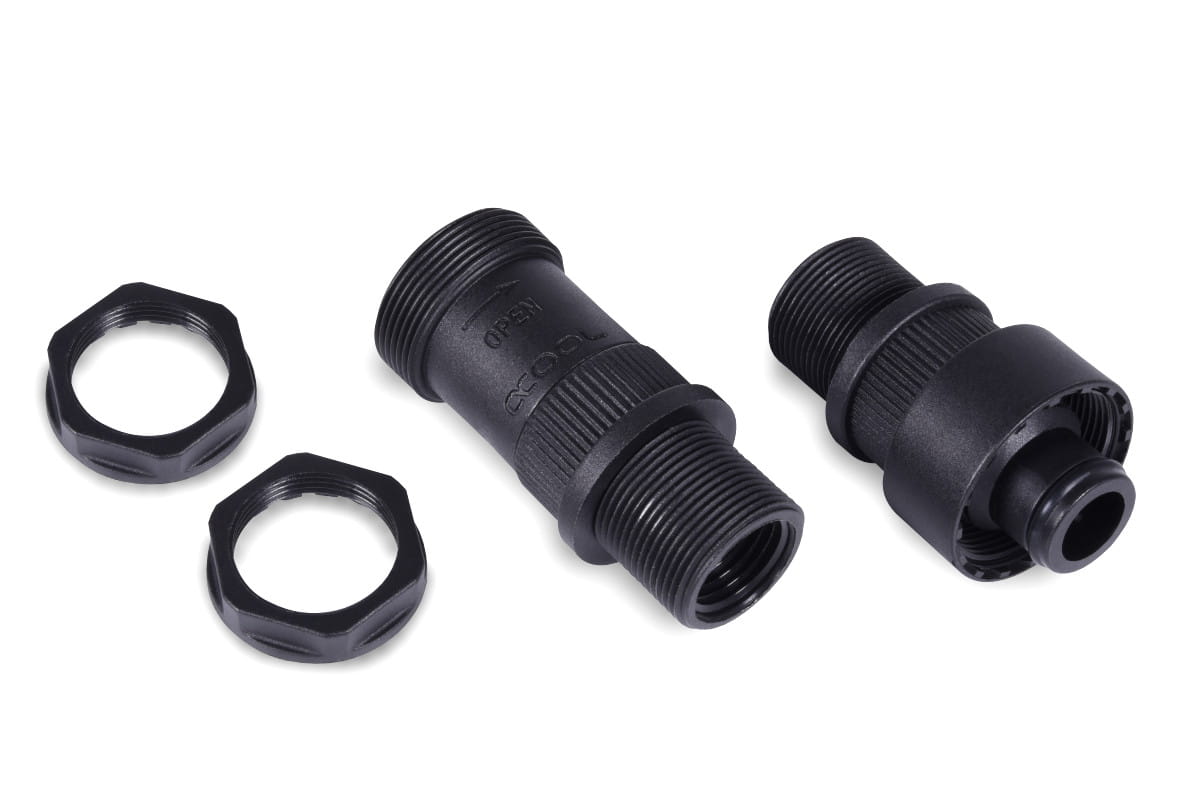

The quick-release coupling set is installed in two openings in the case, each with a diameter of 18mm (see installation example). Male and female connectors are inserted with the threaded side through the circular openings and screwed tight with the enclosed lock nuts. The water circuit is then connected to the inside of the case via the two G1/4 internal threads. External radiators or cooling systems can now be easily connected to the water cooling in the case using additional HF quick-release fasteners.
Safety is a priority
Alphacools HF quick-release couplings do not use a click mechanism, but are screwed on with a union nut. The couplings can no longer be accidentally unlocked and offer a high level of safety.
Compatibility:
– G1/4 AG connections
– Alphacool HF quick-release coupling set G1/4 – Black (Art. 17396)
– Alphacool HF quick-release coupling set TPV – Eisbaer compatible – Black (Art. 17452)
Technical Details
| Dimensions | |
| Total (L × D) | 82 × 26.5 mm |
| Male Connector (L × D) | 46.5 × 26.5 mm |
| Female Connector (L × D) | 50 × 23 mm |
| Materials & Construction | |
| Material | Nylon |
| Thread Type | G1/4 IG |
| Performance | |
| Working Temperature | 60 °C |
| Pressure Tested | 0.8 bar |
| Color | Black |
£10.24£8.53 Inc VatEx Vat
