Fitting Type and Size Explained
Custom loop watercooling grabs plenty of attention from enthusiasts chasing peak thermal performance and visual flair. But there is a component category that often gets overlooked despite being absolutely critical to a reliable, leak-free system: fittings. These small connectors are responsible for joining tubing to every major component in the loop, from water blocks and radiators through to pumps and reservoirs. Poorly chosen or low-quality fittings can lead to leaks, reduced cooling efficiency, or outright component damage. So getting this decision right is not optional. Let’s break down the different types, sizes, and selection considerations.
Types of Water Cooling Fittings

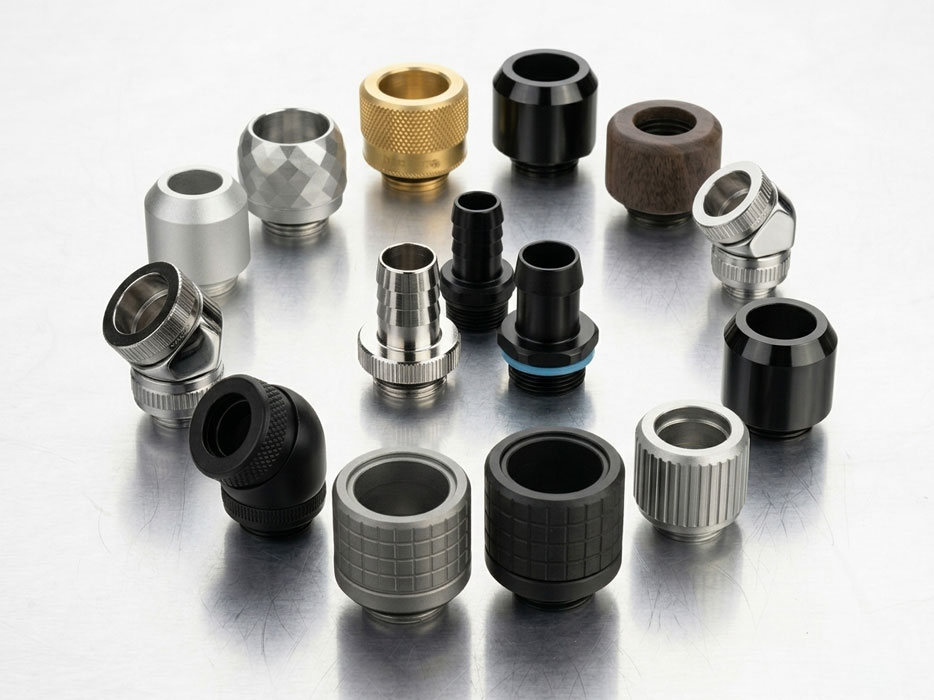

There are several distinct fitting types, each designed for specific purposes within a custom loop. Understanding what each one does (and where it excels) is important before committing to a purchase.
Compression Fittings.
- SKU: 1022523
- MPN: 17625
- EAN: 4250197176255
- SKU: WAEK-1967
- MPN: 3831109824542
- EAN: 3831109824542
- SKU: 300-F69-479
- MPN: TFHRKN38H-S-6P
- EAN: 5060684860487
- Available for Collection
- SKU: XS-5E6-969
- MPN: 5060175588685
- EAN: 5060175588685
- Available for Collection
A compression fitting consists of two parts: the fitting body itself and a compression ring or collar. The tube slides over the fitting body, and the compression ring is then screwed down to lock it firmly in place. The result is a clean, sleek connection that looks superb in a finished build. Compression fittings are popular for both soft tube and hard tube setups, and for good reason: they combine security with aesthetics very effectively.
Barbed Fittings.
- SKU: XS-1438B-MBLK
- MPN: 5060175588500
- EAN: 5060175588500
- Available for Collection
- SKU: BBSP1438BLK
- MPN: 5060175581655
- EAN: 5060175581655
- Available for Collection
- SKU: XS-1412B-MBLK
- MPN: 5060175588494
- EAN: 5060175588494
- Available for Collection
- SKU: BBSP1412BLK
- MPN: 5060175581631
- EAN: 5060175581631
- Available for Collection
These are the more straightforward option. A barbed fitting features a ridge (or barb) that the tube slides over, with the tube held in place either by the barb itself or with an additional hose clip for added security. Installation is simple and the connection is solid for soft tubing applications, though we should note that barbed fittings do not look as refined as their compression counterparts. If aesthetics are a lower priority and budget is a factor, barbed fittings are a competent choice.
Rotary Fittings.

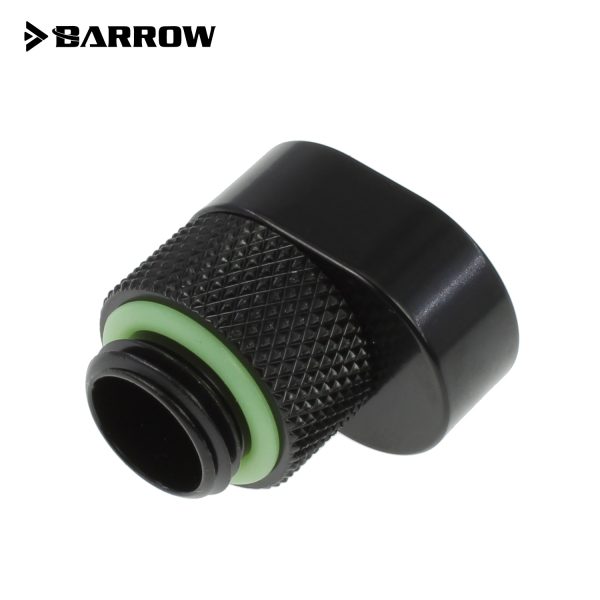

- SKU: BAR-FIT35
- MPN: TX360PZB
- EAN: 6937826611926
- Available for Collection

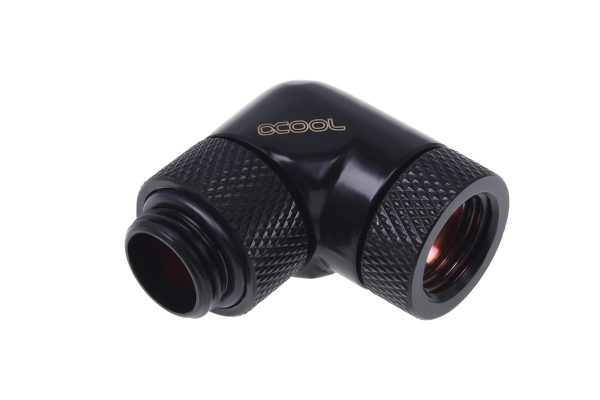

- SKU: 64231
- MPN: 17057
- EAN: 4250197170574

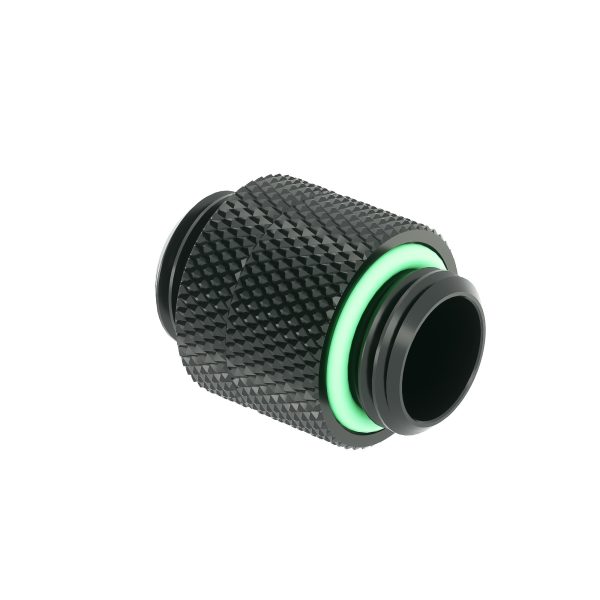

- SKU: BAR-F020
- MPN: TBX2D-02-B
- EAN: 6937826601453
- Available for Collection

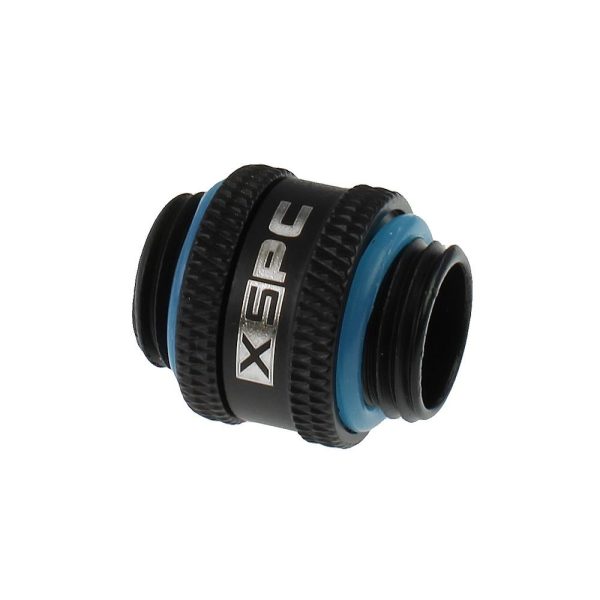

- SKU: XS-11MMROT-MBLK
- MPN: 5060175588562
- EAN: 5060175588562
- Available for Collection
Rotary fittings add flexibility to your loop by allowing sections of the connection to rotate freely. This is especially useful when working in tight spaces or when connecting components at awkward angles where a rigid fitting simply will not cooperate. Rotary variants often come as adapters, giving greater manoeuvrability during the routing process.
Angled Fittings.
- SKU: BAR-FIT37
- MPN: TWT90-v2.5B
- EAN: 6937826601361
- Available for Collection
- SKU: 62371
- MPN: 17081
- EAN: 4250197170819
- Available for Collection

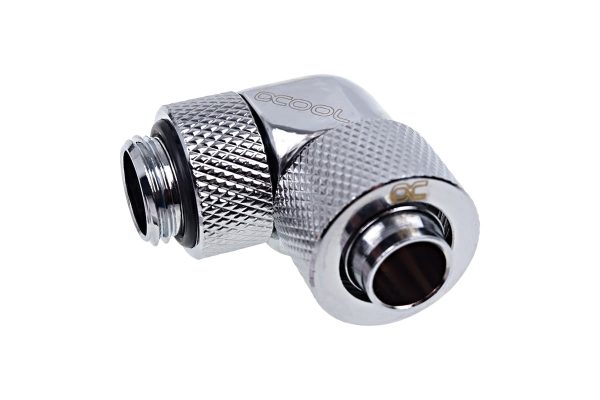

- SKU: 1011160
- MPN: 17231
- EAN: 4250197172318
- SKU: XS-90CL4PK-BCH
- MPN: 5060596652170
- EAN: 5060596652170
- Available for Collection

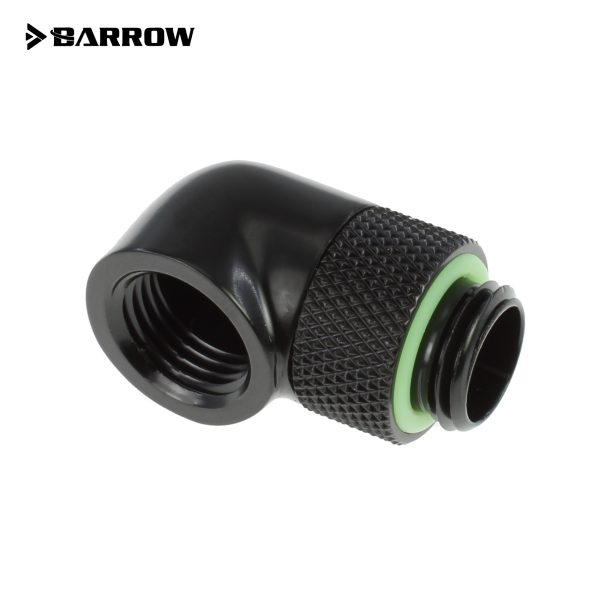

Available in 45-degree and 90-degree configurations, angled fittings help route tubes in tighter spaces or around obstacles within your case. They are particularly useful for reducing tubing kinks and ensuring a clean, well-organised build. If you have ever dealt with a tube run that refuses to sit neatly, an angled fitting is likely the solution.
Quick Disconnect Fittings.
- SKU: BAR-FIT146
- MPN: TZKMF-M SILVER
- EAN: 6937826618802
- Available for Collection
- SKU: BAR-FIT145
- MPN: TZKMF-M BLACK
- EAN: 6937826618796
- Available for Collection

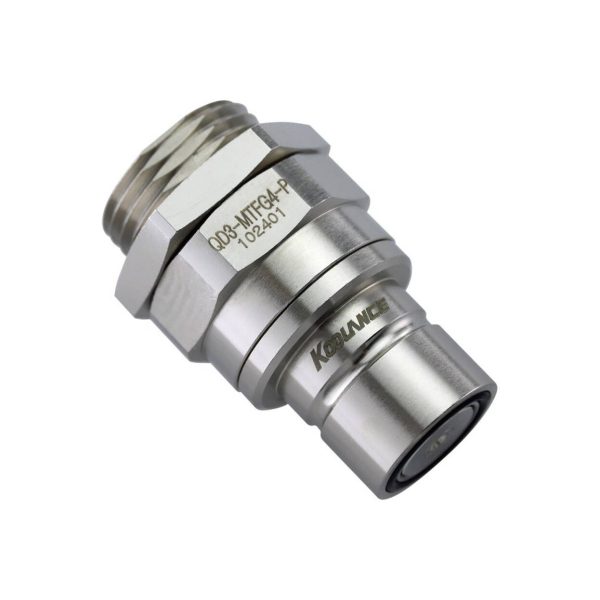

- SKU: WAZU-1292
- MPN: QD3-MTFG4-P
- EAN: 8295969151296
- SKU: WASA-471
- MPN: QD3-FT10X13
- EAN: 0829596914924
A quick release fitting allows parts of the loop to be disconnected and reconnected without needing to drain the entire system. These are commonly used for setups where components need to be swapped out or moved on a regular basis, such as a test bench. Very convenient, though they do add cost and bulk to the loop.
Sizing of Water Cooling Fittings
Selecting the correct fitting size is essential. An incorrect match between fitting and tubing will compromise the seal and, in a worst-case scenario, result in a leak directly onto expensive hardware. Fittings are generally measured in terms of both the outer diameter (OD) and inner diameter (ID) of the tubing they are designed to work with.
Common Fitting Sizes. For soft tubing, the most popular sizes are 3/8″ ID x 1/2″ OD, 7/16″ ID x 5/8″ OD, and 1/2″ ID x 3/4″ OD. Hard tube fittings are typically measured in millimetres, with 12mm, 14mm, and 16mm OD being the most widely used sizes. Making sure your fittings correspond precisely to your tubing dimensions is non-negotiable.
G1/4 Thread. Nearly all modern water cooling fittings use a G1/4 thread, which has become the universal standard in PC water cooling. This threading ensures cross-brand compatibility, so your fittings will connect to radiators, water blocks, pump tops, and reservoir ports regardless of manufacturer. When choosing fittings, always verify they use G1/4 threading to match your components. It would be an unnecessary and frustrating mistake to end up with incompatible threads.
Choosing the Right Fittings
So how do you narrow down the right fittings for your specific build? If you are using soft tubing, you need to focus on fittings that match both the inner and outer diameter of your chosen tube. For hard tubing, only the outer diameter matters, since rigid tubes do not flex or compress like soft ones. Compression fittings provide a cleaner look (and arguably a more secure seal), while barbed fittings are often more budget-friendly but may require extra clamps for peace of mind.
Beyond sizing, material and build quality are important considerations. Brass and nickel-plated fittings are popular due to their durability and corrosion resistance, making them a sensible long-term investment. Plastic fittings, by contrast, tend to be less durable and are harder to recommend for a system you plan to run reliably over months and years.
For aesthetics, fittings come in various finishes, including black, chrome, matte, and even coloured versions, to complement the overall design of your build. Ultimately, the right fittings ensure that your custom water cooling loop is reliable, leak-free, and visually appealing. Getting this choice wrong can be costly, but getting it right is straightforward once you understand the fundamentals outlined above.
