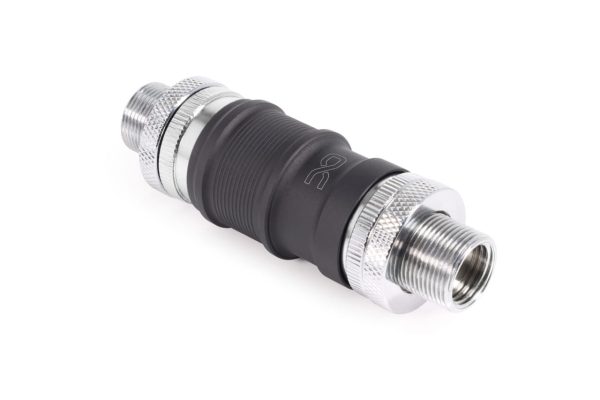

The Alphacool ES quick-release coupling set IT/IT is suitable for permanent installation on a PC or server case and works like a bulkhead screw connection. The quick-release coupling enables externally connected radiators or cooling systems to be quickly connected or disconnected.
The Alphacool ES quick-release coupling set IT/IT is suitable for permanent installation on a PC or server case and works like a bulkhead screw connection. The quick-release coupling enables externally connected radiators or cooling systems to be quickly connected or disconnected.
The Alphacool ES quick-release coupling set IT/IT is suitable for permanent installation on a PC or server case and works like a bulkhead screw connection. The quick-release coupling enables externally connected radiators or cooling systems to be quickly connected or disconnected.
The Alphacool ES quick-release coupling set IT/IT is suitable for permanent installation on a PC or server case and works like a bulkhead screw connection. The quick-release coupling enables externally connected radiators or cooling systems to be quickly connected or disconnected.
Assembly

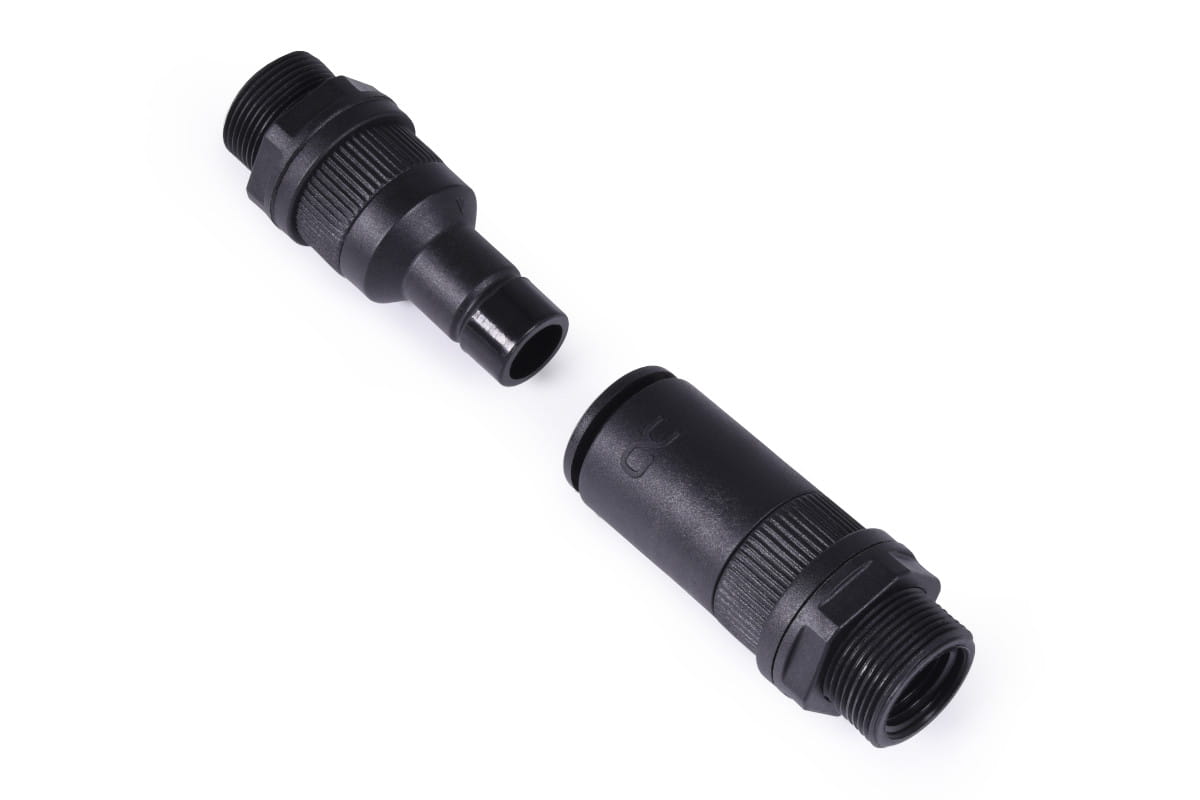

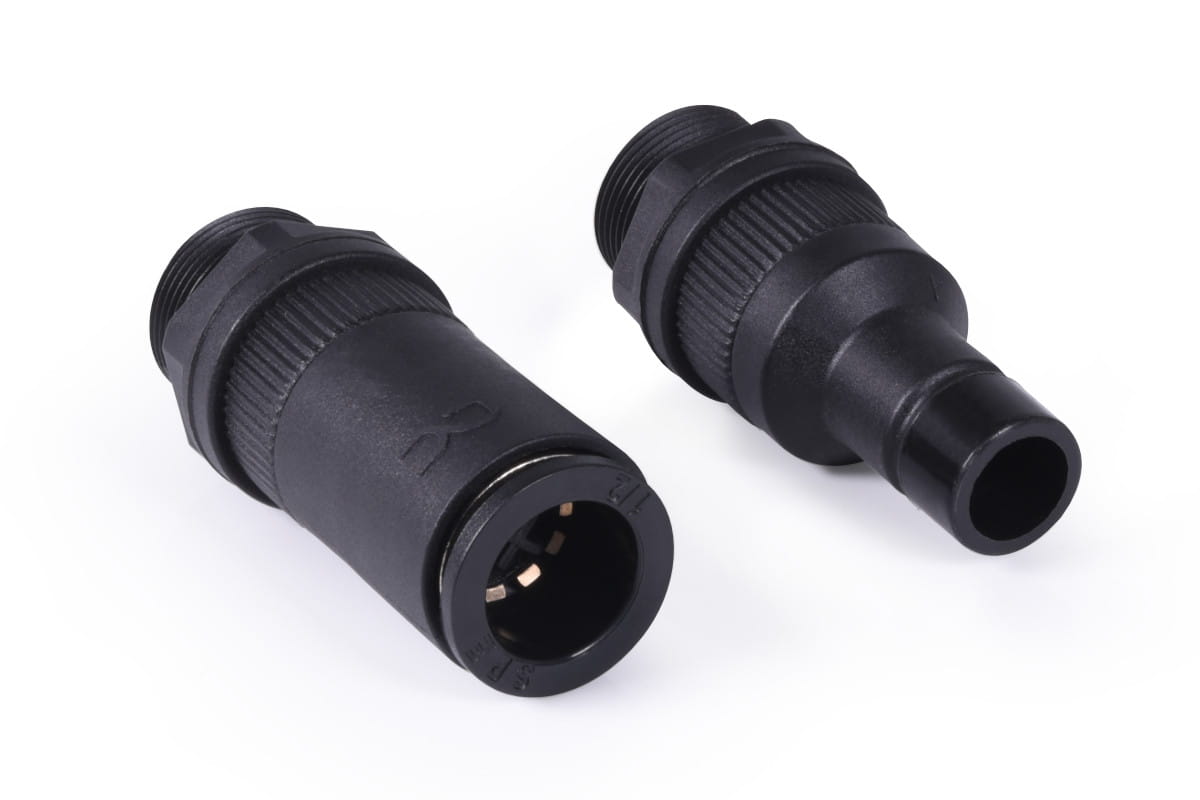

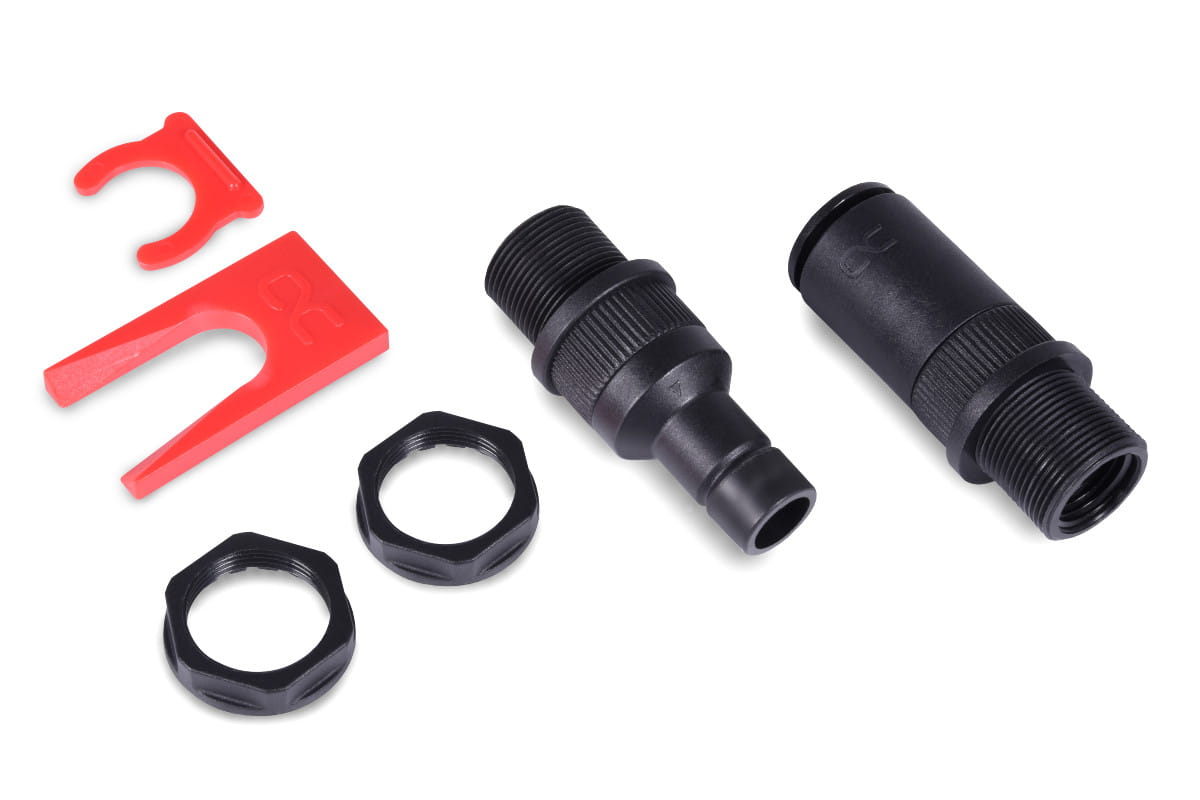

The quick-release coupling set is mounted in two openings in the case, each with a diameter of 18 mm (see assembly example). Male and female connectors are inserted with the threaded side through the circular openings and screwed tight with the enclosed lock nuts. The water circuit is then connected to the inside of the housing via the two G1/4 internal threads. External radiators or cooling systems can now be easily connected to the water cooling in the housing using additional quick-release fasteners.
Accessories

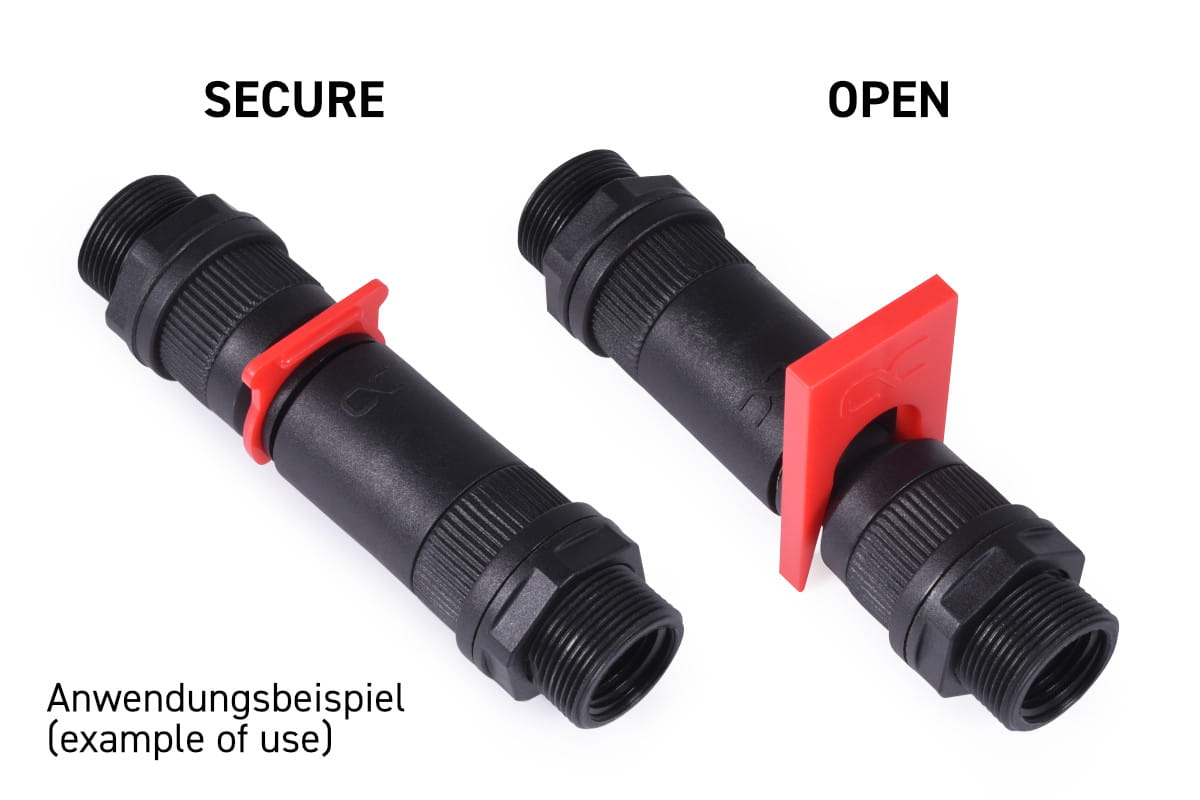

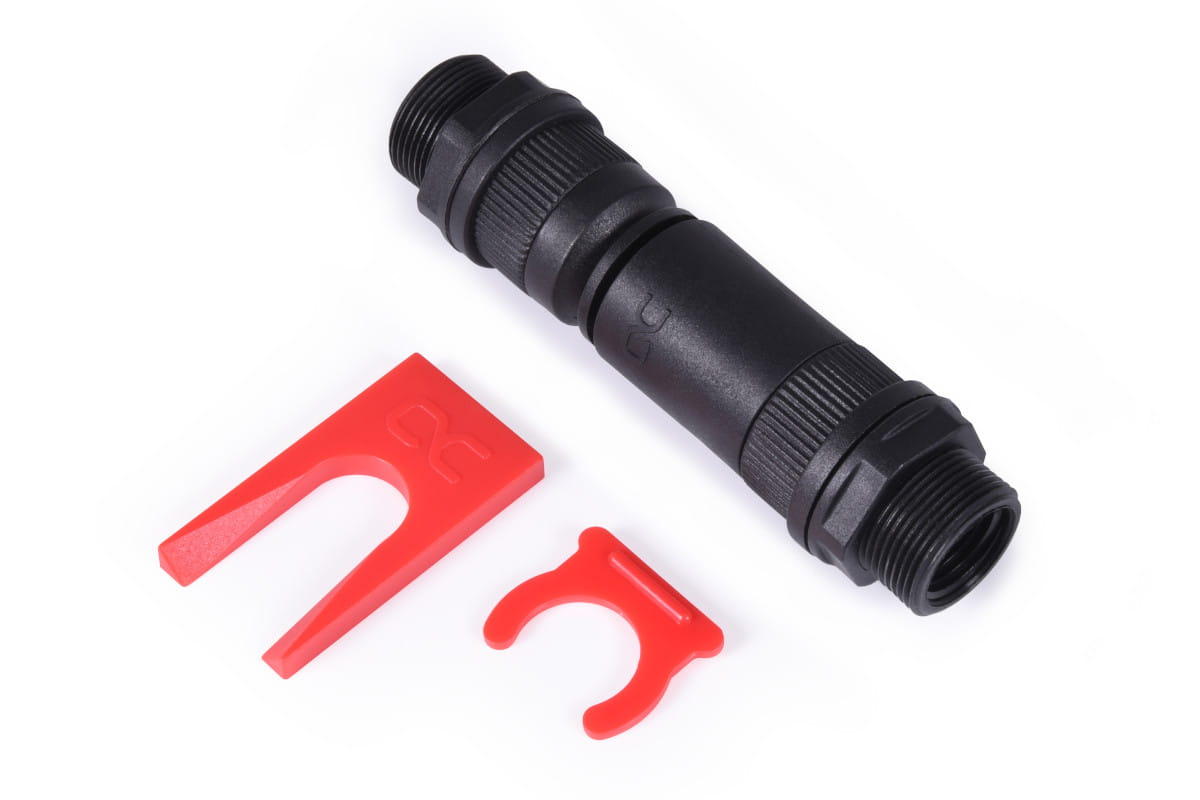

The quick-release coupling set comes with a locking ring. This is inserted into the opening mechanism and prevents the coupling from being accidentally disconnected. Also included is an opening aid that makes it easier to disconnect the coupling in tight systems.
Compatibility:
– G1/4 AG connections
– Alphacool quick-release AG/AG (Art. 17537)
– Alphacool quick-release IG/IG (Art. 17569)
– Alphacool quick-release TPV (Art. 17469)
Technical Details
| Dimensions | |
| Total (L × D) | 89.5 × 23 mm |
| Male Connector (L × D) | 54 × 23 mm |
| Female Connector (L × D) | 55 × 23 mm |
| Materials & Construction | |
| Material | Nylon |
| Thread Type | G1/4 IG |
| Performance | |
| Working Temperature | 60 °C |
| Pressure Tested | 8 bar |
| Color | Black |
£17.11£14.26 Inc VatEx Vat
