Silverstone first complete Wasserkühlungsset: A feast for the eyes, excellent workmanship, a unique cooling system!
The Tundra TD 01, inspired by the flagship Temjin TJ07 SilverStone is an external cooling system as there so no 2nd. Gefertig from a cooling block is this case a complete radiator. Complete heist, the housing wall is hollow. Channels through which cool water flows back and forth several times and can best deliver the collected heat to the surroundings. The design, more precisely, the externally visible grooves, look not only very chick, but also serve to increase surface, then the cooling capacity increased again.
If the inside is the dual-pump integrated with a surge tank. Extra decoupled mounted, the whole system without a fan, can you be super silent system. And who wants to go completely on the safe side, can look back and re-attached to the front of the small thermometer, which indicates how hot the water is just at the moment.
Silverstone first complete Wasserkühlungsset: A feast for the eyes, excellent workmanship, a unique cooling system! The Tundra TD 01, inspired by the flagship Temjin TJ07 SilverStone is an external cooling system as there so no 2nd. Gefertig from a cooling block is this case a complete radiator. Complete heist, the housing wall is hollow. Channels through which cool water flows back and fort...
Silverstone first complete Wasserkühlungsset: A feast for the eyes, excellent workmanship, a unique cooling system! The Tundra TD 01, inspired by the flagship Temjin TJ07 SilverStone is an external cooling system as there so no 2nd. Gefertig from a cooling block is this case a complete radiator. Complete heist, the housing wall is hollow. Channels through which cool water flows back and fort...

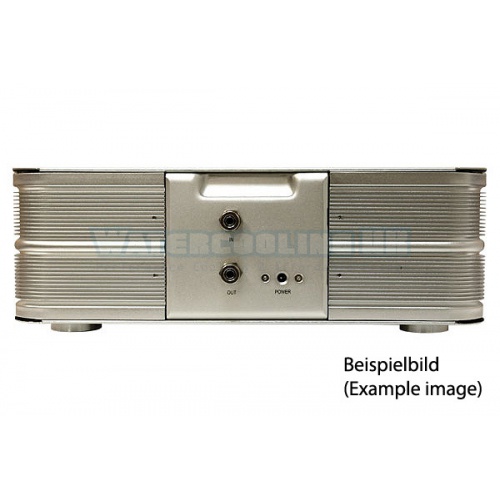

Connection and power supply is really a great thought. On the back are a pair of connectors for the hose and one for the power supply. Both are easy to do with the included hose or electric cables to connect and then by one, also included, mounting bracket, which is designed exactly like the back of the tundra, connected. In the case of the tube can now be connected to the CPU cooler. The power supply works with a 4pin molex connector on the mounting bracket, which are simply plugged in the AC adapter must. Now the cooling starts simultaneously with the start of the computer, just as one is used as an air cooler old times is.
Special features include:

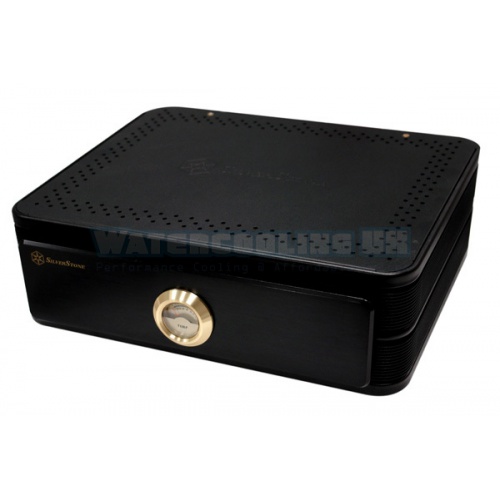

Gold-rimmed temperature display
Patented all-aluminum enclosure form a radiator
Numerous integrated liquid channels and heat dissipating fins
Large liquid containers made of thick aluminum and acrylic
Fluid reservoir with two integrated submersible pumps
Easy installation with quick-release fasteners
8 / 6 mm thick silicone tubes for liquid optimal flow rate
Technical details:
Dimensions: 380mm (W) x 132mm (H) x 320mm (D)
Case material: 8mm aluminum enclosure wall in one piece, 4mm aluminum front panel, 1.5mm top and bottom
Color: Silver
CPU thread: 1/4Zoll
Application: Intel LGA 775, AMD Socket 754/939/940/AM2
Cooling System: Fanless design, advanced radiator frame with integrated liquid cooling channels and ribs
Thermal Resistance: Rca 12:31 C / W @ 130W
Total fluid capacity: 0.9 liters (2 x 0.6 liter TD01 including coolant)
Power consumption: 10W (12V DC)
Cooling Block material: aluminum and acrylic
Cooling block weight: 350g
Water pump: Dual integrated submersible pump in the liquid container
Total weight of liquid: 5.8 kg
Length of the liquid lines: 700mm TD01 to case x 2 PC, the PC case Kuhlblock 400mm x 2
CPU TDP: 130W
Delivery:
1x Silverstone Tundra liquid cooling, AMD AM2, AM3, 754/939/940, Intel 775 – Black
3x 8 / 6 transparent hose
2x 500ml blue Silverstone coolant
1x CPU cooler
3x brackets for the various base
1x Thermal
illustrated, English-language installation manual
