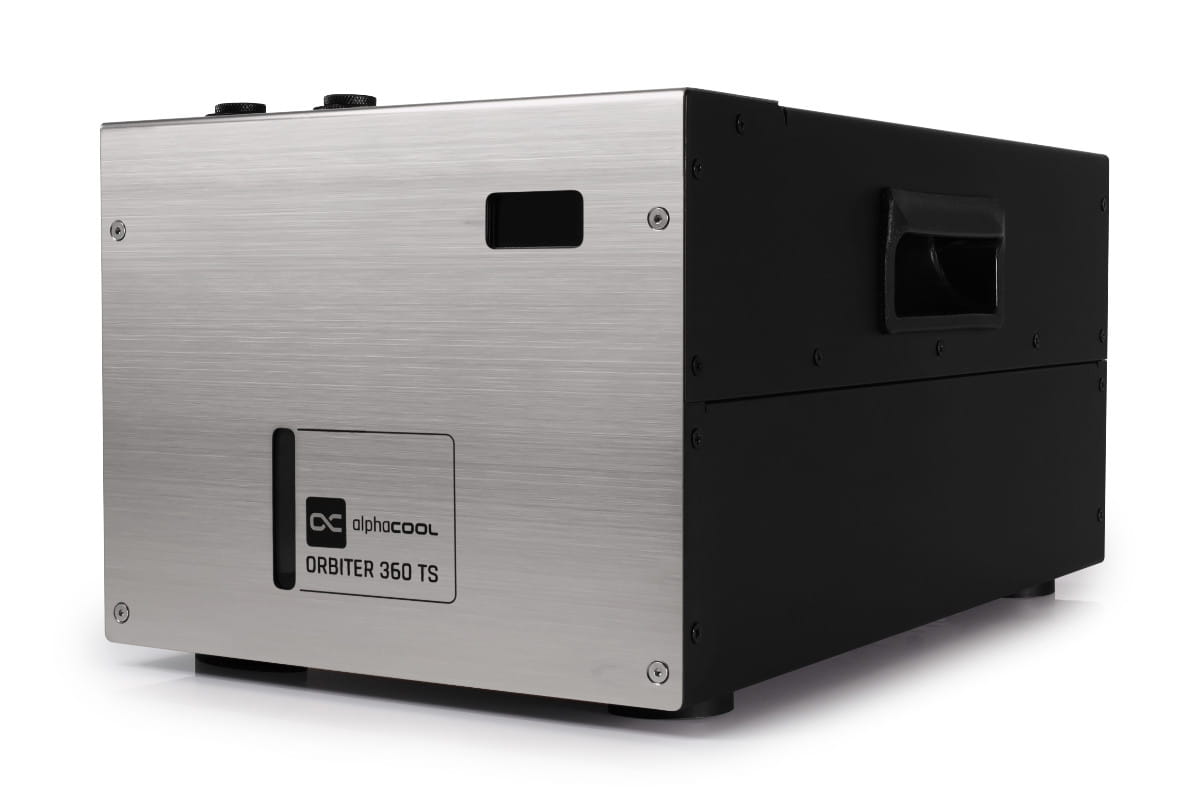

The Alphacool ES Orbiter 360 TS is an external cooling system designed for industrial use.
The Alphacool ES Orbiter 360 TS is an external cooling system designed for industrial use.
The Alphacool ES Orbiter 360 TS is an external cooling system designed for industrial use.
It is compact and powerful. Cooling is provided by two HPE-30 NexXxoS full copper radiators with a total of 360mm cooling surface. The ES Orbiter 360 TS can dissipate waste heat of up to 1500 watts.
Powerful cooling!

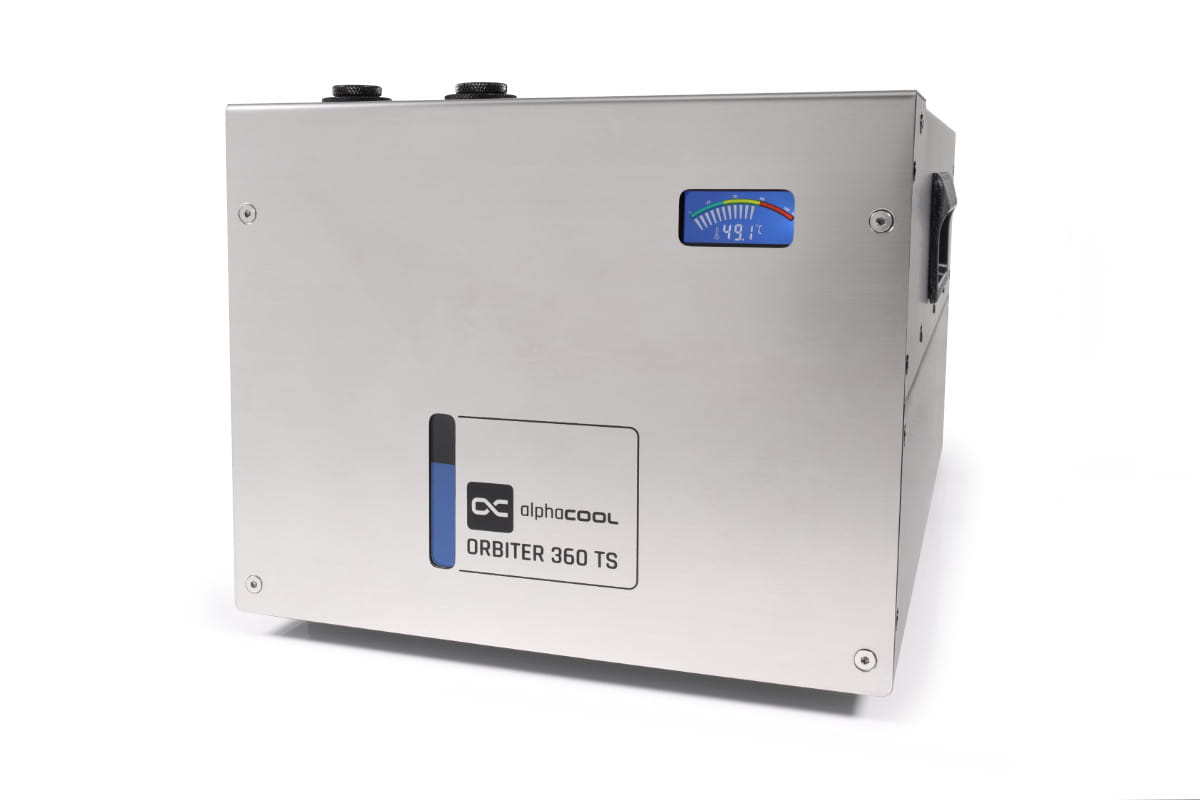

The radiators have a thickness of 30mm and are used in the HPE variant with a compact structure of the cooling channels. As a result, more coolant flows through the radiator and the cooling performance is significantly improved. A total of three in-house core 120mm fans with a long life expectancy ensure optimal ventilation of the radiators. The fans and pump are controlled and monitored by the ES Guardian Powerfan Hub. The hub sounds an alarm if the components fail. The temperature can be checked on the front of the Orbiter with the color display. Also on the front is the level indicator, which can be used to determine the liquid level in the system.
Compact structure

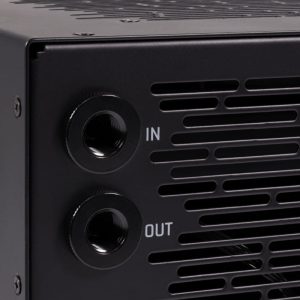

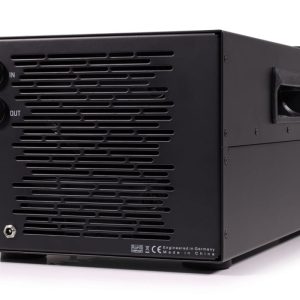

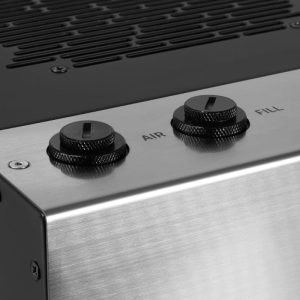

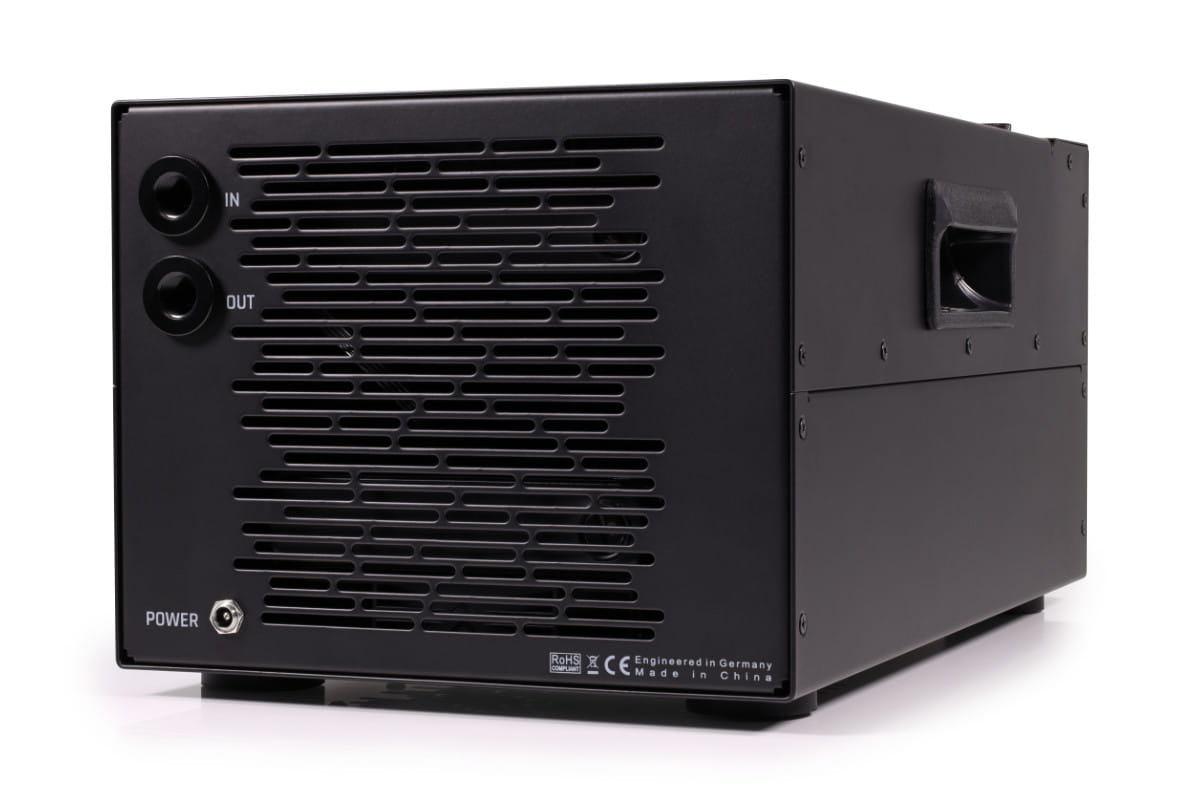

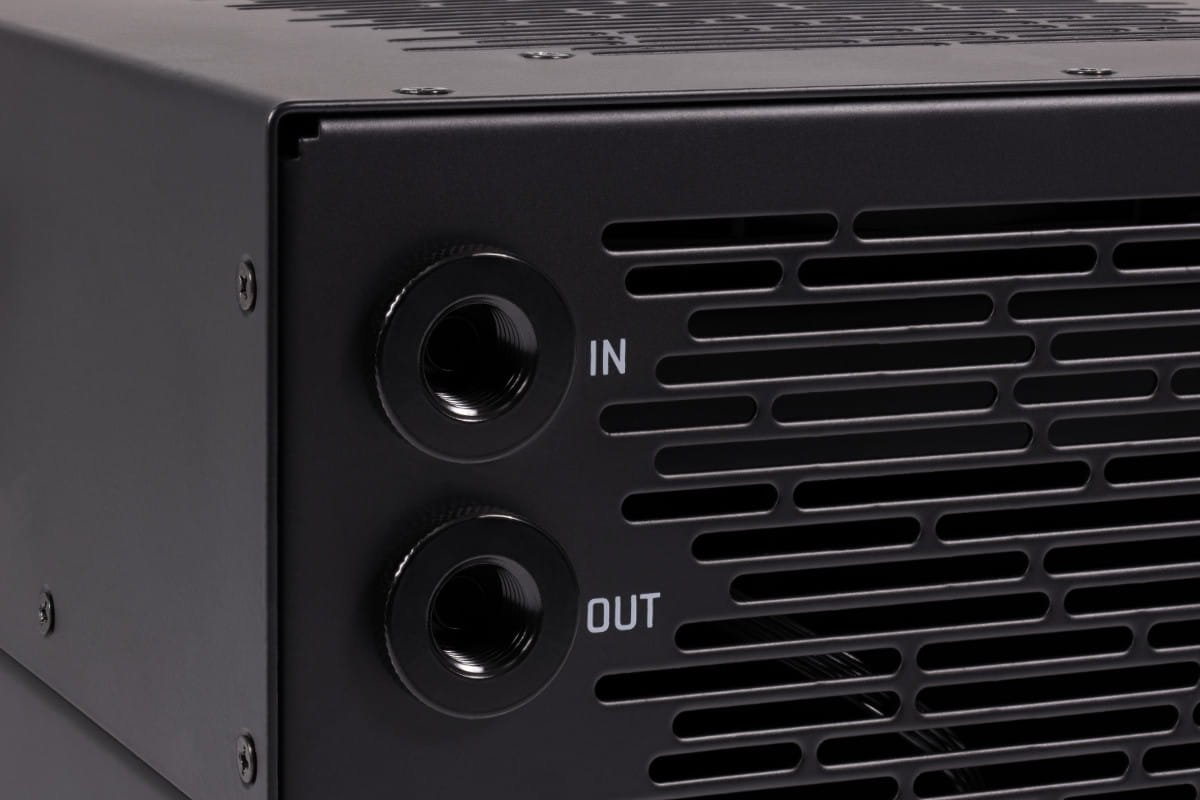

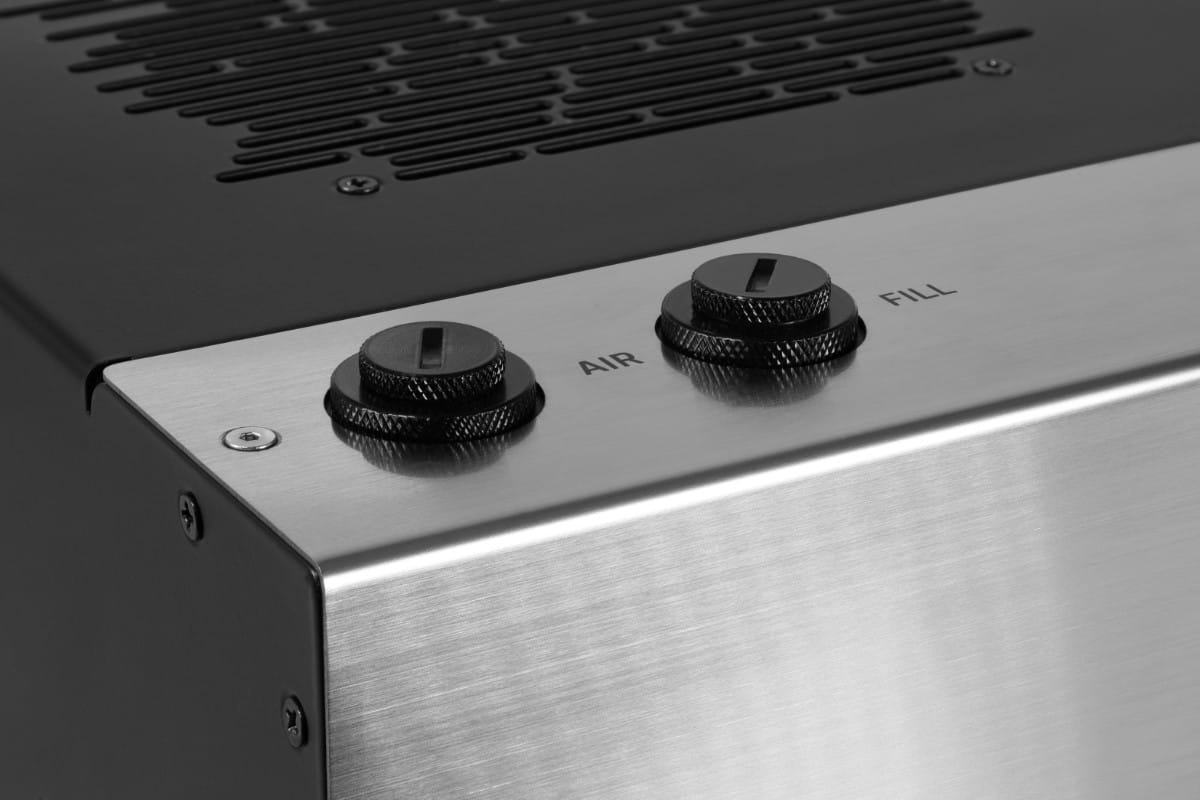

Keeping it clean and simple, the ES Orbiter features two recessed handles for easy lifting. The Alphacool Eisfach serves as an expansion tank and contains a powerful third-generation VPP755 pump. Thanks to the pump, almost any circuit can be operated reliably. Refilling the coolant is easy because the fill port is located on the top. The system can be easily vented via the adjacent valve. The inlet and outlet of the water connections are on the back of the orbiter, as is the power connection.
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturers warranty as well.
| Technical Data – ES Orbiter | |
|---|---|
| Dimensions (L × W × H) | 378.8 × 224.46 × 185.3 mm |
| Housing Material | Metal |
| Radiator Material | Copper |
| Radiator Fins | 18 FPI |
| Hose Material | TPV (EPDM) |
| Approved Liquids | Water, Water/Glycol Mix |
| Max Cooling Power | 1500 W |
| Voltage | 12 V DC |
| Total Power Consumption | 17.7 W |
| Permitted Water Pressure | 0.8 bar |
| Connections | Fill Port: 1 × G1/4, Water: 2 × G1/4, Air Compensation: 1 × G1/4 |
| Operating Temperature | PC Water Cooling: 60 °C, Industrial: 75 °C |
| Hose Service Temperature | -50 °C to 155 °C |
| Expansion Tank Volume | 445 ml |
| Pump Flow / Head | 340 L/h / Max Head 3.125 m |
| Fan Speed / Airflow | 2500 RPM / Max 83.3 m³/h |
| Display | Multi-Colored, °C or °F |
| Sensor Type | NTC 10 kΩ Thermistor |
| Colour | Black / Silver |
