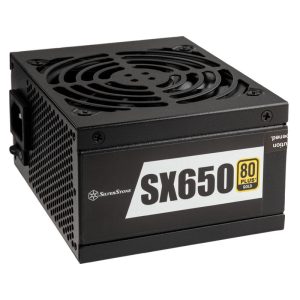

Silverstone SST-SX650-G v1.1 SFX power supply 80 PLUS Gold, modular - 650 watts

Silverstones powerful SFX power supply uses only Japanese capacitors and a low-noise 92mm fan. The cables are also designed in a flexible and flat design, which further minimizes the space requirement.

The features of the Silverstone SST-SX650-G v1.1 at a glance:
– Super compact SFX power supply from Silverstone

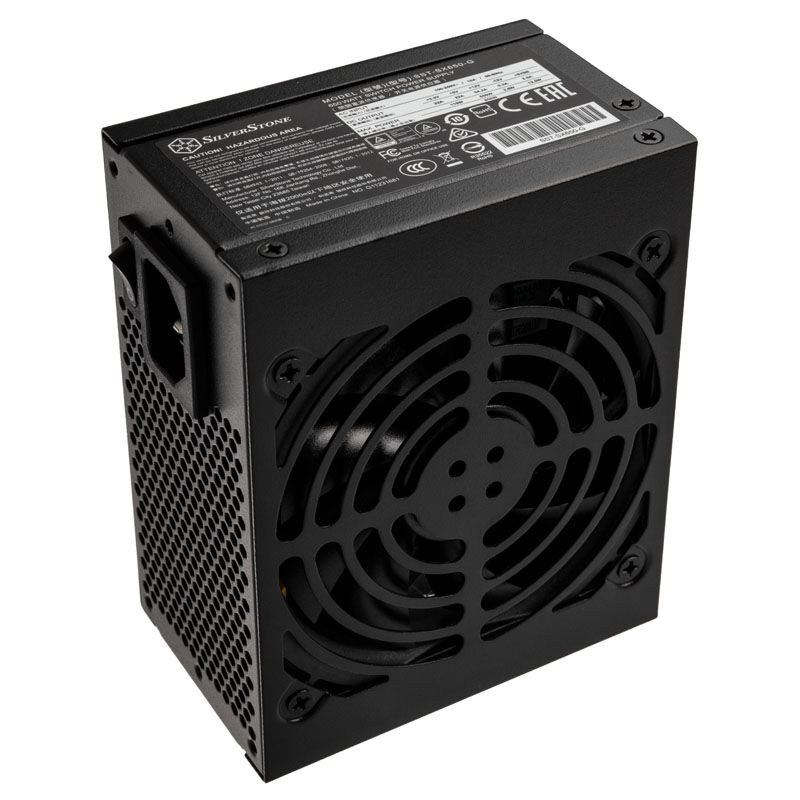

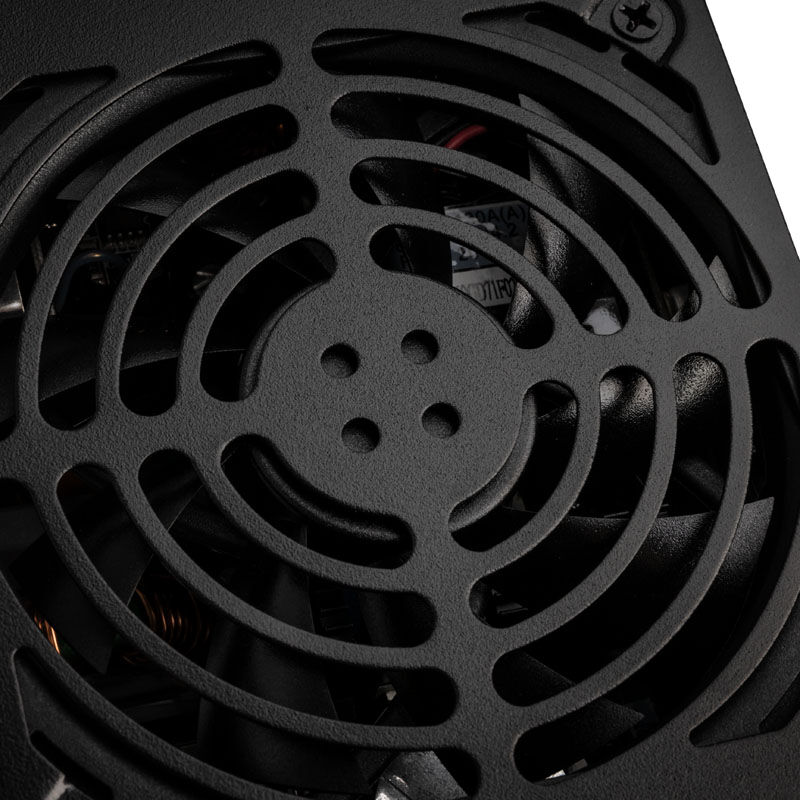

– Quiet 92mm Fan (FDB)
– 650 watts of power with 80 PLUS Gold efficiency
– Strong 12 V single rail with 54.2 amps
– Fully modular cable management with black flat ribbon cables
– Four 6 + 2-pin PCIe connectors for graphics cards

The features of the Silverstone SST-SX650-G v1.1 in detail
The small power supply unit is particularly characterized by the high efficiency of 80 PLUS Gold, the single-rail 12-volt rail and the extensive arsenal of connections in the form of completely removable cables.

In addition to the extremely powerful single rail with 54.2 amps, the voltage regulation in a corridor of ± 3% ensures constant voltage and stability. Thanks to a very high average efficiency of 92%, relatively little electrical energy is converted into thermal energy.

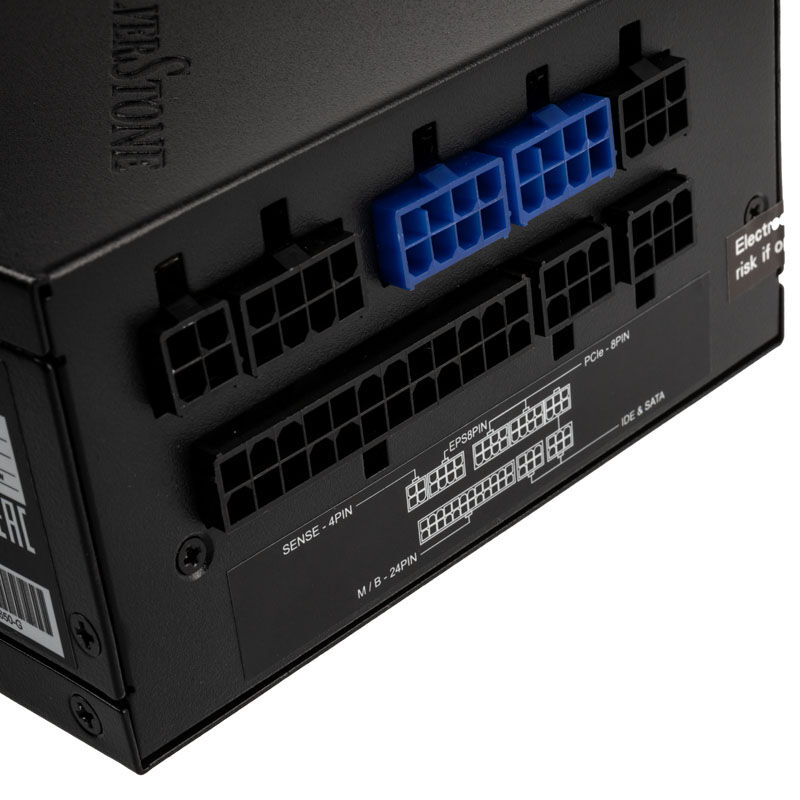

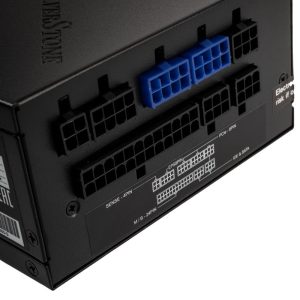

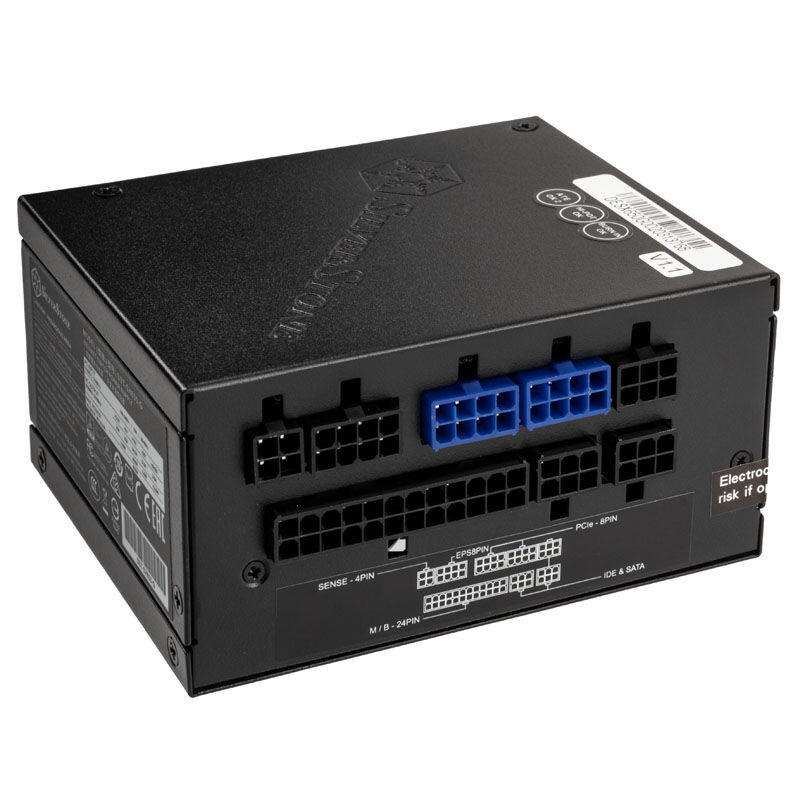

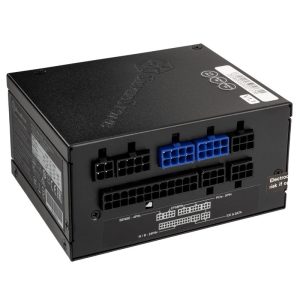

The individually attachable connections illustrate the power of the power supply unit: In addition to 20 + 4-pin, 8-pin EPS and 4 + 4-pin ATX / EPS connectors, there are also four PCIe connections available (4x 6 + 2-pin) and peripheral devices are supplied via six SATA plugs, three 4-pin Molex connections and a floppy connector.

Technical details:
Dimensions: 125 x 63.5 x 100 mm (W x H x D)
Weight: 1.36 kg
Fan: 92 mm (automatic control, at least 18 dB (A))
Efficiency: at least 88/92/88 percent at 20/50/100 percent load (230 volts), incl. 80 PLUS Gold certificate.
Active PFC (> 0.9)
Form factor: SFX (ATX compatible via exchange frame)
Power: 650 W
+ 3.3V: 22 A
+ 5V: 22 A
+ 3.3V & + 5V: 110 W.
+ 12V: 650 W / 54.2 A
-12V: 0.3A
+ 5Vsb: 2.5 A

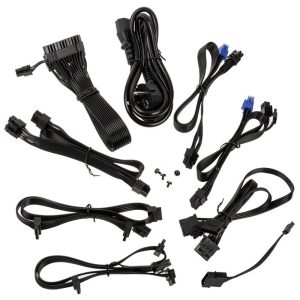

Connections (removable):
1x 20 + 4-pin ATX12V / EPS12V (300 mm)
1x 4 + 4-pin ATX12V / EPS12V (400/150 mm)
1x 8-pin ATX12V / EPS12V (400 mm)
2x 6 + 2-pin PCIe (400 mm)
2x 6 + 2-pin PCIe (550 mm)
6x SATA (300/200/100 mm x 2)
3x 4-pole Molex (300/200 mm / 200mm)
1x floppy (100 mm)

Average duration of use: 100,000 h
