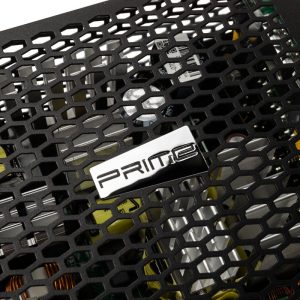

Seasonic PRIME-TX-700 PSU

While the power supplies from the Seasonic Prime series rely on semi-passive operation with a fan, the Prime Fanless TX series uses a completely passive cooling system. This is only possible thanks to the sophisticated technology and extremely high energy efficiency of 80 PLUS Titanium. The result: Absolute silence despite high performance!

The features of the Seasonic Prime Fanless TX-700 at a glance:
– 700 watt power supply with powerful 58 A single rail
– Very high efficiency thanks to 80 PLUS Titanium certificate
– Passive cooling without fans
– Fully modular cable management with flat cables
– Four 6+2 pin PCIe connectors for graphics cards
– Ten SATA connectors + five Molex connectors
– Noiseless power supply with 80 PLUS Platinum efficiency

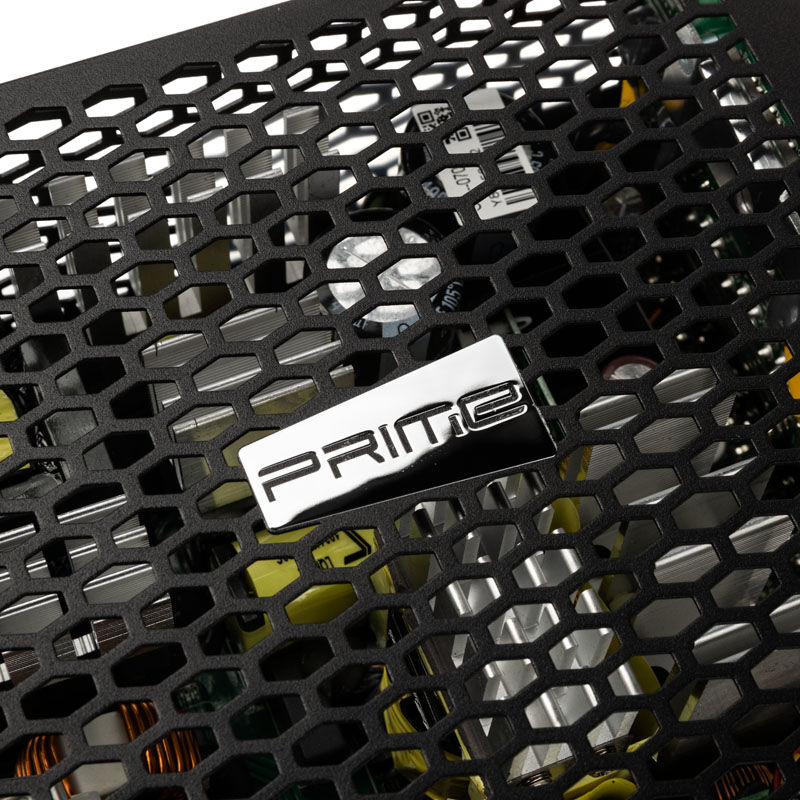

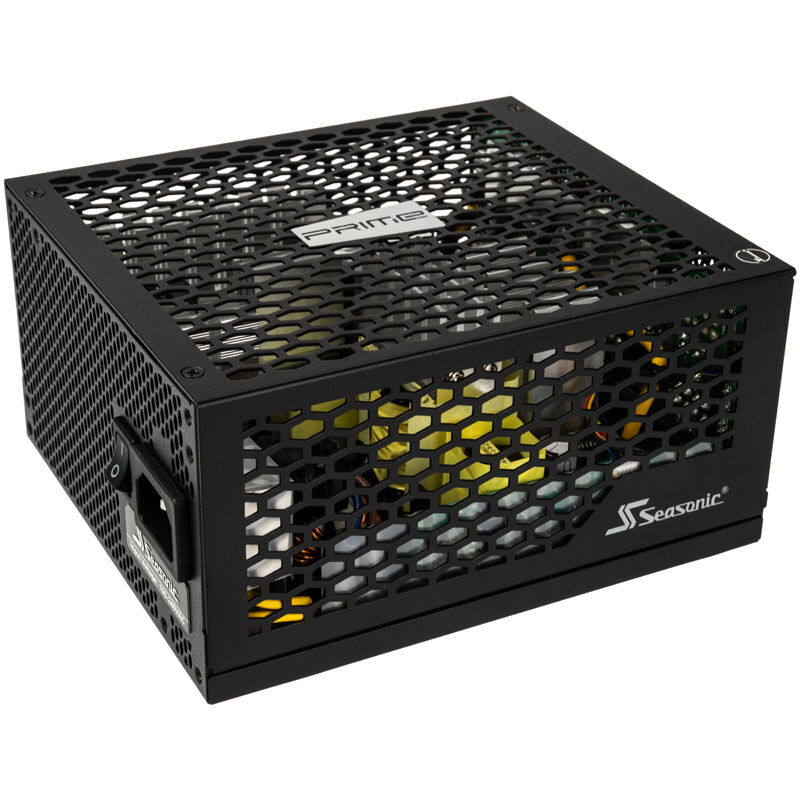

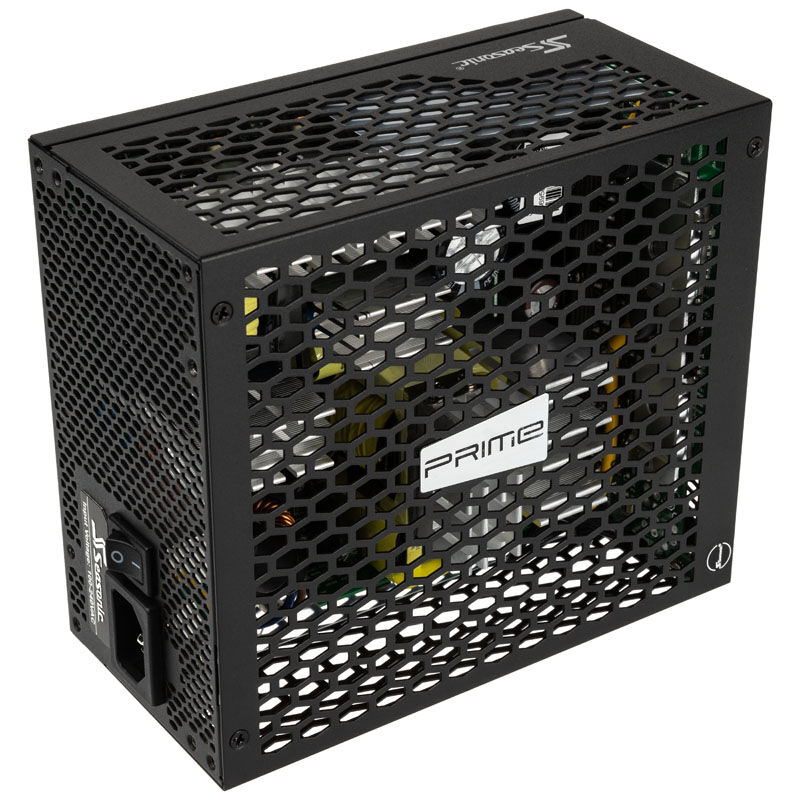

Despite the missing fan, you dont have to do without anything with the Seasonic Prime Fanless TX-700. High-end systems can also be supplied with a full 58 amps on the powerful 12-volt rail. The heat is dissipated via various perforated grids and normal air circulation.

The extremely high level of efficiency also played a key role in the technical implementation of the fanless design. This achieves up to 94 percent at 50 percent system load and is therefore awarded the 80 PLUS Titanium certificate. The Seasonic Prime Fanless TX-700 is designed extremely efficiently, which also results from the use of high-quality components – such as the capacitors. As a result, the heat loss to be dissipated is very low.

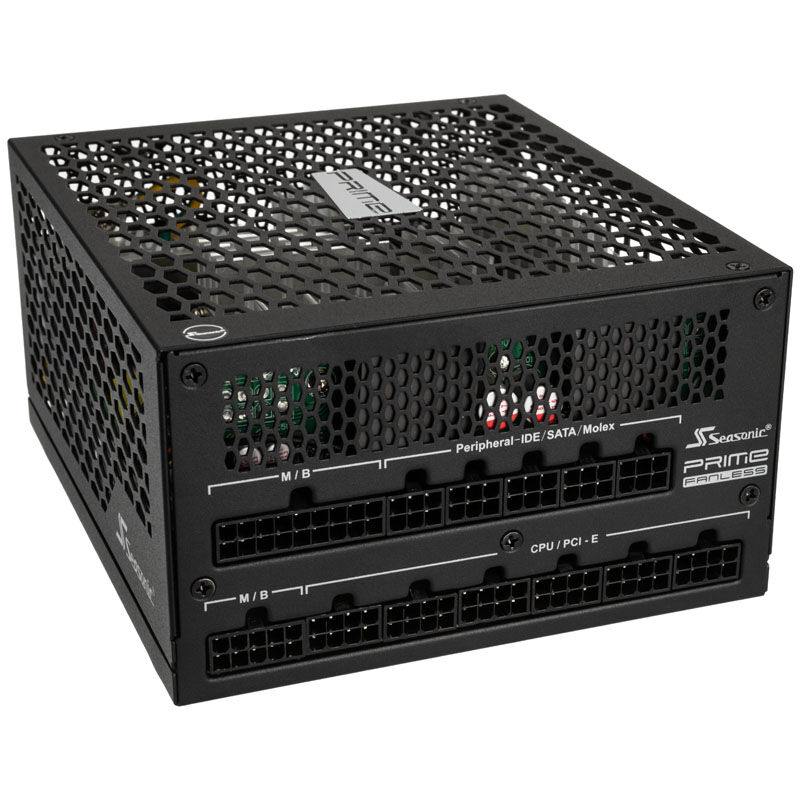

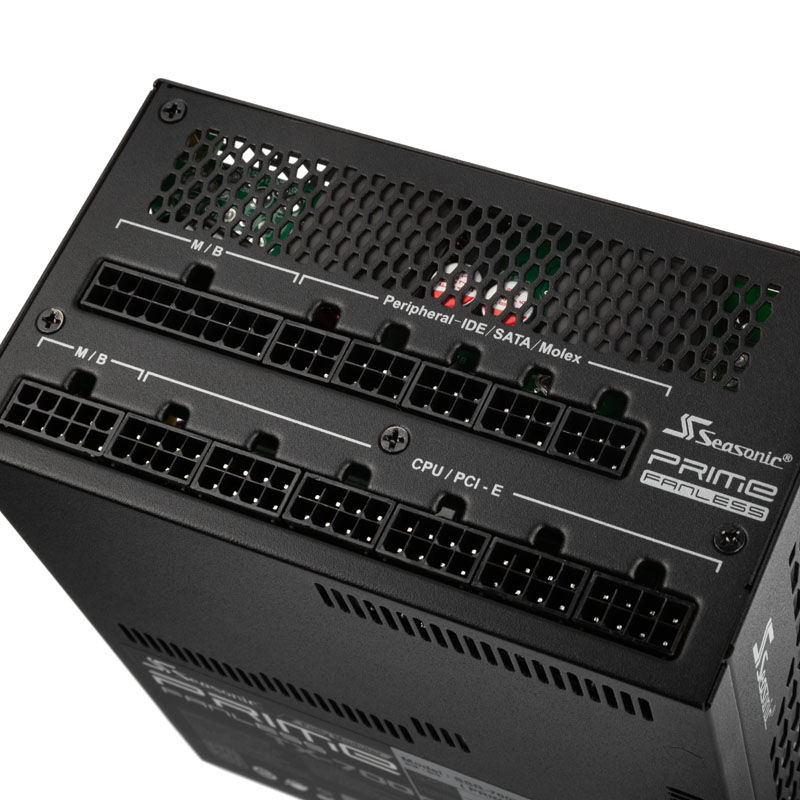

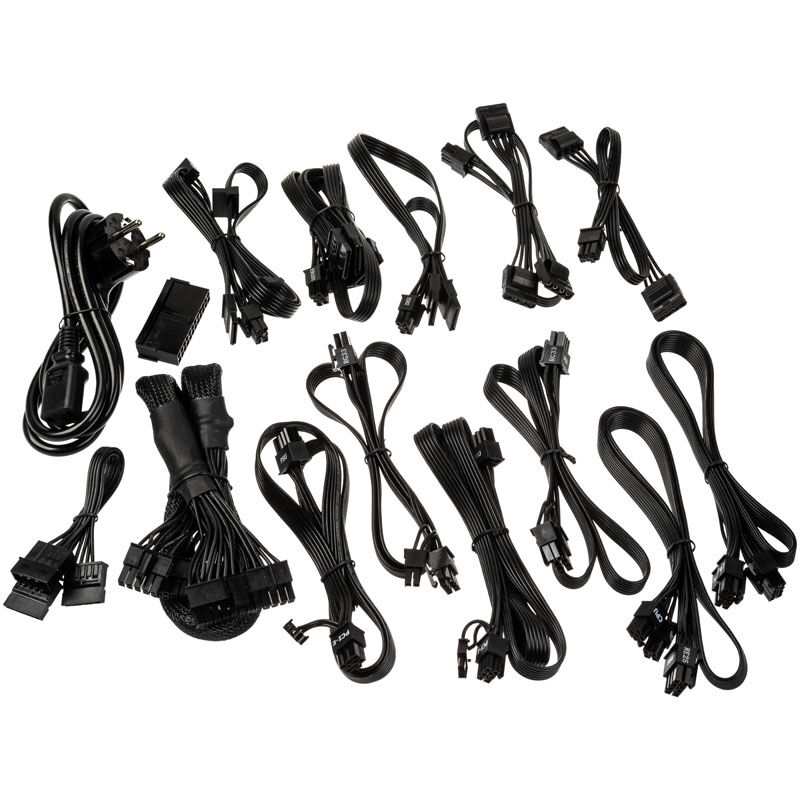

Due to the fully modular cable management, all cables are detachable and can therefore be used with maximum flexibility. A 20+4-pin and two 4+4-pin connectors are available for the mainboard. In addition, the Seasonic Prime Fanless TX-700 provides a whopping four 6+2 PCIe connections to operate more powerful graphics cards or smaller SLI/Crossfire systems. There are also ten SATA ports and five 4-pin Molex connectors.

It almost goes without saying that the Seasonic Prime Fanless TX-700 has all the necessary protective circuits that modern high-end power supplies naturally have to offer. Should the PSU nevertheless bless its time: no problem, because Seasonic gives a full twelve-year manufacturers guarantee on this exceptional product!

Technical details:
– Dimensions: 150 x 86 x 170 mm (W x H x D)
– Efficiency: max. 94% @ 50% load, 80 PLUS Titanium certificate
– Active PFC
– Power: 700 watts
– +3.3V: 20A
– +5V: 20A
– 3.3+5V: 100W
– +12V: 58A / 696W
– -12V: 0.3A / 3.6W
– +5Vsb: 3A / 15W
– Connections (modular):
– 1x 20+4 pin
– 2x 4+4 pin
– 4x 6+2 pin PCIe
– 10x SATA
– 5x 4-pin Molex
– Protection: OPP, OVP, EIA, OCP, OTP, SCP
– Safety: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
– Manufacturers guarantee: 12 years
