In Mini-ITX/Mini-DTX configuration, the SUGO 17 can accommodate a maximum of 11 system fans. Specifically, 3 x 120mm and 4 x 80mm fans are assigned for the GPU, as well as 4 x 120mm fans for the CPU. Additionally, its versatility supports the installation of dual 360mm radiators - with one dedicated to each component - further enhancing the cooling potential and ensuring optimal thermal performance.
In Mini-ITX/Mini-DTX configuration, the SUGO 17 can accommodate a maximum of 11 system fans. Specifically, 3 x 120mm and 4 x 80mm fans are assigned for the GPU, as well as 4 x 120mm fans for the CPU. Additionally, its versatility supports the installation of dual 360mm radiators - with one dedicated to each component - further enhancing the cooling potential and ensuring optimal thermal performanc...
In Mini-ITX/Mini-DTX configuration, the SUGO 17 can accommodate a maximum of 11 system fans. Specifically, 3 x 120mm and 4 x 80mm fans are assigned for the GPU, as well as 4 x 120mm fans for the CPU. Additionally, its versatility supports the installation of dual 360mm radiators - with one dedicated to each component - further enhancing the cooling potential and ensuring optimal thermal performanc...
Features:
– Supports high-end graphics / expansion cards of up to 400mm
– Compatible with Micro-ATX / Mini-ITX / Mini-DTX motherboard & ATX / SFX / SFX-L PSU
– Supports dual 360mm liquid cooling radiators
– CPU cooler opening on motherboard back plate for convenient assembly and upgrade
– Accommodates a maximum total of 11 fans (7 x 120mm + 4 x 80mm)
– Accommodates lengthy graphics card and PSU simultaneously in Mini-ITX / Mini-DTX configuration
– Front I/O port includes USB Type-C x 1, USB 3.0 x 2, combo audio x 1
– Unparalleled Cooling Efficiency

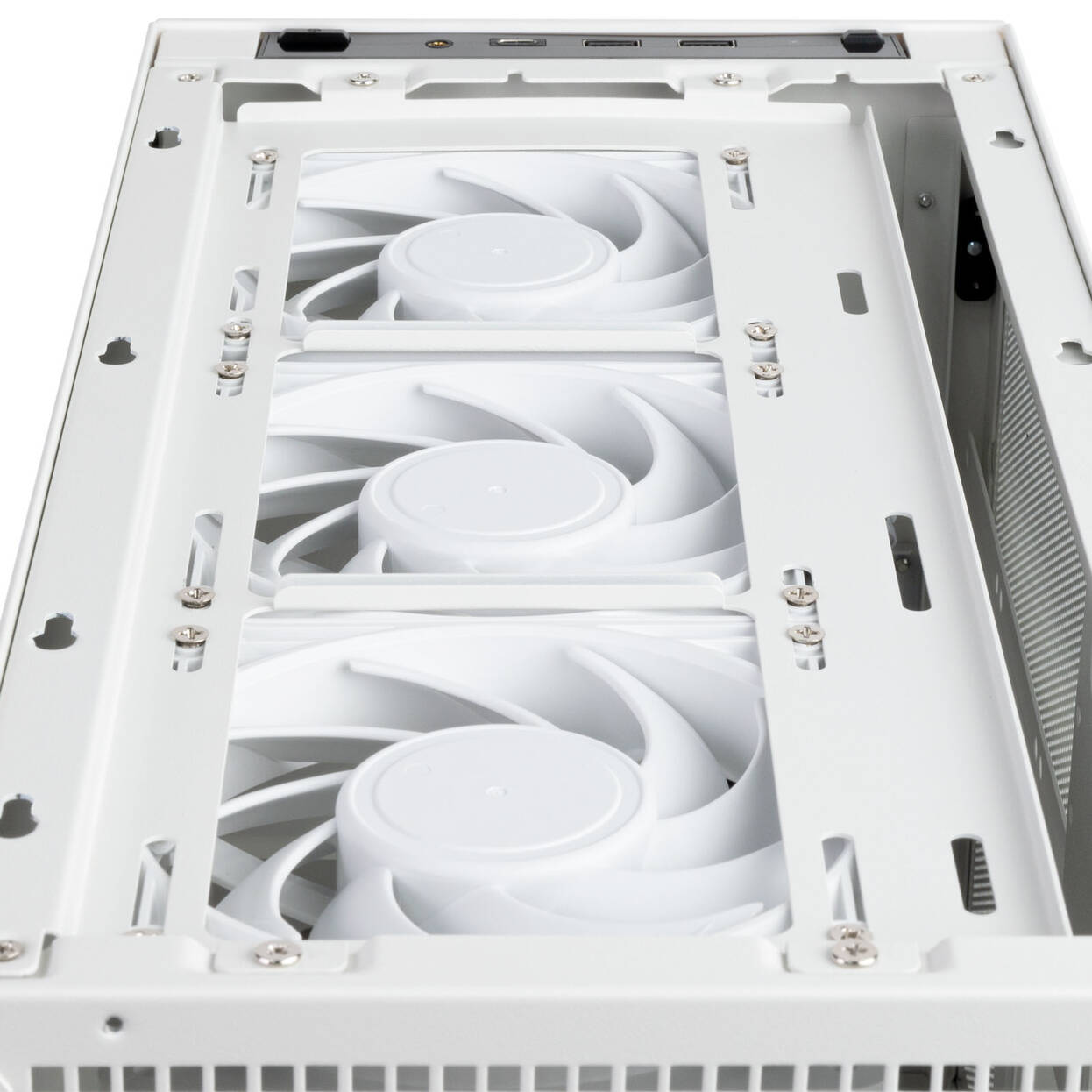

In Mini-ITX/Mini-DTX configuration, the SUGO 17 can accommodate a maximum of 11 system fans. Specifically, 3 x 120mm and 4 x 80mm fans are assigned for the GPU, as well as 4 x 120mm fans for the CPU. Additionally, its versatility supports the installation of dual 360mm radiators – with one dedicated to each component – further enhancing the cooling potential and ensuring optimal thermal performance.
Unmatched hardware flexibility

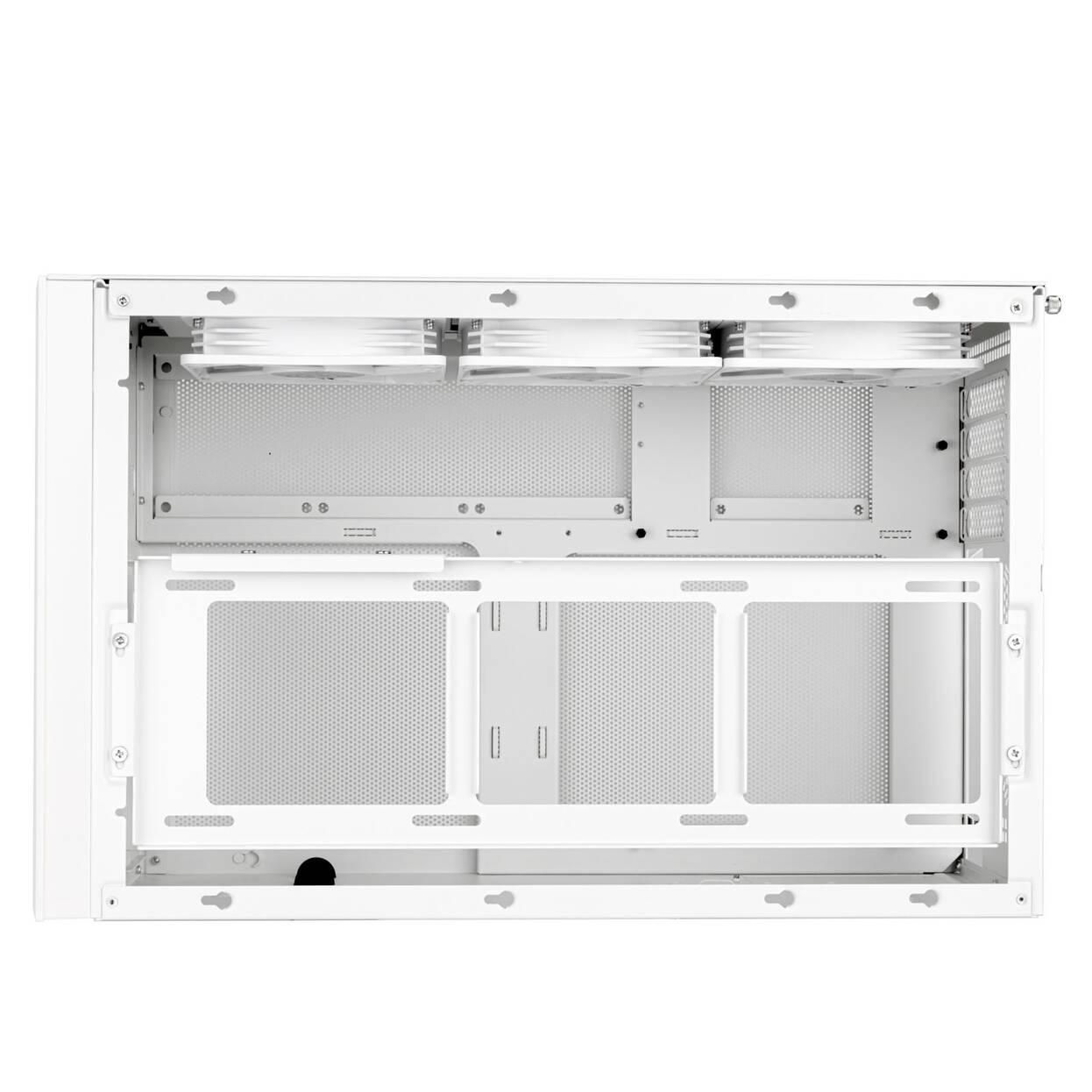

At 26.1L total volume, SUGO 17 offers ample space to accommodate the longest graphics cards available. Furthermore, it offers remarkable versatility by supporting both SFX PSUs and ATX (PS2) PSUs, ensuring a wide range of options to power your system.
Exceptional usability & upgradability

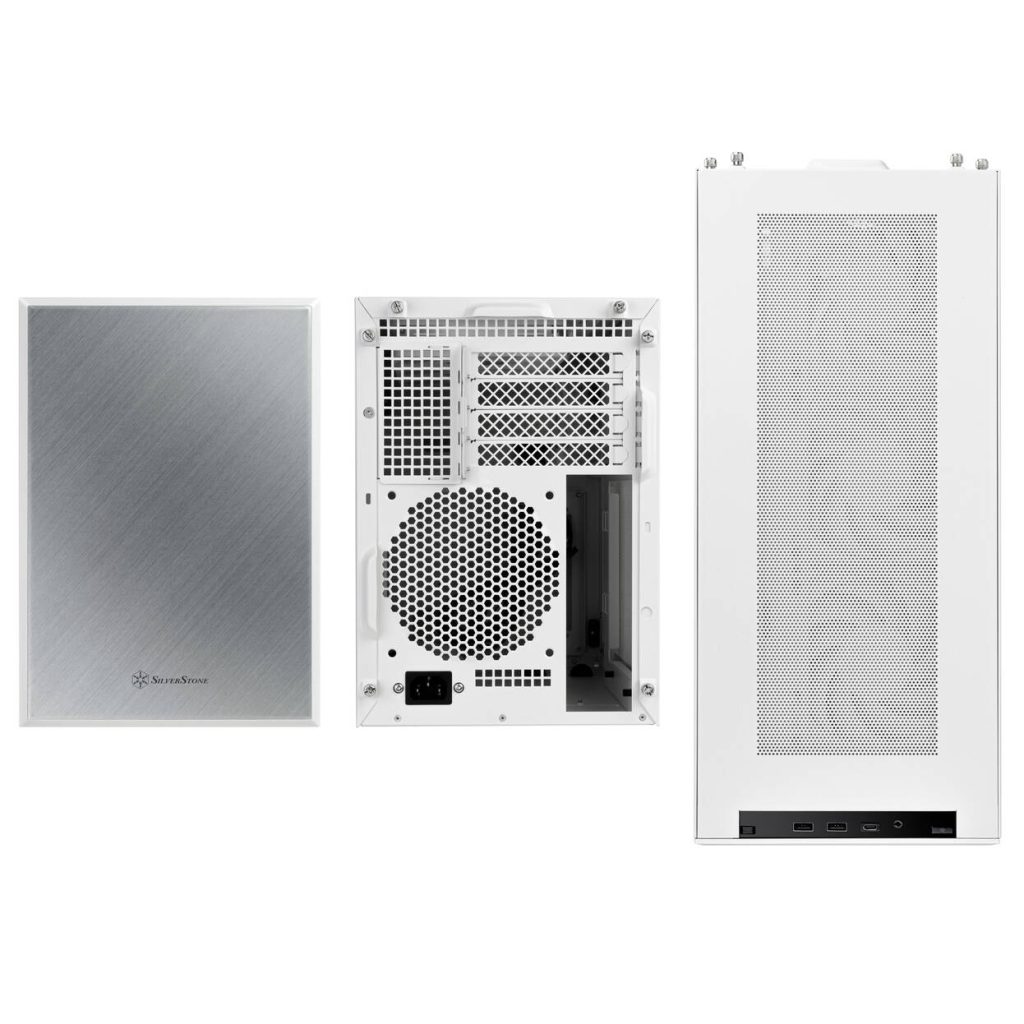

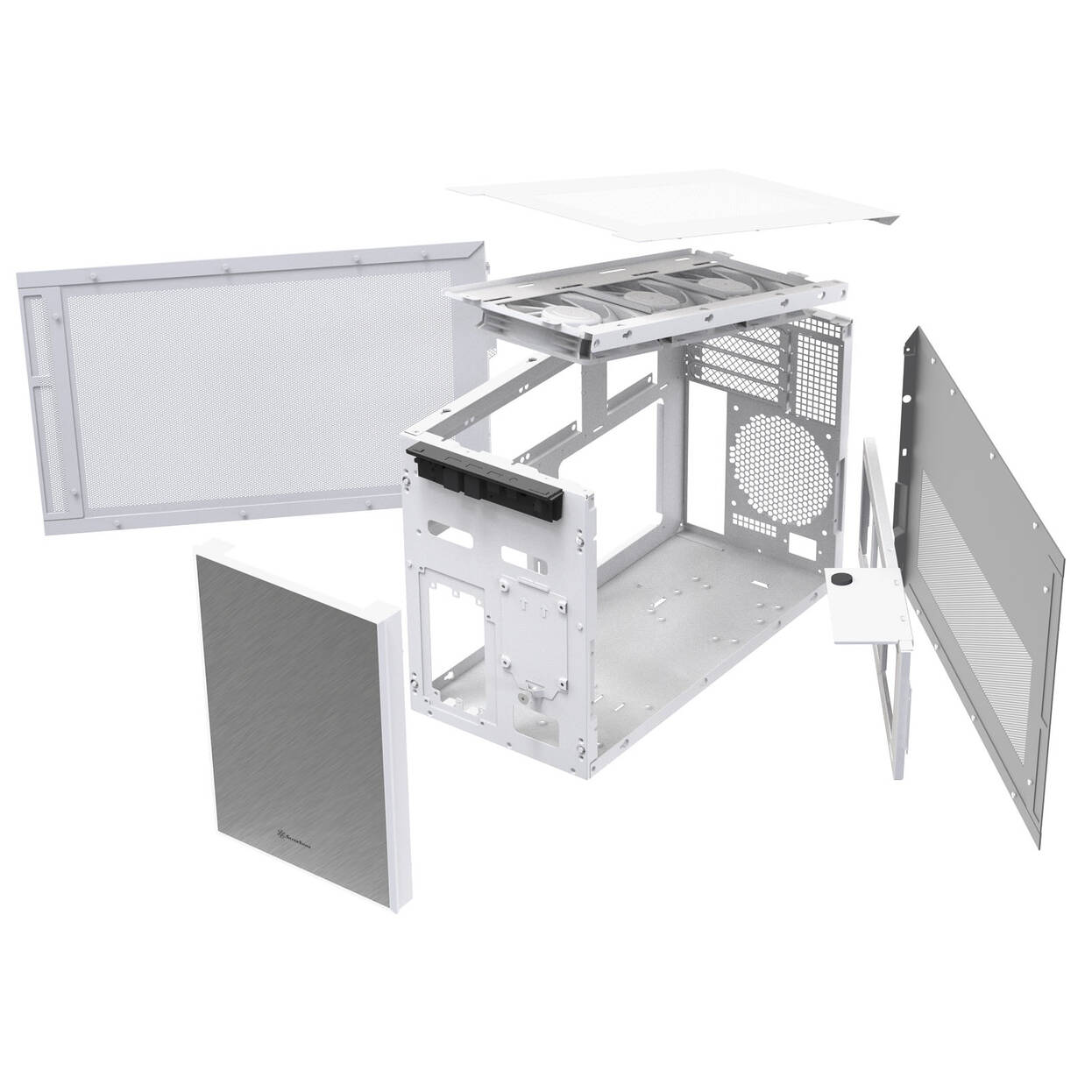

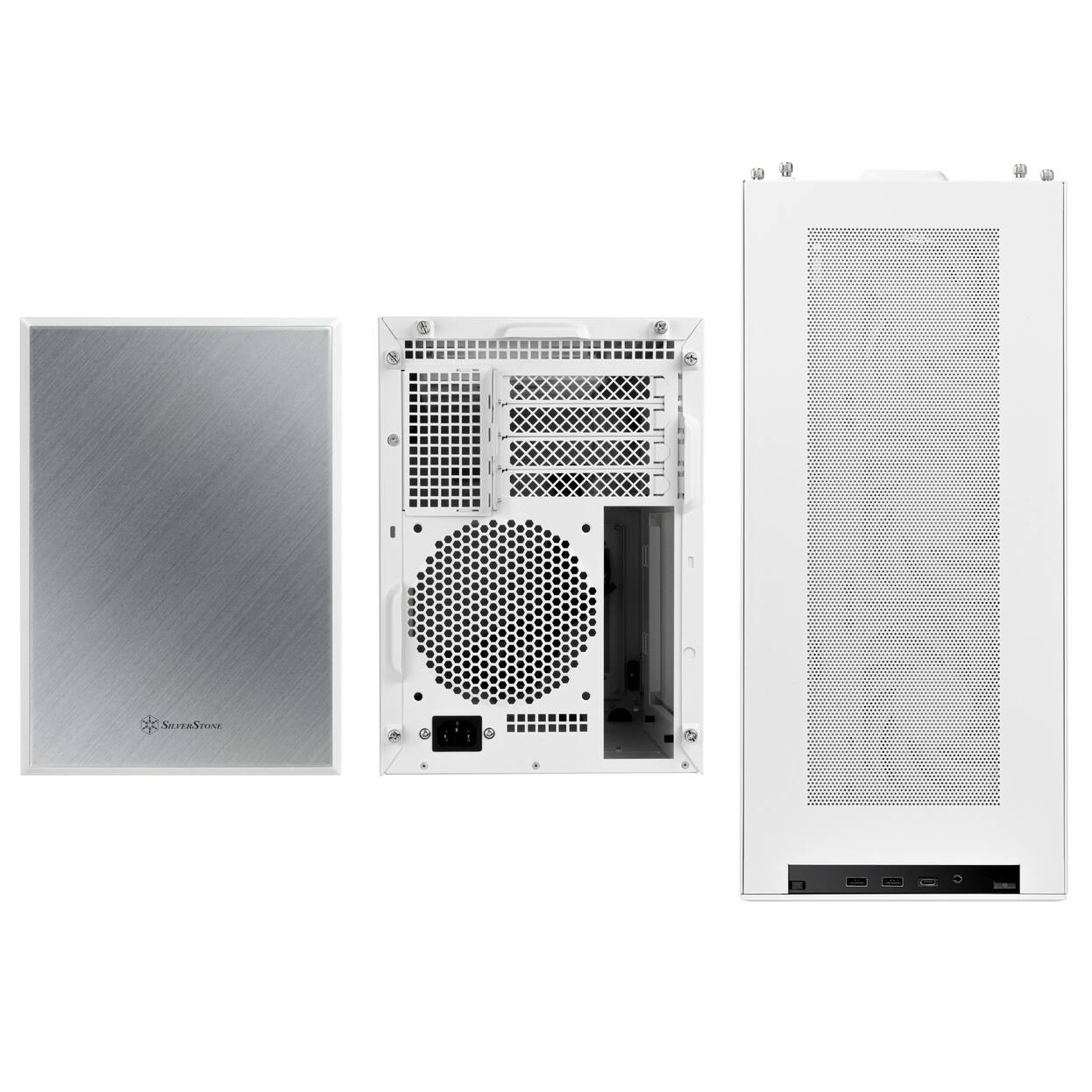

The modular design of the case facilitates the removal of all panels, streamlining the build process and ensuring easy upgradability in the future
| Colour | |
|---|---|
| Primary Colour | White |
| Dimensions | |
| Length / Depth | 451 mm |
| Width | 202 mm |
| Height | 286 mm |
| Weight | 7.78 kg |
| Case | |
| Case Type | Mini Case |
| Motherboard Support | |
| Compatible Motherboard Formats | Micro-ATX, Mini-DTX, Mini-ITX |
| Max. Motherboard Format | Micro-ATX |
| Internal Clearance | |
| Max. CPU Cooler Height | 158 mm |
| Max. GPU Length | 400 mm |
| Max. PSU Length / Depth | 215 mm |
| Power Supply | |
| PSU Included | No |
| PSU Format | ATX, SFX, SFX-L |
| Cooling Support | |
| 80 mm Fan Support | 4 |
| 120 mm Fan Support | 7 |
| Radiator Support | Up to 360 mm |
| Drive Bays | |

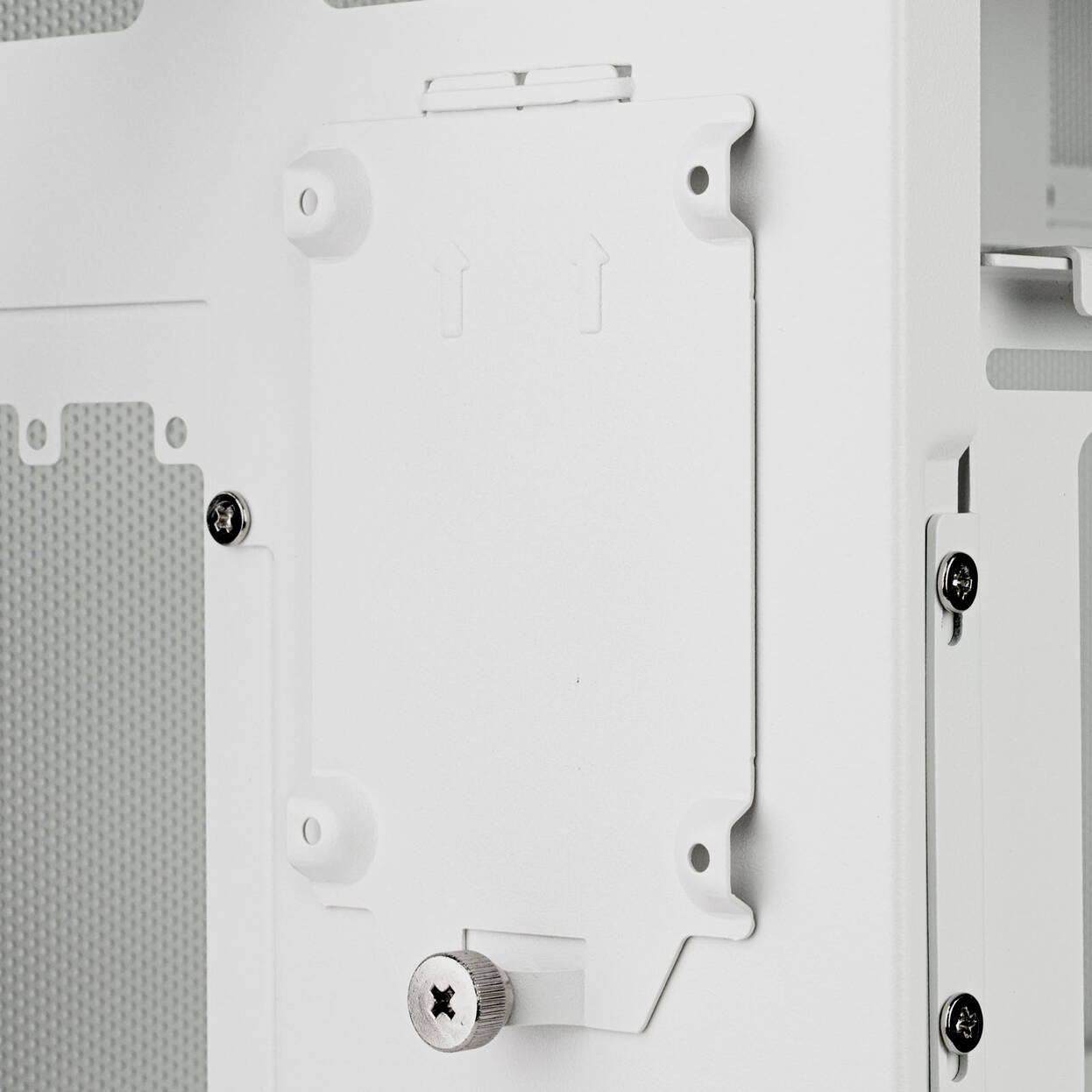

| 2.5″ Internal Drive Bays | 3 |
| 3.5″ External Drive Bays | 1 |
| External Ports | |
| USB 3.1 Type-C | 1 |
| USB 3.0 Type-A | 2 |
| Audio I/O | 1x output + 1x input (3.5 mm TRS) |
| Case Features | |
| I/O Position | Cover |

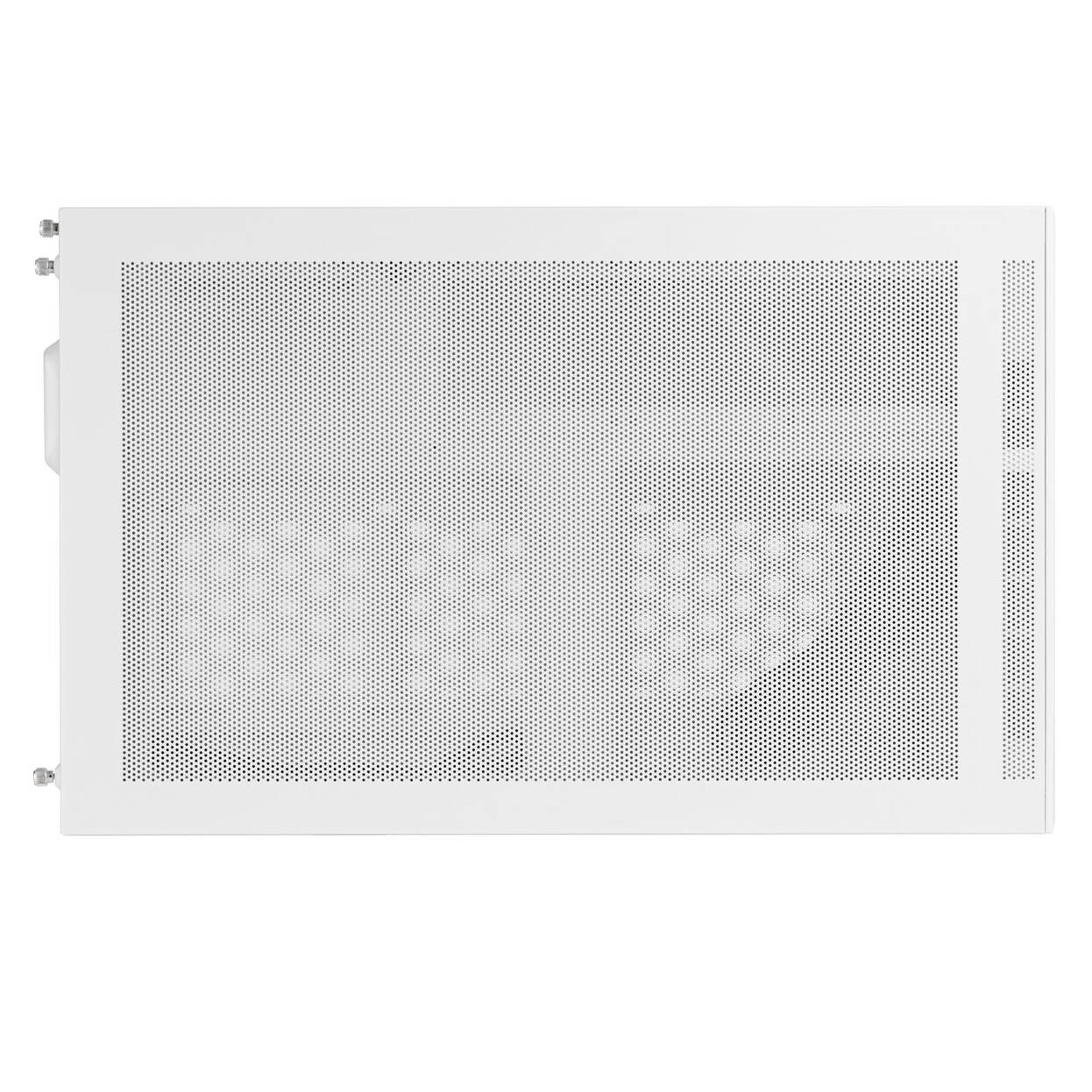

| Side Panel | Mesh |
| Front Door | No |
| Dust Filters Included | No |
| Expansion | |
| Expansion Slots | 4 |
| Materials | |
| Materials | Aluminium, Plastic, Steel |
| Lighting & Control | |
| Lighting / RGB | No |
| Fan / RGB Control | No |
| Additional Contents | |
| Included Fans | 3x 120 mm |
£238.24£198.53 Inc VatEx Vat
