Silverstone SST-ML04B Milo HTPC case - black

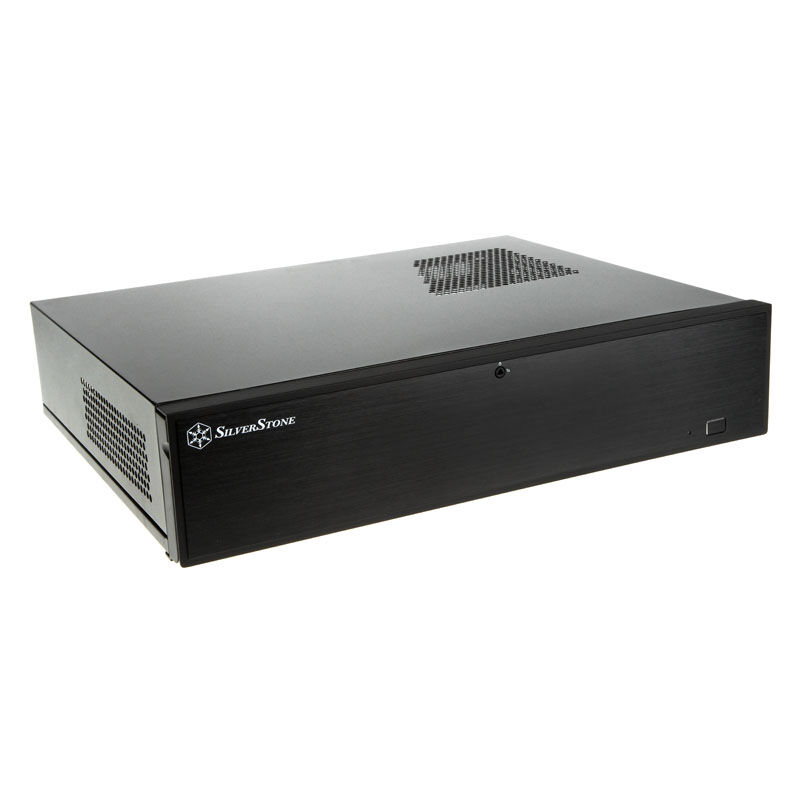

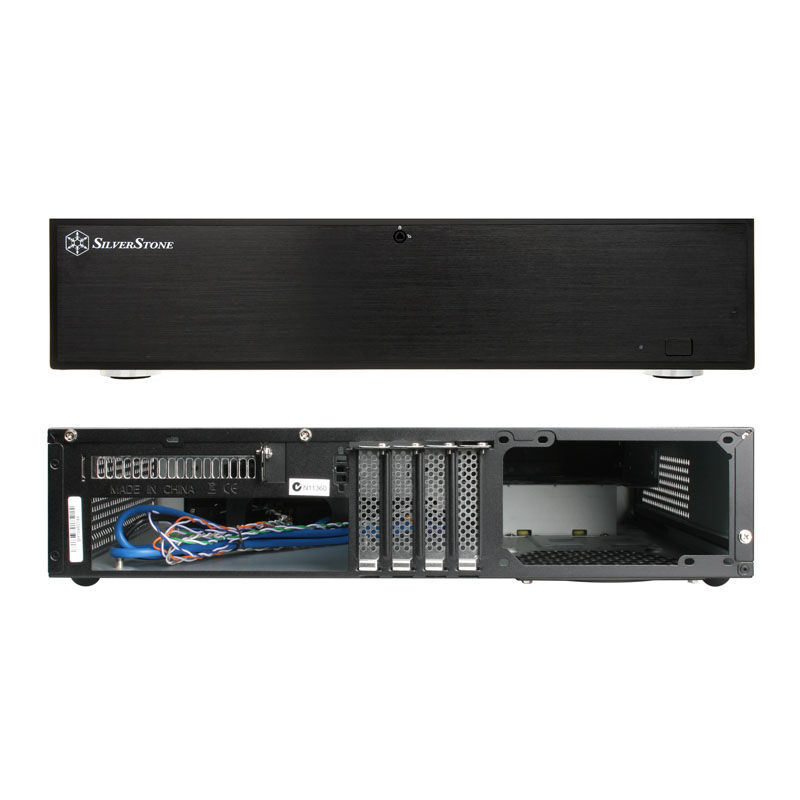

The Milo ML04 is a younger branch of the ML03, which has a new, refined front compared to the latter. This is now covered by a stylish aluminum lid, whereby the ODD slot, the connections and the power button are no longer open.

The An-/Ausknopf can optionally be operated with the flip closed, but that it is also a possible blockade so that the button reacts only with the door open – a feature that will appeal especially new parents and pet owners.

There is also the possibility to dim the brightness of power LED through the front door through to being blinded during an evening movie enjoyment. The two USB 3.0 ports in the lower front area (internal connection) flanked by two audio jacks.
Despite the generally flat and compact design, Silverstone built a fairly powerful ventilation system. On delivery, various grille are available, which can be expanded either by active components. These may be mounted on the right side of all four 80 mm fans side by side.

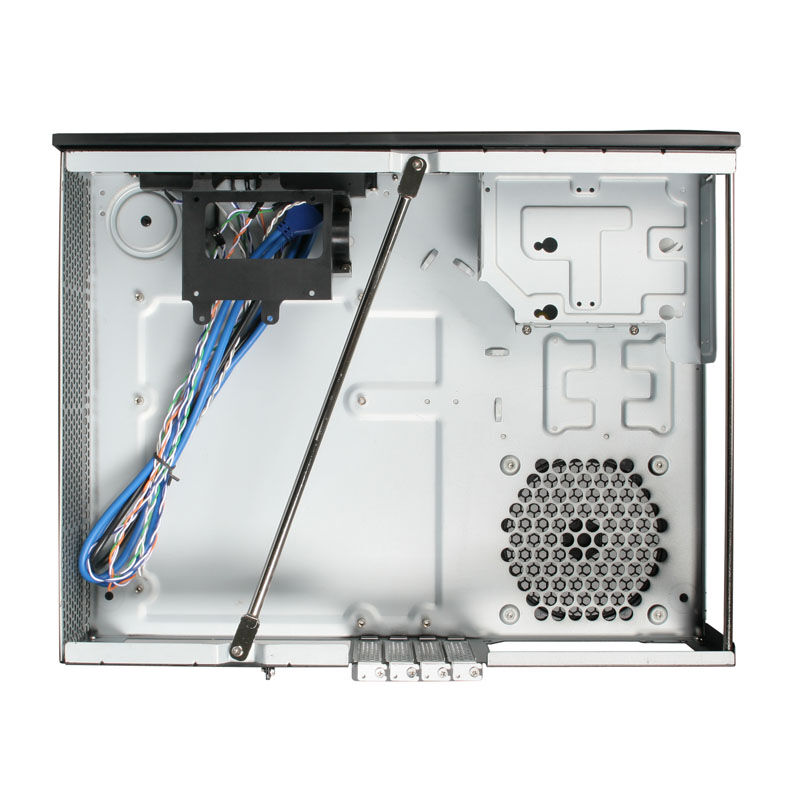

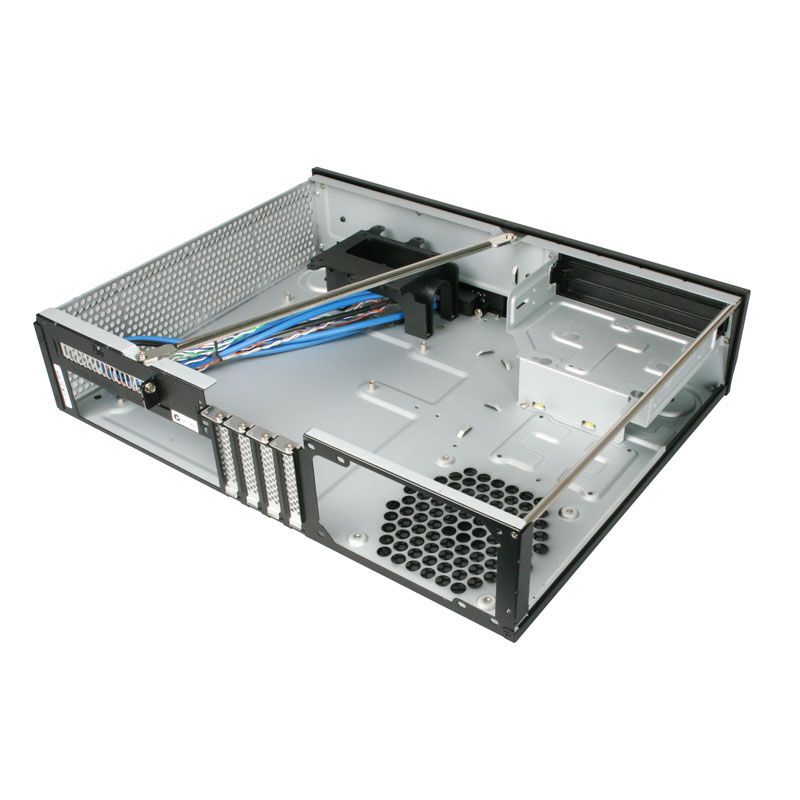

The interior accommodates micro-ATX, Mini-ITX or DTX boards. The power supply is mounted lying next to fresh air and can suck its own bottom opening. On the drives comparatively many slots are available. The three internal 2.5-inch slots can even be extended to two if no optical drive is used.

Technical details:
Dimensions: 440 mm x 105 mm x 350 mm (W x H x D)
Material: Aluminum (front cover), plastic (front), steel (body)
Weight: 4 kg
Color: Black
Format: Micro-ATX, Mini-ITX, DTX
Fan:
4 x 80 mm (right side, optional)
Drive Bays:
1x 5.25 inch (external)
3.5 1x / 2x 2.5 inch (internal, rather than 1x 5.25 inch)
2x 3.5 / 2.5 inch (internal)
1x 2.5 inch (internal)
Power Supply: Standard ATX (. Optional, max 140 mm length)
Expansion slots:
1x standard
4x low profile
I / O panel:
2x USB 3.0 (internal connection)
1x each Audio In / Out
Maximum PSU length: 140 mm
Maximum CPU cooler height: 70 mm
