Silverstone HTPC case for mainboards up to ATX form factor.
Silverstone HTPC case for mainboards up to ATX form factor.
Silverstone HTPC case for mainboards up to ATX form factor.
The subtle design and the height of just 17 centimeters make the Grandia GD09 a suitable housing for living room PCs or media centers. But even powerful gaming PCs can be implemented with the Grandia GD09-C thanks to the extensive cooling options and the great hardware compatibility.
The features of the Silverstone Grandia GD09-C at a glance:
– Discreet HTPC case from Silverstone in black
– With 1x USB 3.0 type A and 1x USB 3.0 type C in the front
– For mainboards in ATX, Micro-ATX and SSI-CEB format
– Up to three 120 mm and two 80 mm fans
– Space for 1x 5.25, 2x 3.5 and 1x 2.5 inch drives
– Compatible with ATX power supplies up to 17 cm
The features of the Silverstone Grandia GD09-C in detail

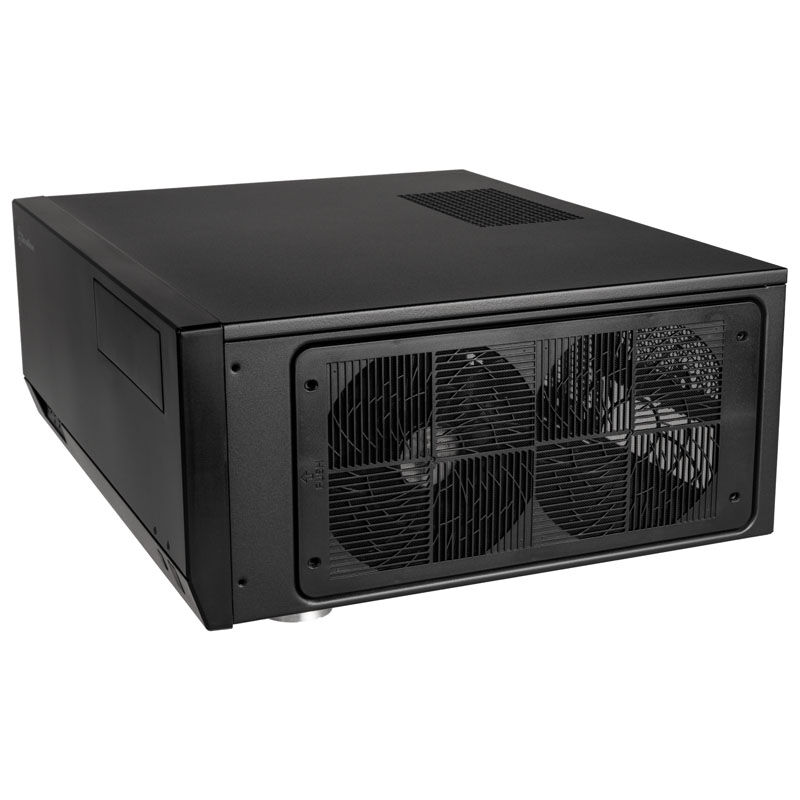

The Grandia GD09 can accommodate large ATX and even SSI-CEB mainboards as well as graphics cards with a length of up to 30.9 cm. Up to three 120 mm fans (one is already pre-installed) and two 80 mm fans can be installed inside the housing to supply the hardware with fresh air. Removable filters are pre-installed to keep the interior free of dust.

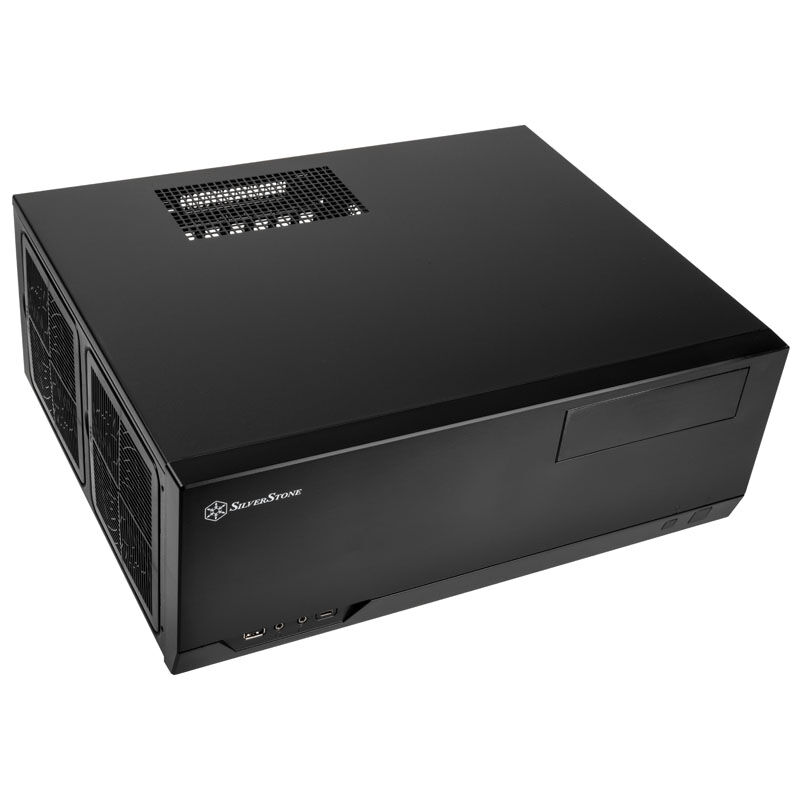

To complement the elegant design, the GD09 has a thick plastic front panel that appears in a brushed aluminum look. There is also a ventilation opening in the lid, which is positioned exactly above the expansion cards.

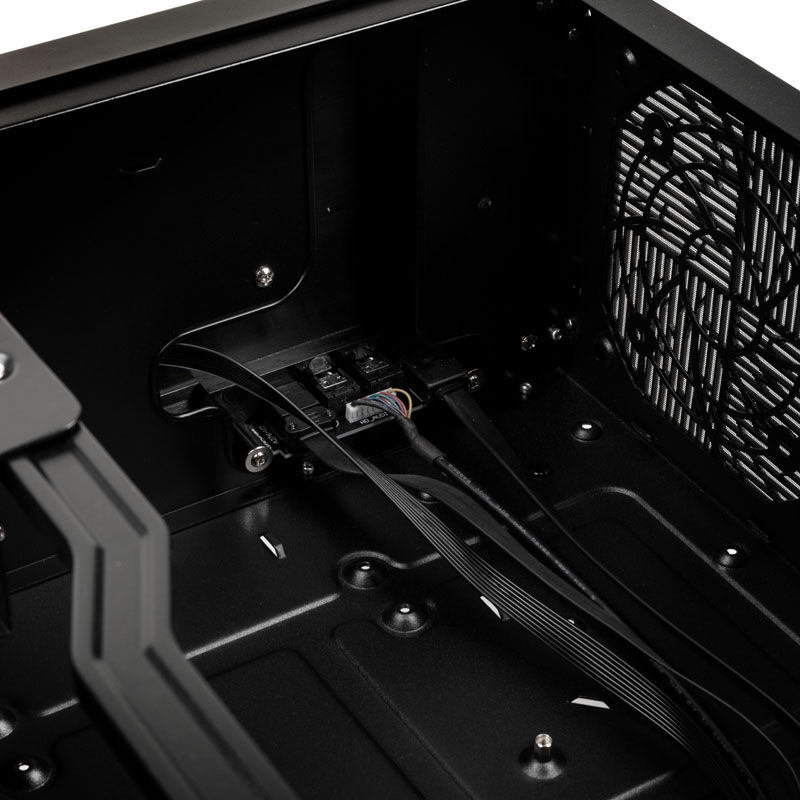

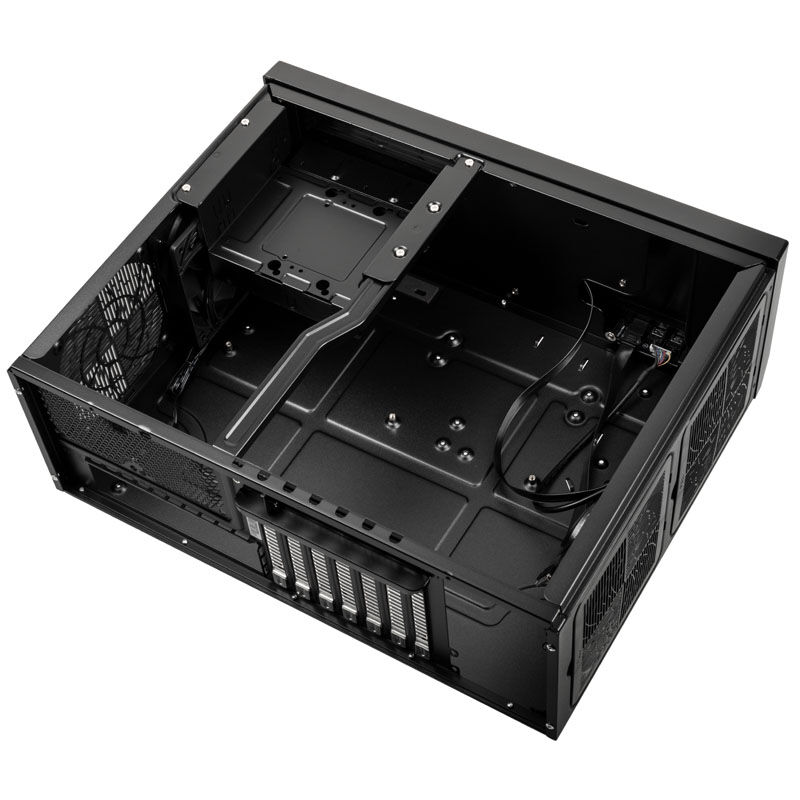

Three 3.5-inch drives and another four 2.5-inch drives can be installed inside if the 5.25-inch is not used. Multi-purpose brackets also replace necessary adapters. The entire inner cage can be removed, simplified by two handles.

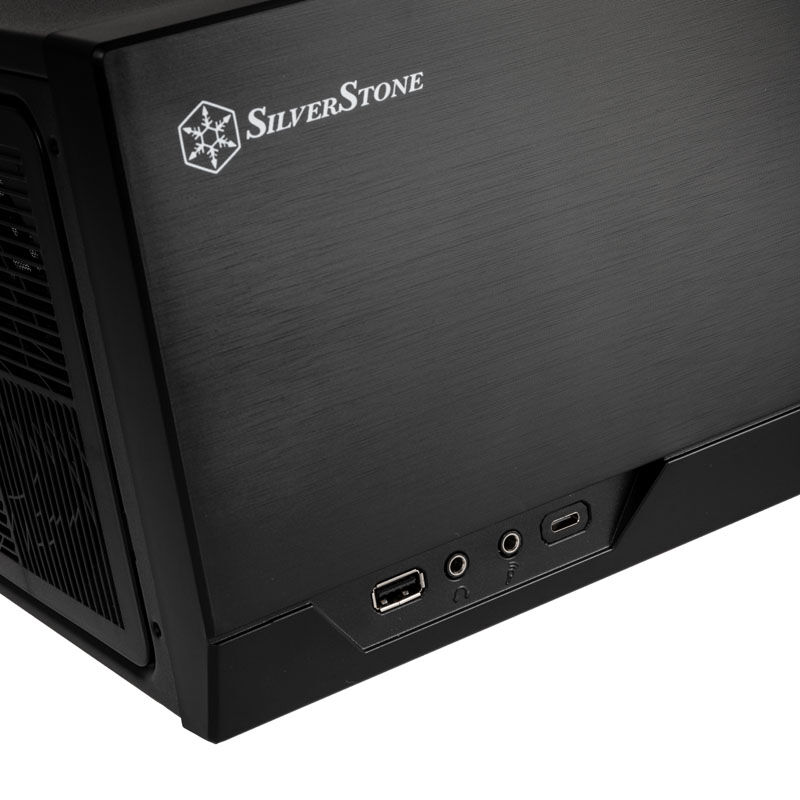

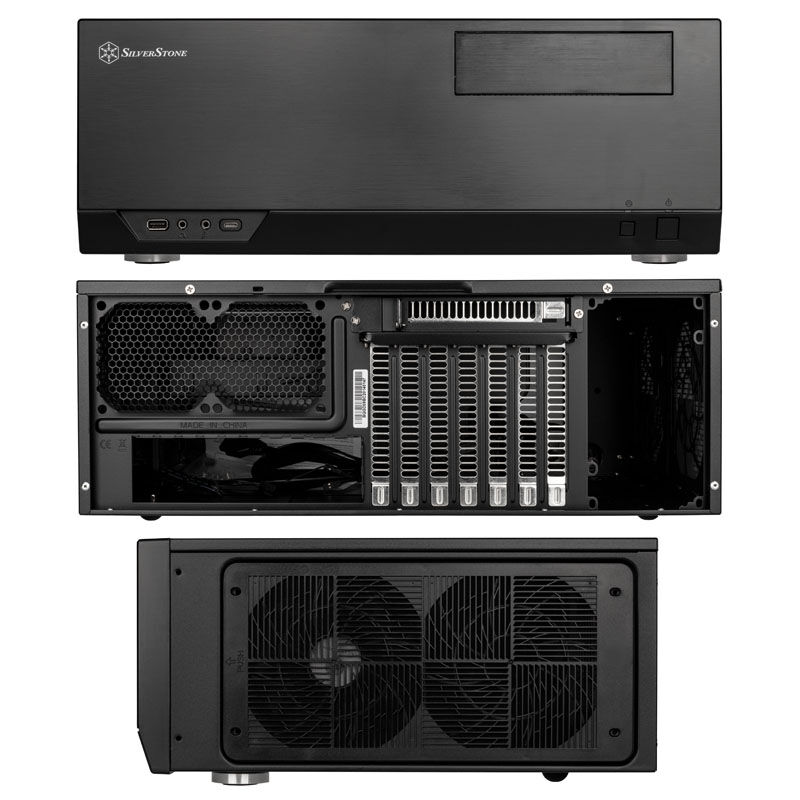

The minimalist case has seven (plus one vertically usable) slots for expansion cards. Of course, there are also two USB 3.0 ports as front connections – one type A and one type C.
Technical details:
– Dimensions: 440 mm x 170 mm x 358 mm (W x H x D)
– Material: plastic (front), steel (body)
– Weight: 4.2 kg
– Color: Black
– Format: ATX, Micro-ATX, Mini-ITX, SSI-CEB
Fan:
– 1x 120 mm (right side, 18 dB (A), 900 rpm)
– 1x 120 mm (right side, optional)
– 1x 120/80 mm mm (left side, optional)
– 2x 80 mm mm (rear, optional)
– Filters: 120mm fan and expansion card ventilation hole
Drive bays:
– 1x 5.25 inch (external; compatible with 1x 3.5 or 2x 2.5 inch)
– 2x 3.5 inches (internal; compatible with 1x 2.5 inches)
– 1x 2.5 inch (internal)
– Power supply: Standard ATX (optional)
– Expansion slots: 7 + 1
I / O panel:
– 1x USB-A 3.0 (internal connection)
– 1x USB-C 3.0 (internal connection)
– 1x per audio in / out
– Maximum CPU cooler height: 138 mm
– Maximum graphics card length: 309 mm
– Maximum PSU length: 220 mm; recommended 180 mm)
