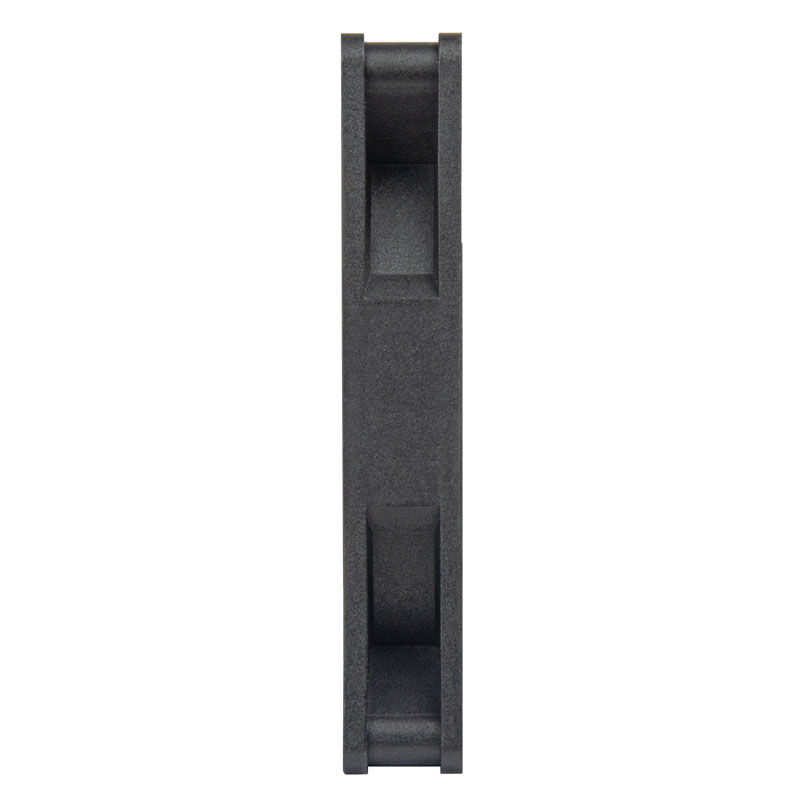

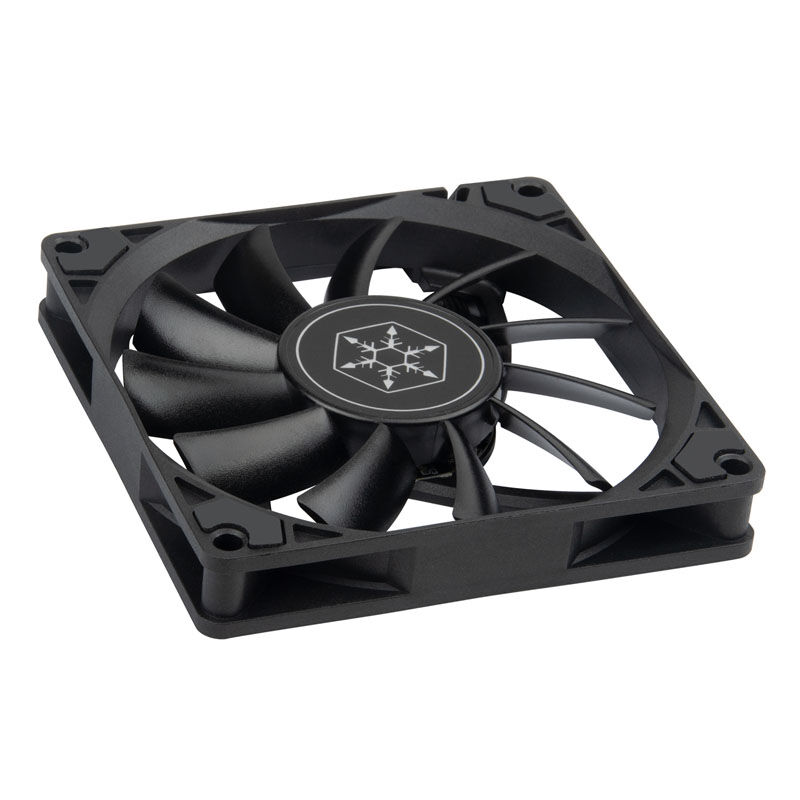

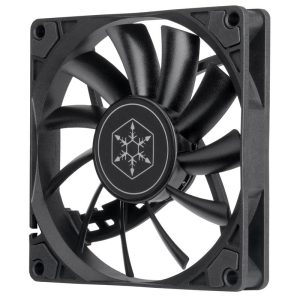

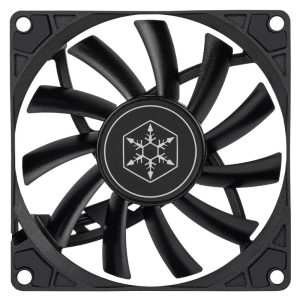

SilverStone Air Slimmer SST-AS90B Slim Fan - 92mm, black

– Compact 92 mm slim format
– Only 15.2 millimeters high
– Max. 2,500 revolutions per minute
– Max. 77.7 m³/h air flow volume
– Max. 2.29 mmH2O static pressure
– Low noise level of only max. 32 dB(A)

The features of the SilverStone Air Slimmer SST-AS90B slim fan in detail
– With the Air Slimmer SST-AS90B, the manufacturer
– Silverstone presents a very flat slim fan in 92 mm format. Despite its low height of only 15.2 millimeters, the Air Slimmer SST-AS90B also offers good performance values and smooth operation. The slim fan is perfect for particularly small and flat cases with little space.

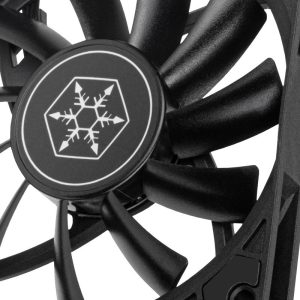

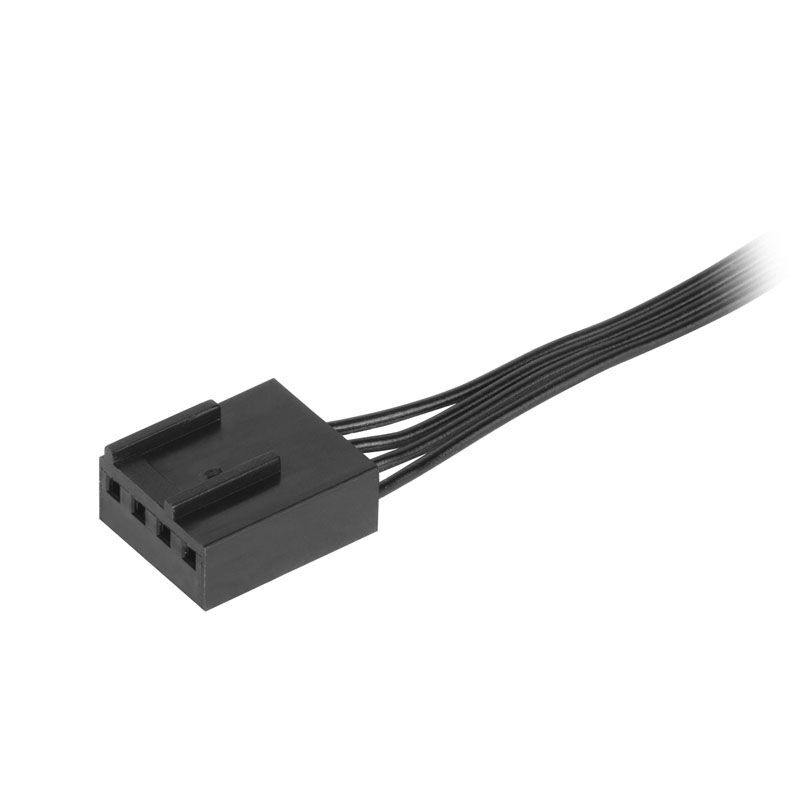

The performance values of the Air Slimmer SST-AS90B are not to be underestimated despite its low height. The optimized design of the fan blades generates a flow rate of 77.7 m³/h and a static pressure of 2.29 mmH2O at a maximum of 2,500 revolutions per minute. The noise level is in the quiet range at 32 dB(A). The Air Slimmer SST-AS90B is connected via a 4-pin connector, which is also used for PWM control.

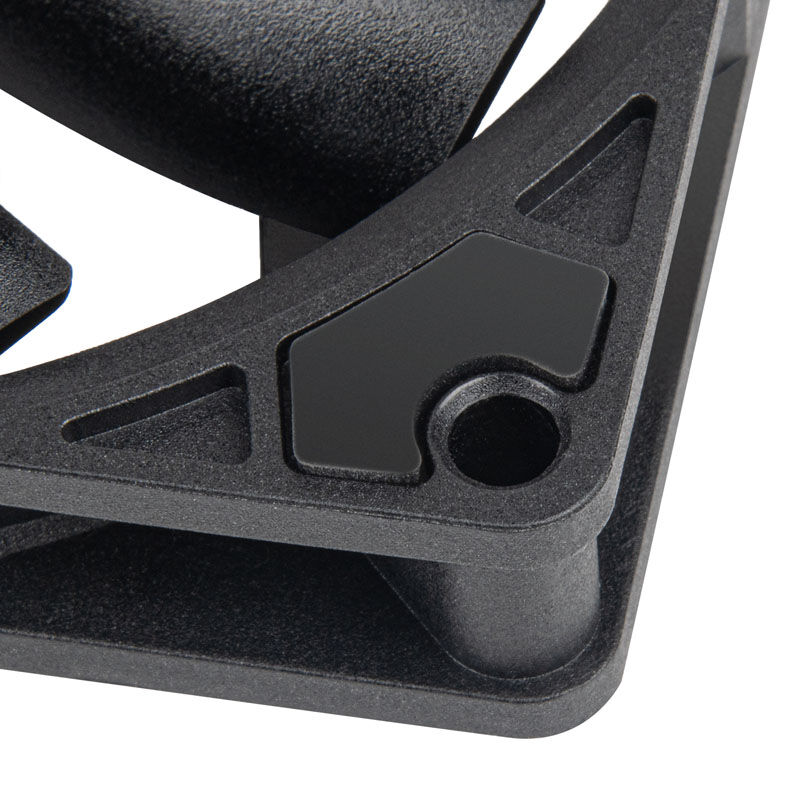

Fastening screws and vibration dampers are included in the scope of delivery.

Technical details:
– Dimensions: 92 x 92 x 15.2 mm (W x H x D)
– Weight: 64 g
– Material: plastic
– Color: black
– Bearing: hydrodynamic plain bearing
– Service life: n/a
– Speed: 500 to 2,500 rpm
– Discharge volume: 9.14 – 77.7 m³/h
– Static pressure: 0.11 – 2.29 mmH2O
– Voltage: 11.3 – 32 dB(A)
– Voltage: 6 – 12 V
– Starting voltage: 6 V
– Current: max. 0.32 A
– Power consumption: max. 3.84 W
– Connections: 4-pin PWM
