Noctua NF-A9 PWM chromax.black.swap fan - 92mm

PWM-controlled premium fan from high-end manufacturer Noctua in 92 mm format. As part of the chromax.black.swap series, the NF-A9 PWM is characterized not only by excellent technology and performance data, but also by the completely black color scheme and the exchangeable anti-vibration pads.

The features of the Noctua NF-A9 PWM chromax.black.swap at a glance:
– Premium 92mm PWM fan from high-end manufacturer Noctua
– chromax.black.swap series with an all-black design
– Seven rotor blades with A-Series blade geometry + Flow Acceleration Channels
– 2,000 rpm and 78.9 m³/h delivery volume at 22.8 dB(A)
– Long life SSO2 bearing with 150,000 hours
– Noctua PWM control chip NE-FD1
– Customizable with optional accessories
– 6 year guarantee

The features of the Noctua NF-A9 PWM chromax.black.swap in detail

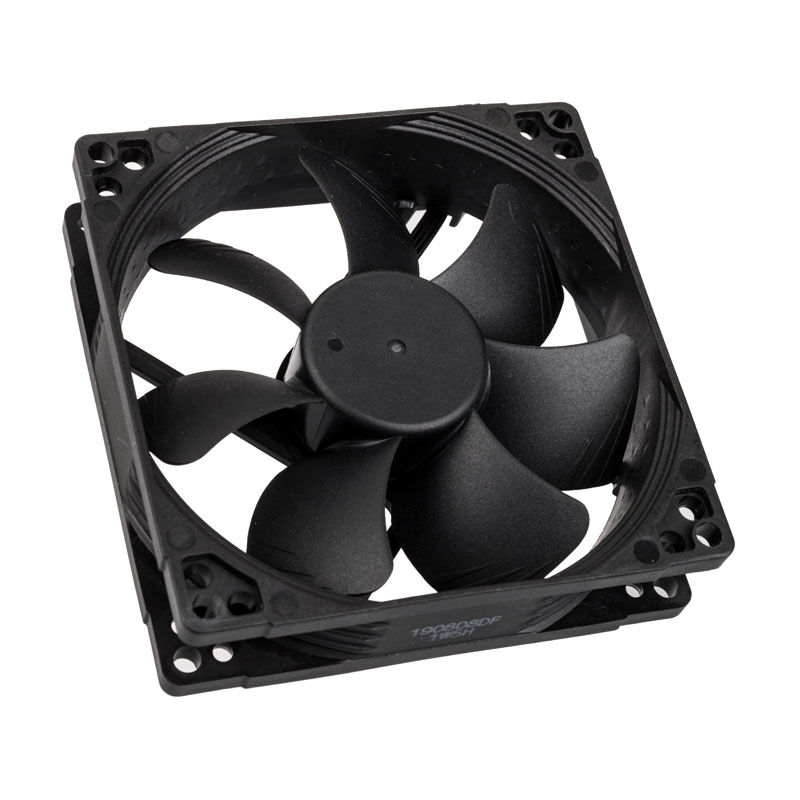

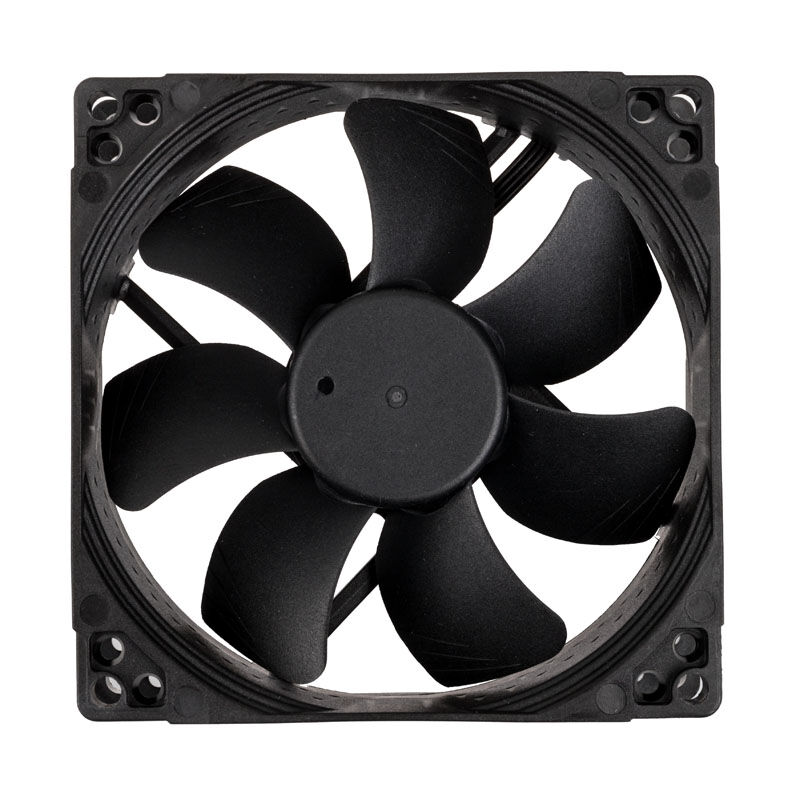

The NF-A9 PWM chromax.black.swap from the Austrian fan and cooler specialist Noctua is a state-of-the-art 92 mm fan with PWM function. Thanks to the specially developed AAO frame (Advanced Acoustic Optimization) and the seven rotor blades with A-Series blade geometry and Flow Acceleration Channels, it delivers impressive values while running quietly at the same time. At a maximum of 2,000 rpm and a maximum of 22.8 dB(A), the fan is whisper-quiet and scoops 78.9 m³/h of air.

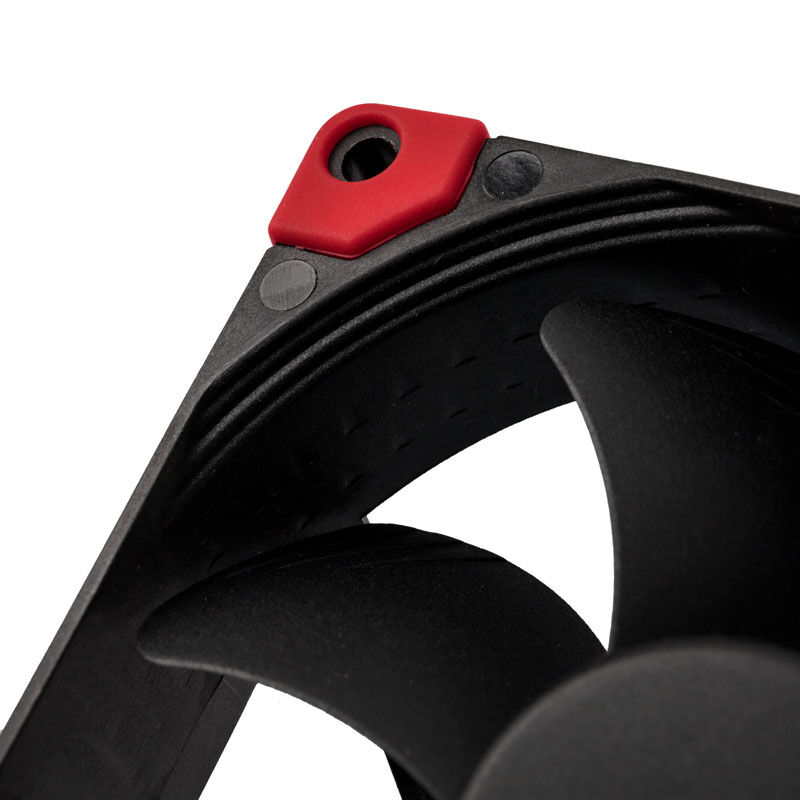

The further developed SSO2 premium bearingguarantees quiet operation and a long service life. Because of the PWM functionality, its speed can be regulated directly from the mainboard. A PWM control chip NE-FD1 developed by Noctua is used here. This allows the fan to work very quietly and energy-efficiently, especially in the lowest speed range. In addition, the fan has exchangeable anti-vibration pads made of silicone on the corners to minimize noise. As a special highlight, the color of the NF-A9 PWM chromax.black.swap can be adjusted with accessories.

With additionally available cables and anti-vibration mounts as well as the included anti-vibration pads, many color combinations can be realized and popular color schemes such as black/white or black/red and many more can be achieved.

Noctuas fans are known for their impeccable quality and outstanding durability. Like all Noctua fans, the NF-A9 PWM chromax.black.swap has an MTBF specification of over 150,000 hours and comes with a full 6-year manufacturer s warranty.

Technical details:
Format: 92 x 92 x 25 mm (W x H x D)
Hole spacing: 82.5 x 82.5 mm
Storage type: SSO2
Blade geometry: A-series with flow acceleration channels

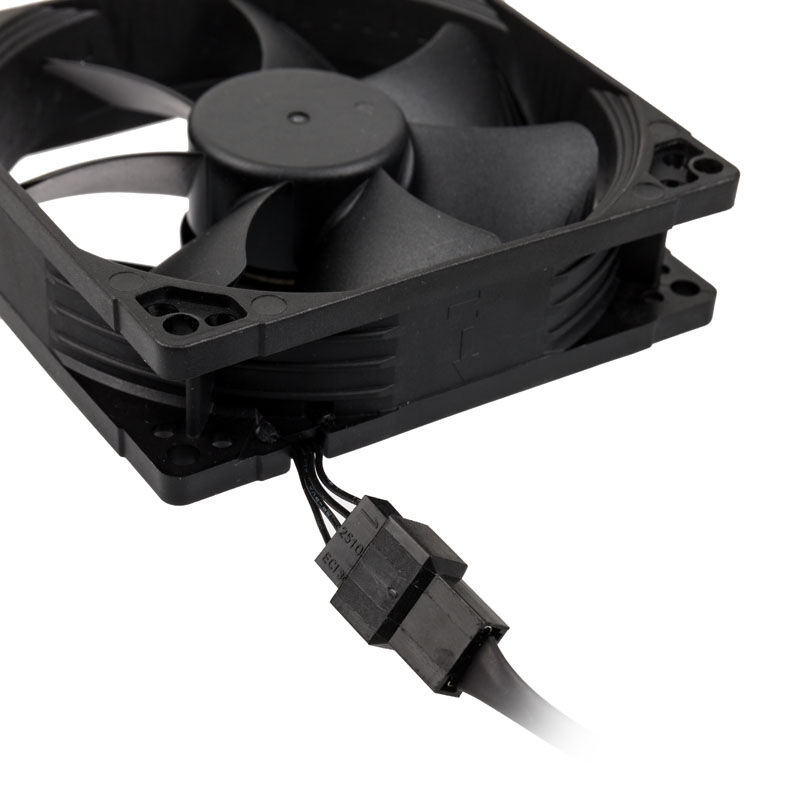

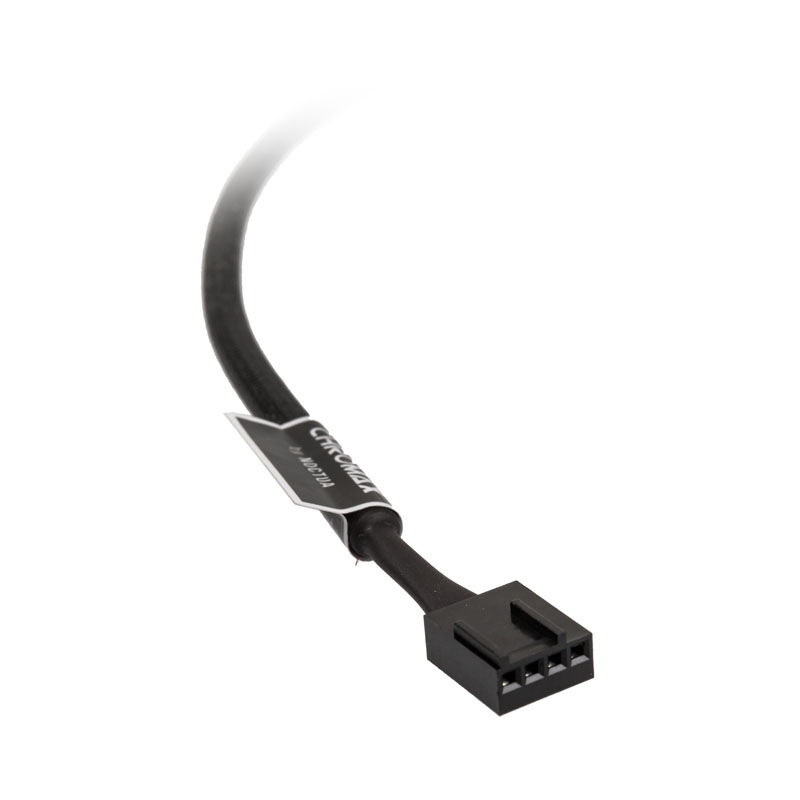

Connection: 4-pin PWM
Speed: 400 – 2,000 rpm
Noise development: max. 22.8 dB (A)
Funding volume: max. 78.9 m³ / h
Static pressure: max. 2.28mmH2O
Power consumption: max. 1.2 W.
Current: max. 0.1 A
Operating voltage: 12 V.
Voltage PWM signal: 0.21 V
MTBF:> 150,000 hours
Manufacturer warranty: 6 years

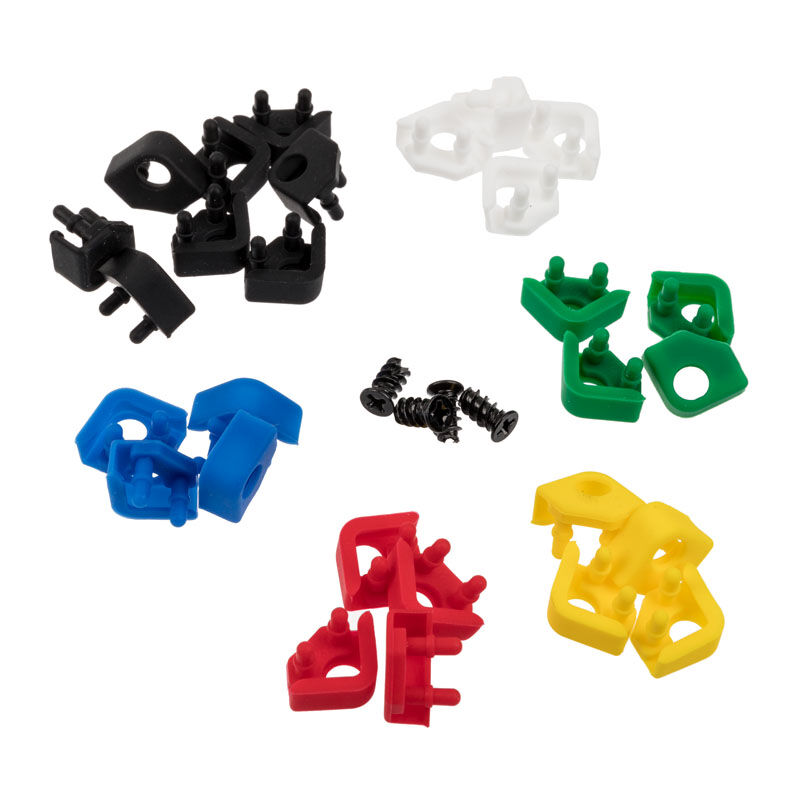

Scope of delivery:
8x NA-AVP5 chromax.black anti-vibration pads
4x NA-AVP5 chromax.blue anti-vibration pads
4x NA-AVP5 chromax.green anti-vibration pads
4x NA-AVP5 chromax.red anti-vibration pads
4x NA-AVP5 chromax.white anti-vibration pads
4x NA-AVP5 chromax.yellow anti-vibration pads
4x fan screws
