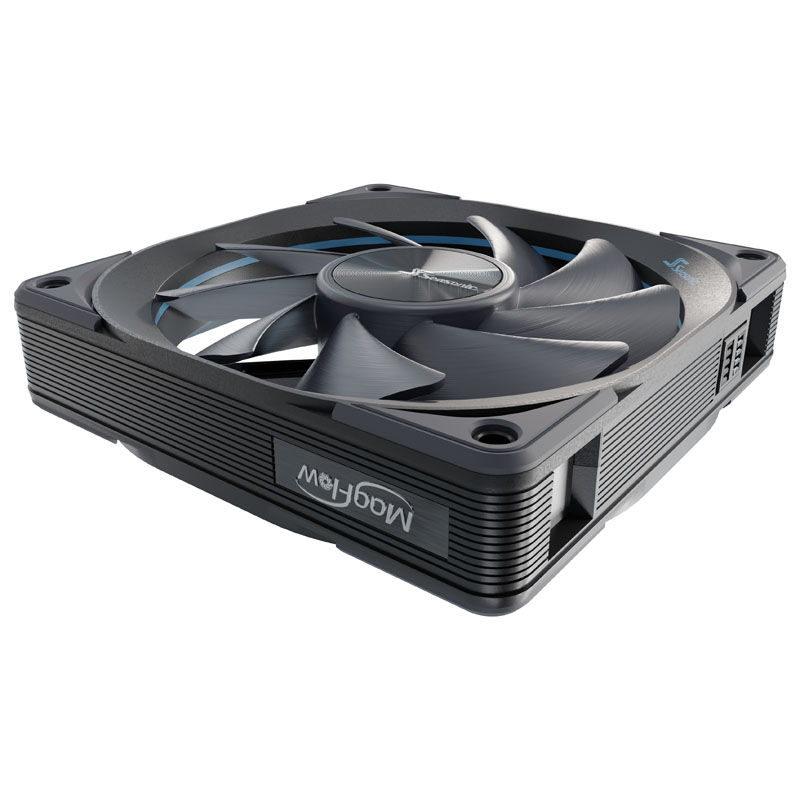

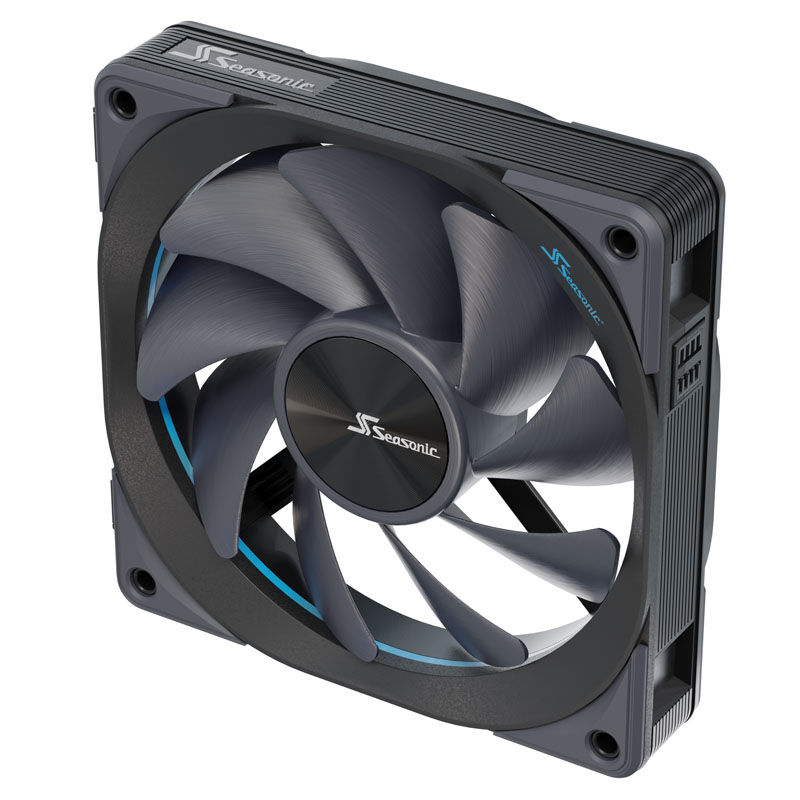

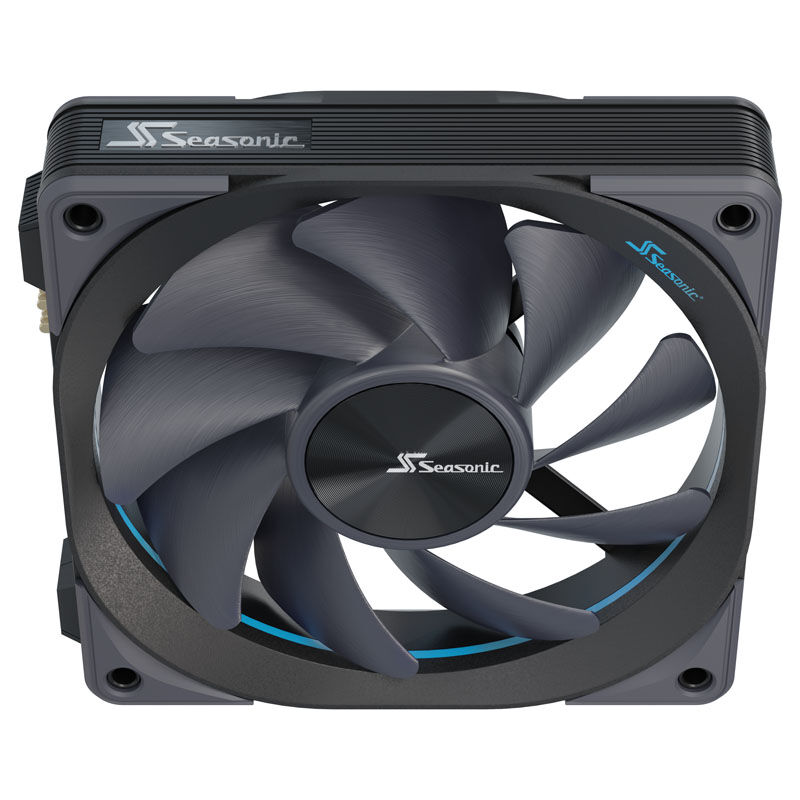

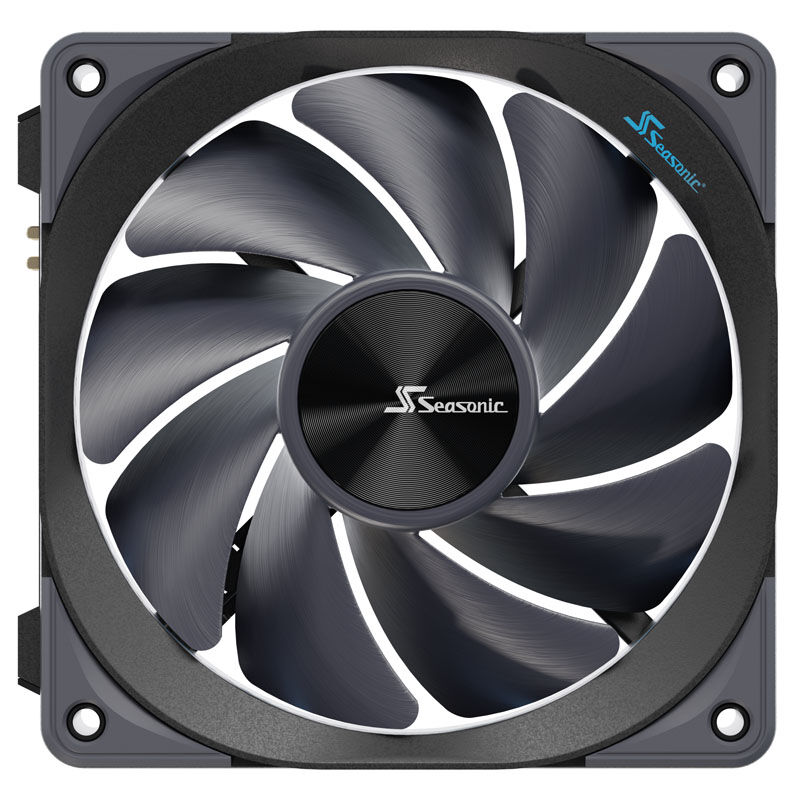

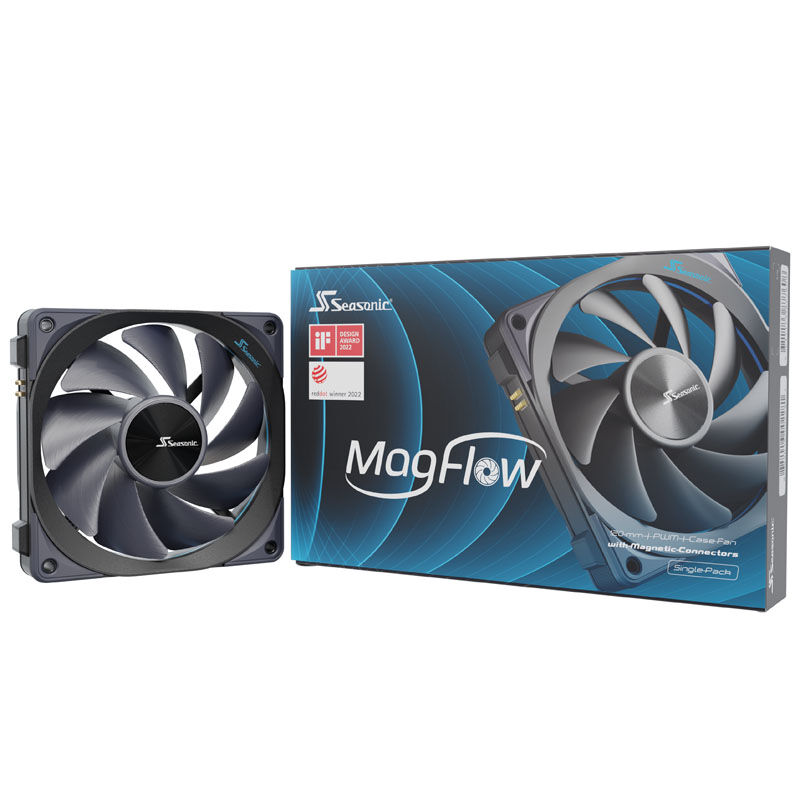

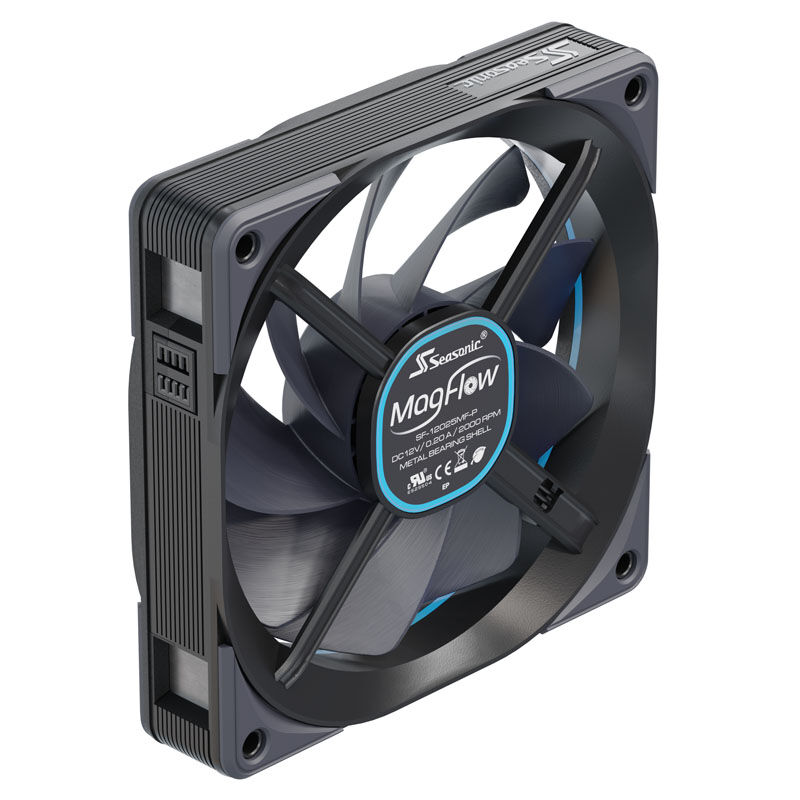

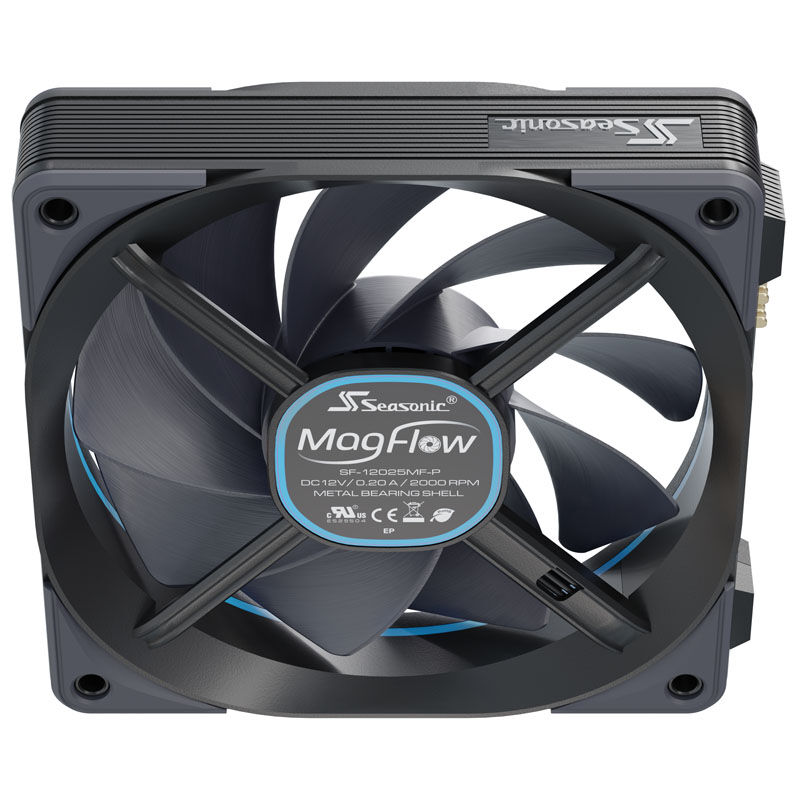

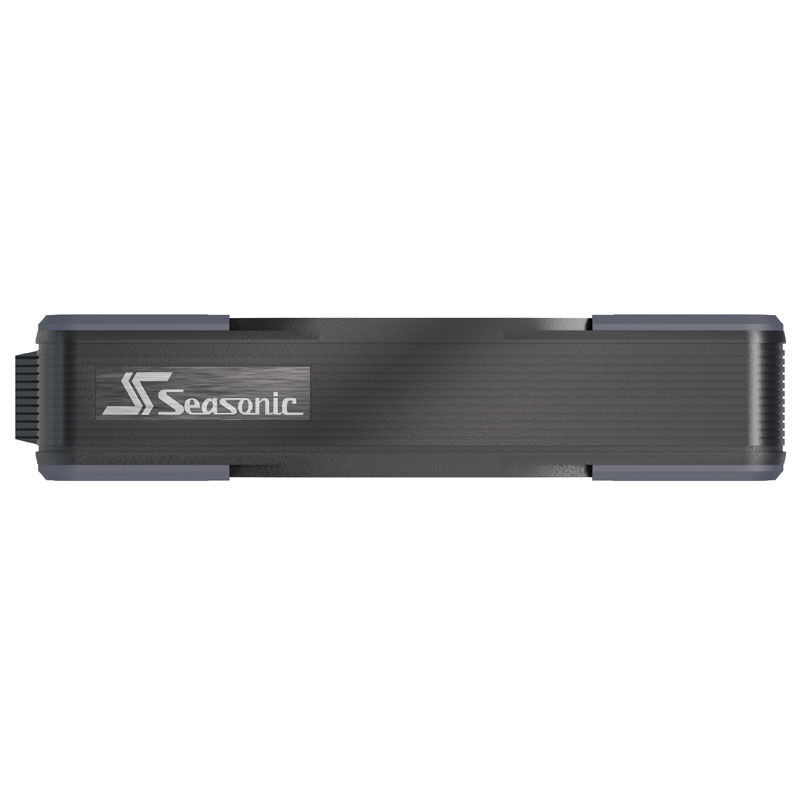

Seasonic MagFlow 1225 PWM fan - 120mm

– 120 mm PWM fan in black
– Magnetic daisy chain connector system for less cable clutter
– Max. 2,000 rpm speed at 33.78 dB(A)
– 107.6 m³/h max. flow volume and max. 2.61 mmH2O static pressure
– Rubber pads to decouple annoying vibrations

Seasonic MagFlow 1225 PWM fan: optimized design combined with performance
Are you looking for a fan that offers excellent cooling performance and is easy to connect? The Seasonic MagFlow 1225 PWM leaves nothing to be desired! This PWM fan uses a magnetic connector system and frees your gaming PC from unnecessary cable clutter. Seasonic also impresses with its cooling performance.

The assembly of the Seasonic MagFlow 1225 PWM fans follows the clever and unique concept of its predecessors: the fans are connected to one another using a magnetic connector system. Several fans can be combined to form a cluster and conveniently connected to the motherboard with just one – also magnetic – cable. Thanks to this improved daisy chain system, you save time, nerves and avoid unnecessary cable clutter. The pin contacts pass on power and PWM signals.

Seasonic MagFlow 1225 PWM fan
An annoying fan noise is an absolute no-go for gamers. All the better that the Seasonic MagFlow 1225 PWM fans are naturally very quiet with a maximum of 33.78 dB(A) thanks to hydrodynamic plain bearings. The reduced frictional resistance allows higher speeds with the same energy consumption and thus a significantly increased air throughput and excellent performance values.

Flexible connections for every purpose
For use on radiators, the Seasonic MagFlow 1225 PWM fans can be connected directly to one another using a magnet and connected to the motherboard using a single cable. The cable is also magnetic and is simply connected to one of the fans in the daisy chain. If more space is required between the fans, the three-pack (LUSE-010) also includes connecting cables.

Technical details:
– Dimensions: 124.2 x 120.4 x 26.2 mm (W x H x D)
– Material: plastic
– Color: black
– Bearing: hydrodynamic plain bearing
– Speed: 600 – 2,000 rpm
– Noise: 9.9 – 33.78 dB(A)
– Discharge volume: max. 107.6 m³/h
– Static pressure: max. 2.61 mmH2O
– Voltage: 12 V
– Start voltage: 5 V
– Current: 0.18 A
– Power consumption: n/a
– Lighting: none
– Connection: 3-pin PWM

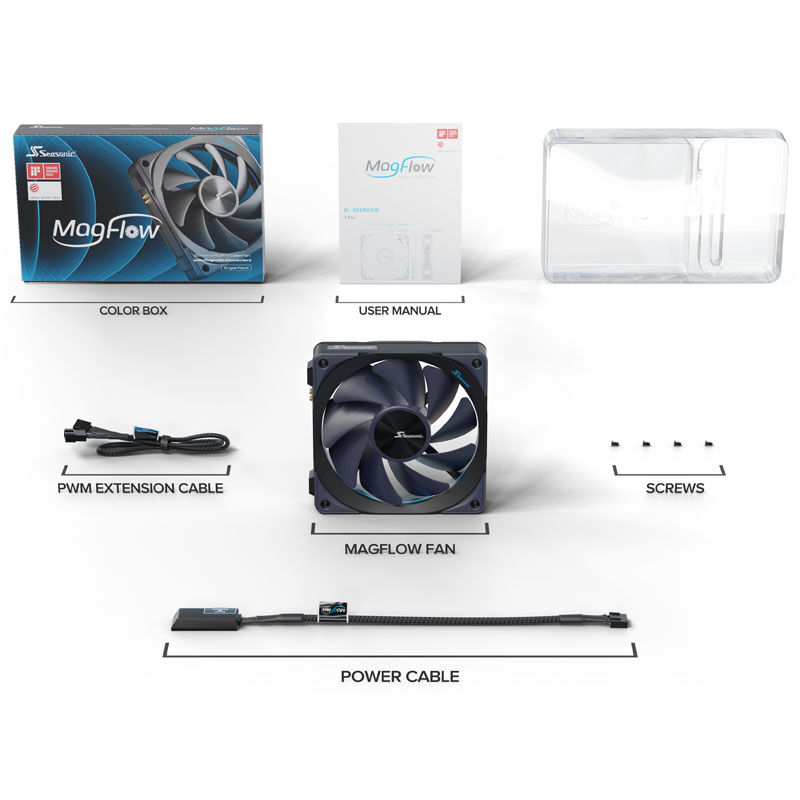

– Scope of delivery:
– 1x Seasonic MagFlow 1225 PWM fan
– 1x magnetic PWM connection cable to the mainboard
– 1x PWM extension cable
– 4x screws
– 1x installation manual
