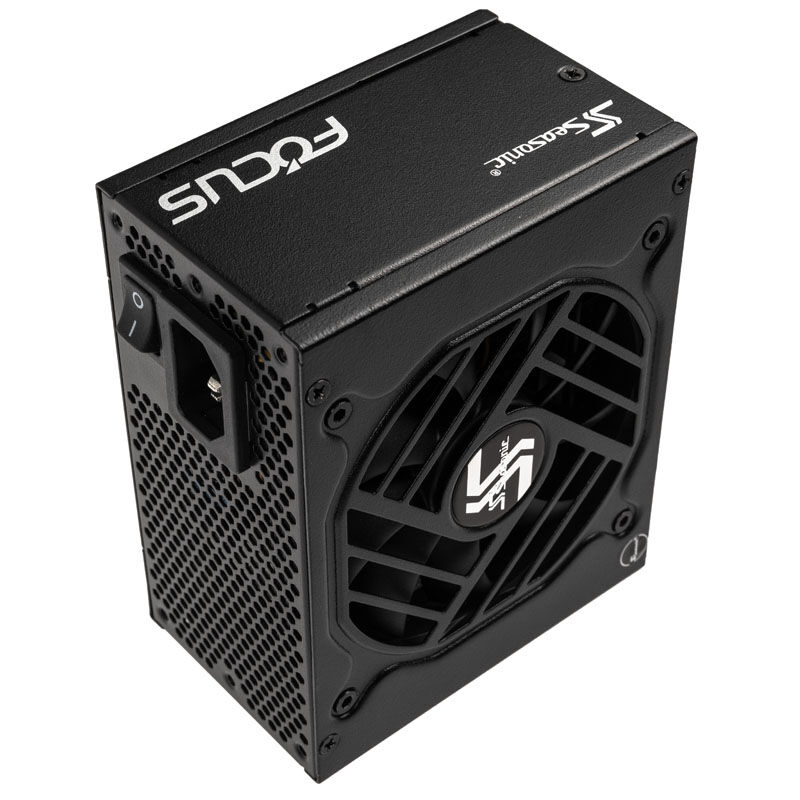

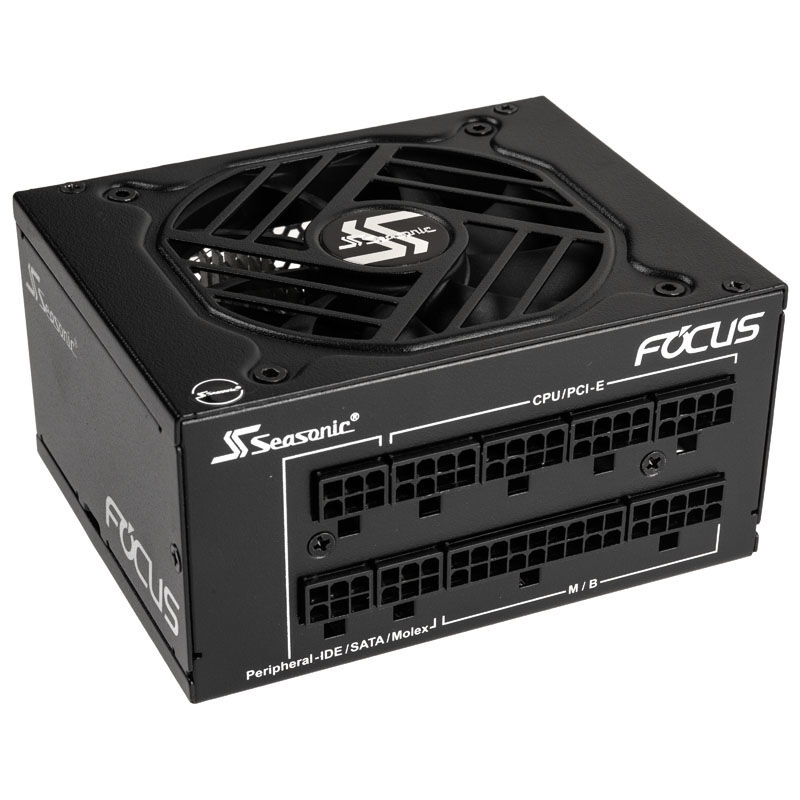

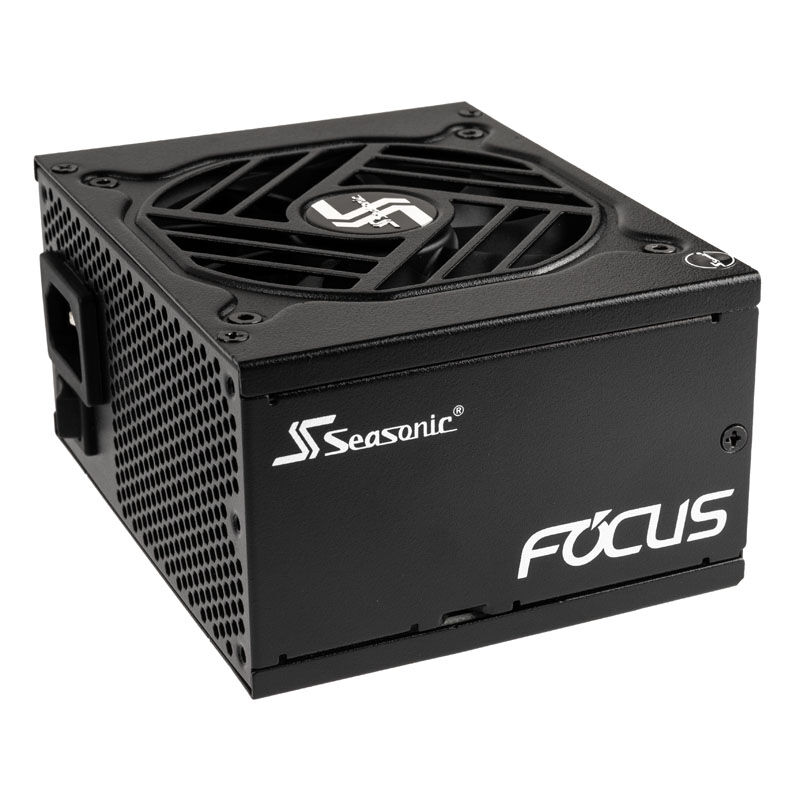

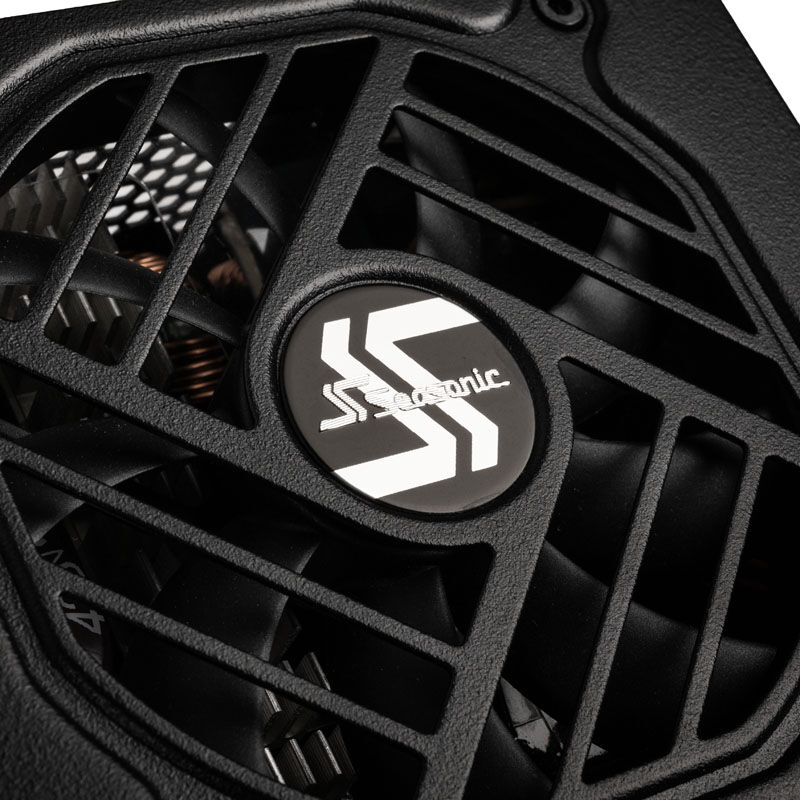

Seasonic FOCUS SGX-750

– 80 PLUS Gold Efficiency (up to 90%)

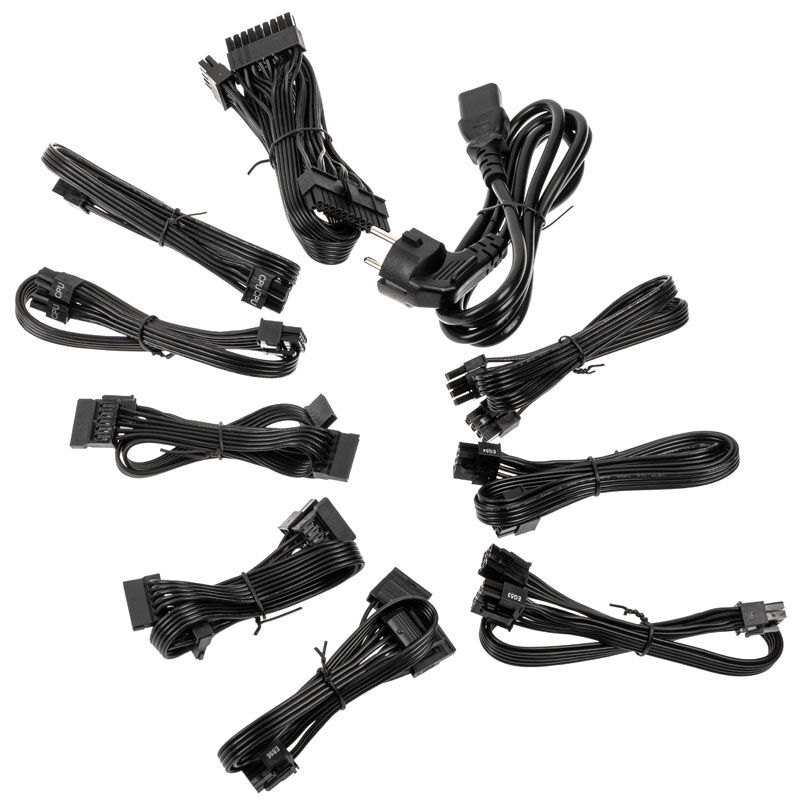

– Fully modular cable management
– 92mm fan with three modes
– Four PCIe connectors for graphics cards
– High quality black cable
– Powerful power supply with innovative 3-phase fan curve

With its 750 watts total output power, the Seasonic Focus SGX is suitable for gaming PCs from the mid-range to high-end segment. The power supply works very efficiently, which results from the use of high-quality electrical components. The power supply, certified with 80 PLUS Gold, achieves an efficiency of up to 90% at a load of 50%.

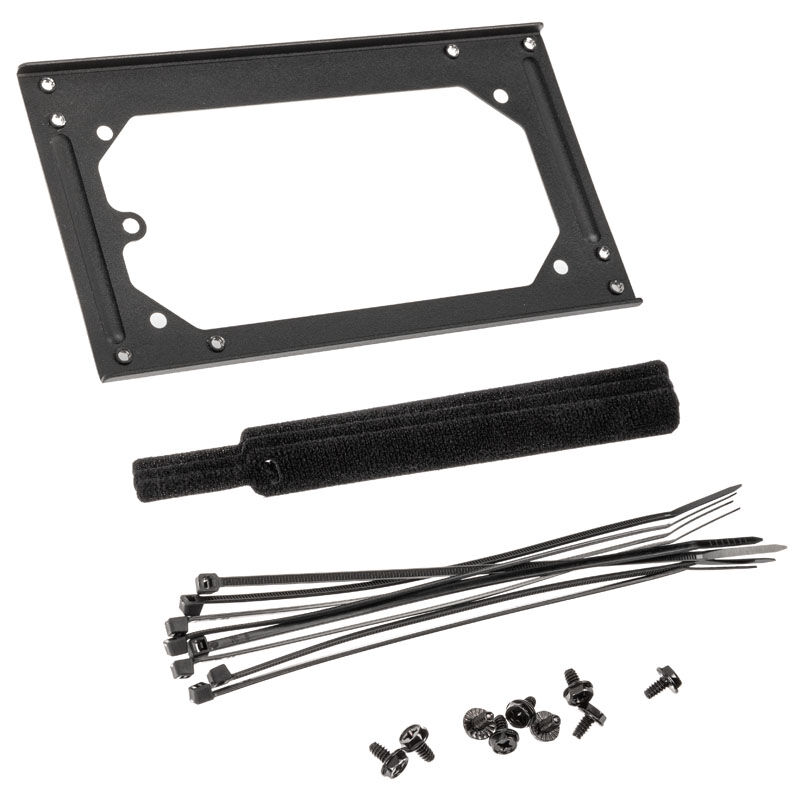

Thanks to the ATX adapter, you can also install the power supply in the expansive power supply cages of larger midi towers.

Technical details:
– Dimensions: 125 x 63.5 x 100 mm (W x H x D)
– Fan Size: 92mm
– Efficiency: min. 87/90/87% @20/50/100% load at 115V, 80 PLUS Gold certificate
– Form factor: SFX / ATX (adapter)
– Power: 750W
– +3.3V: 20A
– +5V: 20A
– 3.3V+5V: 100W
– +12V: 62A
– -12V: 0.3A (3.6W)
– +5Vsb: 3A (15W)

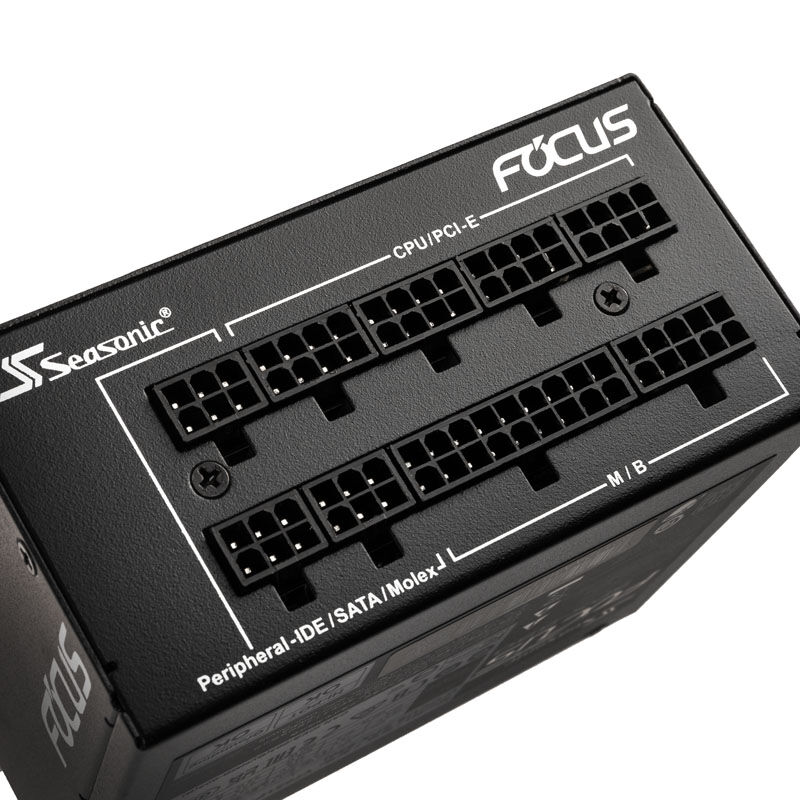

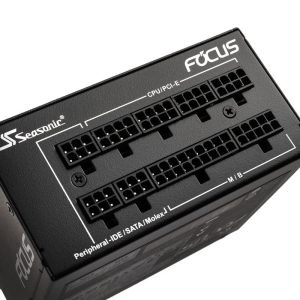

– Connections (fixed):
– 1x 20+4 pin
– 2x 4+4 pin (ATX12V)
– 4x 6+2 pin PCIe
– 6x SATA
– 3x 4-pin Molex
– Cable length: 101 – 810 mm
– Protection: OPP / OVP / EIA / SCP / OCP / OTP
– Safety: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
