ATX motherboard with AMD B850 chipset, supports PCI Express 5.0, compatible with DDR5 RAM, with Wi-Fi and Bluetooth
ATX motherboard with AMD B850 chipset, supports PCI Express 5.0, compatible with DDR5 RAM, with Wi-Fi and Bluetooth
ATX motherboard with AMD B850 chipset, supports PCI Express 5.0, compatible with DDR5 RAM, with Wi-Fi and Bluetooth
Features:
– Slots: 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x4 (x4)
– RAM: 4x DIMM slots for up to 192 GB DDR5 RAM up to 7,600 MT/s
– Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 4x SATA
– USB: 1x USB-C 3.1, 3x USB 3.1, 4x USB 2.0
– Cooling: 5x 4-pin PWM connectors for fans and radiators
– Connectivity: Wi-Fi 6 and Bluetooth 5.0

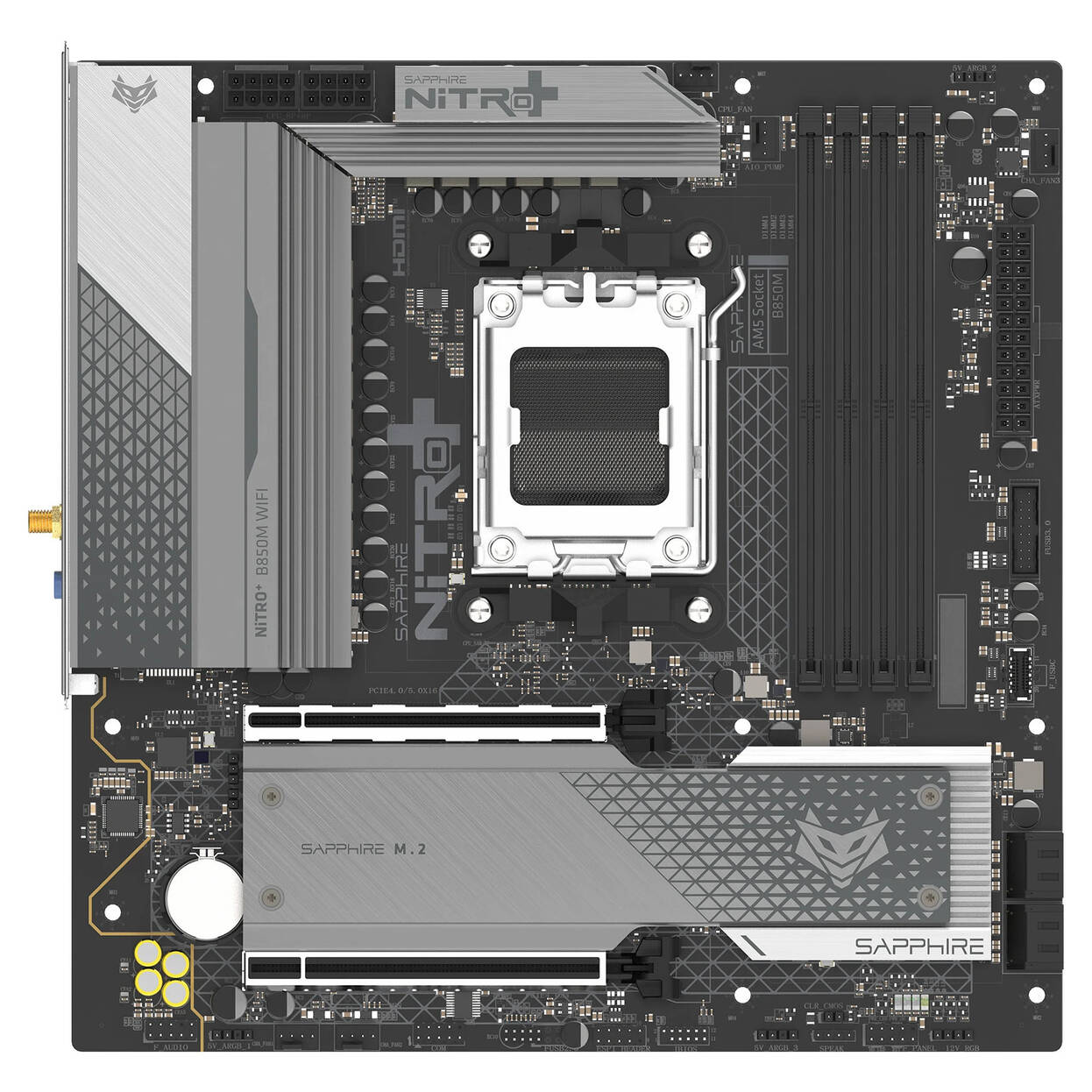

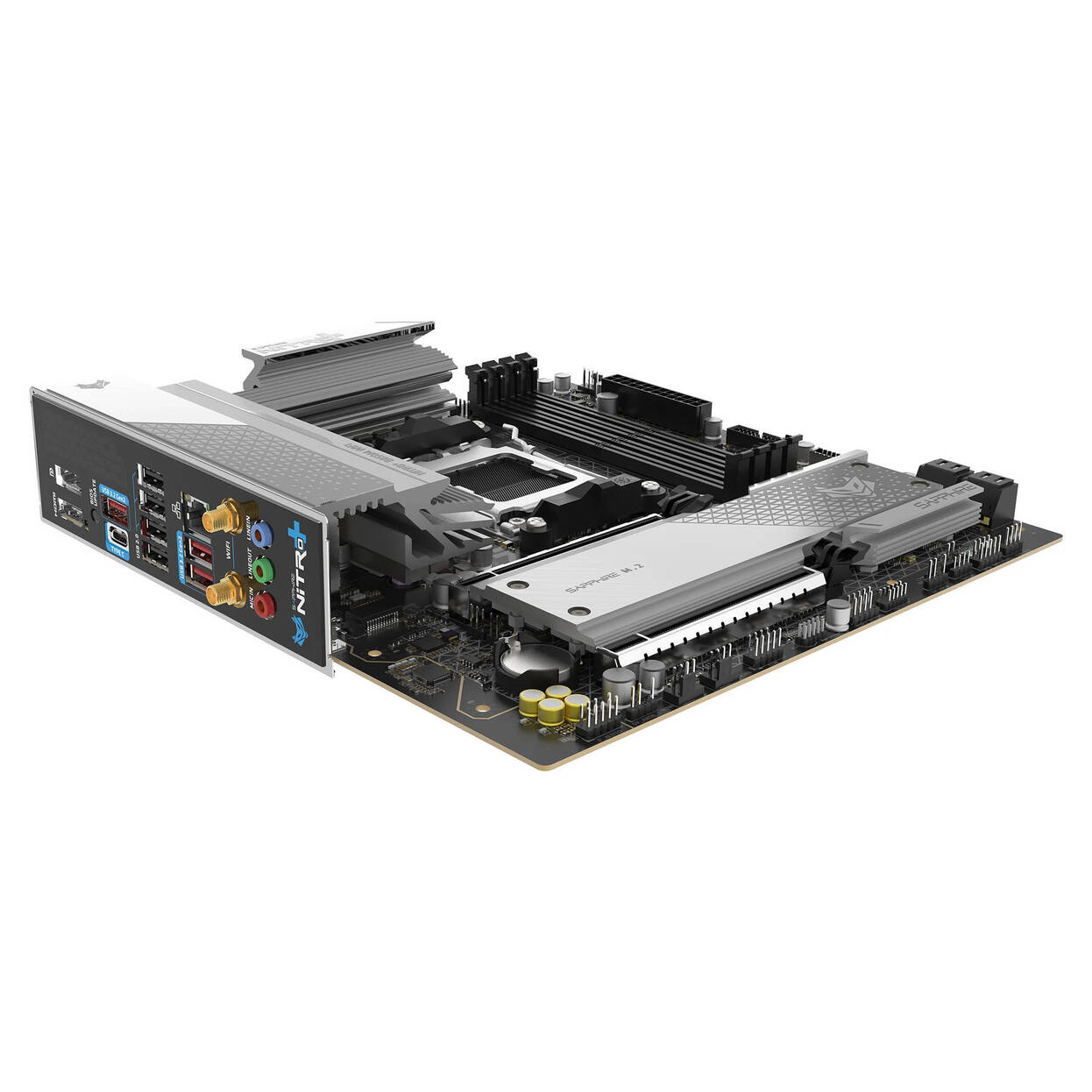

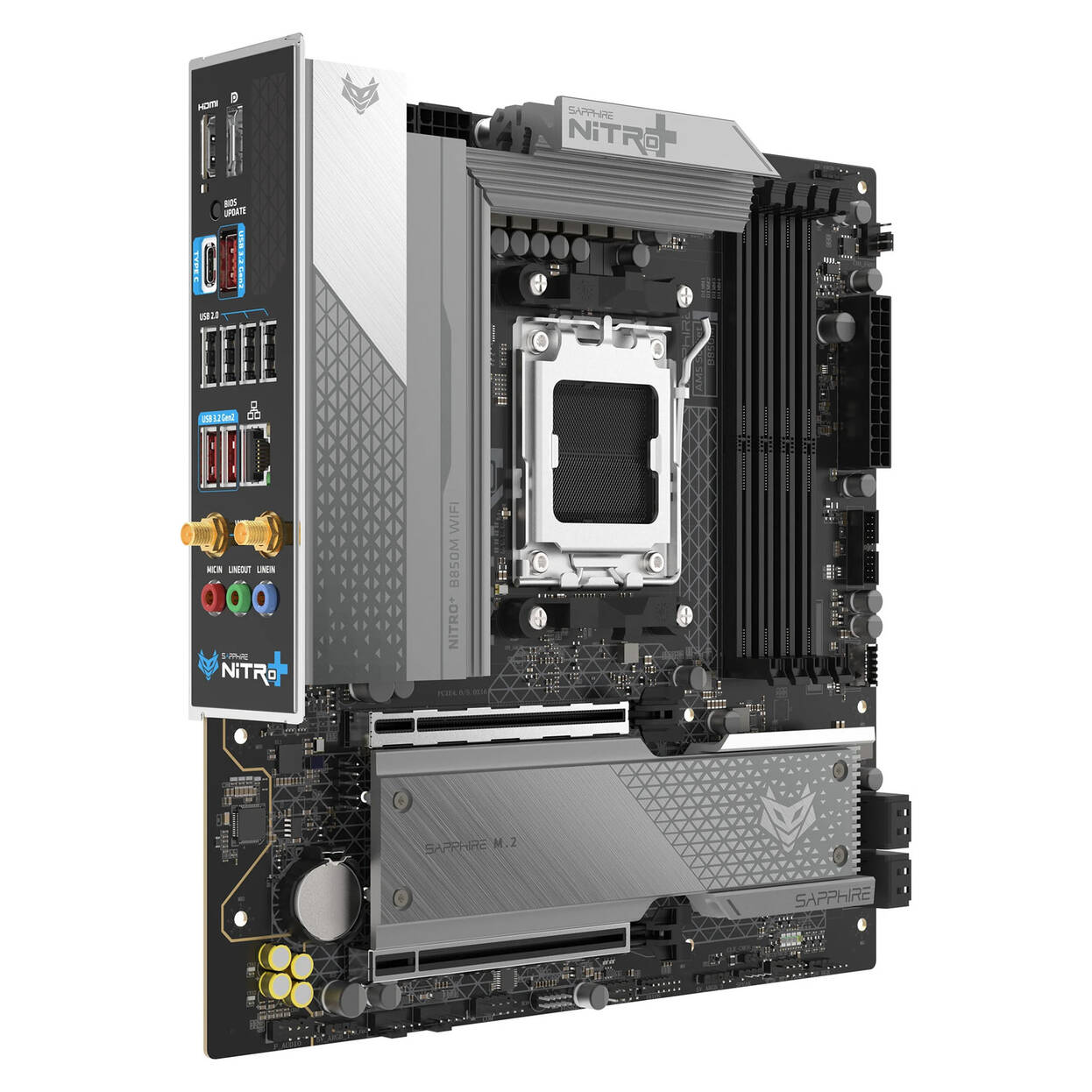

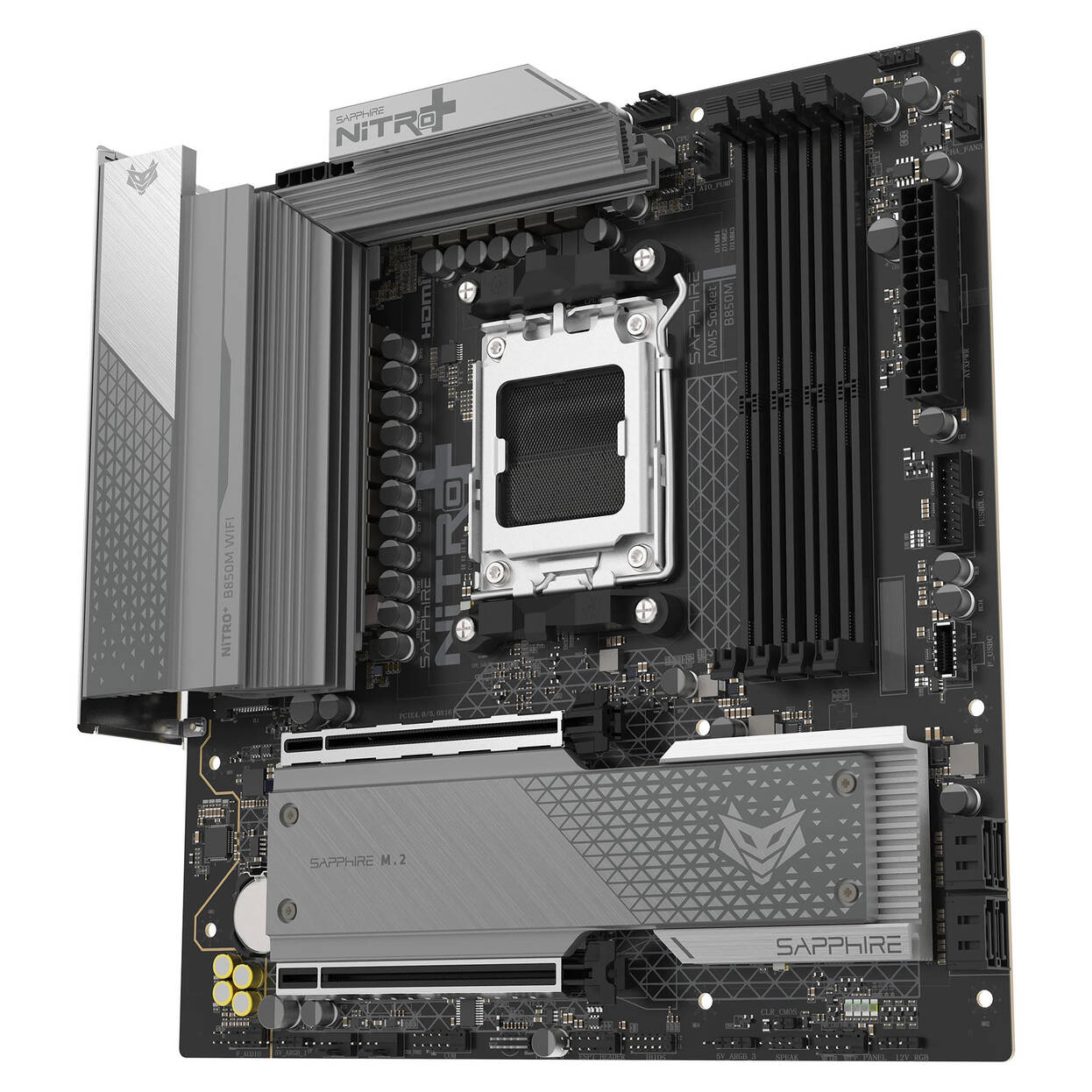

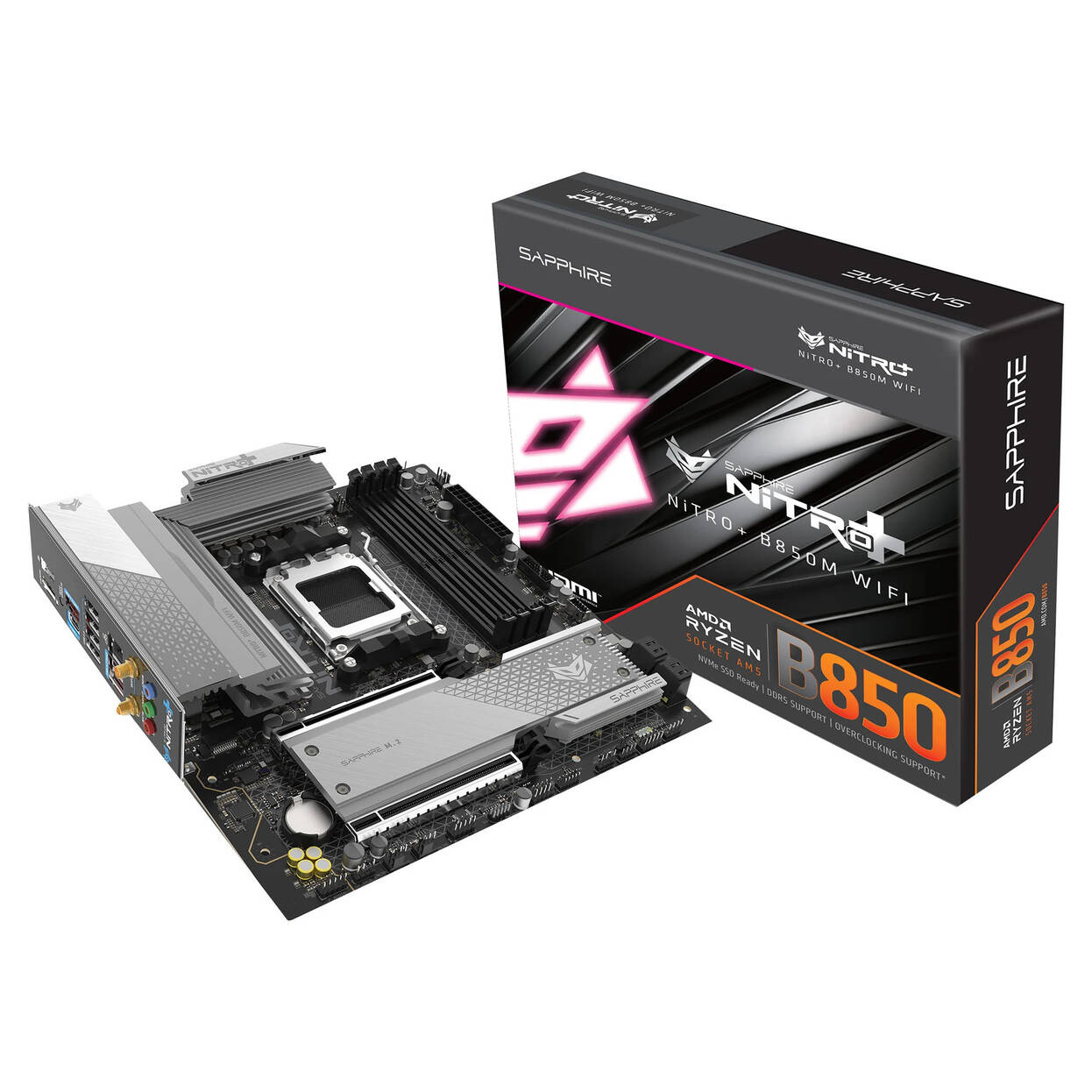

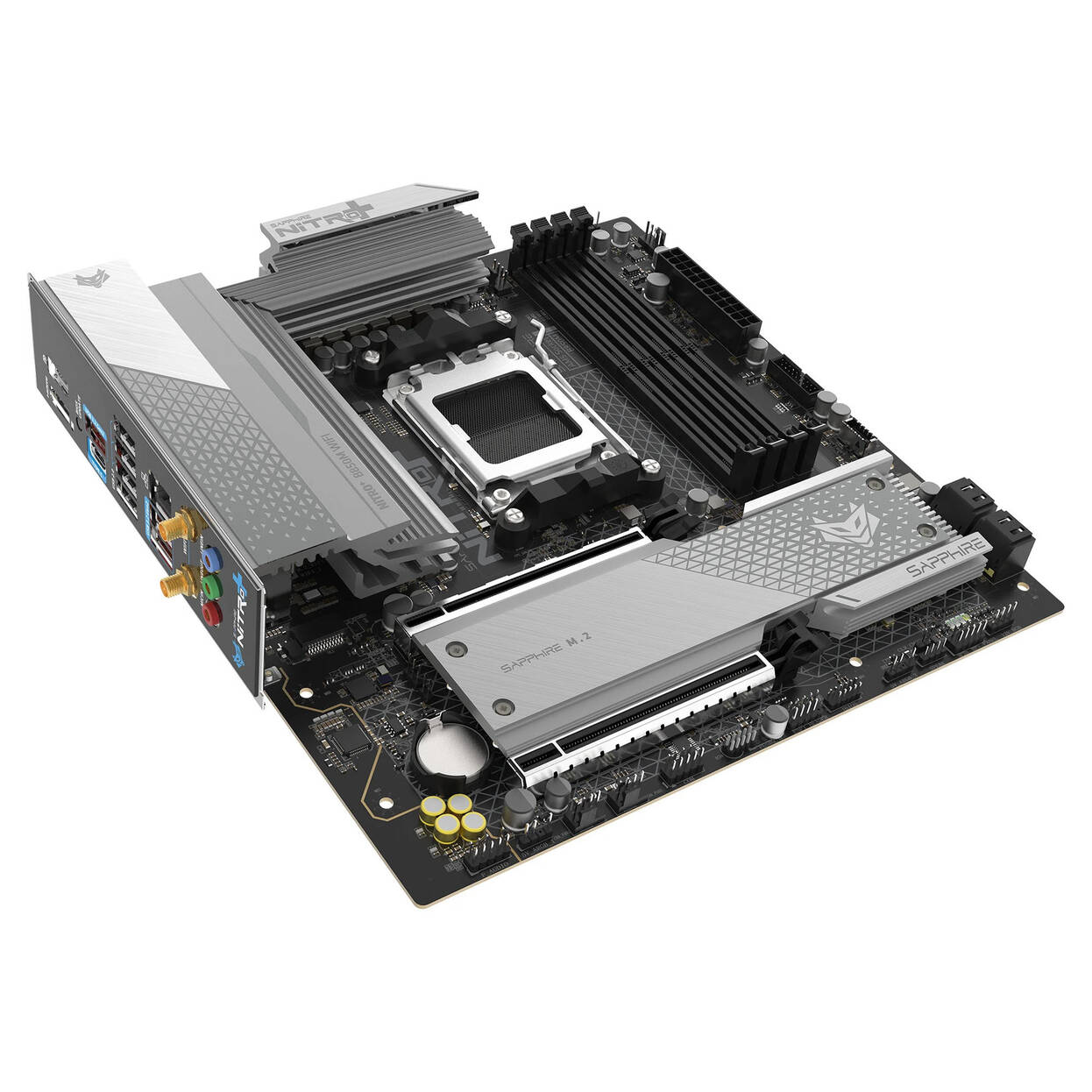

Sapphire Nitro+ B850M WiFi: mATX motherboard with AMD AM5 socket and B850 chipset
The Sapphire Nitro+ B850M WiFi is an ATX motherboard featuring the mid-range AMD B850 chipset and AMD AM5 socket. It supports Ryzen 9000, 8000, and 7000 series CPUs.
Connection to graphics cards and NVMe SSDs is via PCIe 5.0.
Overclocking for gamers
To get the best out of your gaming PC, the CPU can be overclocked via the motherboard to higher clock speeds. This ensures a stable power supply to the processor, allowing even high-end CPUs to operate at full performance over extended periods. You can also fully exploit the DDR5 memory through overclocking. For added security, the Sapphire Nitro+ B850M WiFi offers BIOS Flashback and Clear CMOS features.
| Colour | |
|---|---|
| Primary Colour | Black |
| Form Factor | |
| Motherboard Form Factor | Micro-ATX |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| Motherboard | |
| Chipset | AMD B850 |
| Memory | |
| Max. Memory | 192 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Max. Memory Speed (OC) | 7400 MT/s |
| Memory Slots | 4x |
| Performance Profile | AMD EXPO |
| Wi-Fi & LAN | |
| LAN | Yes (1x 2.5 Gbit/s) |
| Wi-Fi / Bluetooth | Yes (Wi-Fi 6) |
| Cooling | |
| M.2 Heatsinks | Yes |
| VRM Heatsinks | Yes |
| Water Cooling Support | No |
| Internal Ports | |
| CPU Power Supply | 2x 8-Pin |
| USB 3.x Type C Header | 1 (supports 1 port) |
| USB 3.0 Header | 1 (header / 2 ports) |
| USB 2.0 Header | 1 (header / 2 ports) |
| RGB / LED Connectors | 1x RGB (4-Pin 12V), 3x Digital RGB (3-Pin 5V) |
| Front Panel Audio Header | Yes |
| External Ports | |
| USB 3.1 Type C | 1 |
| USB 3.1 Type A | 3 |
| USB 2.0 Type A | 4 |
| Display Connectors | DisplayPort (1x), HDMI (1x) |
| Storage Ports | |
| M.2 PCIe 4.0 x4 | 1 |
| M.2 PCIe 5.0 x4 | 2 |
| SATA 6G Ports | 4 |
| Expansion Slots | |
| PCIe x16 Slots (Total) | 1 (PCIe 5.0 x16 mechanical) |
| PCIe x4 Slots (Total) | 1 (PCIe 4.0 x4 mechanical) |
| Fan Header | |
| 4-Pin Fan Connectors | 5 |
| Audio | |
| Sound Chip | Realtek ALC897 |
| Lighting | |
| Lighting / RGB | Yes |
£153.41£127.84 Inc VatEx Vat
