Phobya NOVA Xtreme Bundle with 4x G-Silent 18 Fans / Radiator Grill and Cover

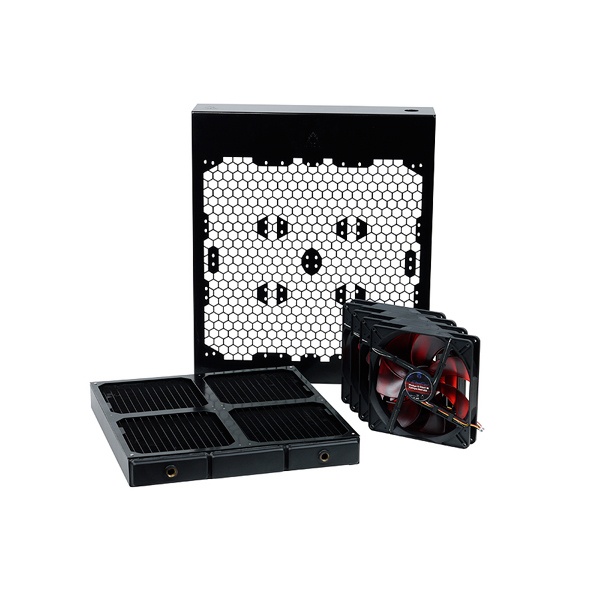

This set includes:

1x Phobya Xtreme Radiator NOVA 1080 (Art. 35 180)
4x Phobya Silent G-18 700rpm Red LED (180x180x32mm) (Art. 35 307)
1x Phobya Radiator Stand – black – Triple 3x120mm/4×180 Bench Edition (art. 38 191)
1x Phobya Nova fan screen 4x180mm Black (Art. 38 232)
16x Screw DIN 7985 M3 x 40 cross galvanized flat (art. 94 526)

 and offers a sensational price savings compared to single purchase!

Radiator Specifications:
Material: Copper fins, brass chambers
Dimensions: (L x W x H): 390x365x46mm
Connections: G1 / 4
Weight: 2745g
Assembly: 36x M3 thread at the top (for 9x 120mm fans)
Tested pressure: 2 bar,
Connection: 2x G 1 / 4 inch

Specifications Fan:
Material: SC-steel (powder coated black)
Dimensions: (L x W x H): 365 x 360 x 2mm
Hole size: 180mm

Specifications Fan:
Dimensions: 180 x 180 x 32mm
Colors: Black frame, red wing leaves, red LEDs
Weight: 432g
Rated Voltage: 12V
Start Voltage: 7 Volts
Power: 3W
Rated speed: 700rpm (+ / -10%)
Airflow: 169 m³ / h / 100 CFM
Noise level: 18 dB / A
Connector: 3 Pin Molex
Feature: 4x red LEDs

Technical Data:
Material: SC-steel (powder coated black)
Dimensions:
Fußauslagerung (both left and right): 32mm
Height: 490mm
Length: 420mm
Width: 10mm
Fillportöffnung: 1 (25.4mm)
Hose guide: 18mm diameter
Slot through (L): 57mm

Note: For further screwing of the screws can damage the radiator! Please note the correct length. Not all of the screws supplied are appropriate.

Note: Please rinse before mounting the radiator once complete, so Fertigunungs and storage-related residues are not placed in their circulation.
