1,600 watt ATX 3.0 power supply with 133.33 A single rail for high-end hardware

Features:

- High efficiency thanks to 80 PLUS Titanium certification
- Quiet 135mm fan for efficient cooling
- Completely modular
- silent operation possible
- Will be delivered without cable!

PHANTEKS Revolt 1600W Titanium, ATX 3.0, PCIe 5.0, fully modular - 1600 watts, black

0 reviews
0 reviews

1,600 watt ATX 3.0 power supply with 133.33 A single rail for high-end hardware

Features:

- High efficiency thanks to 80 PLUS Titanium certification
- Quiet 135mm fan for efficient cooling
- Completely modular
- silent operation possible
- Will be delivered without cable!

  • Only 3 Available
  • Delivered by Mon 24 Aug
    UK Delivery Options
    Royal Mail Trackedfrom £3.50
    DPD Expressfrom £5.00
    Click & CollectFree

£342.34£285.28 Inc VatEx Vat

3 in stock

We price match UK retailers. Try It Now!

We price match UK retailers with stock!

Please enter as much detail as possible about the price you want us to try and match, and if it's via a store discount code, promotion or loyalty program.

Enter full price Including VAT
3 payments of £114.11 at 0% interest with Klarna 18+, T&C apply, Credit subject to status.

1,600 watt ATX 3.0 power supply with 133.33 A single rail for high-end hardware

Features:

- High efficiency thanks to 80 PLUS Titanium certification
- Quiet 135mm fan for efficient cooling
- Completely modular
- silent operation possible
- Will be delivered without cable!

PHANTEKS
Earn 286 Points
We price match UK retailers. Try It Now!
  • SKU: NEPH-017
  • MPN: PH-P1600TR_BK01C
  • EAN: 0886523510147
  • Warranty: 12 Months
Details

Features:

– High efficiency thanks to 80 PLUS Titanium certification
– Quiet 135mm fan for efficient cooling
– Completely modular
– silent operation possible
– Will be delivered without cable!

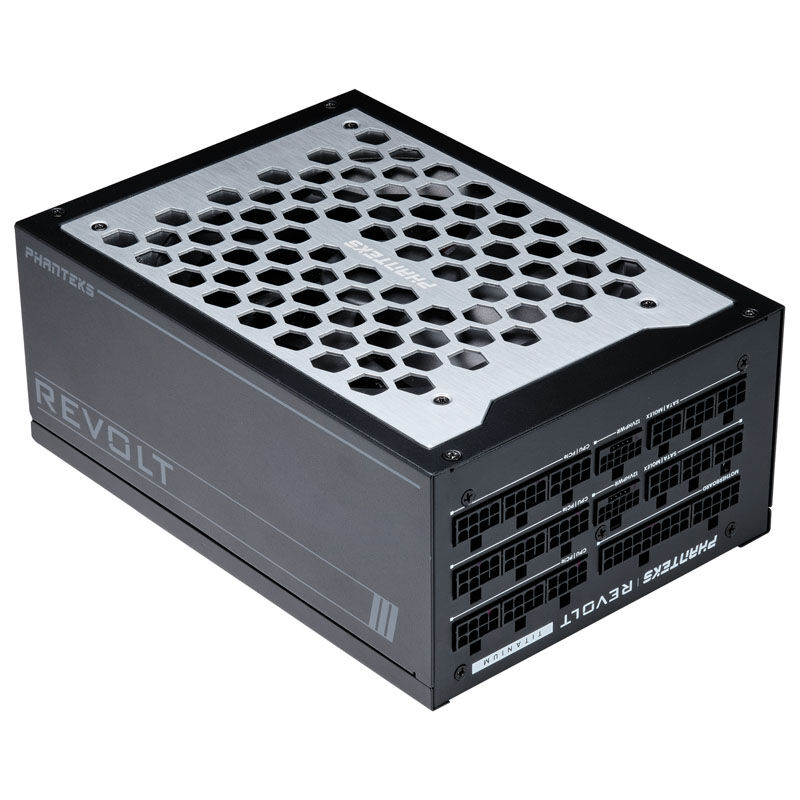

The Phanteks Revolt ATX 3.0 power supply with 1,600 watts
The Phanteks Revolt 1600W Titanium power supply is a superlative powerhouse. In collaboration with Seasonic, Phanteks is releasing a powerful power supply that has an impressive rated output of 1,600 watts and can be installed in most cases thanks to its ATX format.

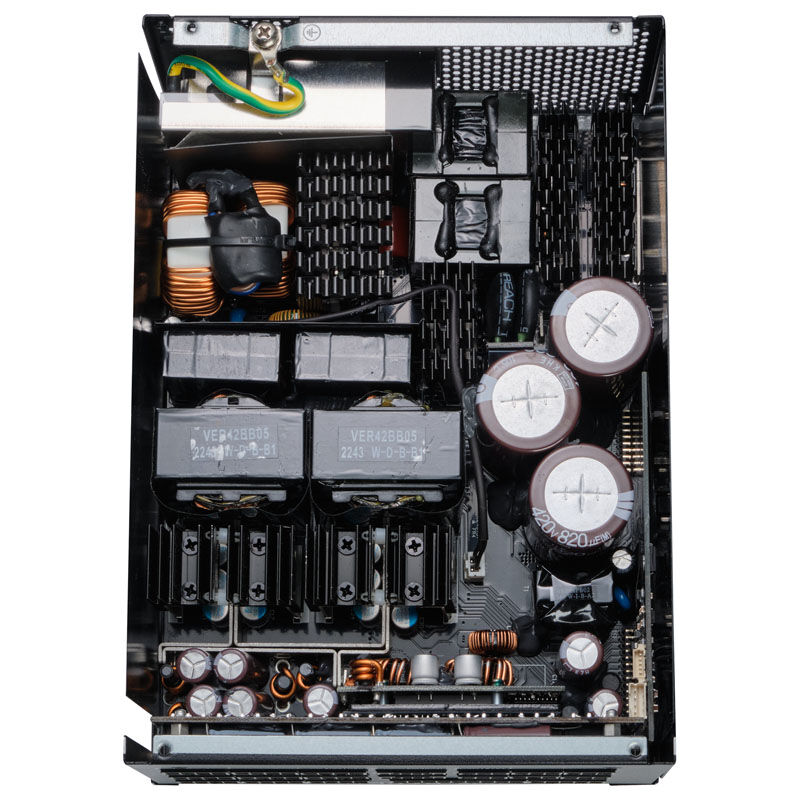

The power supply works very efficiently, which results from the use of high-quality electrical components. The power supply, which is certified with 80 PLUS Titanium, achieves an average efficiency of up to 96%. The 135 mm fan can be set to semi-passive mode with a switch so that it is only switched on under higher loads.

PHANTEKS LET YOU CHOOSE YOUR CABLES
The current power supplies of the Revolt series from Phanteks are delivered without a cable. In addition to cable sets from Phanteks themselves, all CableMod cables from the RT series can also be used with the Revolt PSUs. This allows you to buy the cables you need for your build and forego the unnecessary ones. CableMod also offers its cables in a wide range of colors so that you can give your gaming PC a special flair.

Sufficient power for power-hungry gaming setups
Following the ATX 3.0 standard, the Phanteks Revolt can handle power peaks of up to 235% above its nominal power. In addition, the two 16-pin 12VHPWR connectors effortlessly deliver the 600 watts required for modern high-end graphics cards such as the RTX 4090 from NVIDIA.

In addition to a 24-pin connector, the Phanteks Revolt 1600W has two 16-pin 12VHPWR PCIe 5.0 slots for modern high-end graphics cards. There are also a total of nine 8-pin connectors for CPU or PCIe cards and six connectors for SATA or Molex connectors. The fully modular design of the power supply allows you to only use the cables that you really need. The result is a particularly tidy, clean setup with no cable clutter.

Specifications

Dimensions150 x 86 x 210 mm (W x H x D)

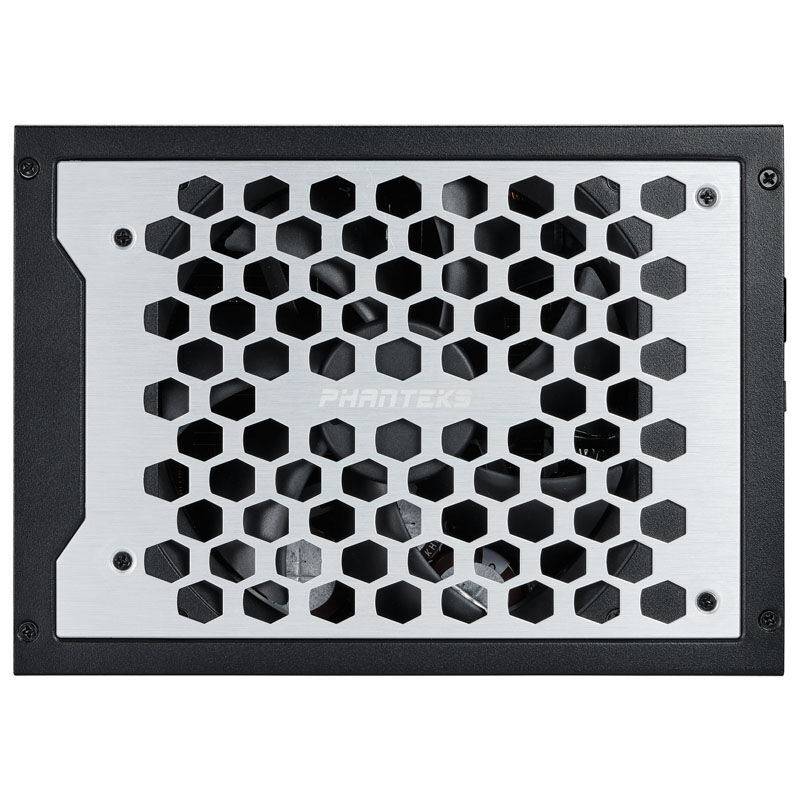

Fan135 mm (automatic control, semi-passive mode)
ColourBlack (power supply unit, fan)
Weight2.05 kg
Efficiency~94 / 96 / 94% @ 20 / 50 / 100% load (80 PLUS Titanium)
Active PFCYes
StandardATX 3.0
Power1600 W
Rail Specifications
+3.3V25 A
+5V25 A
+3.3V & +5V (Combined)125 W
+12V133.33 A / 1600 W
-12V0.5 A / 6 W
+5VSB3 A / 15 W

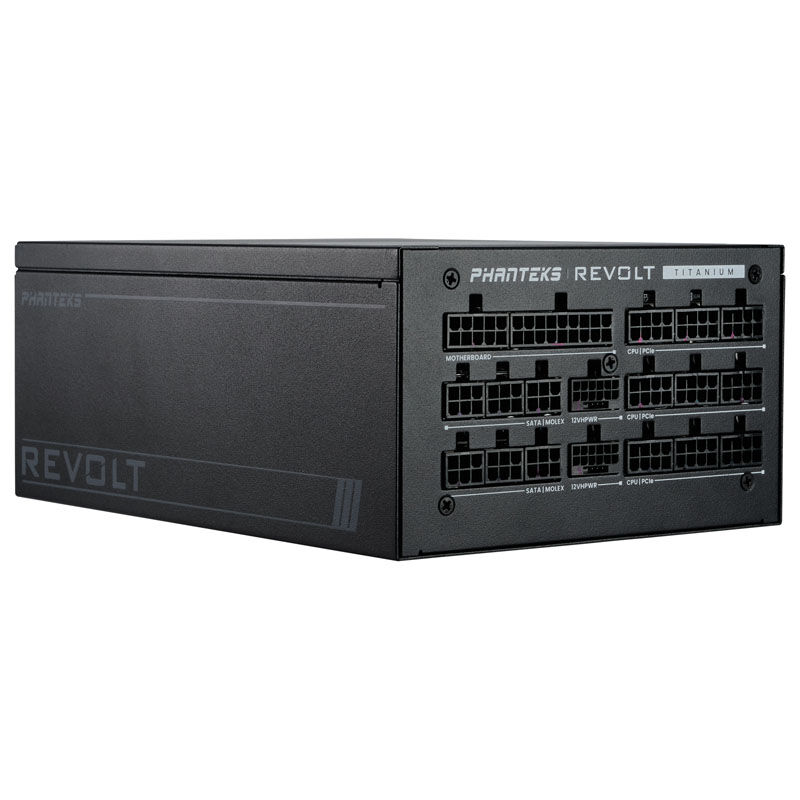

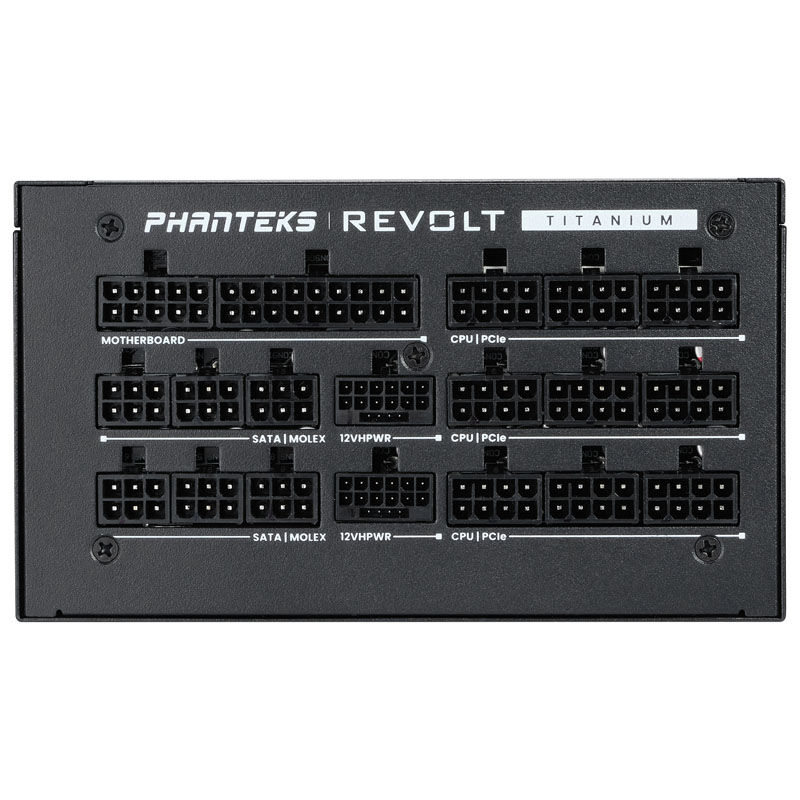

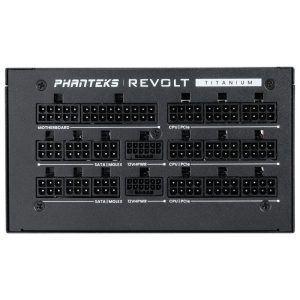

Connections (Rear)
Mainboard1× 24-pin
PCIe 5.0 (12VHPWR)2× 16-pin
CPU / PCIe9× (4+4-pin / 6+2-pin)
SATA / Molex6× ports
Protection Circuits
OPPOver Power Protection
OVPOver Voltage Protection
UVPUnder Voltage Protection
SCPShort Circuit Protection
OCPOver Current Protection
OTPOver Temperature Protection
No Load ProtectionYes
Reset ProtectionYes

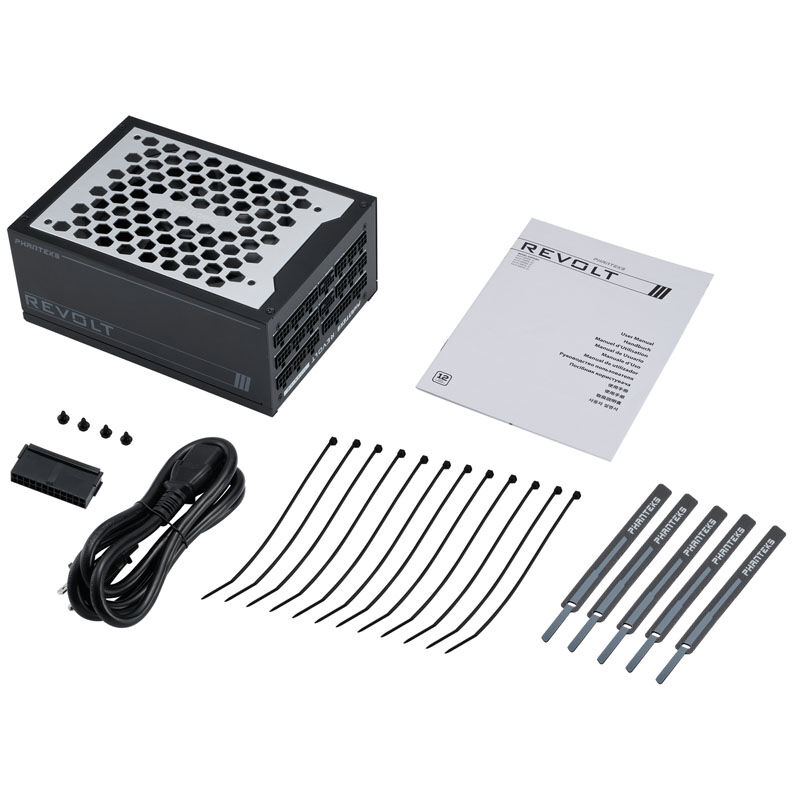

Scope of Delivery
Included1× User manual
1× Cable tie set
1× Screw set
1× Velcro fastener set
1× PSU bag
1× PSU jumper
Compatible Cables
PhanteksRevolt Cable Kit – complete set (black/white)
Revolt Cable Kit – starter set (black/white)
CableModClassic ModMesh RT Cable Kits
PRO ModMesh RT Cable Kits
PRO ModMesh RT 12VHPWR Dual Cable Kits
PRO ModMesh RT 12VHPWR → 3× 8-pin PCIe
PRO ModMesh RT 8-pin PCIe
