The NZXT H7 Flow PC case is specially designed for premium airflow and ensures efficient cooling of your components. Thanks to the well-thought-out mesh panels and optimised air circulation, your PC system stays cool and powerful even under heavy load.
The NZXT H7 Flow PC case is specially designed for premium airflow and ensures efficient cooling of your components. Thanks to the well-thought-out mesh panels and optimised air circulation, your PC system stays cool and powerful even under heavy load.
The NZXT H7 Flow PC case is specially designed for premium airflow and ensures efficient cooling of your components. Thanks to the well-thought-out mesh panels and optimised air circulation, your PC system stays cool and powerful even under heavy load.
The NZXT H7 Flow PC case is specially designed for premium airflow and ensures efficient cooling of your components. Thanks to the well-thought-out mesh panels and optimized air circulation, your PC system stays cool and powerful even under heavy load.
Features:

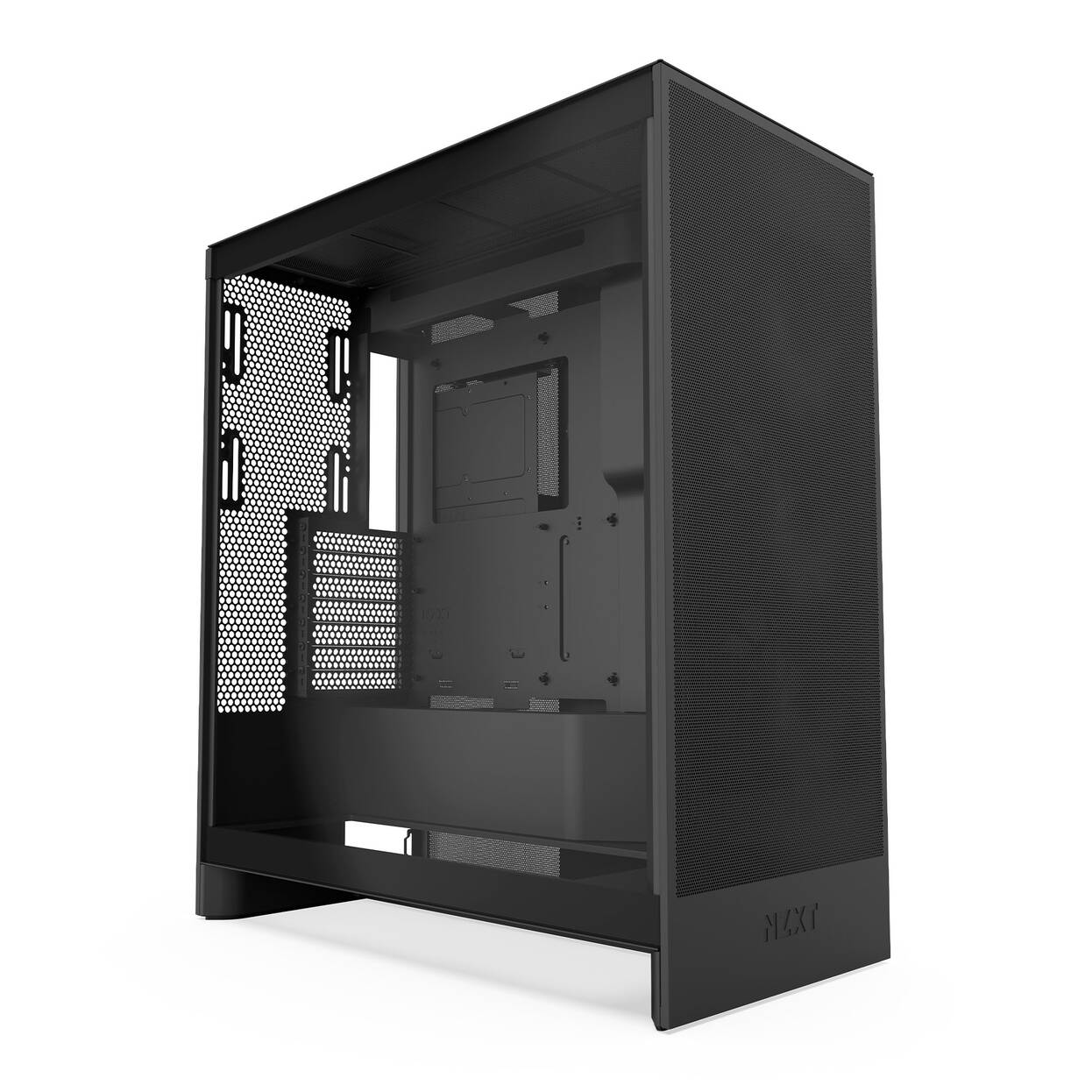

– Black mid-tower with mesh front panel
– Effective cooling performance thanks to ten fan mounts and radiators up to 420mm
– Supports motherboards up to E-ATX
– Space for graphics cards up to 410mm and CPU coolers up to 185mm in height
– Includes three 120mm fans

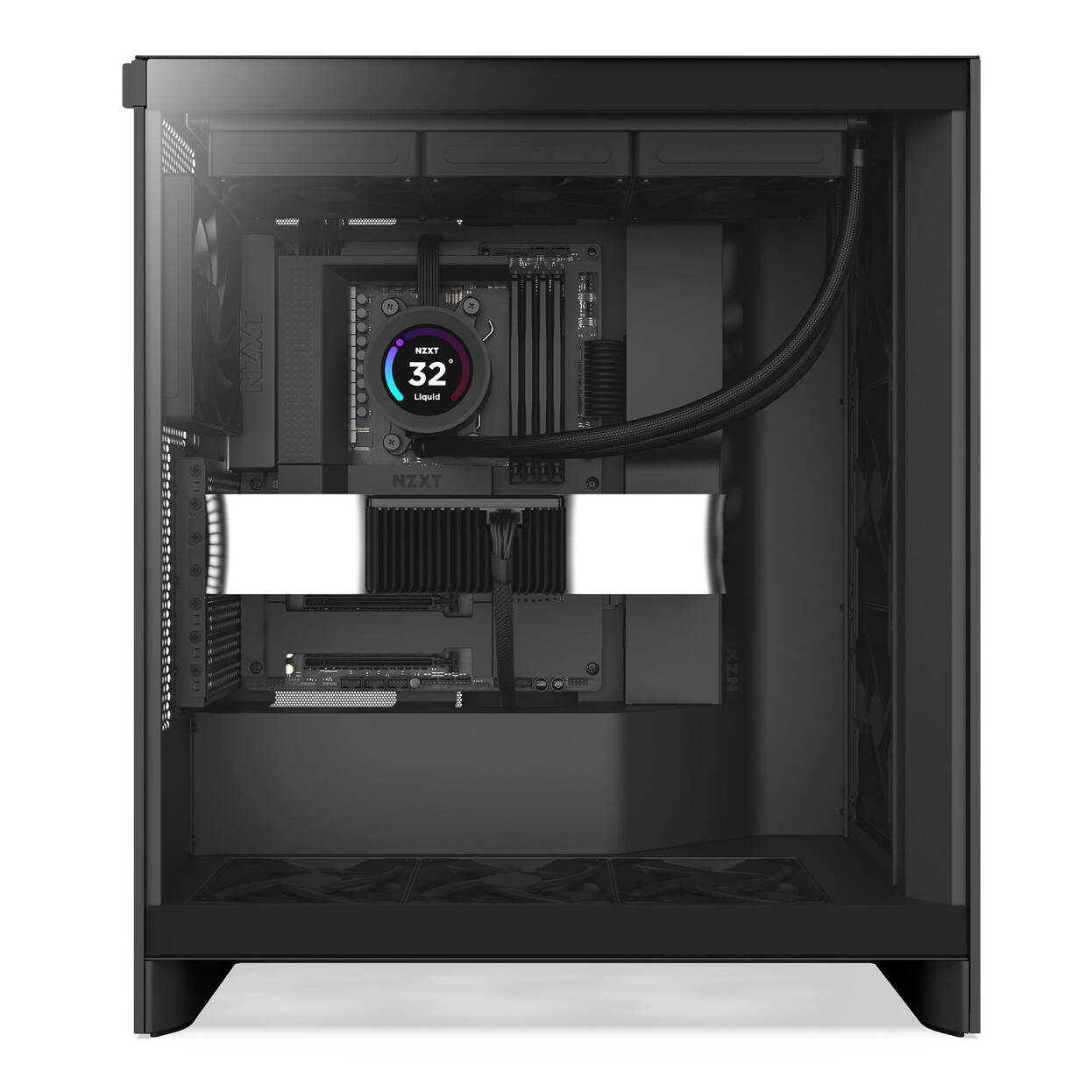

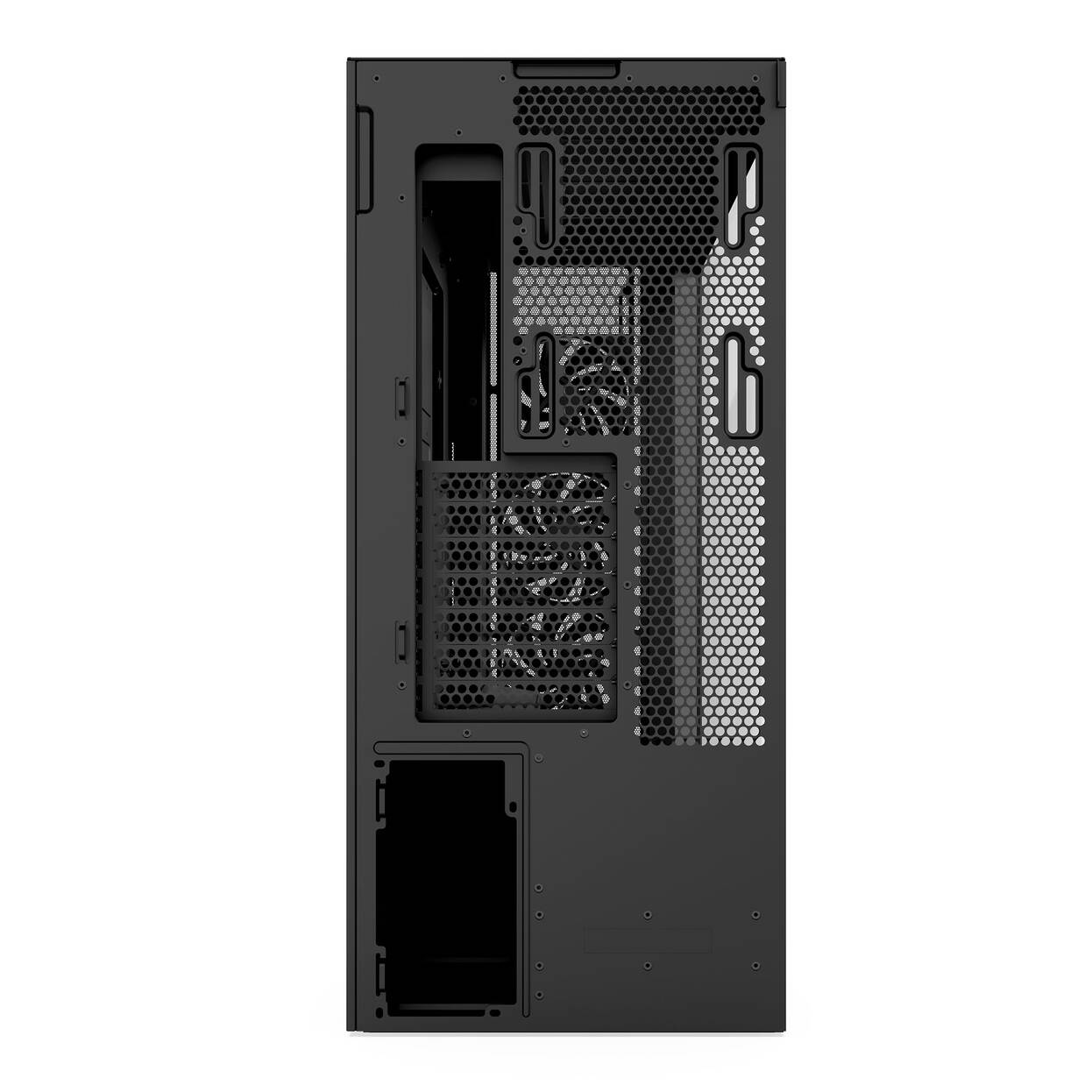

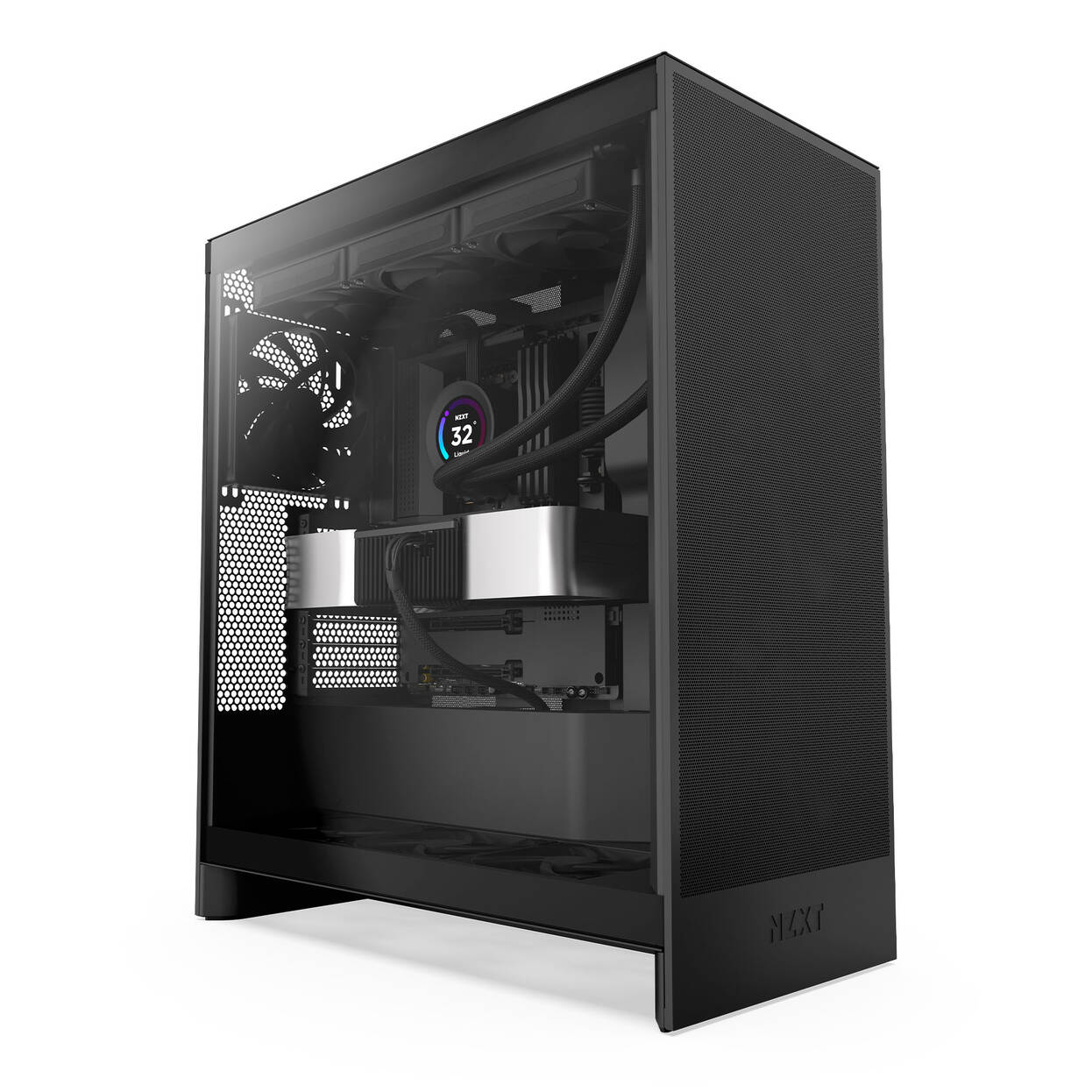

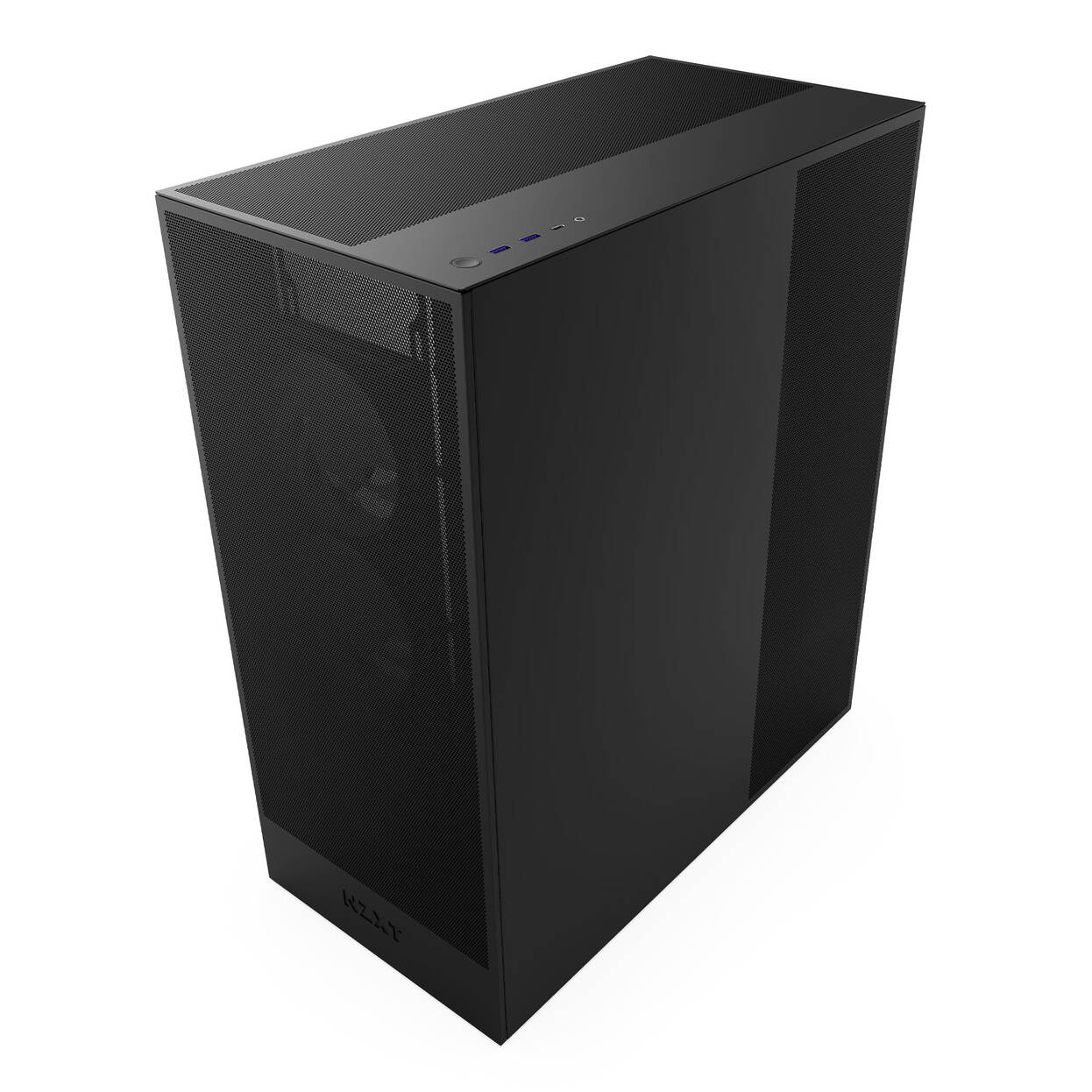

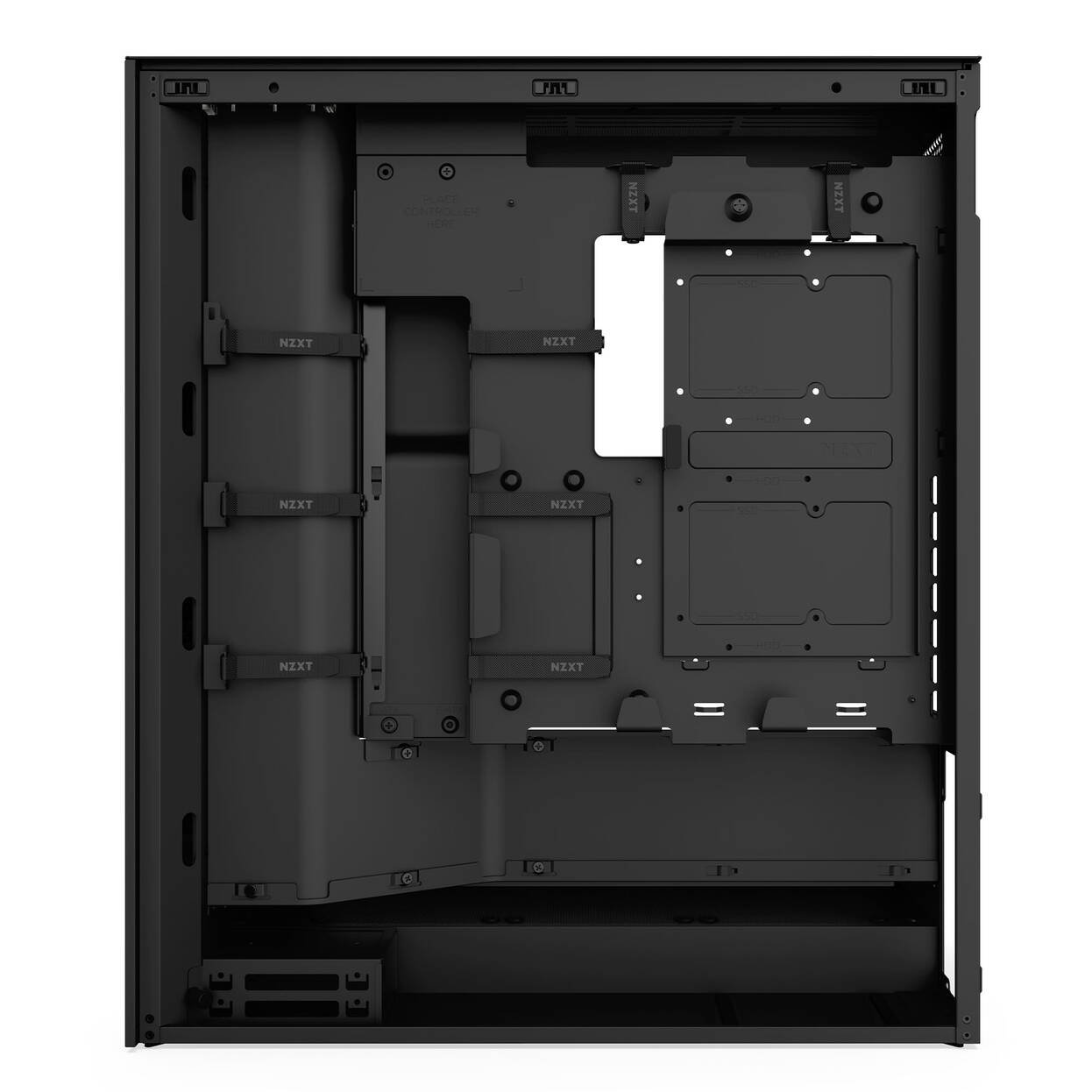

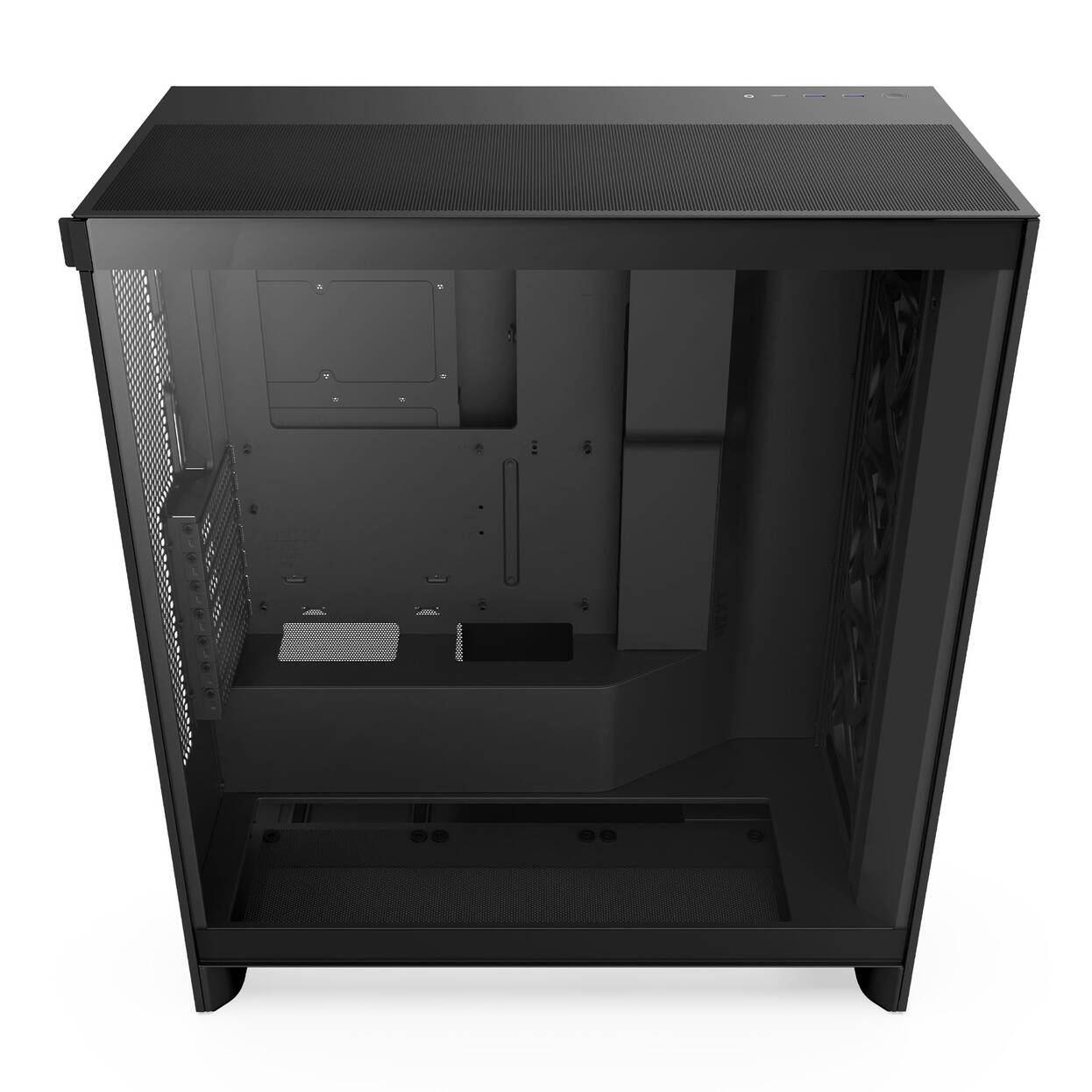

NZXT H7 Flow: Mid-tower with efficient airflow
The NZXT H7 Flow mid-tower offers the perfect balance between size and functionality. With plenty of room for powerful hardware and efficient cooling, it is the ideal choice for gaming and workstation builds.
Extensive cooling options with fans and radiators
To cool your hardware under any load, the NZXT H7 Flow can accommodate up to ten fans simultaneously. The top supports three 120mm or two 140mm fans. The front can house three 120mm or 140mm fans, and the bottom can fit three more 120mm fans. A 120mm or 140mm fan can also be installed at the rear.

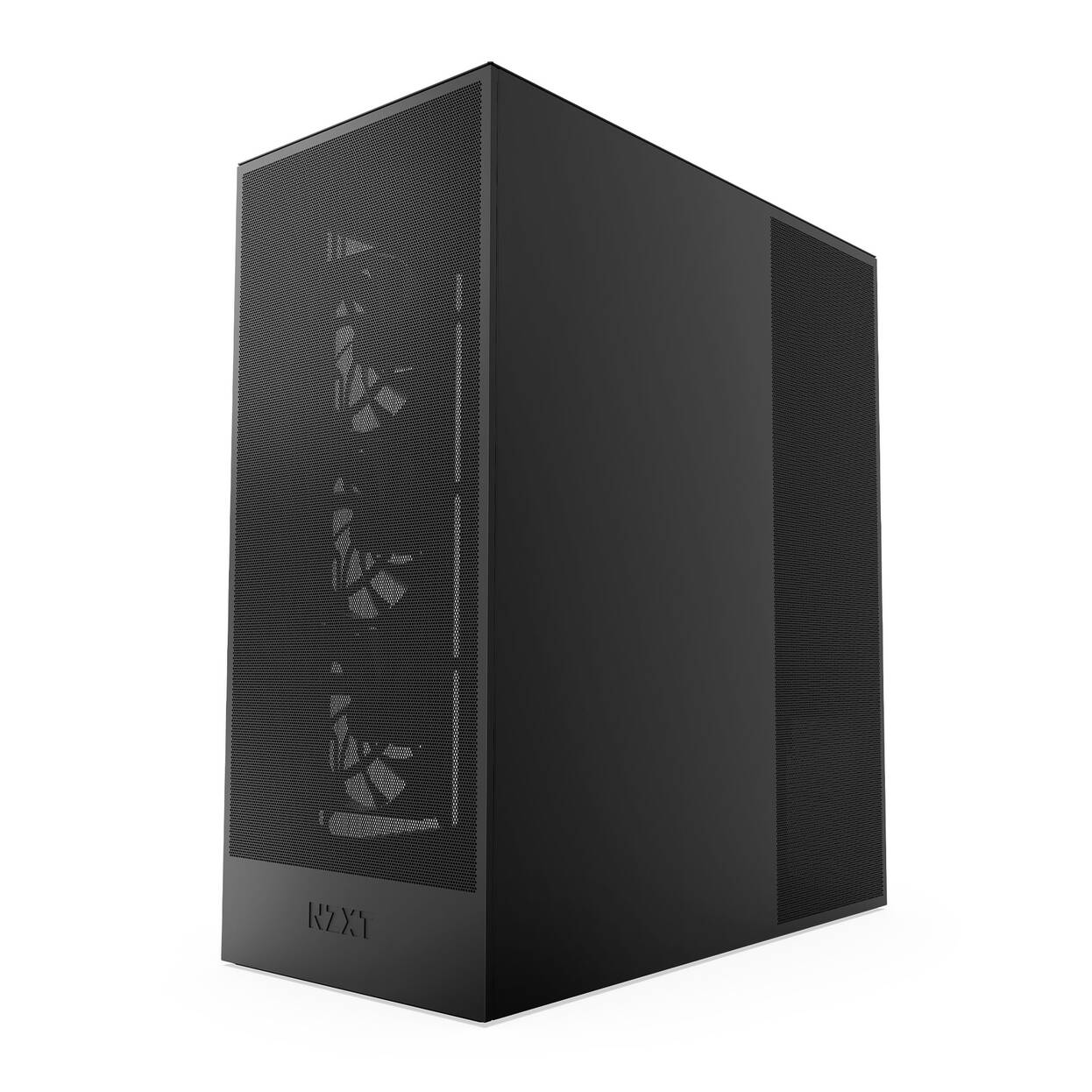

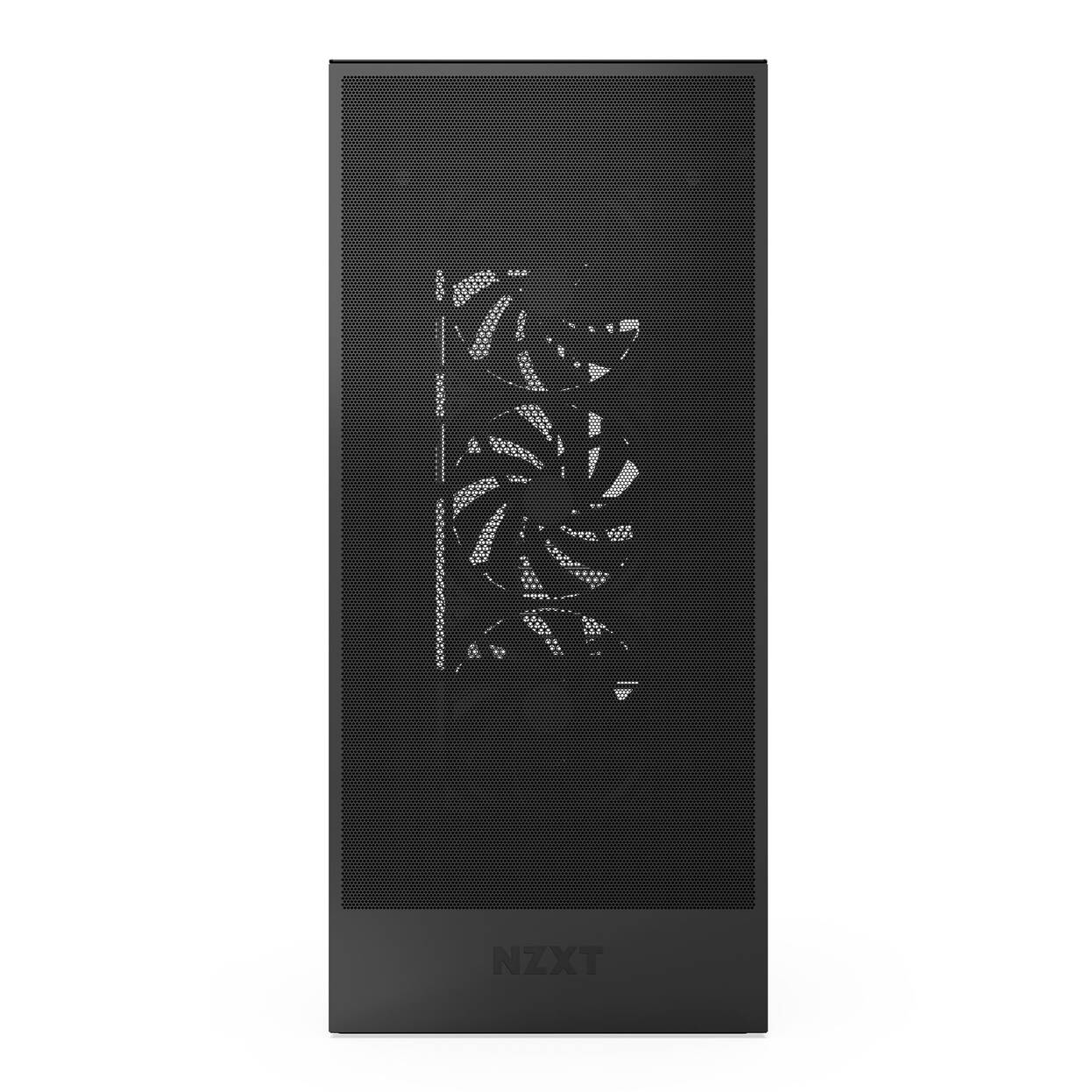

Factory-fitted at the front are three 120mm fans from NZXT,

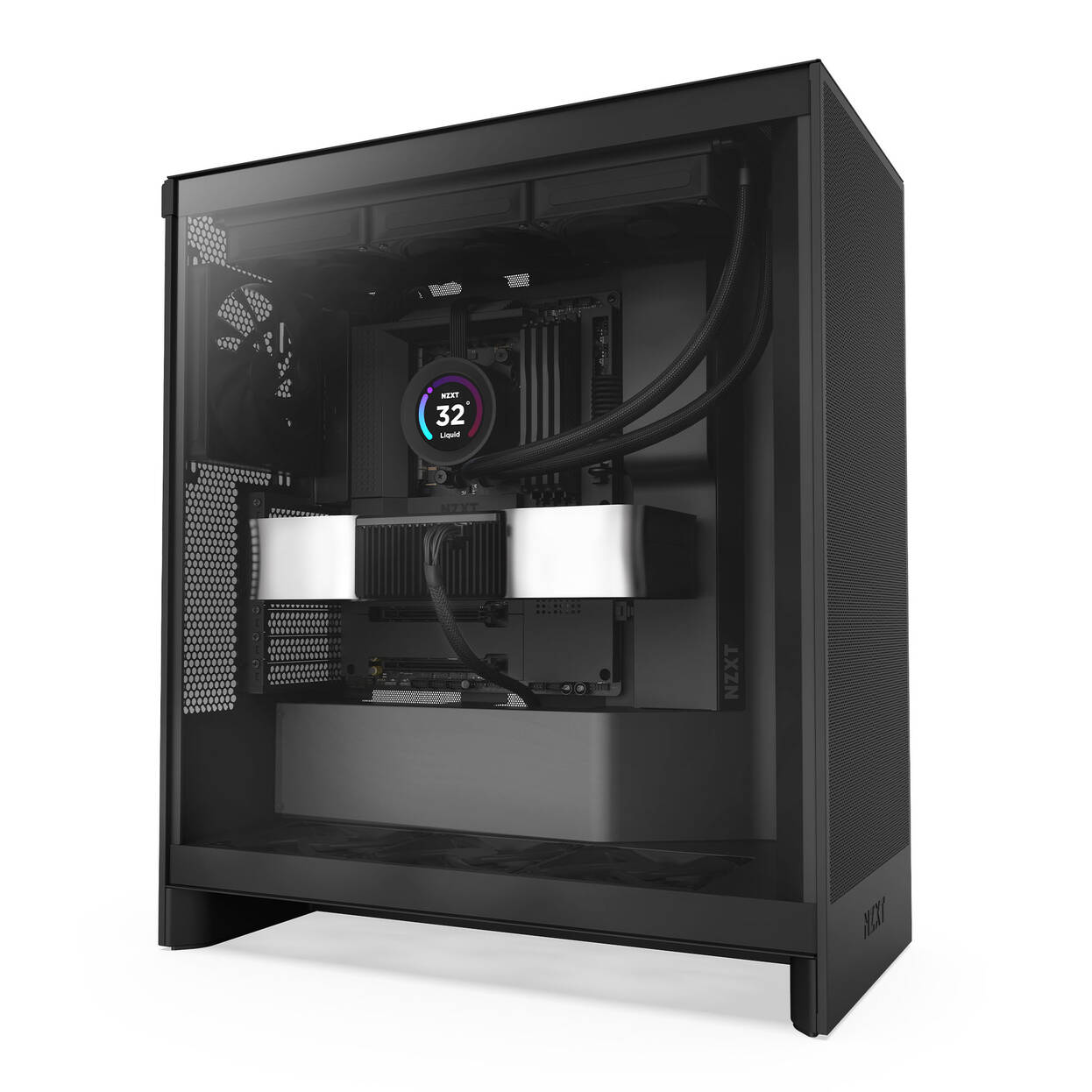

An AiO water cooling system can also be easily installed if you prefer to cool your powerful hardware with liquid cooling. There is space at the front (up to 420mm), the top (maximum 360mm), and the rear (up to 140mm) for this purpose.
Installing your hardware
The case offers enough space for powerful gaming hardware. It supports the installation of large graphics cards up to 410mm, allowing even the latest high-end GPUs from the RTX 5000 series to be installed.
Motherboards up to E-ATX size are supported. The CPU cooler should not exceed a height of 185mm. To store programs and games, a tot
| Colour | |
|---|---|
| Primary Colour | Black |
| Dimensions | |
| Length / Depth | 468 mm |
| Width | 244 mm |
| Height | 544 mm |
| Weight | 11.13 kg |
| Case | |
| Case Type | Mid Tower |
| Motherboard Support | |
| Compatible Motherboard Formats | ATX, E-ATX, Micro-ATX, Mini-ITX |
| Max. Motherboard Format | E-ATX |
| Internal Dimensions | |
| Max. CPU Cooler Height | 185 mm |
| Max. GPU Length | 410 mm |
| Max. PSU Length / Depth | 200 mm |
| Display | |
| Display Included | No |
| Power Supply | |
| PSU Included | No |
| PSU Format | ATX |
| Power Supply Position | Rear bottom |
| Cable Specifications | |
| Riser Cable Included | No |
| Fan Support | |
| Max. Number of Fans | 10 |
| 120 mm Fans | 10 |
| 140 mm Fans | 5 |
| Radiator Support | |
| Max. Radiator Compatibility | 1x Single (140 mm), 1x Triple (360 mm), 1x Triple (420 mm) |
| Drive Bays | |
| Max. 2.5 Inch Drives | 4 |
| Max. 3.5 Inch Drives | 2 |
| Max. 5.25 Inch Drives | 0 |
| Hot Swap Drive Bays | No |
| External Ports | |
| USB4 Gen 2×2 (Type C) | 1 |
| USB 3.0 (Type A) | 2 |
| Audio Outputs & Inputs | 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) |
| Card Reader | No |
| Case Features | |
| I/O Position | Cover |
| Side Panel | With window |
| Vertical GPU Mount | No |
| Adjustable Vertical GPU Bracket | No |
| Front Door | Yes |
| Cable Management | No |
| Filters Included | Yes |
| Noise Dampening | No |
| Mainboard Slide / Tray | No |
| Transport System | No |
| Back Connect | |
| Back Connect | No |
| Expansion Slots | |
| Expansion / PCI Slots | 7 |
| Features | |
| Housing Feedthrough | No |
| Fan Controller / Hub | No |
| Mounting | |
| Case VESA Mountable | No |
| Internal Monitor Mount | No |
| Materials | |
| Materials | Steel, Tempered Glass |
| Lighting | |
| Lighting / RGB | No |
| Additional Contents | |
| Included Fans | 3x 120 mm |
