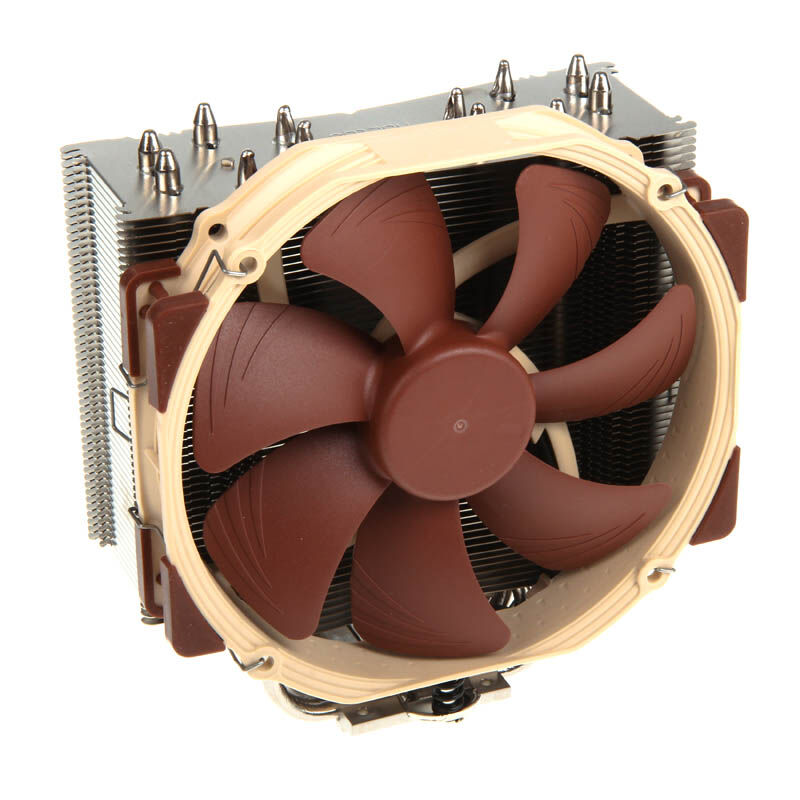

Noctua is one of the known quantities in silent and high-end cooling region, especially the CPU cooler by the Austrian company enjoying an excellent reputation.
Noctua is one of the known quantities in silent and high-end cooling region, especially the CPU cooler by the Austrian company enjoying an excellent reputation.
Noctua is one of the known quantities in silent and high-end cooling region, especially the CPU cooler by the Austrian company enjoying an excellent reputation.
These combine excellent workmanship with high cooling performance and minimal noise. For this purpose, the self-developed fan from Noctua are largely responsible, which are also available separately, to serve as a case, CPU fan or radiator.
The L.N.A. (Low noise adapter) while reducing the speed to 1,200 r / min, whereby the volume drops to 19.2 dB (A). For users who want to achieve even better performance using a second NF-A15 fan in push / pull operation, the NH U14s will be shipped with special fan brackets and an additional set of anti-vibration pads. These allow the rear fan to 5mm discontinued and thus achieve better acoustics in double fan operation.
Noctua SecuFirm2 assembly systems has become a synonym for quality, reliability and user-friendliness. The NH-U12S supports Intel LGA 115x (LGA1150, LGA1155, LGA1156) LGA2011 and AMD (AM3, AM2 +, FM1, FM2) and offers on all current sockets perfect pressure and maximum ease of installation.
| COOLER SPECIFICATIONS | |
| Dimensions (Without Fan) | 150 × 165 × 52 mm (W × H × D) |
| Dimensions (With Fan) | 150 × 165 × 78 mm (W × H × D) |
| Material | Nickel-Plated Copper (Base & Heatpipes), Nickel-Plated Aluminium (Fins) |
| Weight (Without / With Fan) | 770 g / 935 g |
| Heatpipes | 6 × 6 mm |
| Included Fan | 1 × 140 mm NF-A15 |
| Operating Voltage | 12 V |
| Life Expectancy | > 150,000 Hours |
| FAN PERFORMANCE | |
| Normal Operation | 1,500 RPM / 140.2 m³/h / 24.6 dB(A) |
| With L.N.A. | 1,200 RPM / 115.5 m³/h / 19.2 dB(A) |
| SOCKET COMPATIBILITY | |
| AMD | AM2(+), AM3(+), FM1, FM2 |
| Intel | LGA 1150, 1155, 1156, 2011 |
| WARRANTY | |
| Manufacturer Warranty | 6 Years |
