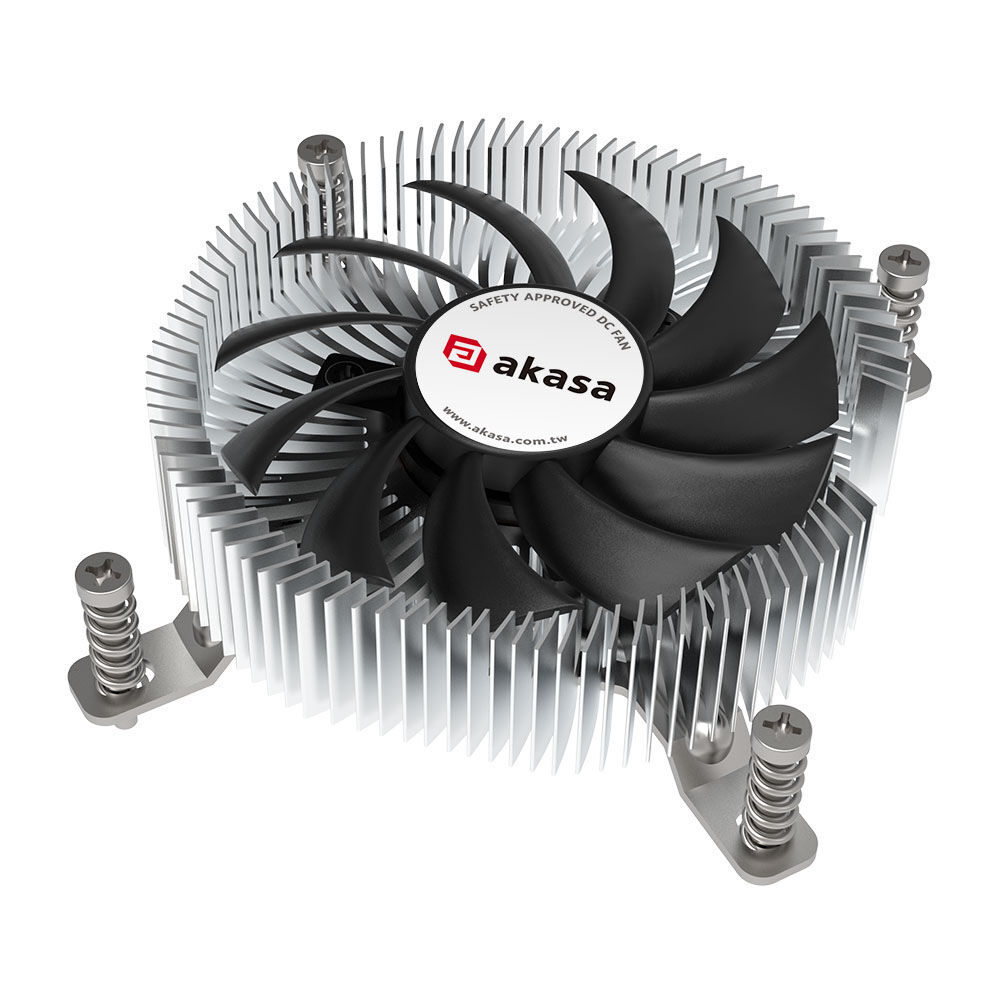

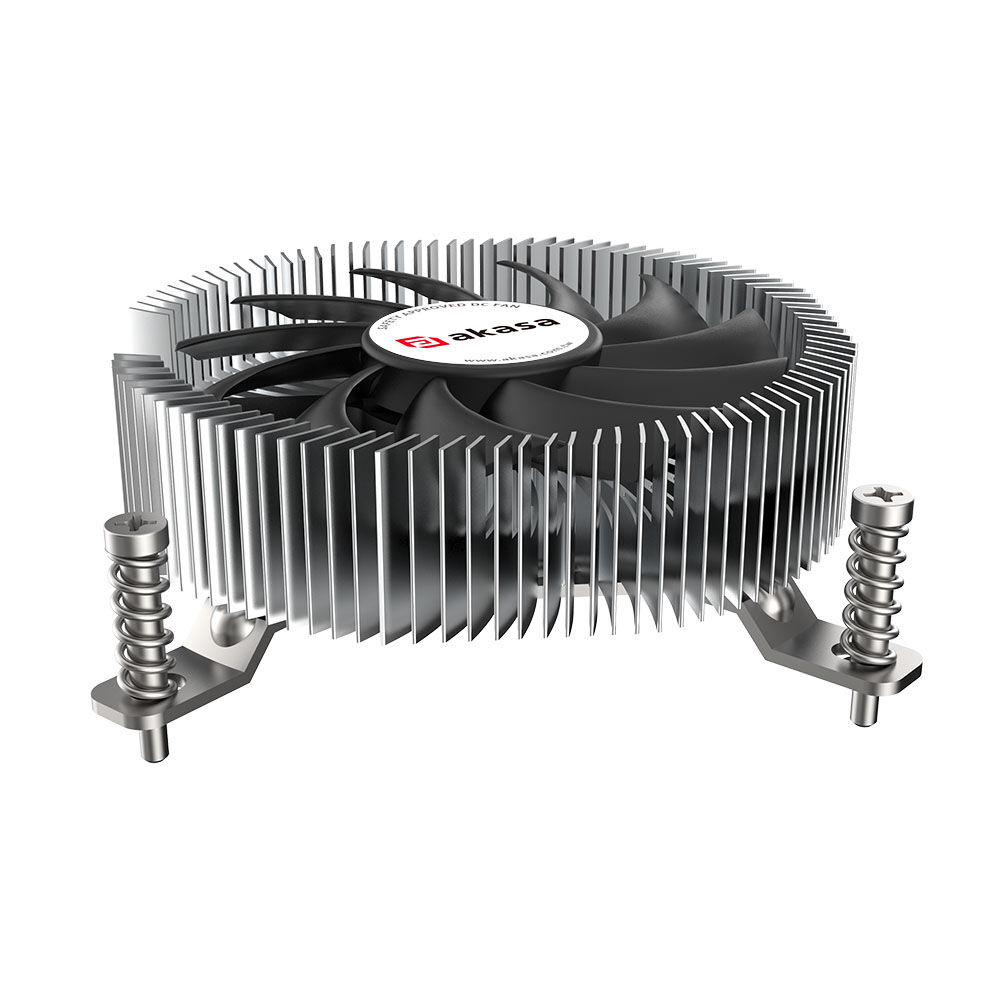

Akasa AK-CC6610EP01 Low Profile CPU Cooler - Socket LGA 1700

Akasa AK-CC6610EP01 in detail
The Akasa AK-CC6610EP01 is a CPU cooler designed for Intel LGA-1700 CPUs. With its low-profile heatsink of just 26.92 mm in height, it doesnt take up too much space and therefore fits perfectly in mini-ITX, cube and HTPC cases.

Thanks to its bearing, the fan is durable and quiet. The bearing is resistant to contamination and high temperatures. Thanks to the PWM control, the fan also runs at a pleasant volume.

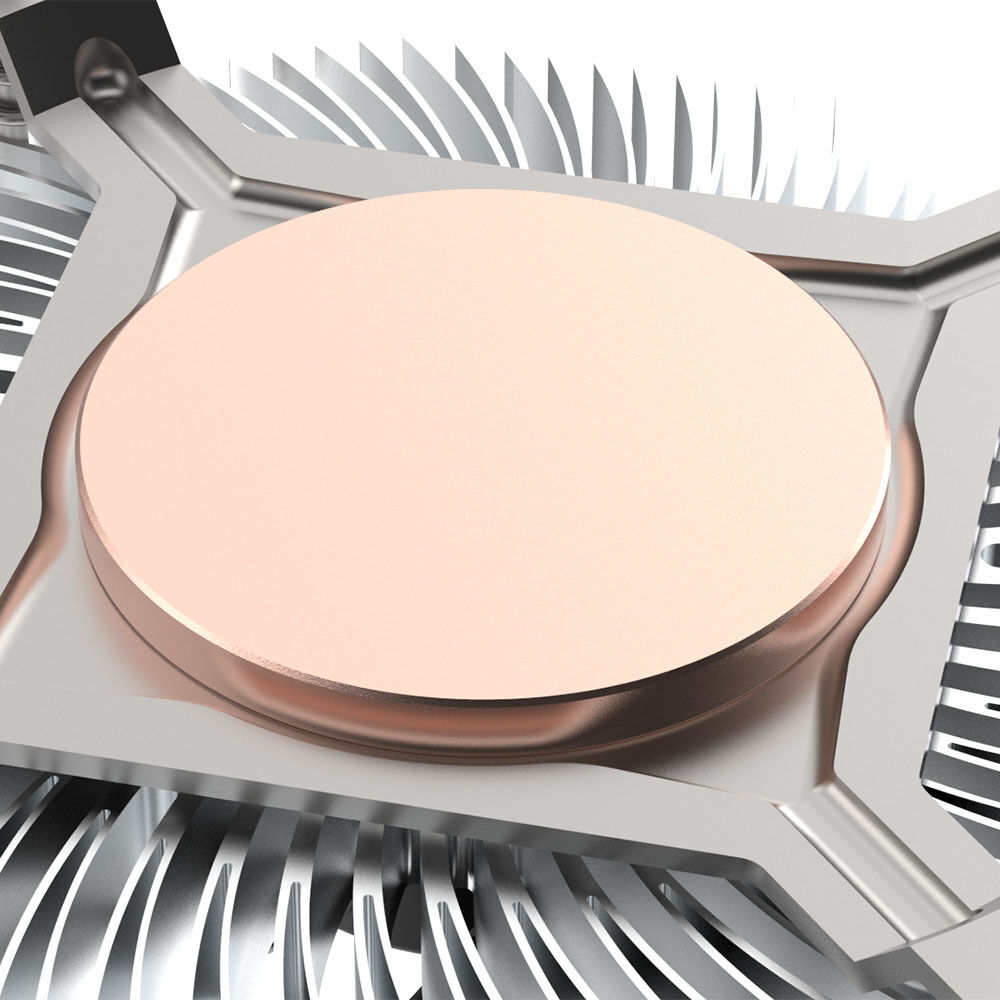

The copper core is in direct contact with the heat spreader of your CPU and also makes contact with the cooling fins, which are fanned out in a circle. The design offers more surface area and dissipates the absorbed heat even better.

Easy assembly

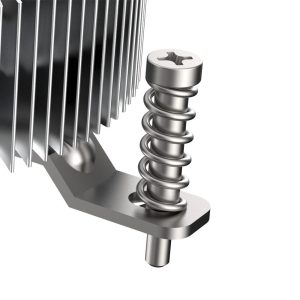

Thanks to the push pins, you dont need any tools to assemble the cooler. It simply sits over the mounting holes and you then need to press it down with a little force to lock the pins in place. The top-down design means you dont have to worry about large heatsinks or fans getting in the way.

Technical details
– Dimensions: 87.2 x 85.2 x 26.92 mm (L x W x H)
– Color: Black, silver
– Weight: 242 g
– Material: Copper, aluminum
– TDP support: 65 W
– Connections: 1x 4-pin PWM
– Volume: max. 30.75 dB(A)
– Fan speed: min. 600, max. 3,000 rpm
– Air flow: 39.84 m³/h
– Static pressure: 1.81 mmH2O
– Fan diameter: 75 mm
– Fan voltage: 12 V DC
– Fan current: max. 0.19 A
– Compatibility: Intel socket LGA 1700
– Operating time: 40,000 hours
– Scope of delivery:
– 1x Akasa AK-CC6610EP01 low profile CPU cooler – socket LGA 1700
