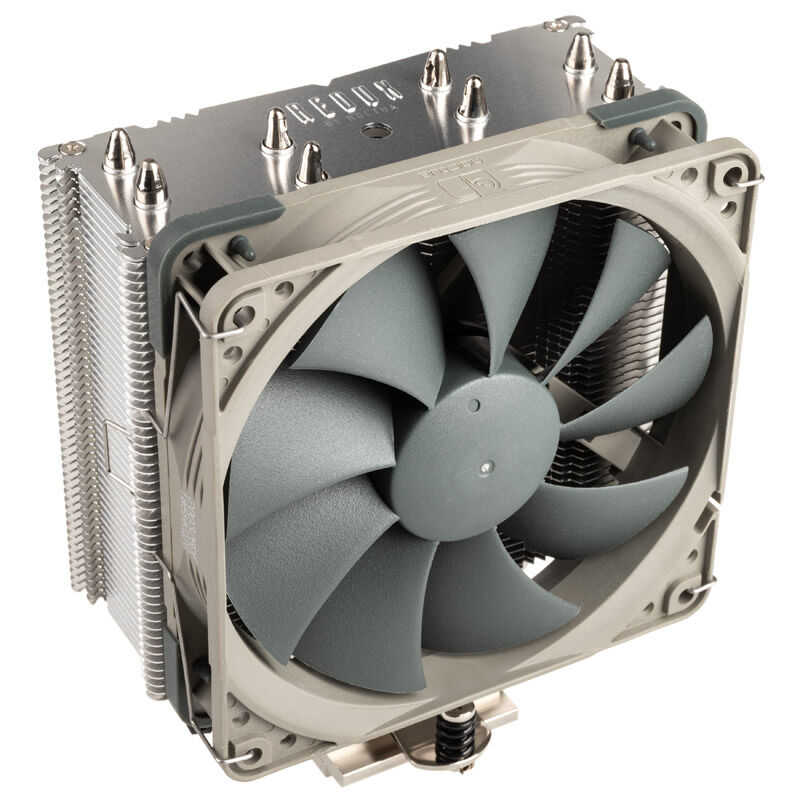

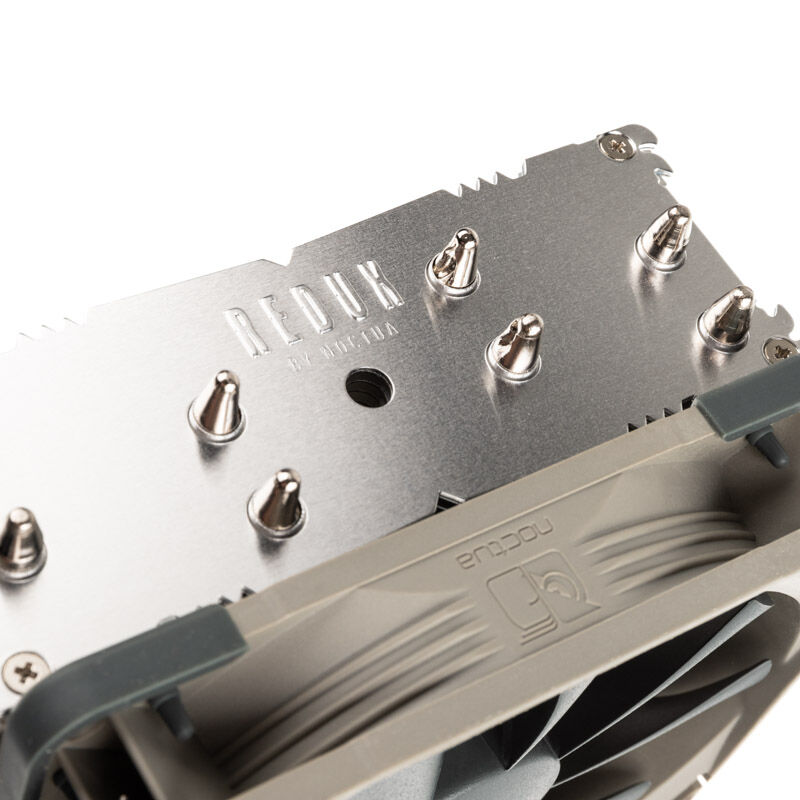

Noctua NH-U12S redux CPU cooler - 120mm

Thanks to PWM control, the fan speed is dynamically regulated according to the required performance in order to create a balance between cooling performance and volume. The CPU cooler is compatible with almost all common processors from Intel and AMD. The assembly is quick and easy by hand.

The features of the Noctua NH-U12S redux CPU cooler at a glance:
– CPU cooler with 120 mm PWM fan
– Dynamic speed regulation thanks to pulse width modulation
– Maximum speed of 1,700 rpm

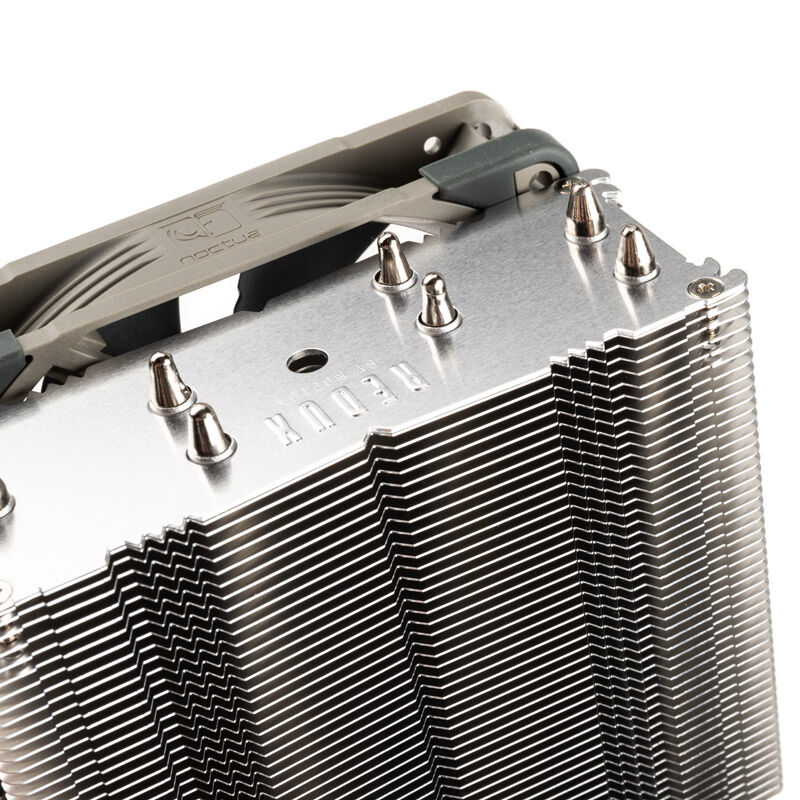

– Excellent thermal conductivity thanks to four copper heat pipes
– With a maximum of 25.1 dB (A) barely noticeable
– Compatible with almost all common AMD and Intel CPUs
– Efficient CPU cooler with low volume

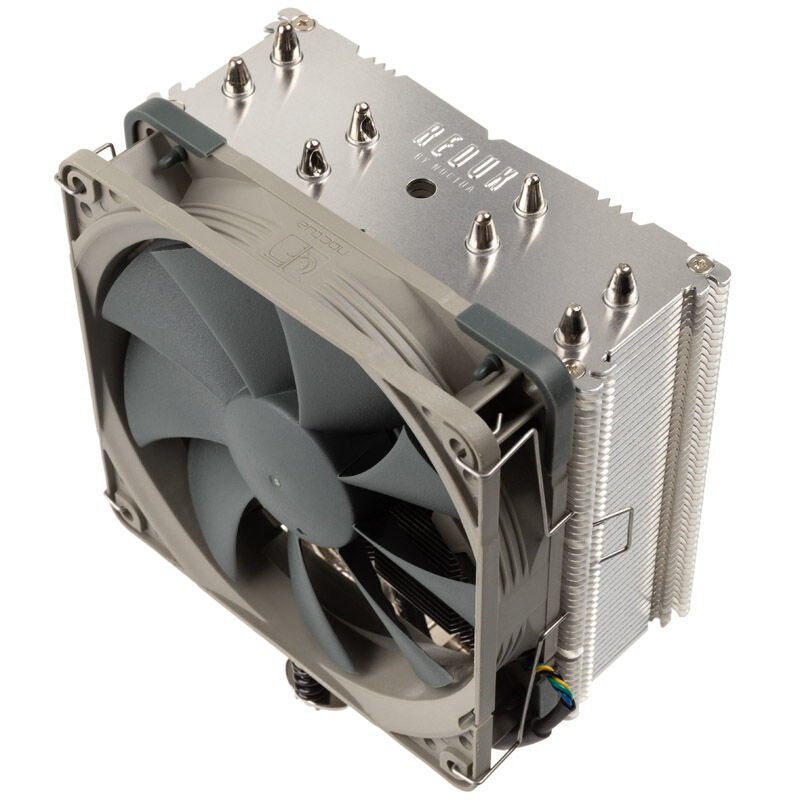

The Noctua NH-U12S redux offers excellent cooling performance thanks to the 120 mm fan and four copper heat pipes. Thanks to pulse width modulation (PWM), the fan only turns as fast as the current processor performance demands. For the user, this manifests itself in an evenly quiet system operation.

With high CPU utilization, the NF-P12 redux-1700 PWM rotates at a maximum of 1,700 rpm so that the processor remains cool and the system remains stable. With a maximum volume of just 25.1 dB (A), the fan is audible, but by no means loud. The fan works at a quiet 450 rpm in idle mode or with only low CPU performance.

With a delivery volume of 120.2 m³ / h and a very high static pressure of 2.83 mm H2O, the 120 mm fan efficiently conducts heat away from the processor. A second fan can be mounted on the cooler via an optional dual fan set to ensure adequate cooling even for overclocked CPUs.

Excellent compatibility and easy installation

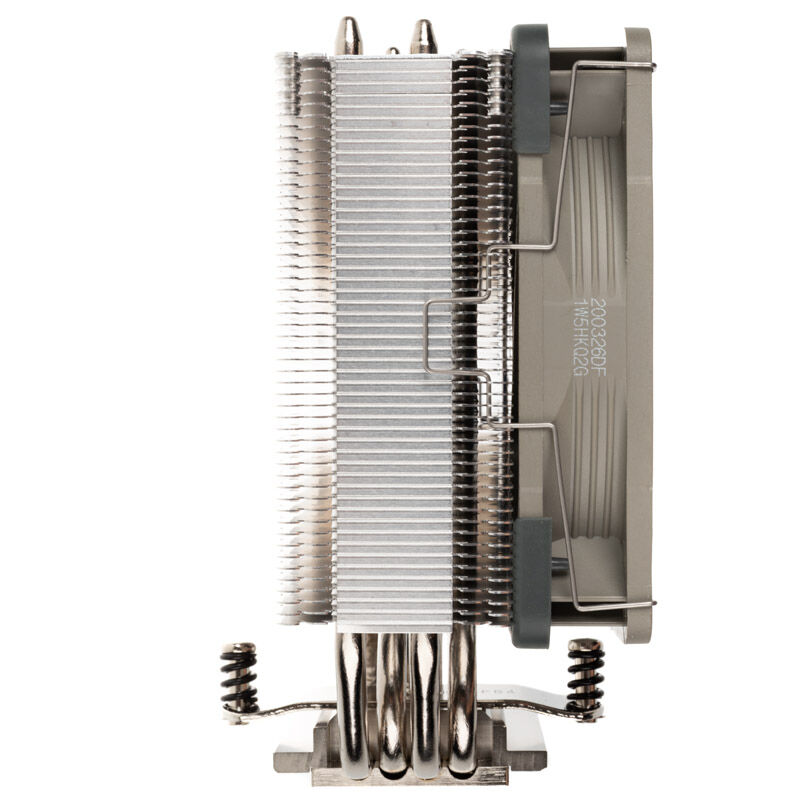

The slim tower design of the Noctua NH-U12S redux ensures that the cooler leaves enough space for RAM and the upper PCIe slot. The CPU cooler is compatible with all common processors from AMD and Intel. Thanks to the multi-socket mounting system, it can be easily attached to the processor. Noctua has already applied thermal paste to the cooler so that assembly is quicker and, above all, more user-friendly.

Technical details:
– Dimensions including fan: 125 x 158 x 71 mm (W x H x D)
– Dimensions without fan: 125 x 158 x 45 mm (W x H x D)
– Weight including fan: 755 g
– Color: Black

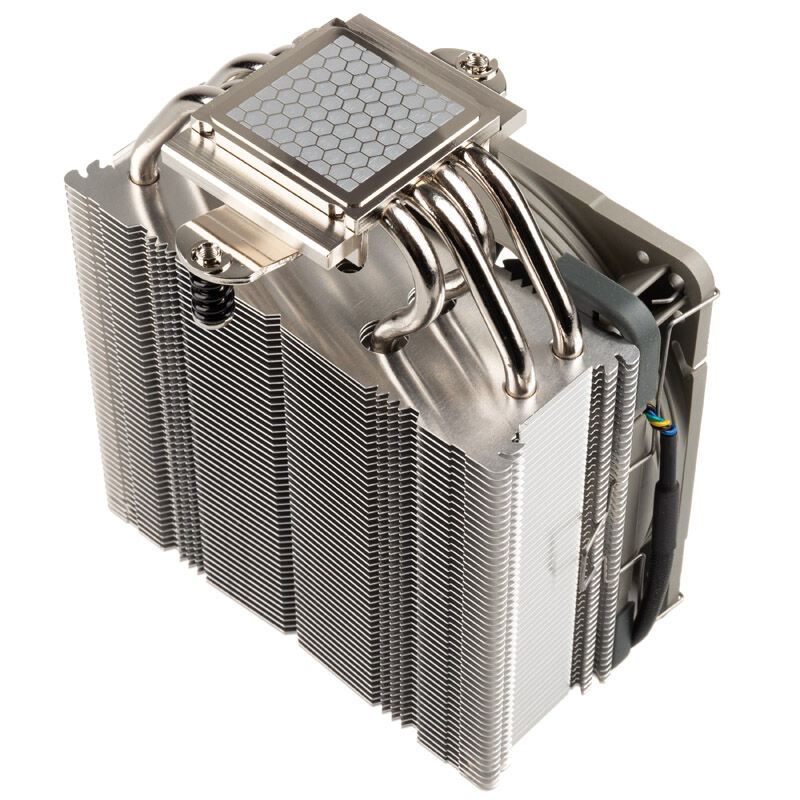

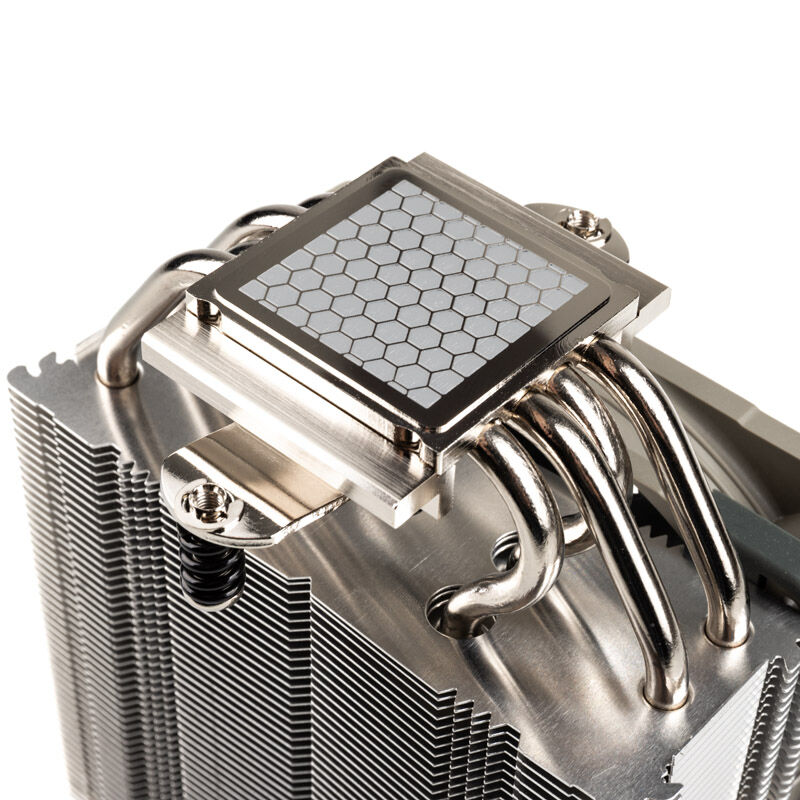

– Material: nickel-plated copper (base and heat pipes), aluminum (cooling fins)
– Number of heat pipes: 4
– Fan: NF-P12 redux-1700 PWM br> Fan dimensions: 120 x 120 x 25 mm (W x H x D)
– Noise level: max. 25.1 dB (A)
– Fan speed: 450 to 1,700 rpm
– Connection: 4-pin PWM
– Static pressure: 2.83 mm H2O
 -Delivery volume: 120.2 m³ / h
– Bearing type: self-stabilizing oil pressure slide bearing (SSO)
– Maximum power consumption: 1.08 W.
– Operating voltage: 12 V
– Amperage: 0.09 A
– Life expectancy (MTTF): 150,000 hours
– Compatibility:
– Intel socket: 1200, 115x, 2011/2011-v3 (Square ILM), 2066
– AMD socket: AM4, AM2, AM2 +, AM3, AM3 +, FM1, FM2, FM2 +
– Scope of delivery:
– 1x NH-U12S redux heat sink
– 1x NF-P12 redux-1700 PWM fan
– 4x NA-AVP1 chromax.grey anti-vibration pads
– 1x fan mounting brackets (one pair)
– 1x NT-H1 high-end thermal paste (pre-applied)

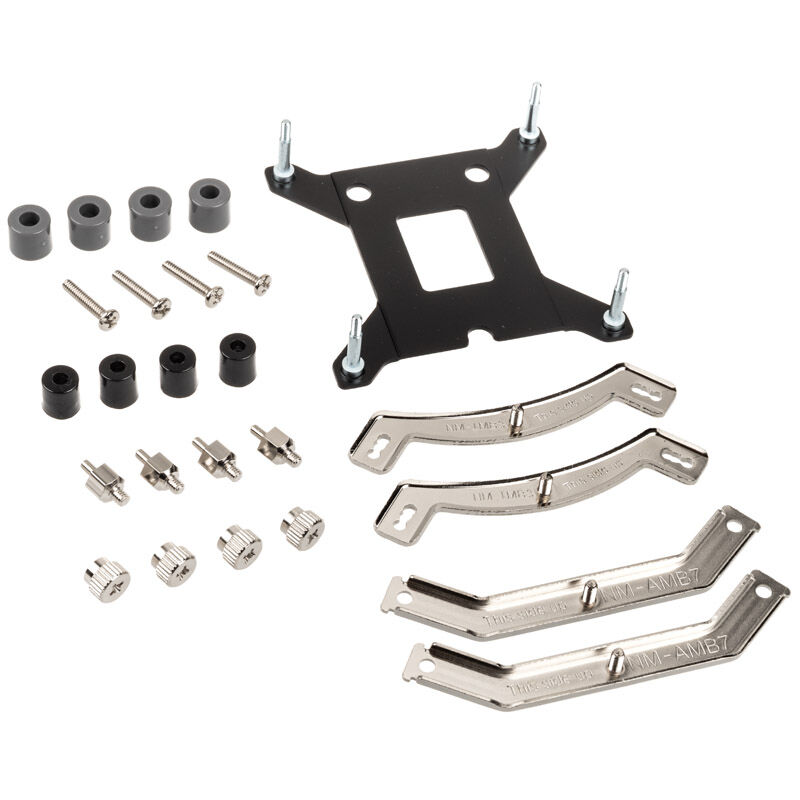

– 1x SecuFirm2 mounting kit
– Manufacturers guarantee: 6 years
