Noctua is one of the known quantities in the range Silent and high-end cooling. Especially the CPU cooler from the Austrian manufacturer enjoying an excellent reputation. They combine excellent build quality with a high cooling capacity and minimal noise. For this purpose, the self-developed fan of Noctua are mainly responsible, which are also available separately, to serve as a CPU or case fans.
Noctua is one of the known quantities in the range Silent and high-end cooling. Especially the CPU cooler from the Austrian manufacturer enjoying an excellent reputation. They combine excellent build quality with a high cooling capacity and minimal noise. For this purpose, the self-developed fan of Noctua are mainly responsible, which are also available separately, to serve as a CPU or case fans.
Noctua is one of the known quantities in the range Silent and high-end cooling. Especially the CPU cooler from the Austrian manufacturer enjoying an excellent reputation. They combine excellent build quality with a high cooling capacity and minimal noise. For this purpose, the self-developed fan of Noctua are mainly responsible, which are also available separately, to serve as a CPU or case fans.

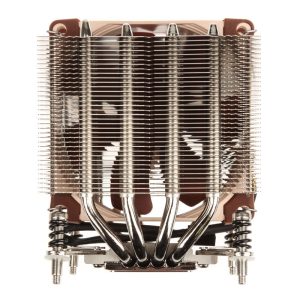

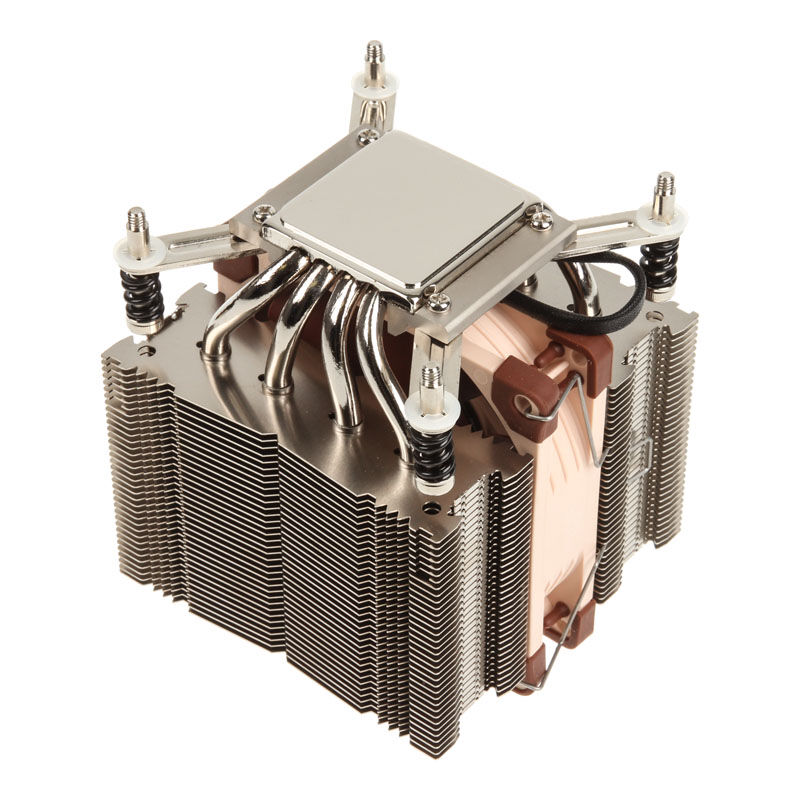

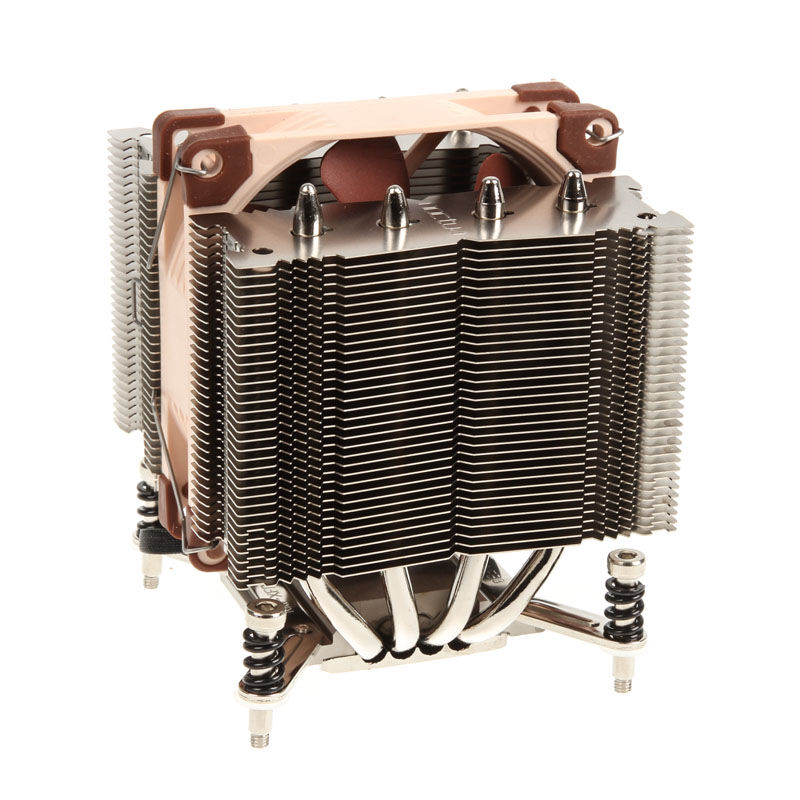

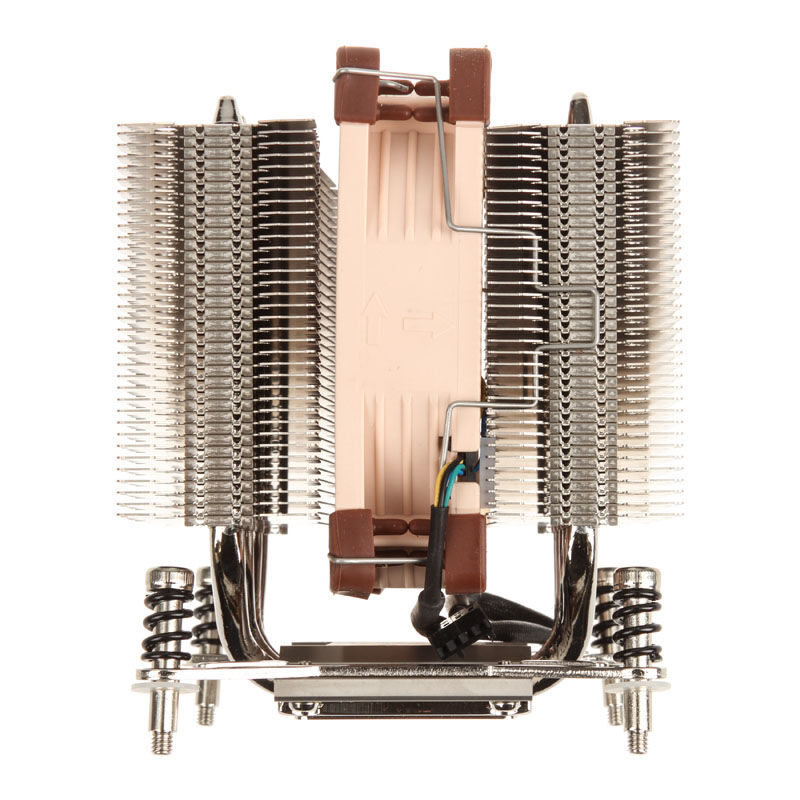

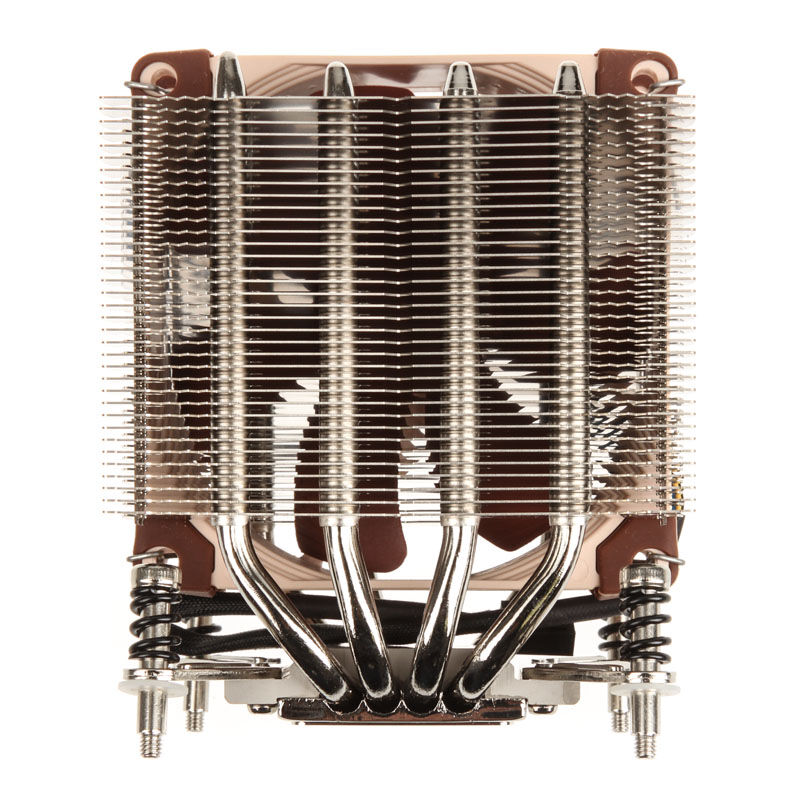

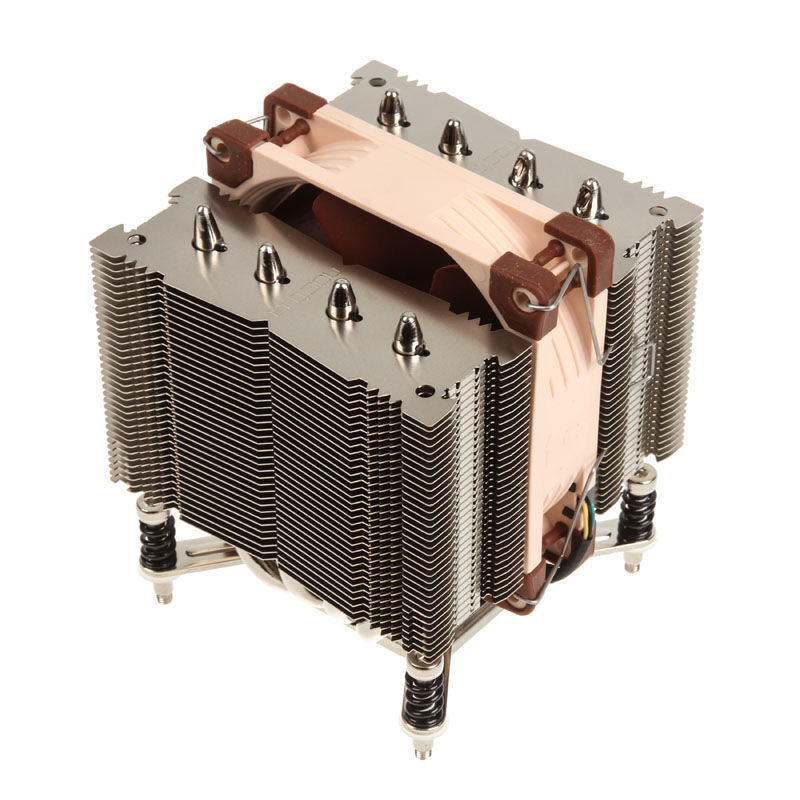

Noctua DX series has become a standard solution for superb quiet cooling performance in Xeon area. The latest revision of the i4 D9DX offered here supports LGA2011 socket processors and LGA2011-V3, ie both Square ILM ILM and narrow. In addition, it is compatible with systems based on Socket LGA1356 LGA1366 and.
The revised D9 model provides higher efficiency and better compatibility than previous 9-inch versions: With a footprint of 95 x 95 mm and 110 mm height is reduced to the NH D9DX i4 3U fully compatible and projects on LGA2011 (Square ILM) and LGA1356 / 1366 does not have the memory banks.

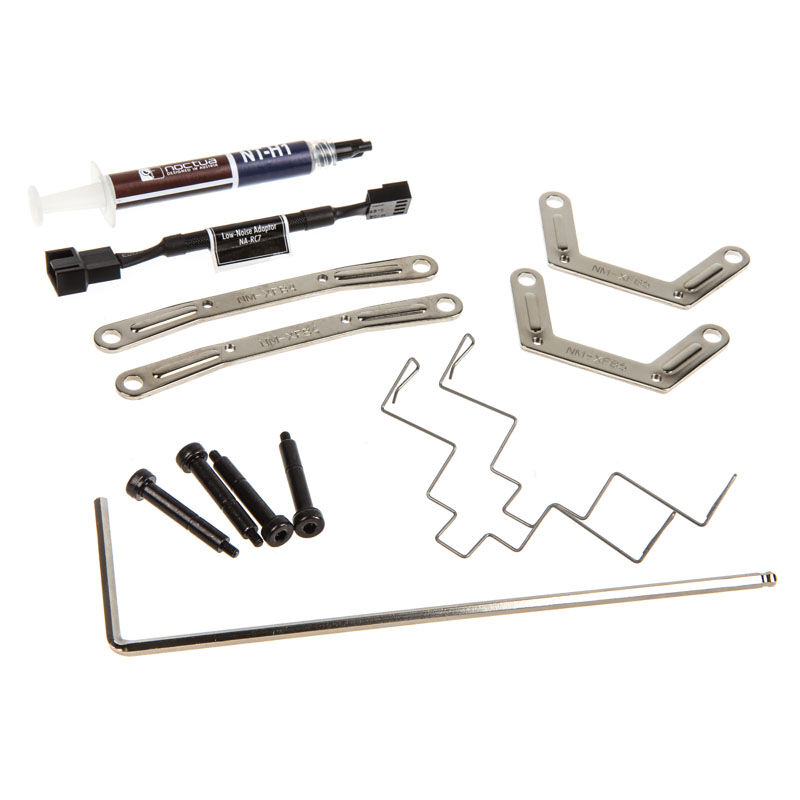

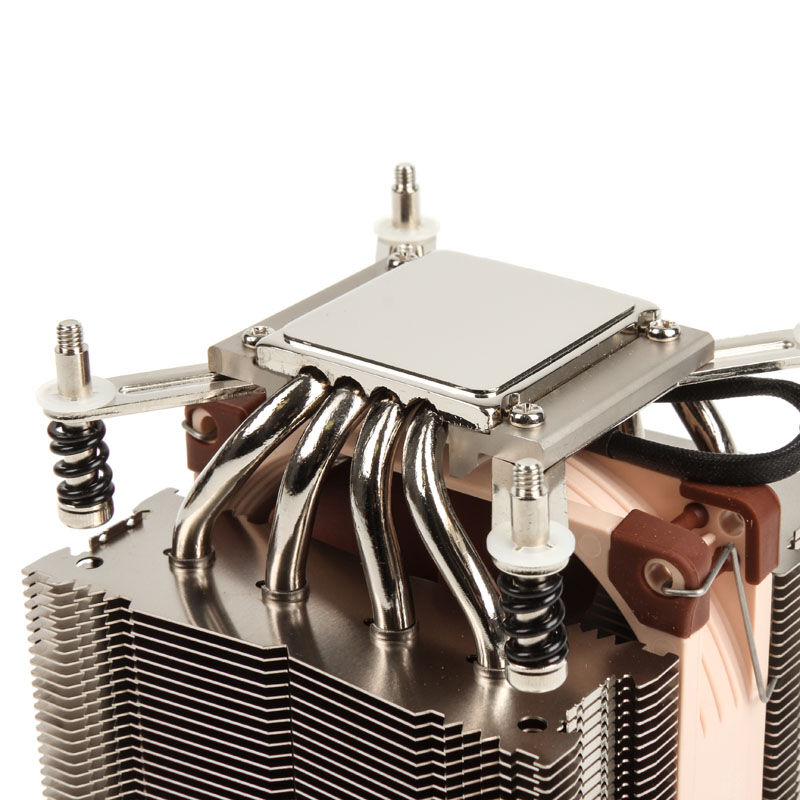

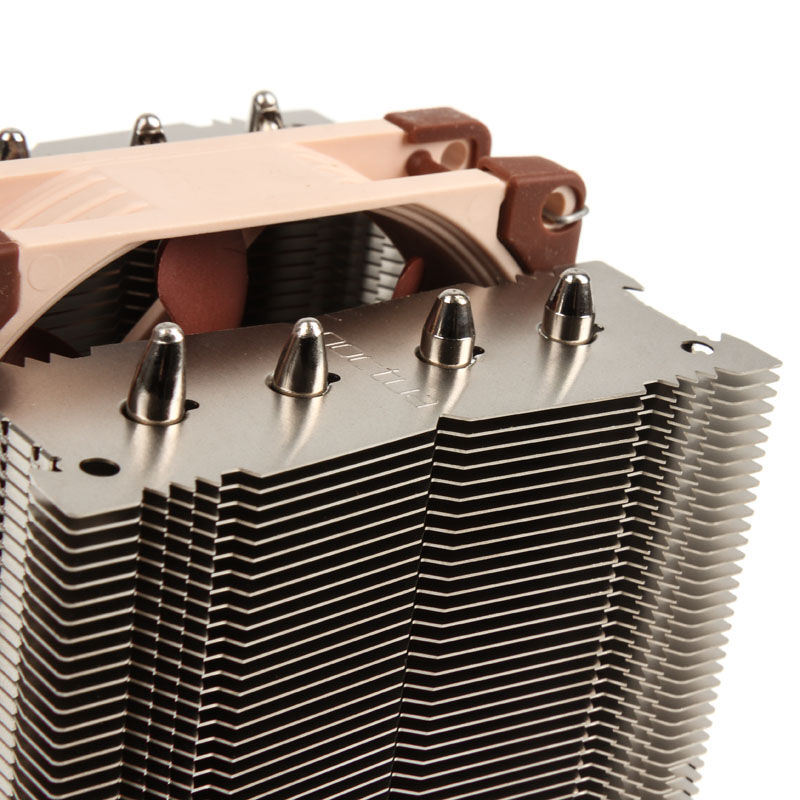

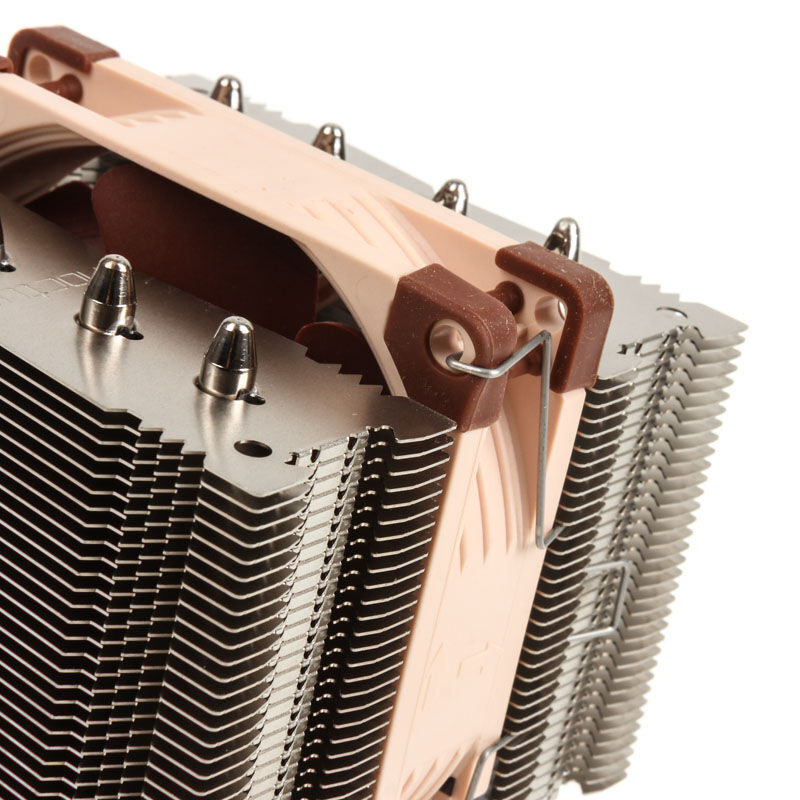

At the same time the twin tower design and modern NF-A9 PWM fan in 92 mm for better cooling performance at minimum noise levels provide. Together with the professional SecuFirm2 assembly system and Noctua NT-H1 thermal compound quality makes the NH D9DX i4 3U a complete premium quality package for quietly cooling Xeon workstations and servers.
Note: This cooler is only compatible with 1366/1356 motherboards when the optional Xeon backplate is used.
| Heatsink Specifications | |
|---|---|
| Dimensions (Without Fan) | 95 x 110 x 95 mm (W x H x D) |
| Dimensions (With Fan) | 95 x 110 x 95 mm (W x H x D) |
| Weight (Without / With Fan) | Approx. 428 g / Approx. 531 g |
| Material | Nickel-Plated Copper (Base & Heatpipes), Aluminum Fins |
| Heatpipes | 4x Ø 6 mm |
| MTBF | > 150,000 hours |
| Warranty | 6 years |
| Fan Specifications | |
| Fan Model | 1x 92 mm NF-A9 PWM |
| Speed (Standard) | 2000 RPM |
| Noise Level (Standard) | 22.8 dB(A) |
| Airflow (Standard) | 78.9 m³/h |
| Speed (With L.N.A.) | 1550 RPM |
| Noise Level (With L.N.A.) | 16.3 dB(A) |
| Airflow (With L.N.A.) | 62.6 m³/h |
| Power Consumption | 1.2 W |
| Operating Voltage | 12 V |
| Socket Compatibility | |
| Intel LGA 2011, 2011-V3 (Square ILM / Narrow ILM), 1356, 1366 (LGA 1356/1366 requires optional Xeon backplate) | |
