PWM-controlled premium fan from high-end manufacturer Noctua in 200 mm format. As part of the chromax.black.swap series, the NF-A20 PWM is characterized not only by excellent technology and performance data, but also by the completely black color scheme and the exchangeable anti-vibration pads.
The features of the Noctua NF-A20 PWM chromax.black.swap at a glance:
– 200mm premium PWM fan from high-end manufacturer Noctua
– chromax.black.swap series with an all-black design
– Nine rotor blades with A-Series blade geometry + Flow Acceleration Channels
– 800 rpm and 146.9 m³/h delivery volume at 18.1 dB(A)
– Long life SSO2 bearing with 150,000 hours
– Noctua PWM control chip NE-FD1
– Customizable with optional accessories
– 6 year guarantee
The features of the Noctua NF-A20 PWM chromax.black.swap in detail

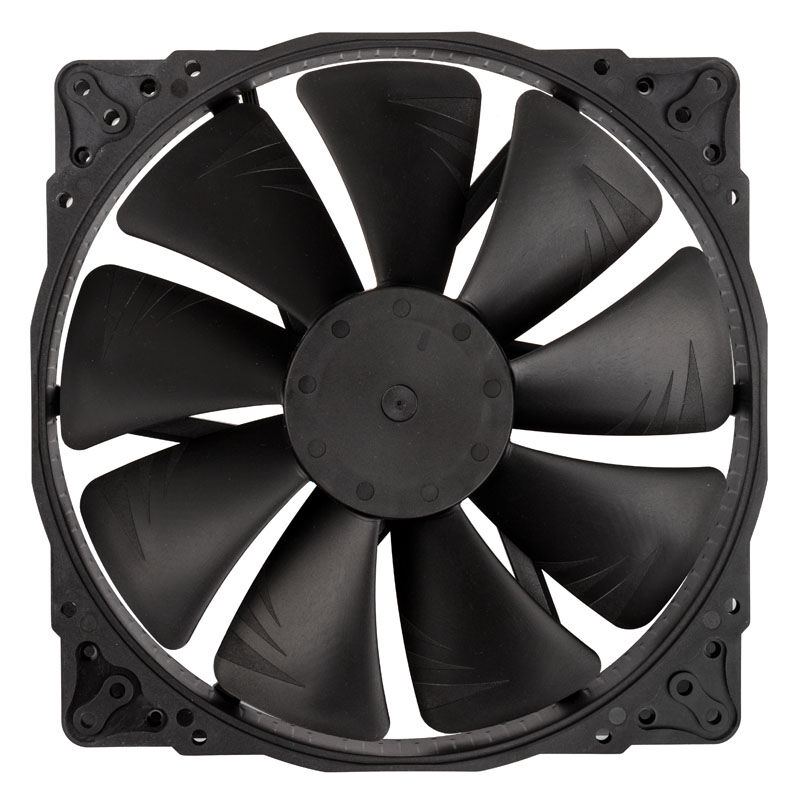

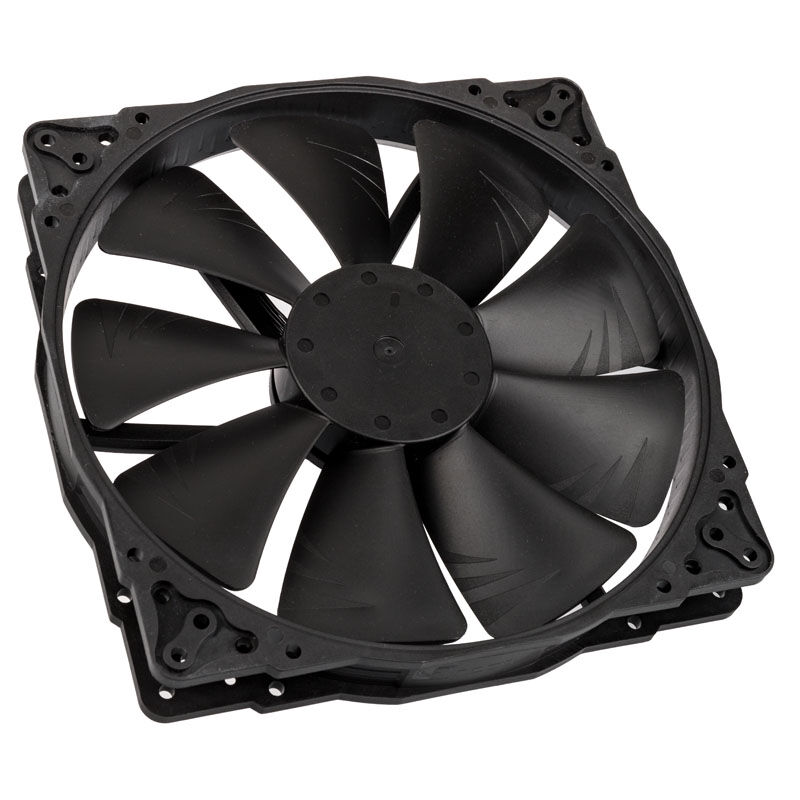

The NF-A20 PWM chromax.black.swap from the Austrian fan and cooler specialist Noctua is a state-of-the-art 200 mm fan with PWM function . Thanks to the specially developed AAO frame (Advanced Acoustic Optimization) and the nine rotor blades with A-Series blade geometry and Flow Acceleration Channels, it delivers impressive values while running quietly at the same time. At a maximum of 800 rpm and a maximum of 18.1 dB(A) , the fan is whisper-quiet and scoops 146.9 m³/h of air.

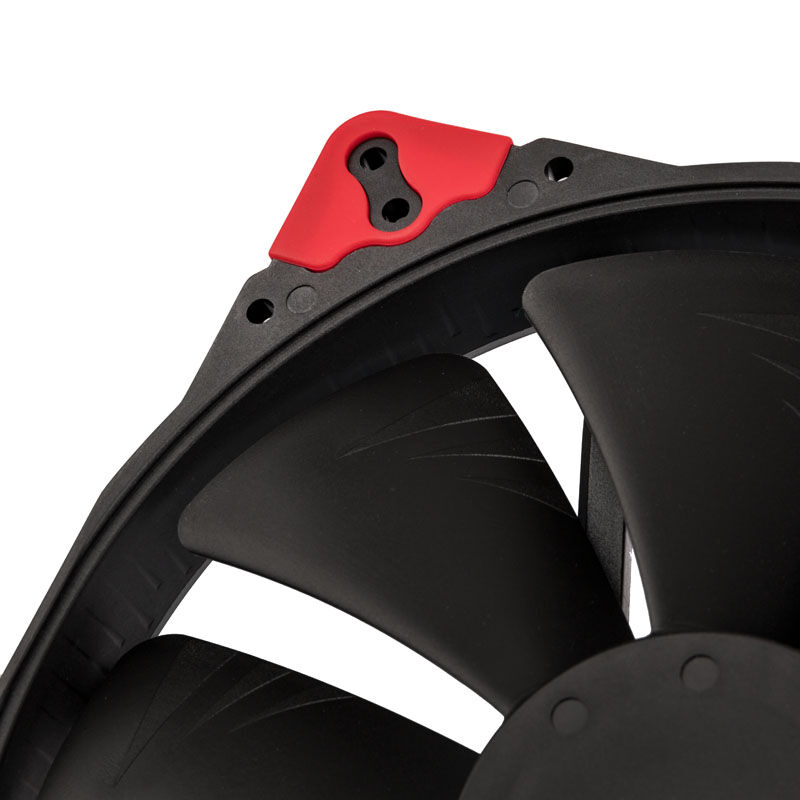

The further developed SSO2 premium bearingguarantees quiet operation and a long service life. Because of the PWM functionality, its speed can be regulated directly from the mainboard. A PWM control chip NE-FD1 developed by Noctua is used here. This allows the fan to work very quietly and energy-efficiently, especially in the lowest speed range. In addition, the fan has exchangeable anti-vibration pads made of silicone on the corners to minimize noise. As a special highlight, the color of the NF-A20 PWM chromax.black.swap can be adjusted with accessories.

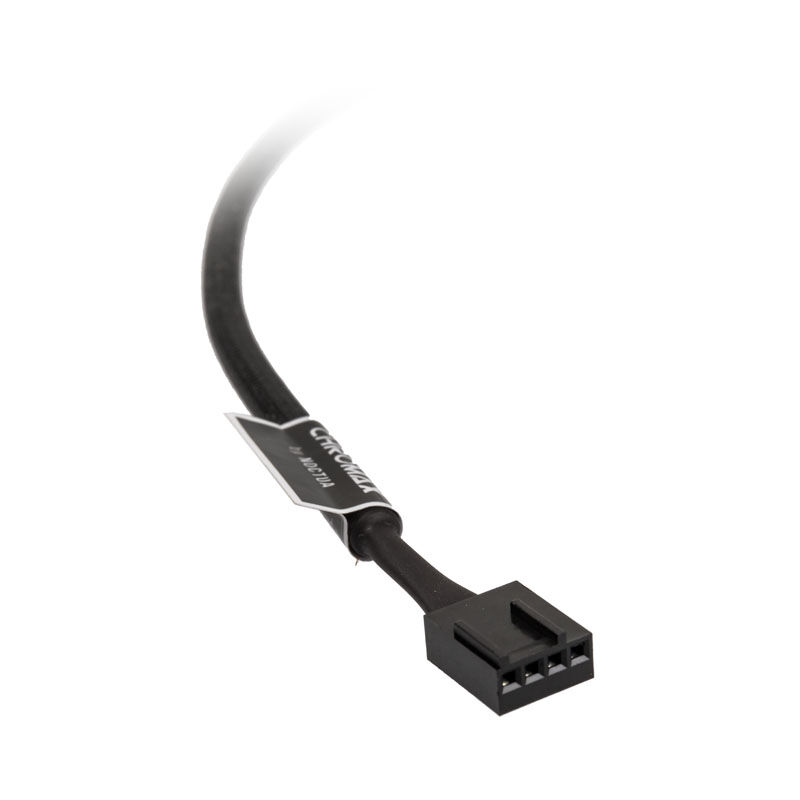

With additionally available cables and anti-vibration mounts as well as the included anti-vibration pads, many color combinations can be realized and popular color schemes such as black/white or black/red and many more can be achieved.
Noctuas fans are known for their impeccable quality and outstanding durability. Like all Noctua fans, the NF-A20 PWM chromax.black.swap has an MTBF specification of over 150,000 hours and comes with a full 6-year manufacturer s warranty.
Scope of delivery:

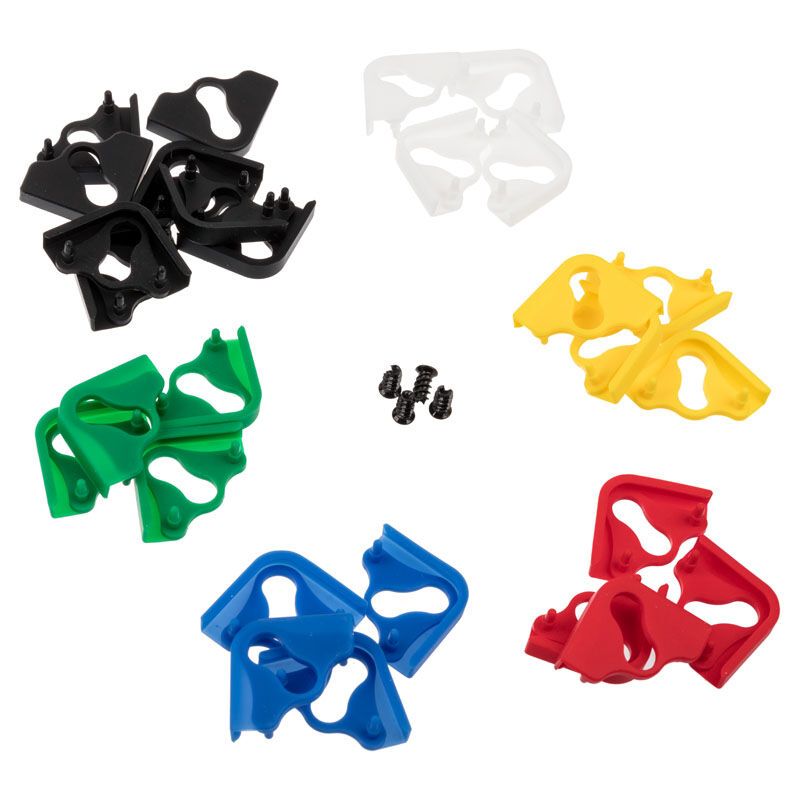

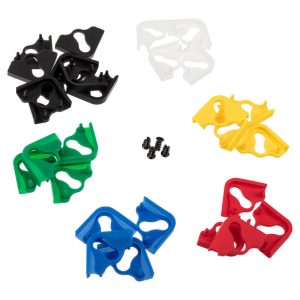

8x NA-AVP6 chromax.black anti-vibration pads
4x NA-AVP6 chromax.blue anti-vibration pads
4x NA-AVP6 chromax.green anti-vibration pads
4x NA-AVP6 chromax.red anti-vibration pads
4x NA-AVP6 chromax.white anti-vibration pads
4x NA-AVP6 chromax.yellow anti-vibration pads
4x fan screws
| GENERAL SPECIFICATIONS | |
| Dimensions | 200 × 200 × 30 mm (W × H × D) |
| Mounting Hole Spacing | 154 × 154 mm, 110 × 180 mm, 170 × 170 mm |
| Bearing Type | SSO2 |
| Blade Geometry | A-Series with Flow Acceleration Channels |
| Connection | 4-Pin PWM |
| Operating Voltage | 12 V |
| PWM Signal Voltage | 5 V |
| MTBF | >150,000 Hours |
| PERFORMANCE | |
| Speed Range | 350 – 800 RPM |
| Max Airflow | 146.9 m³/h |
| Max Static Pressure | 1.08 mmHâ‚‚O |
| Max Noise Level | 18.1 dB(A) |
| Max Power Consumption | 0.96 W |
| Max Current | 0.08 A |
| WARRANTY | |
| Manufacturer Warranty | 6 Years |
£39.64£33.03 Inc VatEx Vat
