With the previous Haswell CPUs Intel also put on a new chipset family , codenamed Lynx Point and the socket LGA1150 . The in an efficient 32-nm Srukturbreite made boards can be divided into a performance sector ( Z87 , H87 ) and a value segment ( Q85 , B85 ) divided - between also exists a broad mainstream field ( H81 , Q87 ) .
This offer former most internal and external connections , let the overclocking of K processors per multiplier to (only Z87 ) and allow the establishment of multi -GPU sidecars from multiple ATI graphics cards ( CrossFireX ) or NVIDIA VGA (SLI) . The smaller motherboards shine , however, with a very attractive price for their performance and often offer exactly what the user actually needed.

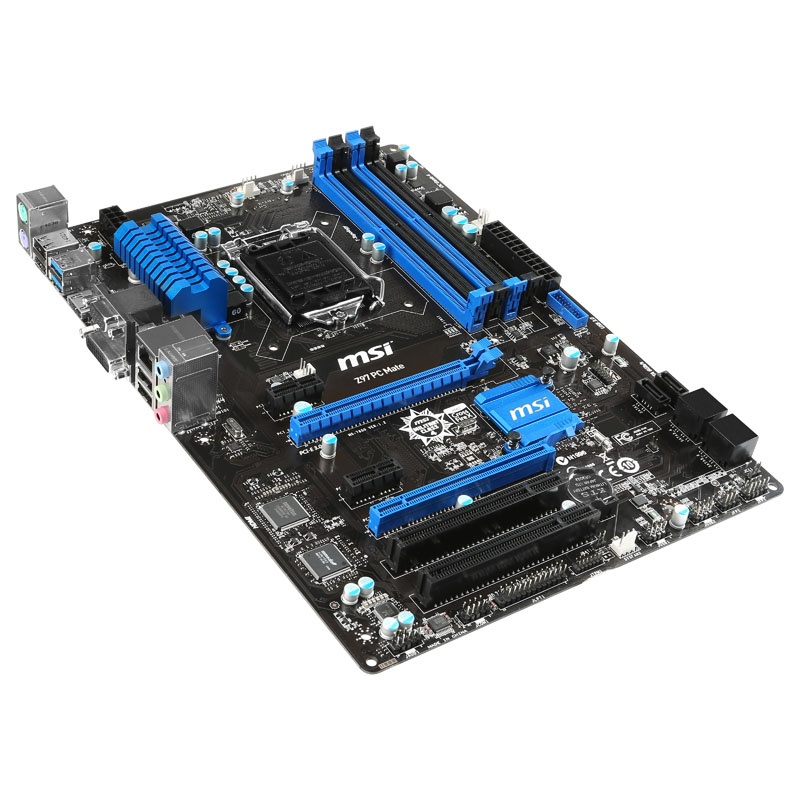

MSI Z97 PC Mate, Intel Z97 Motherboard - Socket 1150
With the previous Haswell CPUs Intel also put on a new chipset family , codenamed Lynx Point and the socket LGA1150 . The in an efficient 32-nm Srukturbreite made boards can be divided into a performance sector ( Z87 , H87 ) and a value segment ( Q85 , B85 ) divided - between also exists a broad mainstream field ( H81 , Q87 ) .
This offer former most internal and external connections , le...
- SKU: MBMC-115
- MPN: 7850-004R
- EAN: 4719072343118
- Warranty: 12 Months
With the previous Haswell CPUs Intel also put on a new chipset family , codenamed Lynx Point and the socket LGA1150 . The in an efficient 32-nm Srukturbreite made boards can be divided into a performance sector ( Z87 , H87 ) and a value segment ( Q85 , B85 ) divided - between also exists a broad mainstream field ( H81 , Q87 ) .
This offer former most internal and external connections , le...
Featured products
No products found
Details
The new 9- chip sets support the additional new Haswell refresh CPUs , the slightly higher overclock for example, than their predecessors. In addition, the new and some still future interfaces M.2 and SATA Express are supported by many Z97 and H97 motherboards. When something stripped down H97 chipset only the distribution of the PCI Express lanes are configured with multiple graphics cards released in operating differently and overclocking prevented by multiplier , making the H97 chipsets in turn cheaper but compared to the Z97 .

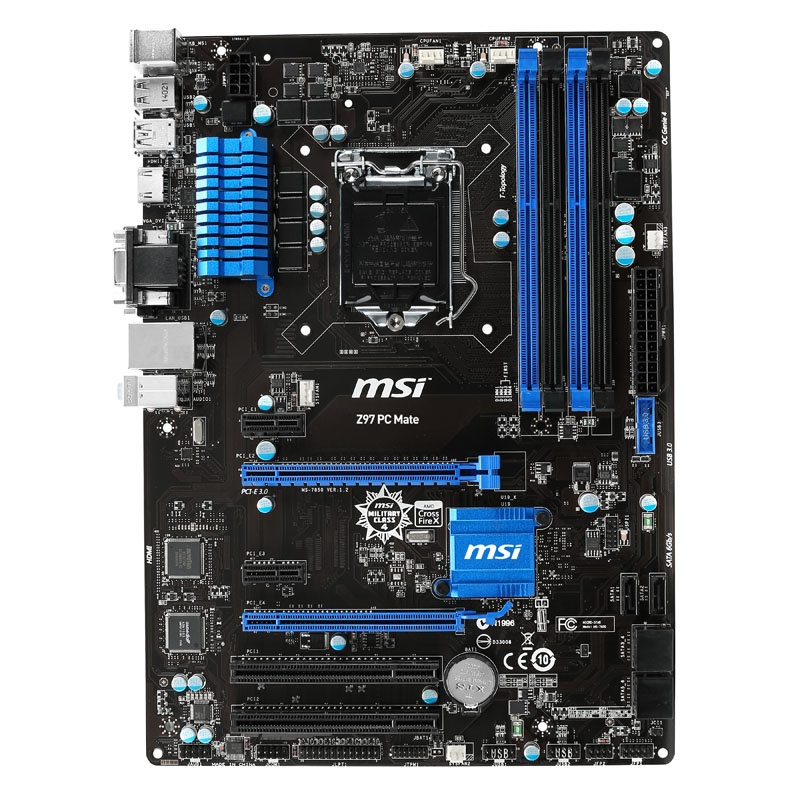

When MSI Z97 PC Mate is a particularly inexpensive Z97 motherboard , which is an ideal base for processors of Core i3 or Core i5 series . The black and blue board comes with four DIMM slots for DDR3 memory in the fast dual- channel mode . As a sound chip Realtek ALC887 is the Bo ( a) rd, which can output three audio jacks 7.1 sound .
The ATX board provides a total of (some externally , some internally ) four USB 3.0 ports and eight USB 2.0 ports and manages hard drives and SSDs over six SATA 6G ports (including RST 12 and RAID support) . Expansion cards come in under two PCIe 2.0 x1 or two PCI slots and graphics cards , two PCI Express slots – partly in Standard 3.0 – ready .
If there is no dedicated graphics card is to be used , can be thanks to the integrated GPU of many Haswell processors (Intel HD) , a monitor via the existing HDMI output, a DVI -D port or the VGA port on the back of the mainboard connect . The MSI Z97 PC Mate convinced bargain with Click BIOS IV , M – Flash , Sound Blaster Cinema and many other great features.
Technical details :
Format: ATX
Color: Black, Blue
Chipset: Intel Z97
Socket 1150 ( Intel Core i CPUs of the 4th and 5th generation Haswell and Haswell Refresh )
RAM: 4x DDR3 ( max. 32 GB)
Dual – Channel
Slots ( physically ) :
2x PCIe ( 3.0) x16
2x PCIe 2.0 x1
2x PCI
Internal connections:
6x SATA 6G
2x USB 3.0 ( 1x header)
4x USB 2.0 ( 2x headers)
1x Serial port
5x fan
Power / reset / LED / front audio
External connections :
1x PS / 2 keyboard
1x PS / 2 mouse
2x USB 3.0
4x USB 2.0
1x Gigabit LAN
1x HDMI
1x DVI -D
1x VGA (D -Sub)
3x audio (7.1, Realtek ALC887 )
Power supply:
1x 24-pin ATX
1x 8- pin ATX 12V
Compatibility: Windows Vista , 7, 8, 8.1
Related Products
£200.40£167.00 Inc VatEx Vat
Out of stock
- Slots: 1x PCIe 5.0 x16 (x16)- RAM: 2x DIMM slots for up to 96 GB DDR5 RAM up to 9066 MT/s- Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 4x SATA- USB: 1x Thunderbolt 4, 1x...
- SKU: MBAS-815
- MPN: 90MB1JB0-M0EAY0
- EAN: 4711387815991
£248.17£206.81 Inc VatEx Vat
Available
- Slots: 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 2x PCIe 4.0 x16 (x1)- RAM: 4x DIMM slots for up to 256 GB DDR5 RAM up to 8,600 MT/s- Storage: 3x M.2 (1x PCIe 5.0 &...
- SKU: MBMC-584
- MPN: 7E41-001R
- EAN: 4711377286572
£195.44£162.87 Inc VatEx Vat
Available
- 1x PCIe 4.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 3x PCIe 3.0 x1- DDR5 memory up to 5,600 MHz, with RAM overclocking up to 6,800 MHz- 2x M.2 slots, including 1x PCIe 4.0 and 1x PCIe 4.0...
- SKU: MBMC-536
- MPN: 7D98-007R
- EAN: 4711377086561
£143.44£119.53 Inc VatEx Vat
Available
- 1x PCIe x16 and 2x PCIe x1 slots, including 1x PCIe 4.0- DDR4 memory up to 3200 MHz, with RAM overclocking up to 5333 MHz- 1x M.2 slot, including 1x PCIe 4.0- USB on the I/O panel: 2x USB...
- SKU: MBAR-450
- MPN: 90-MXBL40-A0UAYZ
- EAN: 4710483942020
£82.99£69.16 Inc VatEx Vat
Available

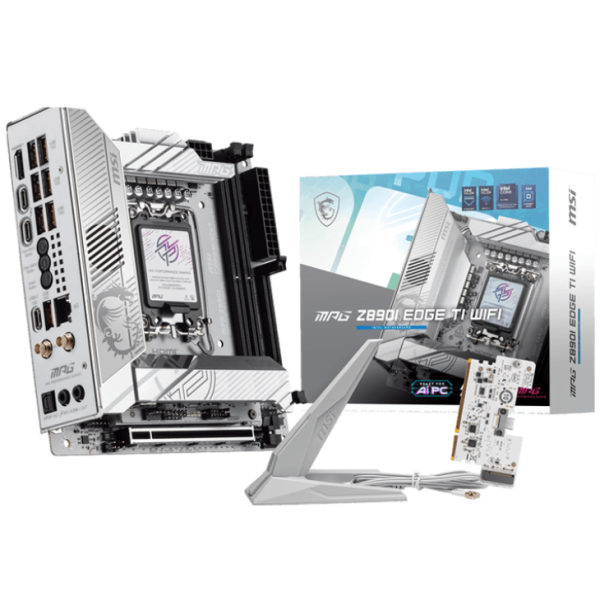

This motherboard is ideal for high-end and small form factor builds. - 1x PCIe 5.0 x16 (x16)- 2x DIMM slots for up to 128 GB DDR5 RAM up to 8600 MHz (XMP 3.0 & CUDIMM support)- 4x M.2 (including 1x...
