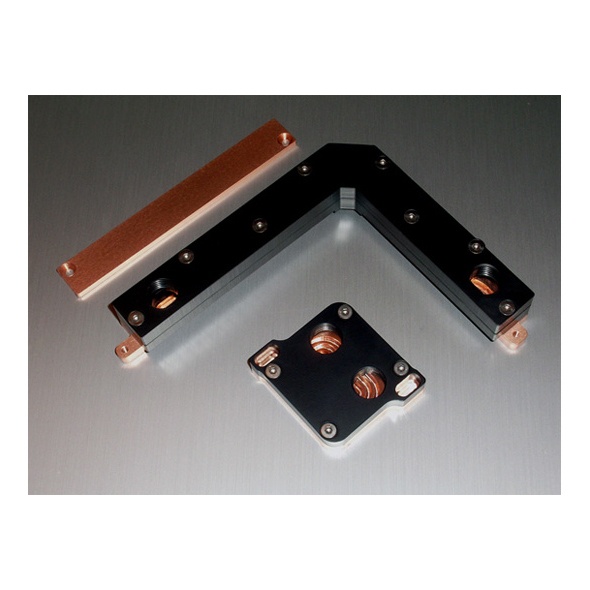

MIPSASUS P8P67 Series Cooler Set POM

This mainboard are all critical components cool heat passively and are dependent on the air flow of a CPU air cooler. However, if you cool your CPU with not enough water available to cool air is reasonable for the rest of the heatsink. To exploit the potential of your ASUS P8P67 full, they should equip the mosfets and Southbridge with our coolers, it is only possible until a stable operation!

With our new dual mosfet mosfet coolers can cool both rows simultaneously and thereby enjoy the following benefits:

– You only need 2 pieces 1 / 4ports of their choice, even very large ports are no longer a problem. Thanks to the great distance between the connecting thread of the cooler for high-flow ports is suitable.

– Together with our 14 463 Southbridge cooler you can really heat all the critical components of your motherboard cool and reliable, the whole in a unified design.

If you already have a water cooling system, we have thus the ideal complement for your system.

WARNING: The dismantling of the original Cooler eventually resulting in warranty, please work accordingly careful when mounting this product. For damages or consequential damages is not liable!

Tip: Take on the best of the original thermal pad mosfet coolers! For the South Bridge, use for example a non-conductive thermal compound Arctic Cooling MX 2 / 3 series!

Technical data Southbridge cooler:

Base plate footprint: 42 x 42mm
Total size without connections: 50 x 42 x 11mm (L x W x H without connections)
Weight: ~ 83g
Bottom panel: pure copper 5mm
Upper panel: POM black 6mm
Connection thread: G1 / 4

Technical data Mosfet Cooler:

Size Shoe: 95 x 15 mm and 84 x 14mm
Total size without connections: 129 x 108 x 21mm (L x W x H without connections)
Weight: ~ 176g
Bottom panel: pure copper 5mm
Upper panels: 2 x 8mm black POM
Connection thread: G1 / 4
