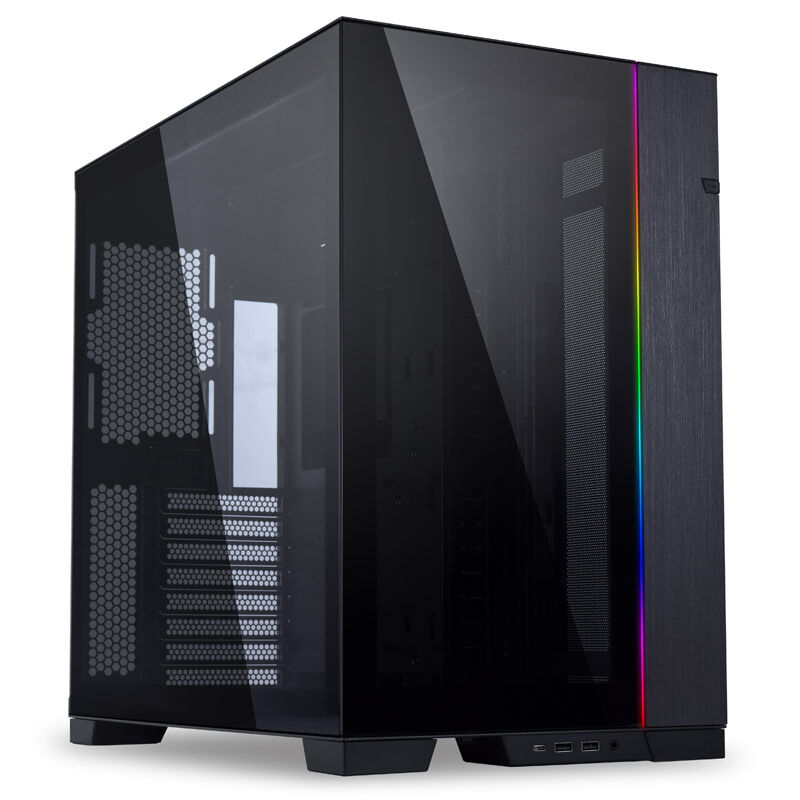

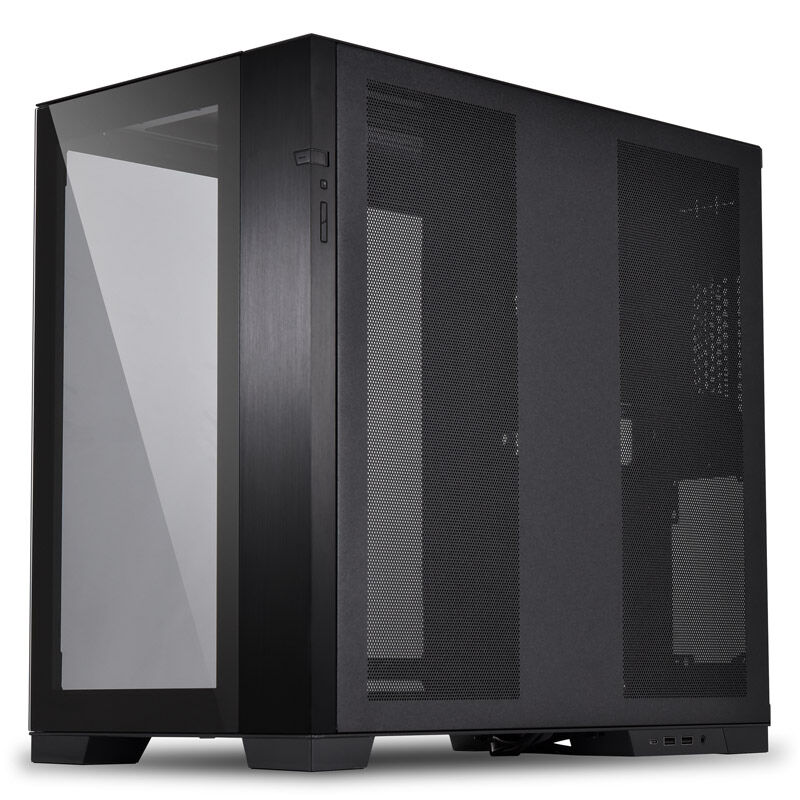

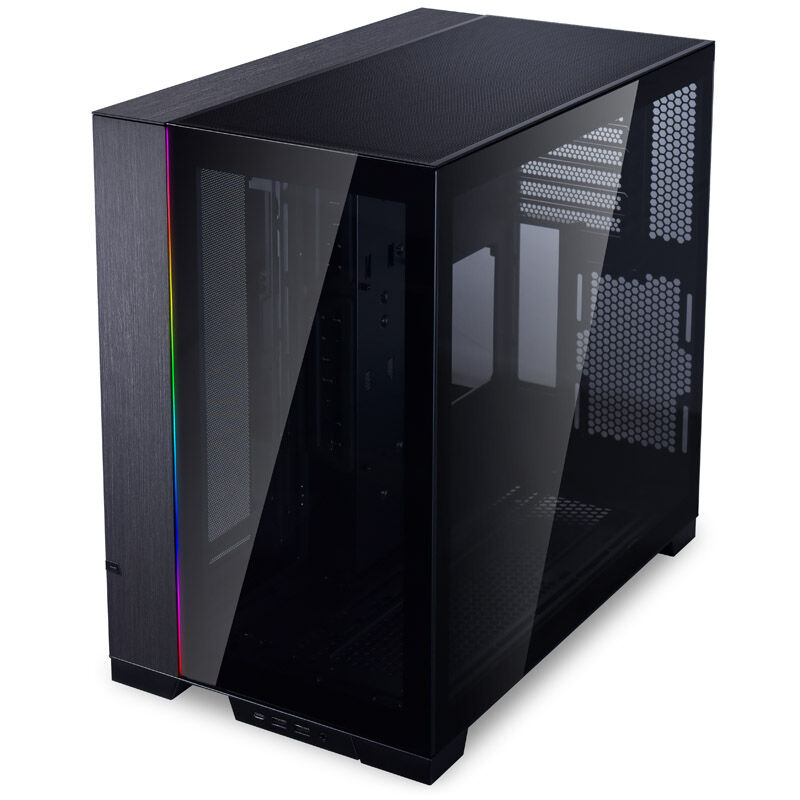

Lian Li O11 Dynamic EVO, Tempered Glass - Black

The Lian Li O11 Dynamic EVO – The evolution continues
Developed in cooperation with Roman der8auer Hartung, Lian Li O11 Dynamic EVO is the successor of the popular O11 Dynamic. The case not only has a refreshed design with recognition value, but also offers amazing versatility. Besides the option to install the graphics card vertically, the whole case can be turned upside down. This way, you can always present the best side of your case.

Features:

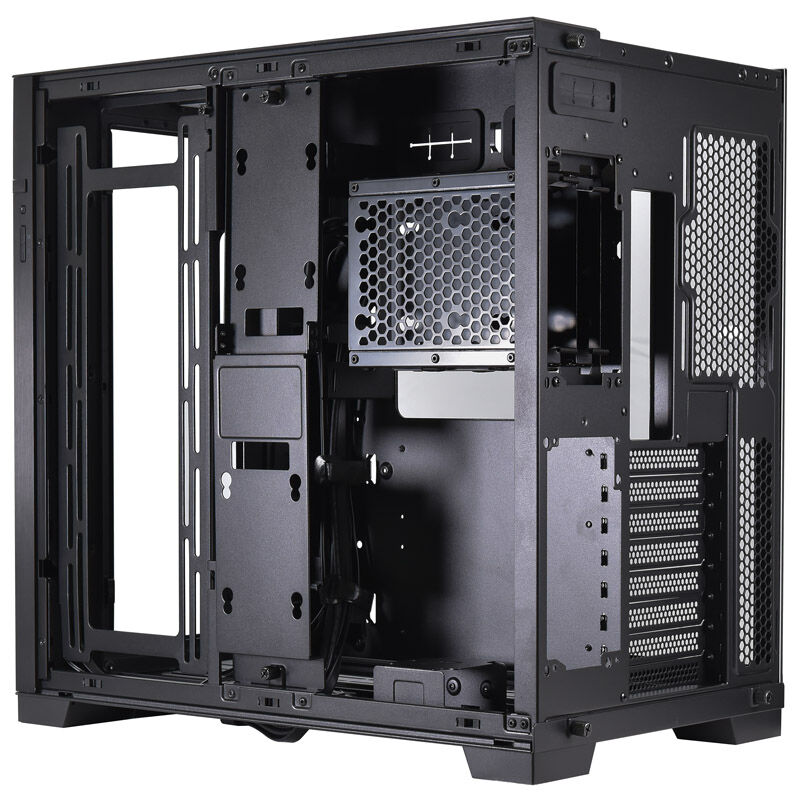

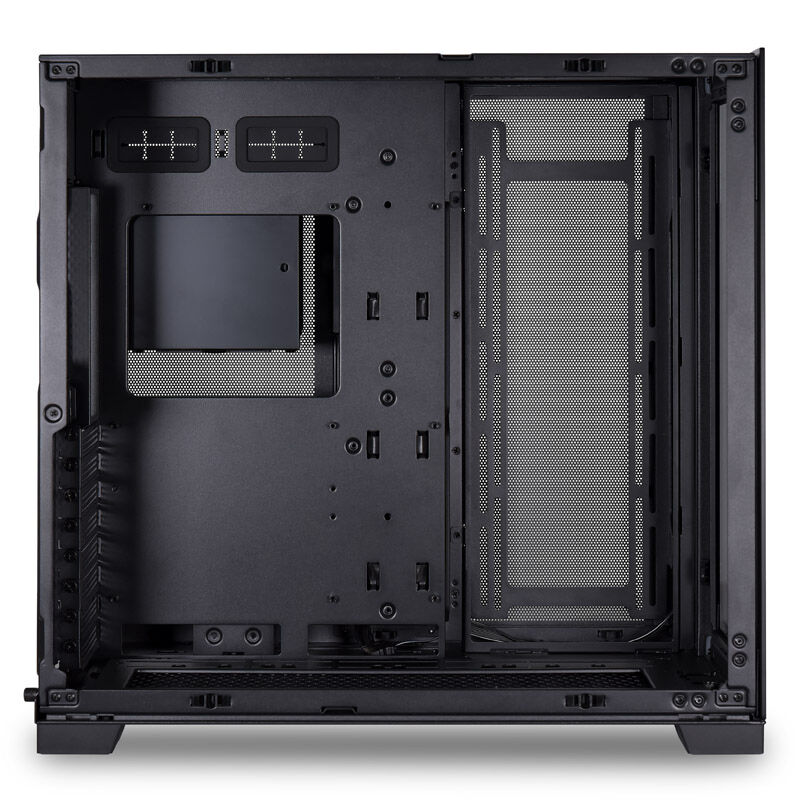

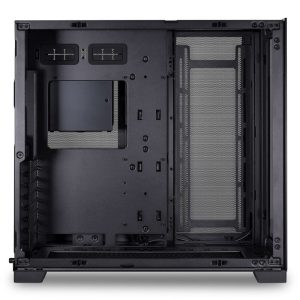

– Very versatile design case with 2-chamber system
– Space for E-ATX, ATX, Micro-ATX, or Mini-ITX motherboards

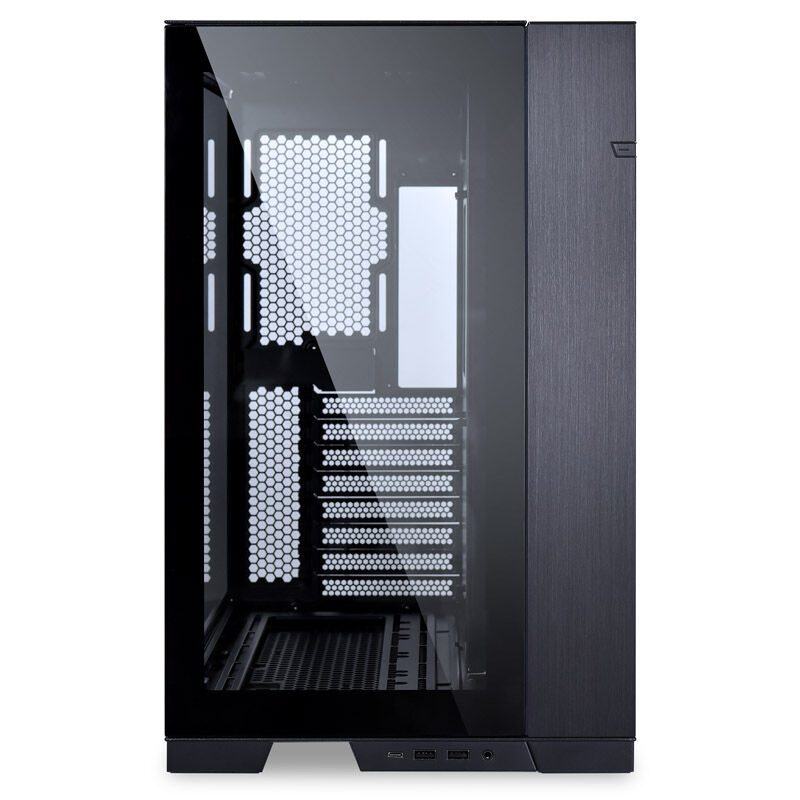

– Front and side panel made of tinted tempered glass
– High quality processed lightweight steel construction
– Brushed aluminium ornamental strip
– Modular I/O panel with one USB-C and two USB 3.0 ports
– Graphics cards up to 422 mm length
– Up to ten 120 mm fans possible
– Suitable for powerful ATX power supplies

Various options for fans and radiators
The Lian Li O11 Dynamic EVO offers mounting options for 360 mm radiators on the top as well as the side and bottom. Therefore, this midi tower is optimally prepared for efficient water cooling. It should be noted that the radiators on the lid and on the side together with the fans may not exceed 83 mm in width.

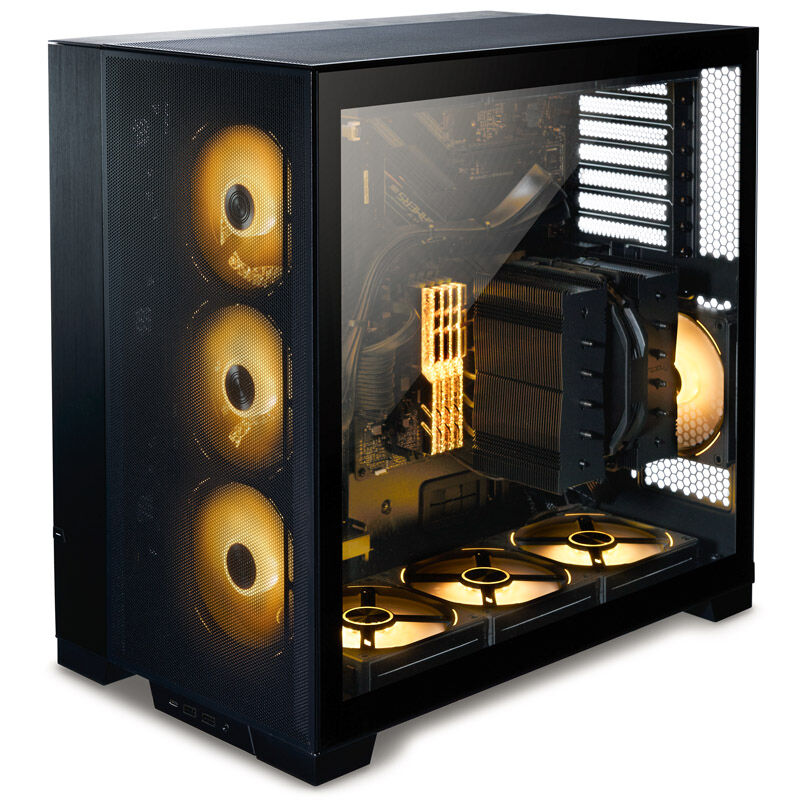

In total, up to ten 120-mm-fans fit inside the case, providing enough air movement to cool even the most powerful components:

– Three 120-mm-fans on the lid,
– three 120-mm-fans on the side,
– another three 120-mm-fans at the bottom
– as well as a 120 mm fan at the back.

To keep your case clean, a handy dust filter is integrated in the bottom. A 60-mm-fan can be installed on the HDD cage to provide better cooling for your hard drives. They tend to get warmer during intensive continuous load, for example stream recording for several hours.

There are practically no limits when it comes to choosing a high-performance CPU cooler. This case allows you to comfortably install coolers with up to 167 mm height.

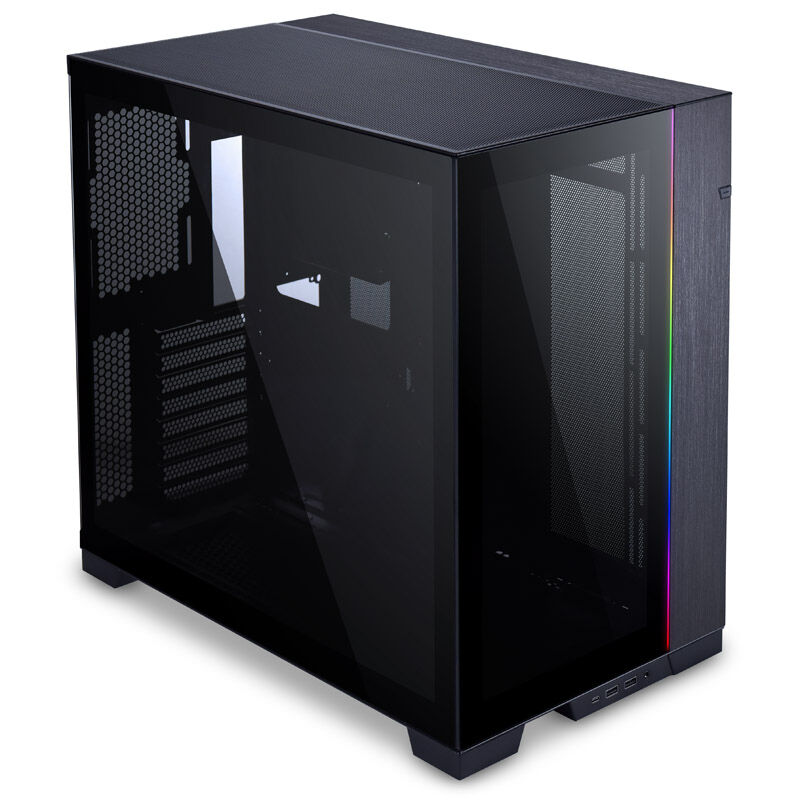

The (r)evolutionary reverse mode
A special feature of the Lian Li O11 Dynamic EVO is the reverse mode. Every PC enthusiast is well aware of the issue: your computer would just fit much better on the other side of the desk, but then you cant see the chocolate side of your build.

Lian Li enables you with the O11 Dynamic EVO to easily swap the top and bottom of your case and turn the computer around. So you always have the best view of your PC.

Technical details:
    Dimensions: 285 x 459 x 465 mm (W x H x D)
    Material: steel (interior), aluminum, tempered glass
    Weight: 12.7 kg
    Colour: Black
    Form factor: E-ATX, ATX, Micro-ATX, Mini-ITX
    Fans possible in total:
    Top: 3x 120 / 2x 140 mm
    Side: 3x 120 / 2x 140 mm
    Bottom: 3x 120 / 2x 140 mm
    Rear: 1x 120 mm
    HDD-Cage: 1x 60 mm
    Radiator-Mountings:
    Top: 1x max. 360 / 280 mm
    Side: 1x max. 360 / 280 mm
    Bottom: 1x max. 360 mm
    Filter: Bottom
    Drive bays:
    Bottom: 4x 2.5 or 2x 3.5
    Side: 4x 2.5 or 2x 3.5
    HDD-Cage: 2x 2.5/3.5 + 1x 2.5
    Cable management tray: 2x 2.5
    Note: Mounting pads for 9x drives included
    Power supply: 2x ATX (optional)
    Expansion slots: 8
    I/O-Panel:
    1x USB 3.1 Typ C (internal connection)
    2x USB 3.0 Typ-A (internal connection)
    1x 3.5 mm jack (4-pole, TRRS)
    1x LED button (colour)
    1x LED button (effect)
    1x Reset button
    On / Off switch
    Maximum graphics card length: 422 mm
    Maximum CPU cooler height: 167 mm
    Maximum radiator thickness (top):
    83.5 mm
    Maximum radiator thickness (side):
    120-mm-fans: 83 mm (Push-Pull)
    140-mm-fans: 63 mm (Push-Pull)
    Maximum radiator thickness (bottom):
    87,5 mm
    RGB control:
    Connector for Lian Li UNI HUB incl. adapter to 3-pin ARGB (5V)
