With the Lian Li EDGE Platinum V2 1200W, your PC has up to 1,200 watts available. This fully modular power supply features an L-shaped chassis that makes accessing the connections easier for you. The included EDGE Hub V2 expands your system with additional internal USB and fan connectors.
With the Lian Li EDGE Platinum V2 1200W, your PC has up to 1,200 watts available. This fully modular power supply features an L-shaped chassis that makes accessing the connections easier for you. The included EDGE Hub V2 expands your system with additional internal USB and fan connectors.
With the Lian Li EDGE Platinum V2 1200W, your PC has up to 1,200 watts available. This fully modular power supply features an L-shaped chassis that makes accessing the connections easier for you. The included EDGE Hub V2 expands your system with additional internal USB and fan connectors.
With the Lian Li EDGE Platinum V2 1200W, your PC has up to 1,200 watts available. This fully modular power supply features an L-shaped chassis that makes accessing the connections easier for you. The included EDGE Hub V2 expands your system with additional internal USB and fan connectors.
–Â 1,200 Watt output power: For systems with high power demands
– Platinum ratings: 80 PLUS, CYBERNETICS and PPLP.INFO
– Fully modular cable system: Use only the cables you need
– EDGE Hub V2 included: Supports up to eight USB devices and six PWM connections
– Maintenance indicator via LED: Alerts you when the dust filter needs cleaning
Lian Li EDGE Platinum V2 1200W for Gaming PCs and Workstations
Lian Li EDGE Platinum V2 1200W power supply in white
With 1,200 watts, this power supply provides reserves for systems with correspondingly high power requirements. For efficiency, Lian Li offers Platinum ratings from 80 PLUS, CYBERNETICS and PPLP.INFO. Japanese capacitors are used inside.

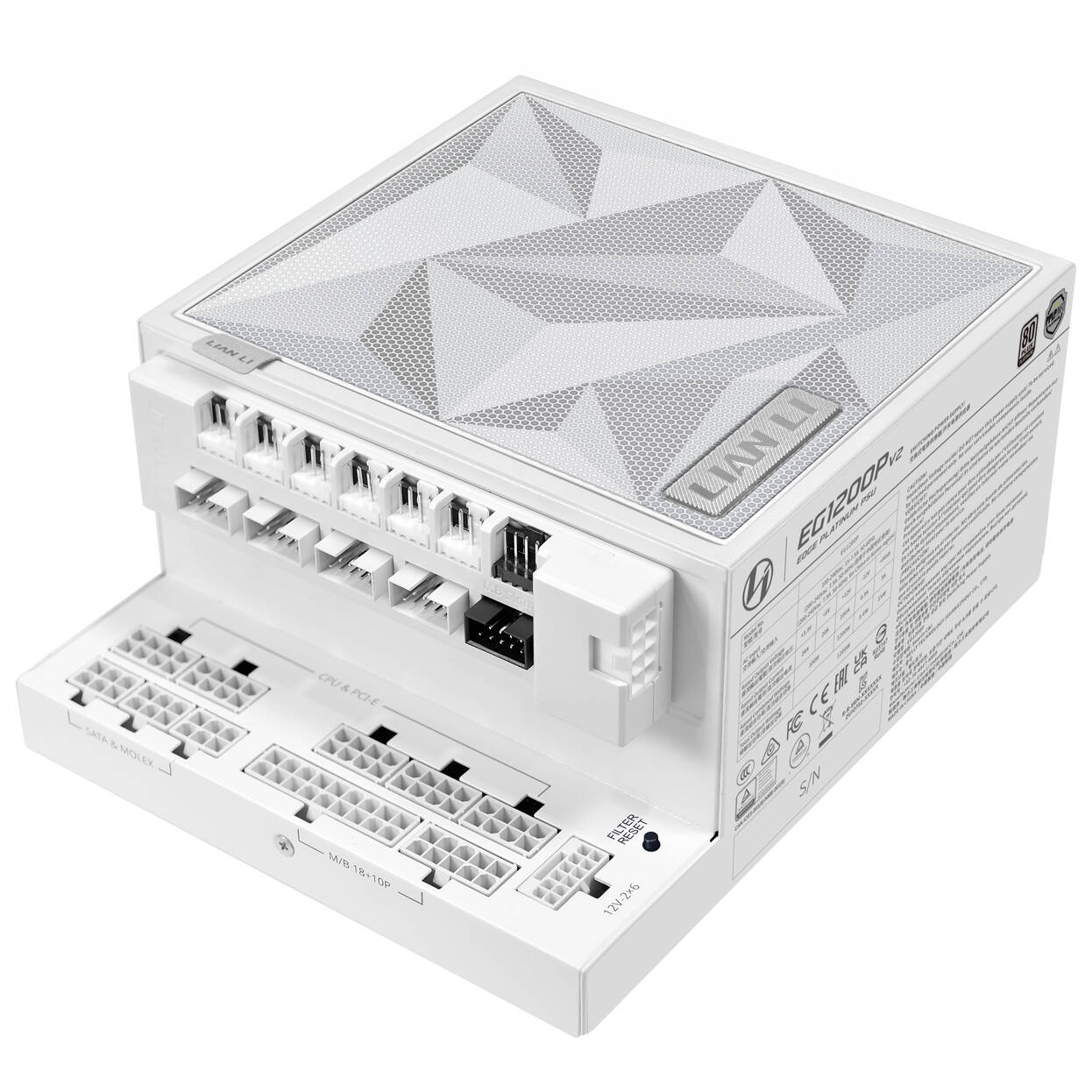

Connections easier to reach even after installation
Thanks to the L-shape, the modular connectors are not simply placed on the side of the power supply. They are located in a dedicated area and face upwards. This makes it easier to plug in or swap cables. The fully modular system also helps you avoid unnecessary cables inside the case.

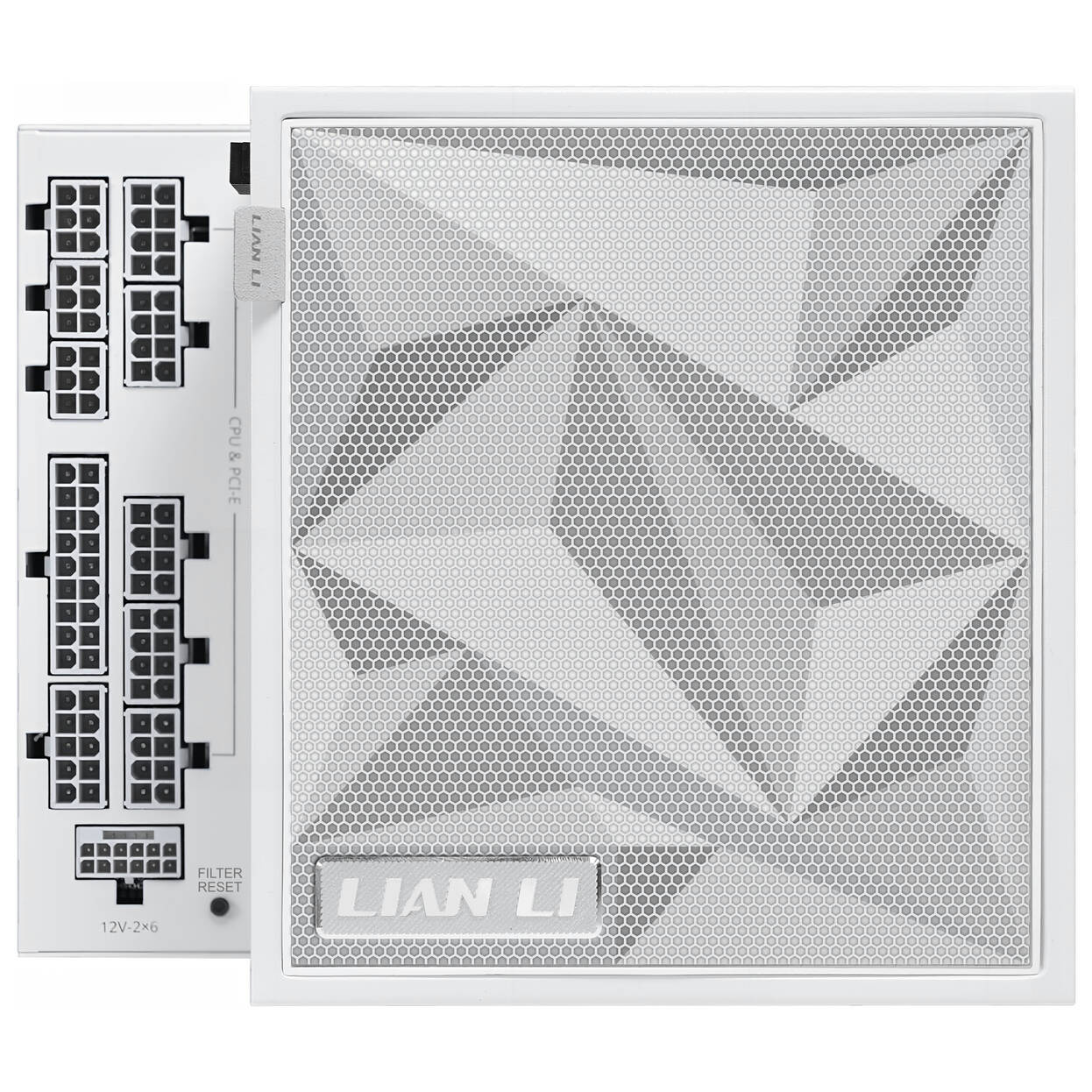

Clean the filter when the LED reminds you
The dust filter in front of the 120 mm fan is removable. After 360 hours of fan operation, the indicator changes from green to red according to the manufacturer, signaling the recommended cleaning time.
EDGE Hub V2 expands your internal connections
Lian Li EDGE Hub V2 with Platinum V2 power supply
Through the EDGE Hub V2, you can connect up to eight USB devices. Six additional 4-pin PWM connectors are available for your fans. Each of these connectors supplies up to 2 A.
If you mount the hub directly on the power supply, it receives its power there. If placed elsewhere in the case, use an 8-pin PCIe cable for power. In L-Connect 3, you can also see how heavily each USB port is being used.
120mm fan for power supply cooling
A 120mm fan takes care of cooling the power supply. At a load of 300 watts, no active cooling is needed and the fan remains off.
| Technical Data | |
|---|---|
| Colour | |
| Primary Colour | White |
| Dimensions | |
| Length / Depth | 182 mm |
| Width | 86 mm |
| Height | 150 mm |
| Fan Specifications | |
| Fan Size | 120 mm |
| Power Supply | |
| PSU Format | ATX |
| ATX Standard | ATX 3.1 |
| 12V Distribution | single rail |
| Modular Power Supply | Yes |
| Modular Type | fully modular |
| Protection Circuits | No-Load Protection, OCP (Overcurrent Protection), OPP (Overload Protection), OTP (Overtemperature Protection), OVP (Overvoltage and Undervoltage Protection), SCP (Short-Circuit Protection), SIP (Surge & Inrush Protection), UVP (Undervoltage Protection) |
| Power Specifications | |
| Total Power Output | 1200 W |
| Power Output +3.3V & +5V (combined) | 100 W |
| Power Output +12V rails | 1200 W |
| Power Output -12V | 3.6 W |
| Power Output +5Vsb | 15 W |
| Cable Specifications | |
| Max. CPU Power Cable Length | 700 mm |
| Max. 24-Pin Motherboard Power Cable Length | 600 mm |
| Max. 12V-2×6 Cable Length | 650 mm |
| Max. PCIe Power Cable Length | 550 mm |
| Max. SATA Power Cable Length | 700 mm |
| Max. Molex Cable Length | 850 mm |
| Cooling | |
| Semi Passive Power Supply | Yes |
| Internal Ports | |
| CPU Power Connectors 12V ATX/EPS | 3 |
| CPU Power Supply | 1x 8-Pin, 2x 4+4-Pin |
| 12V-2×6 Power Connectors | 1 |
| 6+2 Pin PCIe Power Connectors | 3 |
| SATA Power Connectors | 11 |
| 4 Pin Molex Power Connectors | 1 |
| External Ports | |
| USB Hub | Yes |
| Compatibility | |
| Please refer to the manufacturer’s compatibility information. You can find the latest overview on the manufacturer’s website. | |
| Efficiency Class | |
| 80PLUS Efficiency | 80 PLUS Platinum |
| Cybenetics Efficiency Level ETA (230V) | PLATINUM |
| Materials | |
| Materials | Steel |
| Lighting | |
| Lighting / RGB | No |
| Product Series | |
| Product Series/Family | EDGE V2 |
