The Lian Li EDGE Gold V2 1000W powers your gaming PC with up to 1000 watts. Its L-shaped case makes it easier for you to access the modular connectors. This is especially useful in dual-chamber cases, allowing you to connect cables more easily and route them more neatly. The package also includes the Lian Li EDGE Hub V2 for additional USB devices and PWM fans.
The Lian Li EDGE Gold V2 1000W powers your gaming PC with up to 1000 watts. Its L-shaped case makes it easier for you to access the modular connectors. This is especially useful in dual-chamber cases, allowing you to connect cables more easily and route them more neatly. The package also includes the Lian Li EDGE Hub V2 for additional USB devices and PWM fans.
The Lian Li EDGE Gold V2 1000W powers your gaming PC with up to 1000 watts. Its L-shaped case makes it easier for you to access the modular connectors. This is especially useful in dual-chamber cases, allowing you to connect cables more easily and route them more neatly. The package also includes the Lian Li EDGE Hub V2 for additional USB devices and PWM fans.
The Lian Li EDGE Gold V2 1000W powers your gaming PC with up to 1000 watts. Its L-shaped case makes it easier for you to access the modular connectors. This is especially useful in dual-chamber cases, allowing you to connect cables more easily and route them more neatly. The package also includes the Lian Li EDGE Hub V2 for additional USB devices and PWM fans.
–Â 1,000 watts output: For PCs with high power consumption components
– Fully modular cable system: Connect only the cables you actually need
– L-shaped case: Connectors remain easily accessible even when installed
– EDGE Hub V2 included: Supports up to eight USB devices and six PWM connections
– Less cleaning effort: Removable dust filter in front of the 120mm fan
Lian Li EDGE Gold V2 1000W: Fully modular power supply for your gaming PC

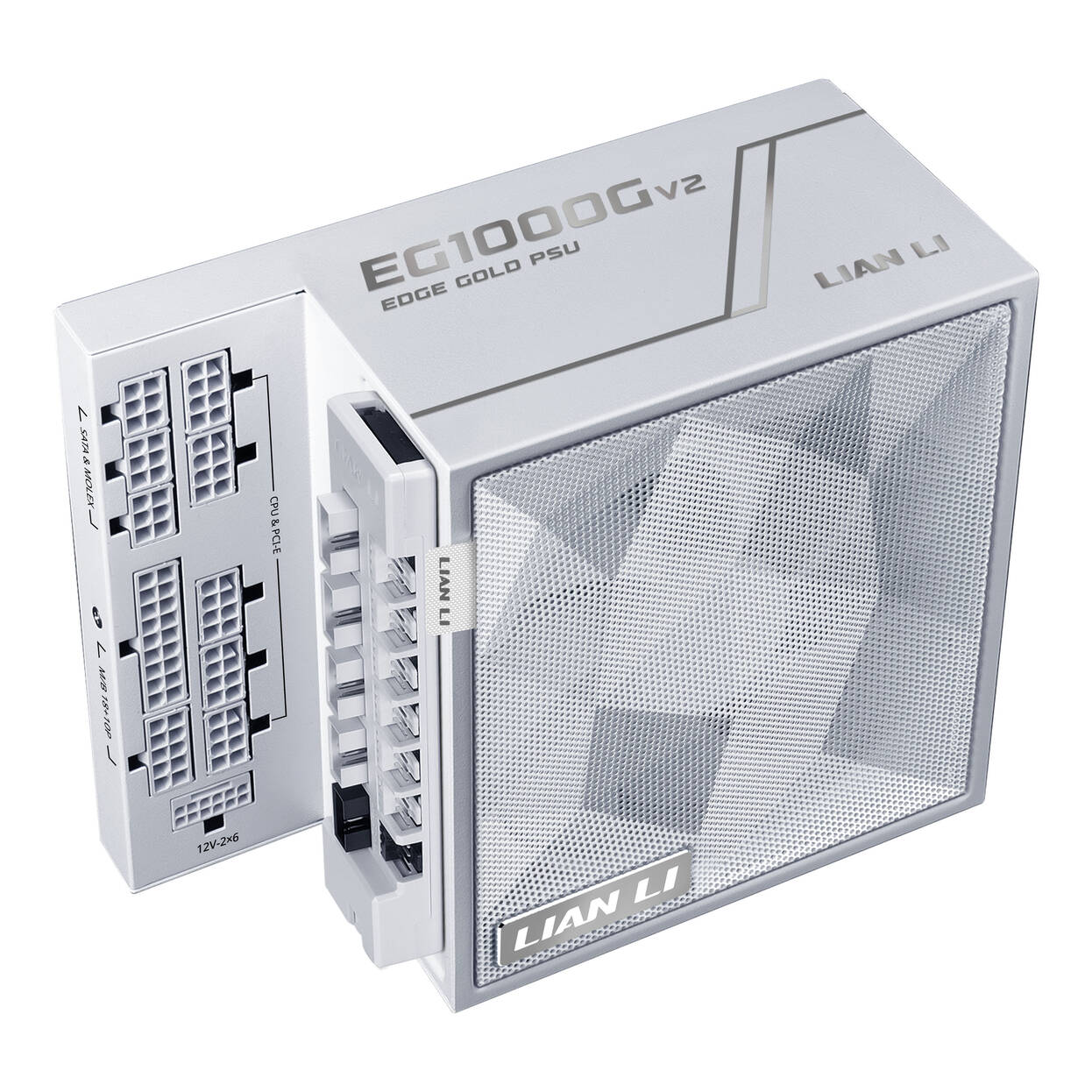

Lian Li EDGE Gold V2 1000W power supply in white
With a 1,000 watt output, this power supply is suitable for gaming PCs and workstations with high power demands. Lian Li uses Japanese capacitors inside. The power supply’s efficiency is certified with Gold ratings from 80 PLUS, CYBERNETICS, and PPLP.INFO.

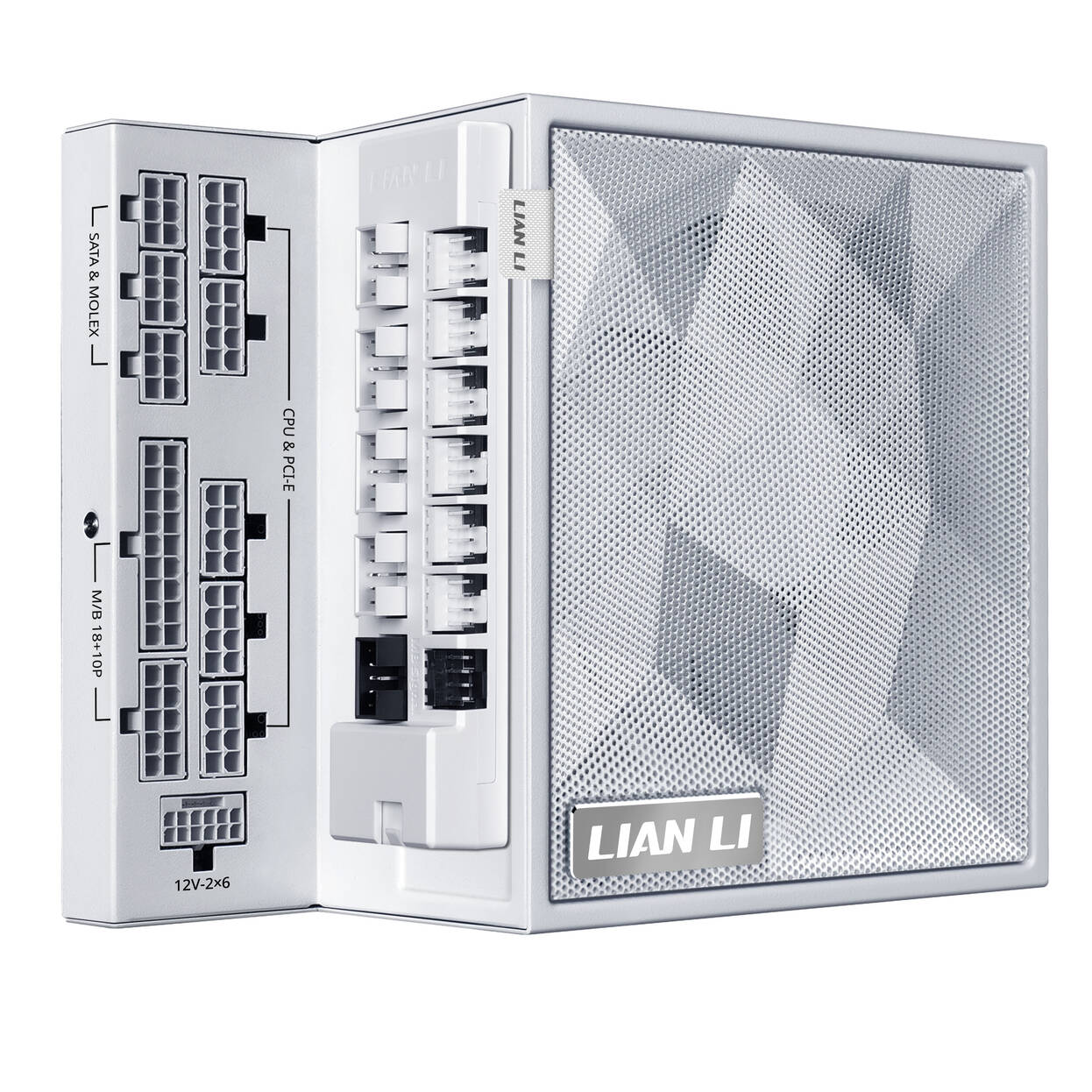

L-shaped power supply with easily accessible connectors
On the EDGE Gold V2, the modular connectors are located in a dedicated section of the L-shaped case. They face upwards instead of extending out sideways from the power supply. This makes them easier to reach once the power supply is installed. This is especially practical in cases with separate chambers for the power supply and main components.
Quiet under low load
The integrated 120mm fan adjusts its speed according to the load. According to the manufacturer, no active cooling is needed at a load of 300 watts. The fan remains off in this range.
EDGE Hub V2 for USB devices and PWM fans
Lian Li EDGE Hub V2 attached to the power supply
The detachable EDGE Hub V2 expands your PC’s internal connections. Via USB 3.0, it supports up to eight USB devices. Additionally, there are six 4-pin PWM connectors, each providing up to 2 A.
You can operate the hub directly from the power supply or mount it elsewhere inside the case. In this case, power is supplied via an 8-pin PCIe cable. With L-Connect 3, you can also monitor overall USB usage as well as usage for individual ports.
Easy to remove and clean dust filter
A removable mesh dust filter sits in front of the fan. For cleaning, simply remove it from the power supply and then replace it afterwards. This reduces dust reaching the fan and means you don’t have to remove the entire power supply for cleaning.
| Technical Data | |
|---|---|
| Colour | |
| Primary Colour | White |
| Dimensions | |
| Length / Depth | 182 mm |
| Width | 86 mm |
| Height | 150 mm |
| Fan Specifications | |
| Fan Size | 120 mm |
| Power Supply | |
| PSU Format | ATX |
| ATX Standard | ATX 3.1 |
| 12V Distribution | single rail |
| Modular Power Supply | Yes |
| Modular Type | fully modular |
| Protection Circuits | No-Load Protection, OCP (Overcurrent Protection), OPP (Overload Protection), OTP (Overtemperature Protection), OVP (Overvoltage and Undervoltage Protection), SCP (Short-Circuit Protection), SIP (Surge & Inrush Protection), UVP (Undervoltage Protection) |
| Power Specifications | |
| Total Power Output | 1000 W |
| Power Output +3.3V & +5V (combined) | 100 W |
| Power Output +12V rails | 996 W |
| Power Output -12V | 3.6 W |
| Power Output +5Vsb | 15 W |
| Cable Specifications | |
| Max. CPU Power Cable Length | 700 mm |
| Max. 24-Pin Motherboard Power Cable Length | 600 mm |
| Max. 12V-2×6 Cable Length | 600 mm |
| Max. PCIe Power Cable Length | 550 mm |
| Max. SATA Power Cable Length | 700 mm |
| Max. Molex Cable Length | 850 mm |
| Cooling | |
| Semi Passive Power Supply | Yes |
| Internal Ports | |
| CPU Power Connectors 12V ATX/EPS | 2 |
| CPU Power Supply | 1x 4+4-Pin + 1x 8-Pin |
| 12V-2×6 Power Connectors | 1 |
| 6+2 Pin PCIe Power Connectors | 3 |
| SATA Power Connectors | 11 |
| 4 Pin Molex Power Connectors | 1 |
| External Ports | |
| USB Hub | Yes |
| Compatibility | |
| Compatibility Note | Please refer to the manufacturer’s compatibility information. You can find the latest overview on the manufacturer’s website. |
| Efficiency Class | |
| 80PLUS Efficiency | 80 PLUS Gold |
| Cybenetics Efficiency Level ETA (230V) | GOLD |
| Materials | |
| Materials | Steel |
| Lighting | |
| Lighting / RGB | No |
| Product Series | |
| Product Series/Family | EDGE V2 |
