In the days of Tempered Glass, it is no longer just the cooling performance and volume development of the PC that have to be adapted to ones own and each changing requirements, but also the RGB lighting suitable for the hardware.
In the days of Tempered Glass, it is no longer just the cooling performance and volume development of the PC that have to be adapted to ones own and each changing requirements, but also the RGB lighting suitable for the hardware.
In the days of Tempered Glass, it is no longer just the cooling performance and volume development of the PC that have to be adapted to ones own and each changing requirements, but also the RGB lighting suitable for the hardware.

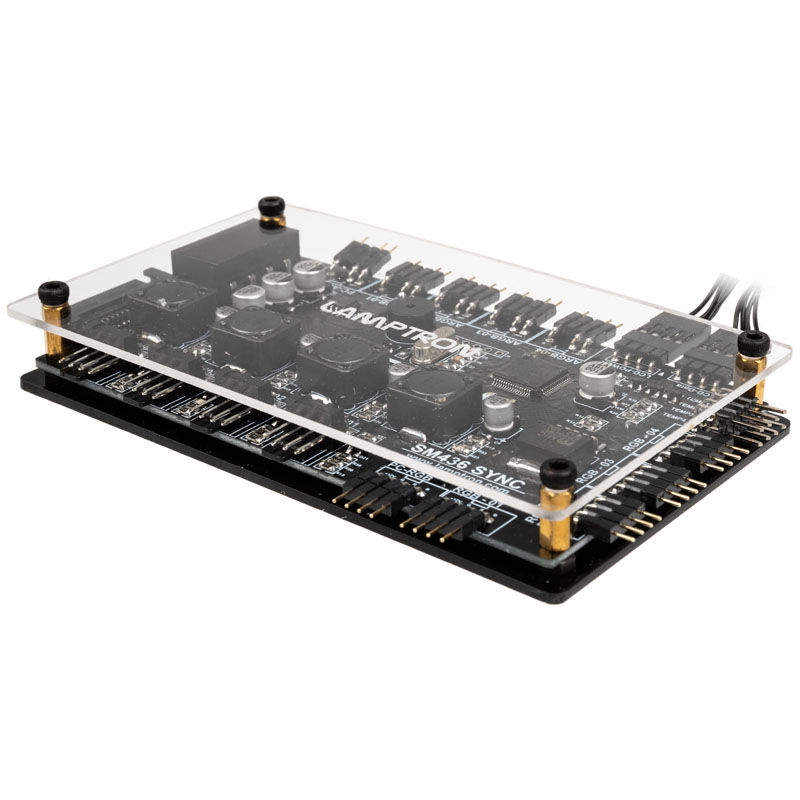

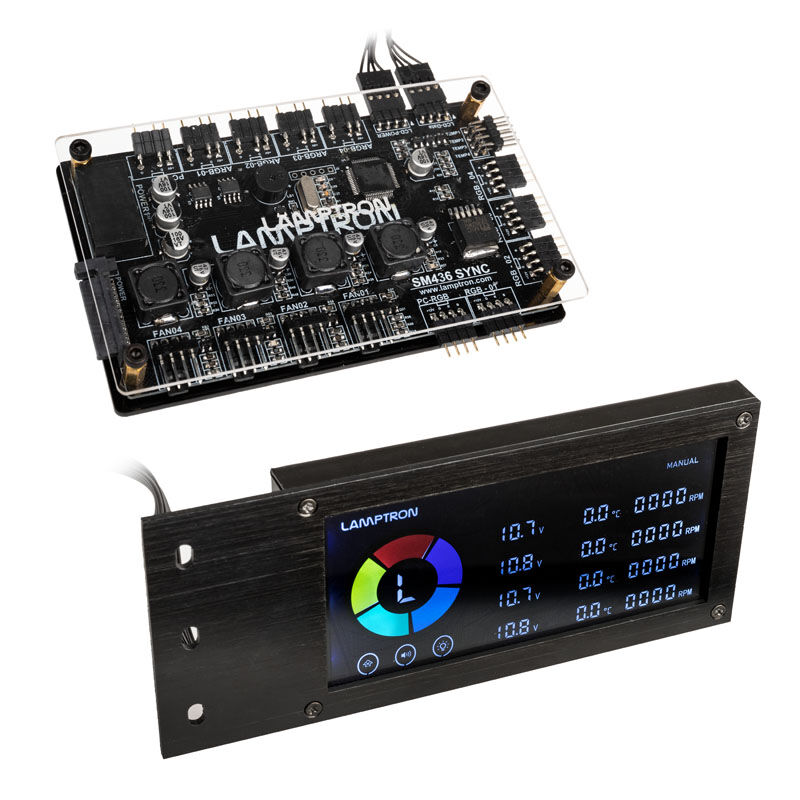

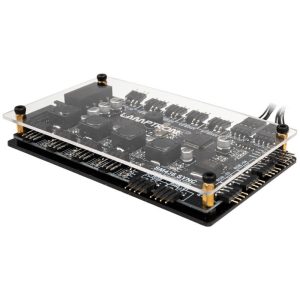

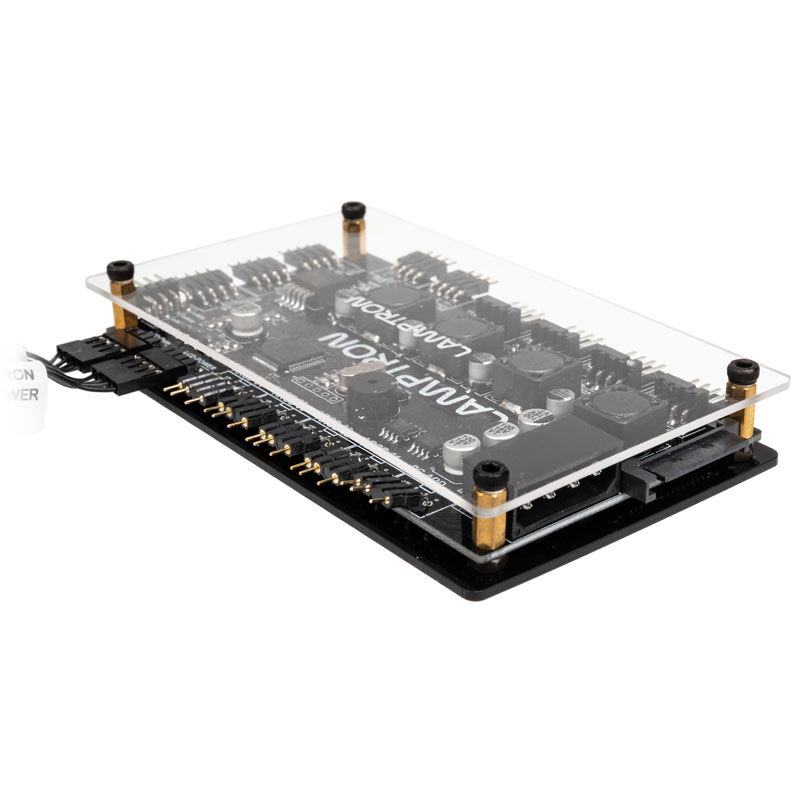

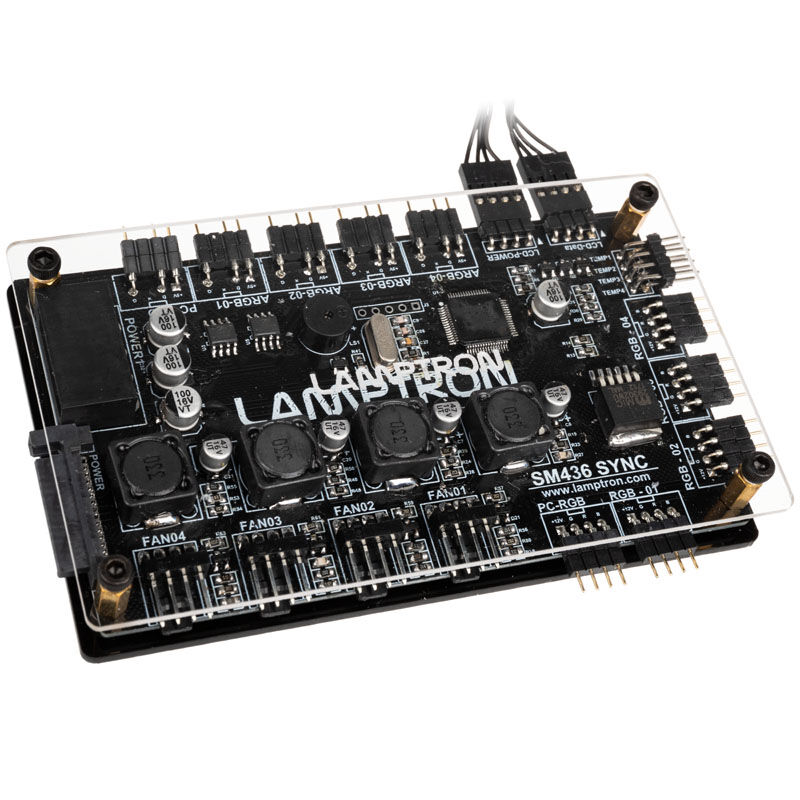

The Lamptron SM436 Sync Edition PCI RGB & Fan Controller offers not only a wide functionality, but also a high compatibility. Up to four fans with or without PWM control and RGB products with or without digital RGB LEDs run on it. The separate LC display can be attached to PCI slots, the numerous information can then be admired through a transparent side panel made of hard or acrylic glass. Control is via an infrared remote control.
The features of the Lamptron SM436 Sync Edition PCI RGB & Fan Controller at a glance
– Control board for fan and RGB LED lighting
– Separate LC display with temperature, voltage and speed indicators
– Sync Edition: Synchronization with mainboard or other RGB controller possible
– Four channels for fans with or without PWM with up to 36 watts per channel
– Four headers for up to 60 RGB LEDs (12VGRB)
– Four headers for up to 60 digitally addressable RGB LEDs (5VDG)
– Power supply via 4-pin Molex and SATA
– Including an infrared remote control
Maximum control of ventilation & lighting
The Lamptron SM436 Sync Edition PCI RGB & Fan Controller offers nearly unlimited control over fans and RGB lighting. With up to 36 watts of power per channel, there is almost no limit. The fan controller supports both fans with and without PWM. Power is supplied via a 4-pin Molex connector. In total, up to four fans can be connected to the board of the controller.
In addition, four 4-pin RGB LED fans or strips (12VGRB) and four digitally-addressable 3-pin RGB devices (5VDG) can be connected. The additionally required power supply takes place via a SATA connection. In addition, four temperature sensors are included, which can also be connected to the board.
Including LC display and infrared remote control
The control of the lighting and the speed of the fan is done via the enclosed infrared remote control. For example, the fans can either be set to quiet mode at 40 percent or maximum mode. Or leave the fan control to the controller. In addition, the lighting modes are set via the remote control. The Lamptron SM436 Sync Edition can be connected to a motherboard or other RGB controller with the included cable, enabling the synchronization of RGB and ARGB lighting with external control units.

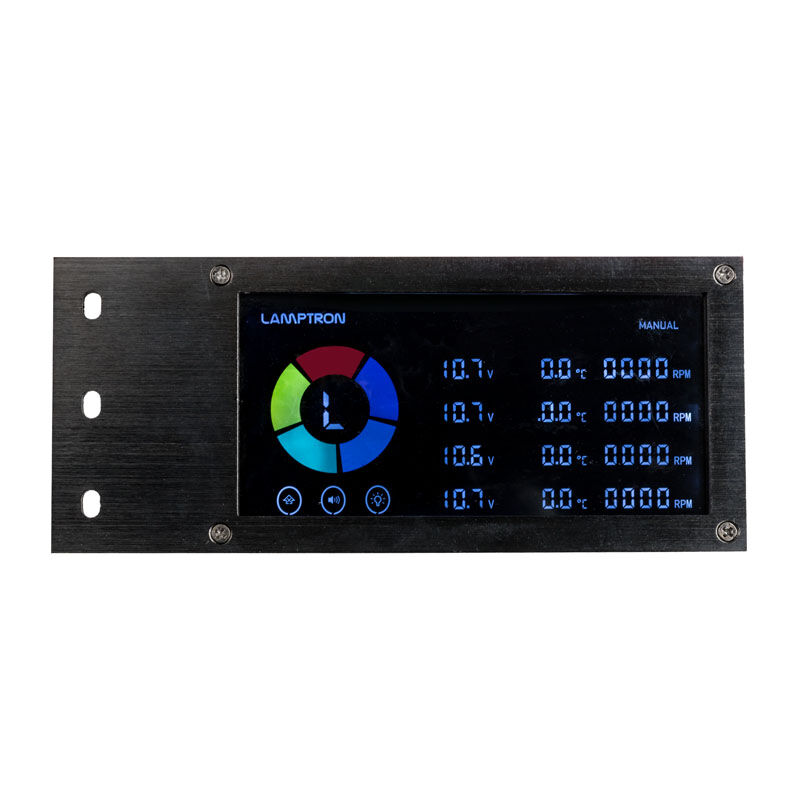

In order to know how fast the fans are turning and at what voltage they are currently running and what temperatures prevail inside the housing, Lamptron has added a stylish LC display. It is attached to three free PCI slots and the output can be admired through a transparent side window. The board of the controller is connected to it with a cable and can be hidden somewhere in the housing.

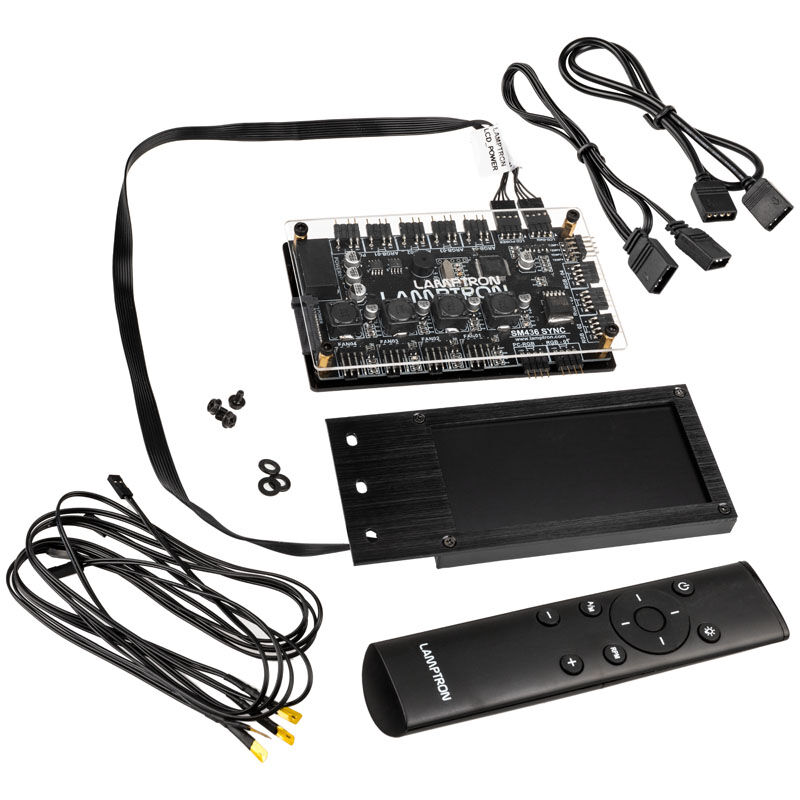

Delivery:
– 1x controller board with cover made of acrylic glass
– 1x LC display
– 2x connection cable controller / display
– 4x temperature sensors
– 1x infrared remote control
– Mounting material for display
| General Specifications | |
|---|---|
| Main Colour | Black |
| Material | Aluminum |
| Board Dimensions (W x H x D) | 121.5 x 21 x 72.5 mm |
| Display Dimensions (W x H x D) | 140 x 12.5 x 60 mm |
| Screen Size | 95 x 45 mm |
| PCI Slot Compatibility | 3x PCI Slots (Display) |
| Voltage Range | 0 – 12 V (Stepless Adjustment) |
| Fan Channels | 4 (Max. 36W per Channel) |
| Power & Connections | |
| Power Input | 1x 4-pole Molex 1x SATA |
| Temperature Sensors | 4x 2-pin |
| RGB Inputs | 1x PC RGB In 1x PC-ADD In |
| RGB LED Connections | |
| Digital RGB (ARGB) | 4x 3-pin (5VDG, up to 60 LEDs per Channel) |
| Analog RGB | 4x 4-pin (12V GRB, up to 60 LEDs per Channel) |
