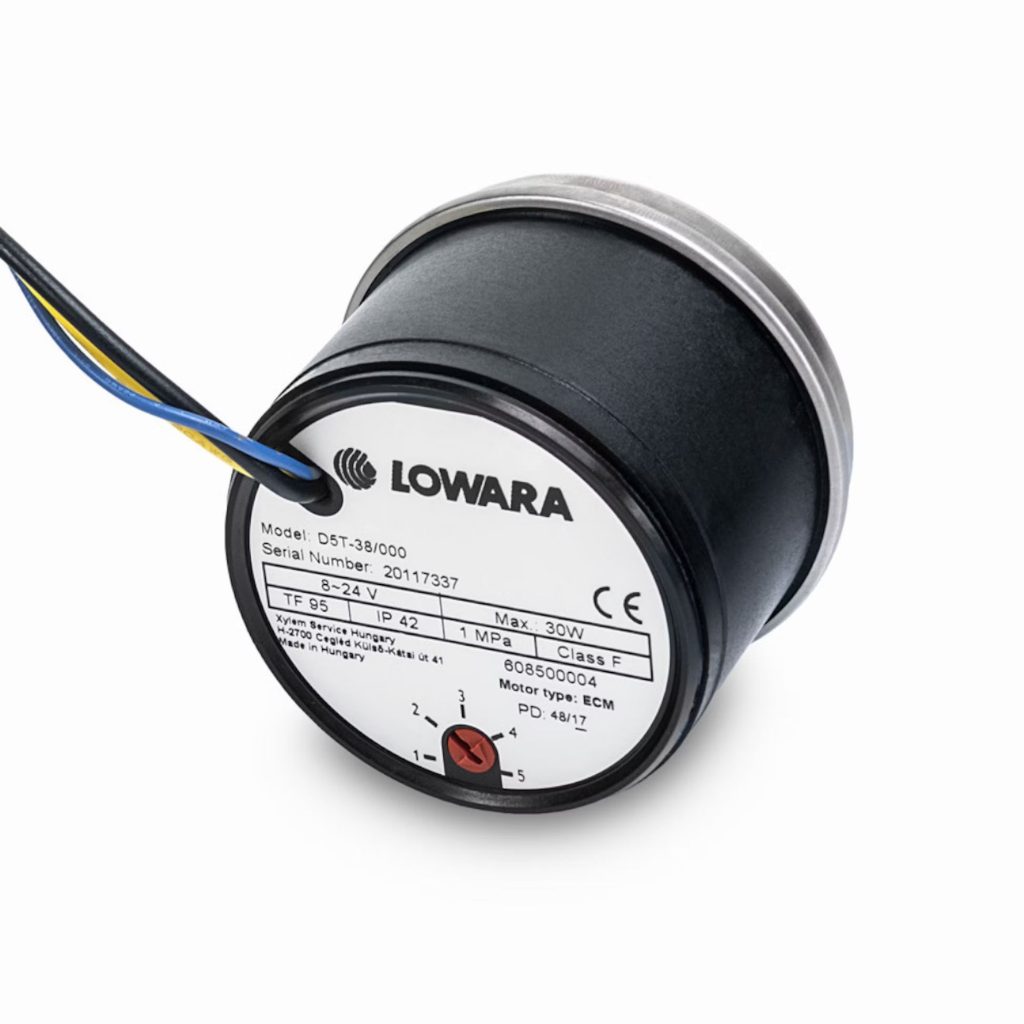

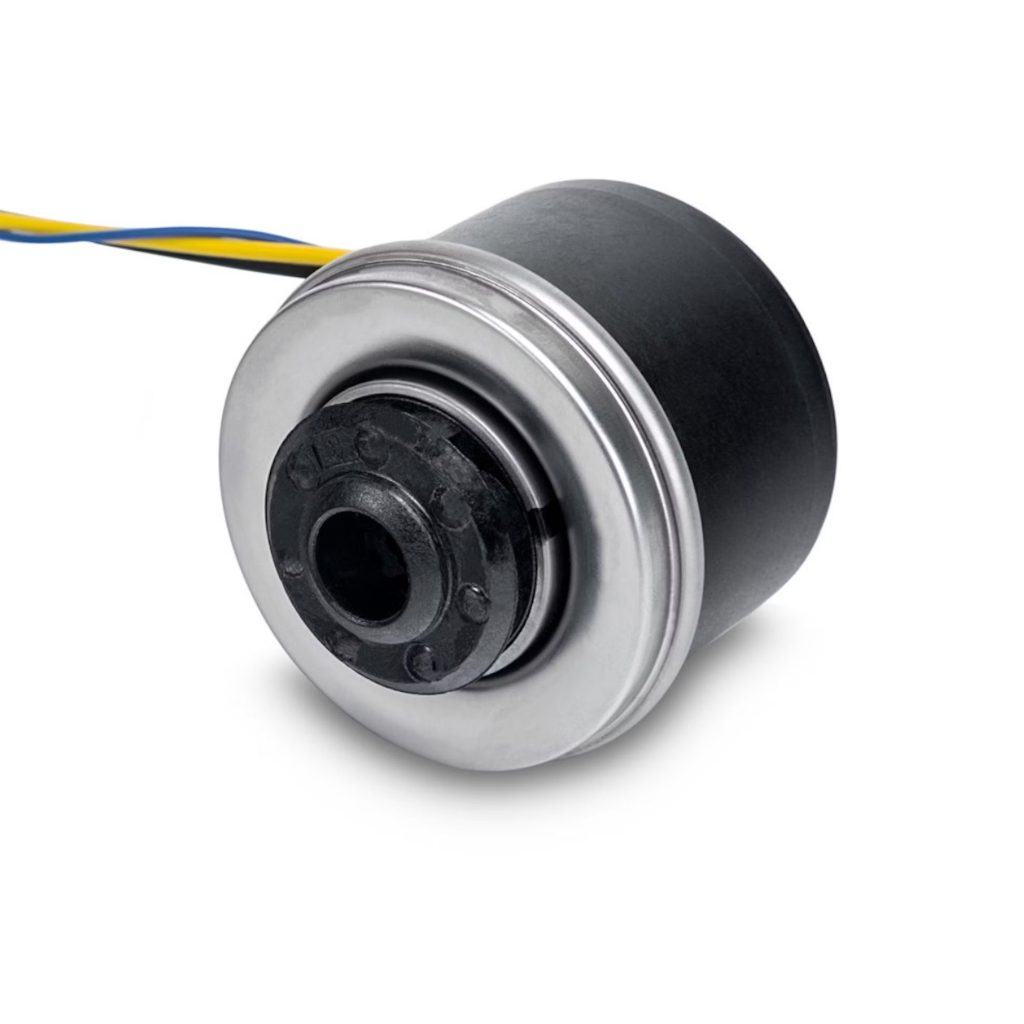

Laing FloJet D5 Vario Pump Motor (12v / 1200 LPH)

Laing D5 high-performance water pump motor with manual speed control via adjustable knob.

This pump is ideal for PC and other electronics water cooling. The D5 pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor the only moving part is a spherically shaped rotor which in this pump is held in place by a bearing ball made of ultra-hard and wear-resistant ceramic.

Rated 50.000 hrs MTBF at 25 degreesC ambient!

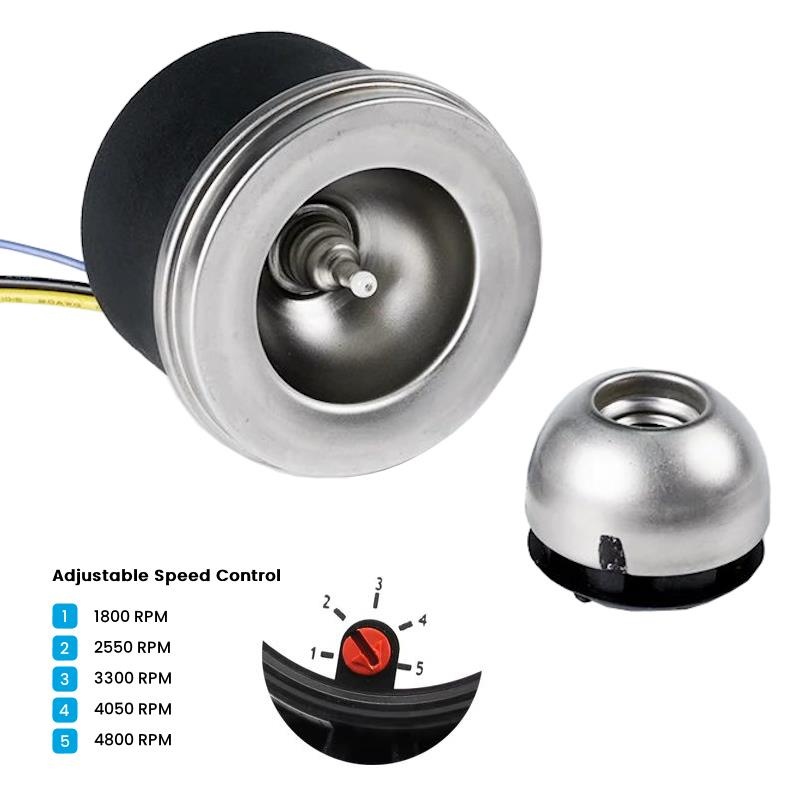

Adjustable speed in five steps:
– Step 1: 1800 rpm
– Step 2: 2550 rpm
– Step 3: 3300 rpm
– Step 4: 4050 rpm
– Step 5: 4800 rpm

Specifications:
– Motor: Electronically commuted spherical motor
– Rated voltage: 12V DC
– Power consumption: 23W
– Permitted voltage range: 8-24V DC
– Maximum pressure head: up to 3.9m
– Maximum flow: up to 1200L/h @ 12v
– Maximum liquid temperature: 60 degreesC
– Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
– Power connector: 4-Pin Molex- and 3-Pin FAN connector
