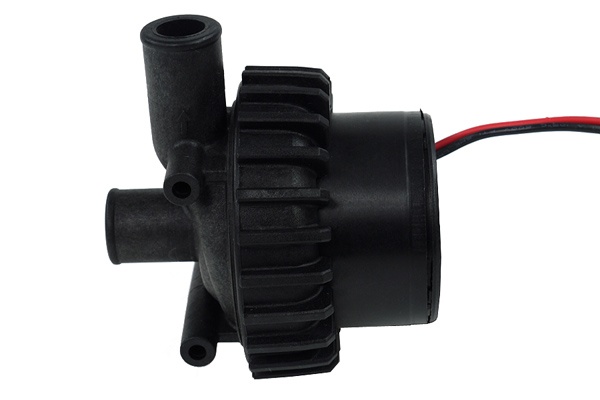

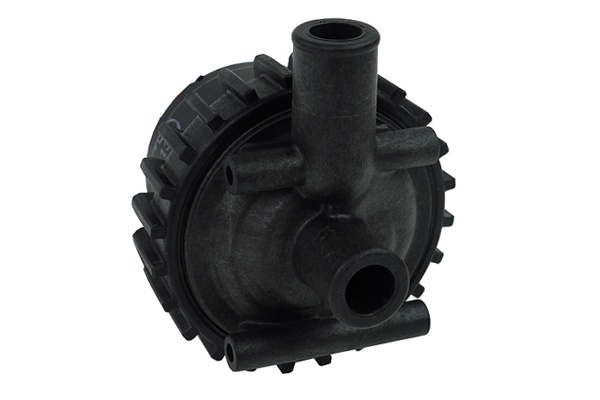

Laing D5-Pumpe 12V D5-Vario 3/4 Moulded Barbs

The bearing is directly lubricated (wet running) by the coolant. Maintenance is hence obsolete. The rotor is always kept in position magnetically, hence small particles are not an issue. Blocking of the pump is not possible under normal circumstances. Even after longer stand-still periods a safe spin-up is ensured. The permanently magnetic rotor unit is driven by the magnetic field from the surrounding stator. The stator is completely surrounded by the stator, hence making the pump only 38mm high, barely more than the stator itself.
It hence easily fits in all common PC-, Barebone- and Mini-PC cases. A separate magnetic shielding is usually not required. The ball motor principle allows power-saving operation with comparatively high performance. By varying the input voltage the DDC pump can be adjusted over a wide speed range. All materials in contact with the coolant are corrosion resistant. This pump has 5 settings accessible via a switch. It can be adjusted from 1800 to 4800rpm.

Technical specifications:

Dimensions: (WxDxH) 90x90x90mm (without fittings)
Motor: Electronically commutated ball motor
Nominal voltage: 12V DC
Power consumption: 23W
Permitted voltage range: 8 to 24V
Pressure head at 12V: 3.7m
Maximum flow rate: 1500l/h
Coolants: Water, water/glycol mixtures
Maximum system temperature: 60 degreesC
Materials in contact with coolant: Stainless steel 1.4571, PPS-GF40, EPDM O-rings, aluminium oxide, hard coal
Connectors: 2x 3/4 barbs
Special features: This pump can be adjusted in 5 steps
P1 = 1.800 rpm
P2 = 2.550 rpm
P3 = 3.300 rpm
P4 = 4.050 rpm
P5 = 4.800 rpm
Switch is integrated at the back of the pump
