No-spill quick disconnect (QD3), straight alignment, female, brass, compression fitting for G1/4 mm tube
- SKU: WASA-473
- MPN: QD3-FTG4
- EAN: 0829596915006

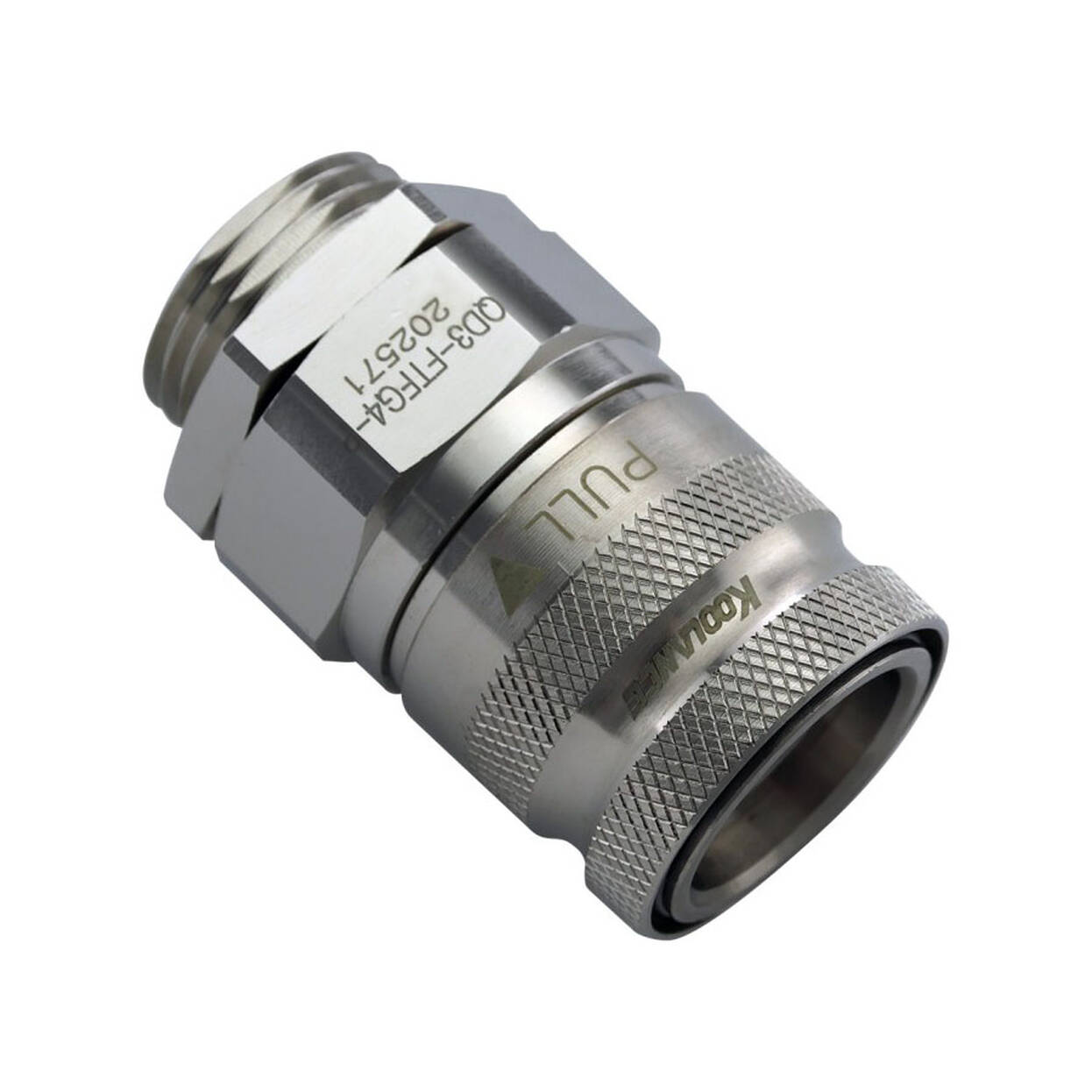

Koolance patented quick disconnect no-spill coupling with automatic shutoff. Opposite is a panel mountable female G 1/4 BSPP thread for attaching a fitting or barb. The disconnect side will only fit a Koolance QD3 male quick disconnect.
Koolance QD3 Quick Disconnect, Straight Female to G1/4 Inch Male Bulkhead - No-Spill, Silver
Koolance patented quick disconnect no-spill coupling with automatic shutoff. Opposite is a panel mountable female G 1/4 BSPP thread for attaching a fitting or barb. The disconnect side will only fit a Koolance QD3 male quick disconnect.
Koolance patented quick disconnect no-spill coupling with automatic shutoff. Opposite is a panel mountable female G 1/4 BSPP thread for attaching a fitting or barb. The disconnect side will only fit a Koolance QD3 male quick disconnect.
Earn 20 Points
We price match UK retailers. Try It Now!
Details
Koolance patented quick disconnect no-spill coupling with automatic shutoff. Opposite is a panel mountable female G 1/4 BSPP thread for attaching a fitting or barb. The disconnect side will only fit a Koolance QD3 male quick disconnect.
After pulling the ring on the female QDC side, the quick-disconnect fittings will separate. Liquid on both sides will be automatically obstructed with approximately 0.2ml freed. Coolant volume lost upon disconnection will rise with internal pressure higher than 0.5kgf/cm2 (7psi).
| General Specifications | |
|---|---|
| Weight | 0.15 lb (0.07 kg) |
| Fitting Thread | G 1/4 BSPP |
| Max. No-Spill Pressure | 0.5 kgf/cm² (7 psi) |
| Max. Pressure Tolerance @ 25°C | 8 kgf/cm² (113.8 psi) |
| Max. Temperature Tolerance | 80°C (176°F) |
| Min. Pressure Tolerance @ 25°C | -1.0 kgf/cm² (-14 psi) |
| Min. Storage Temperature | -20°C (-4°F), No Freezing |
| Seal Material | EPDM (Water/Glycol Liquids) |
| Wetted Materials | Brass, Nickel Plating, Stainless Steel, EPDM |
