Jonsbo TK-3: Black midi tower with panoramic view

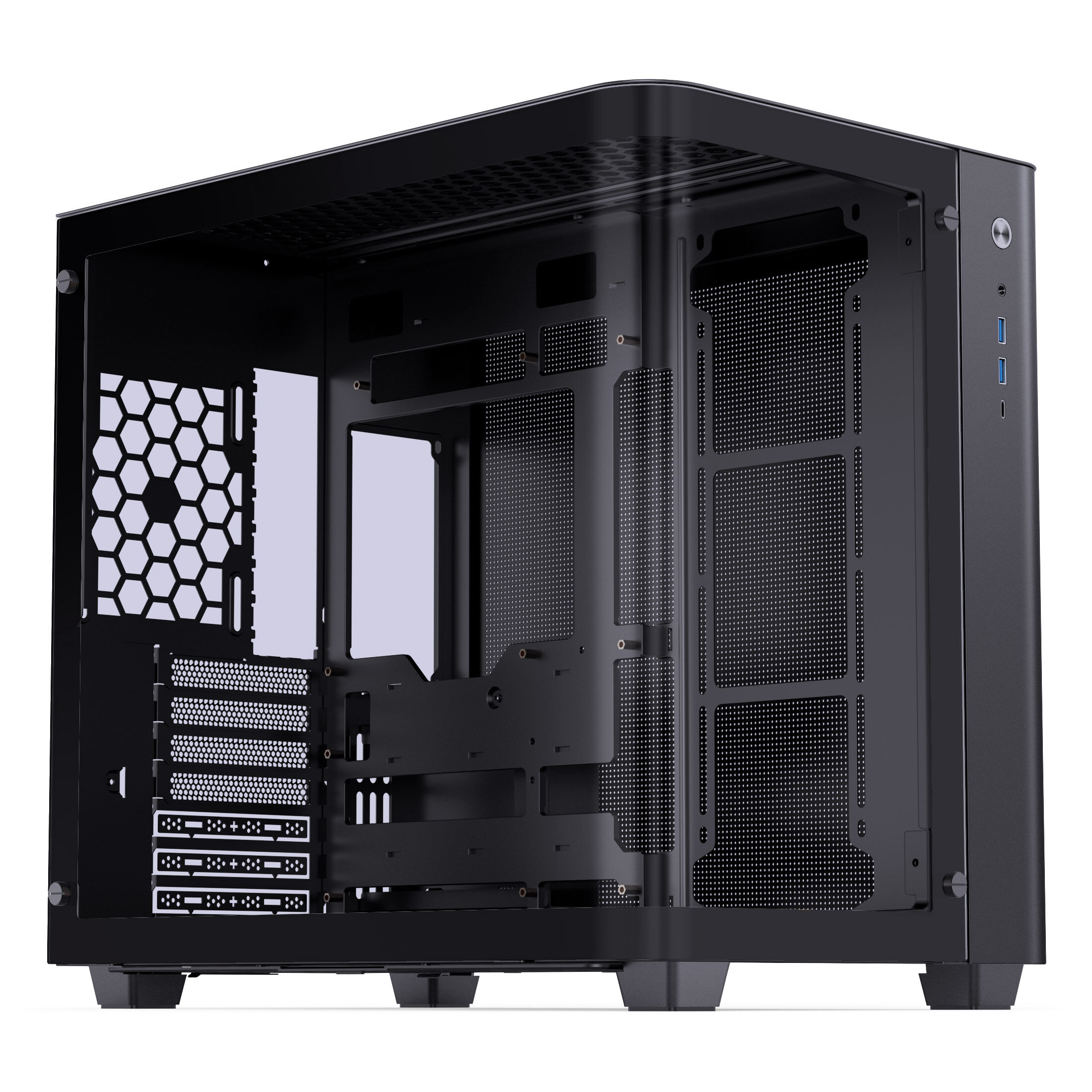

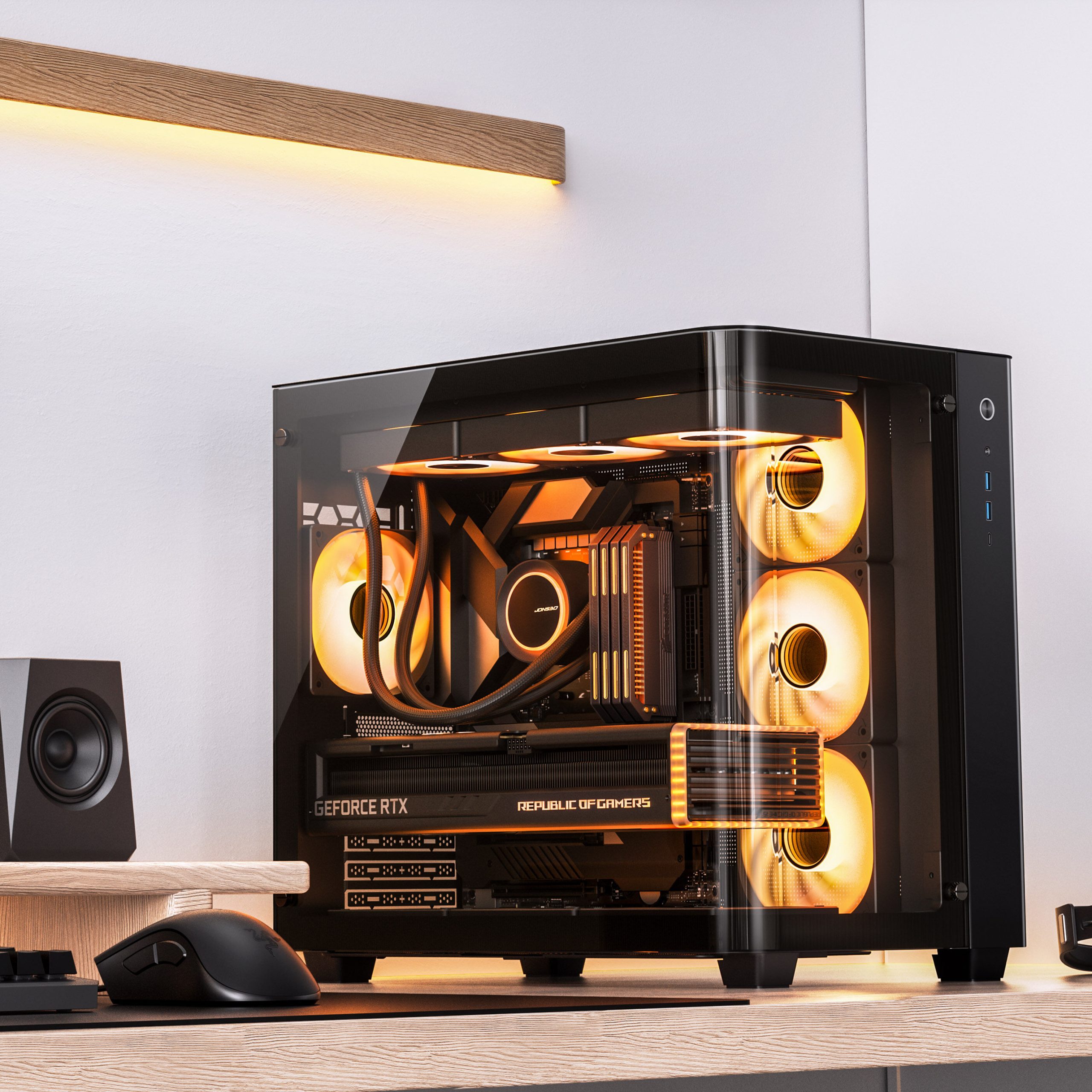

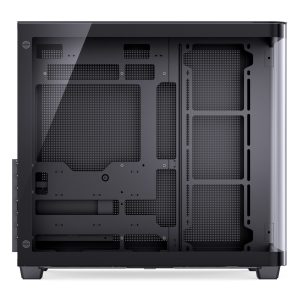

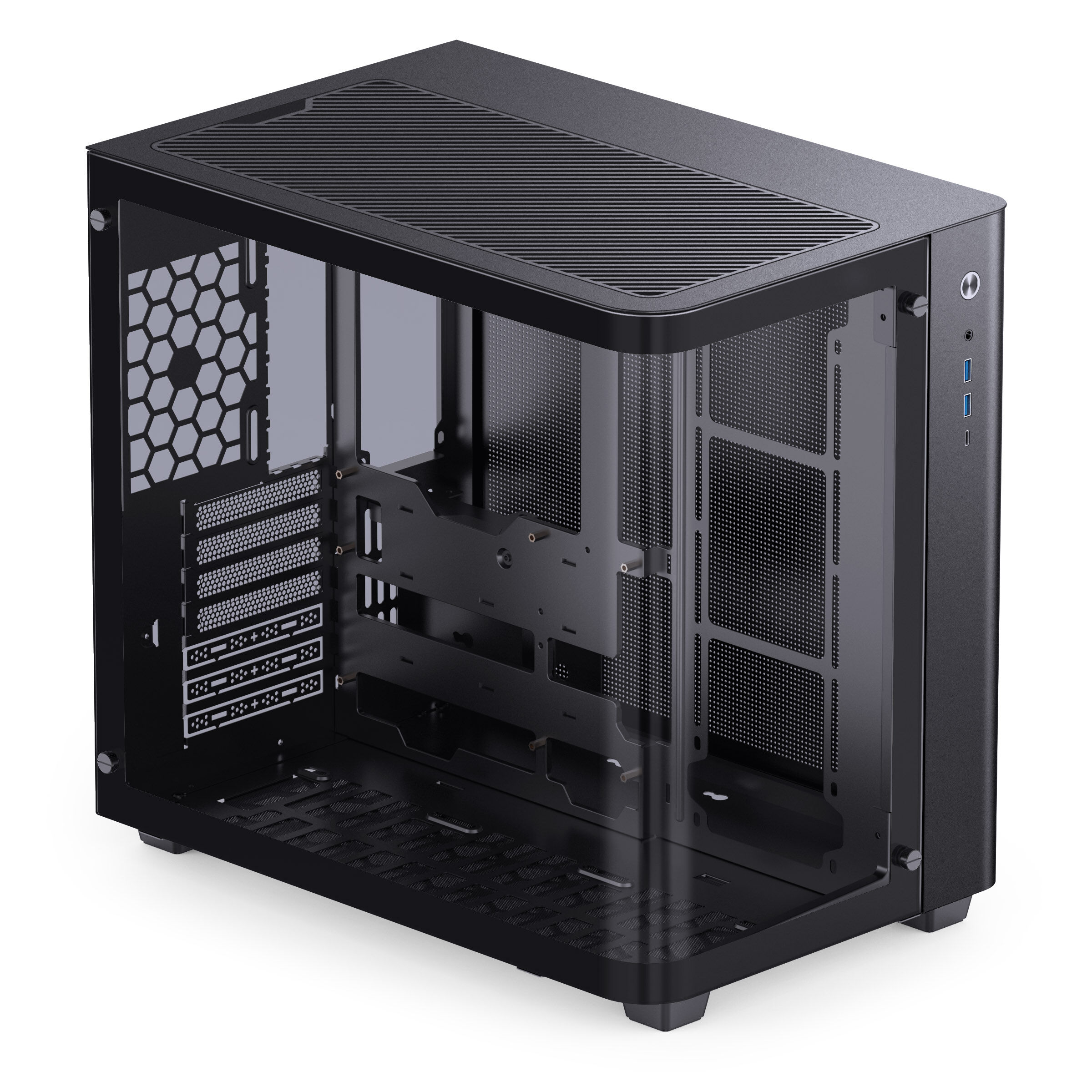

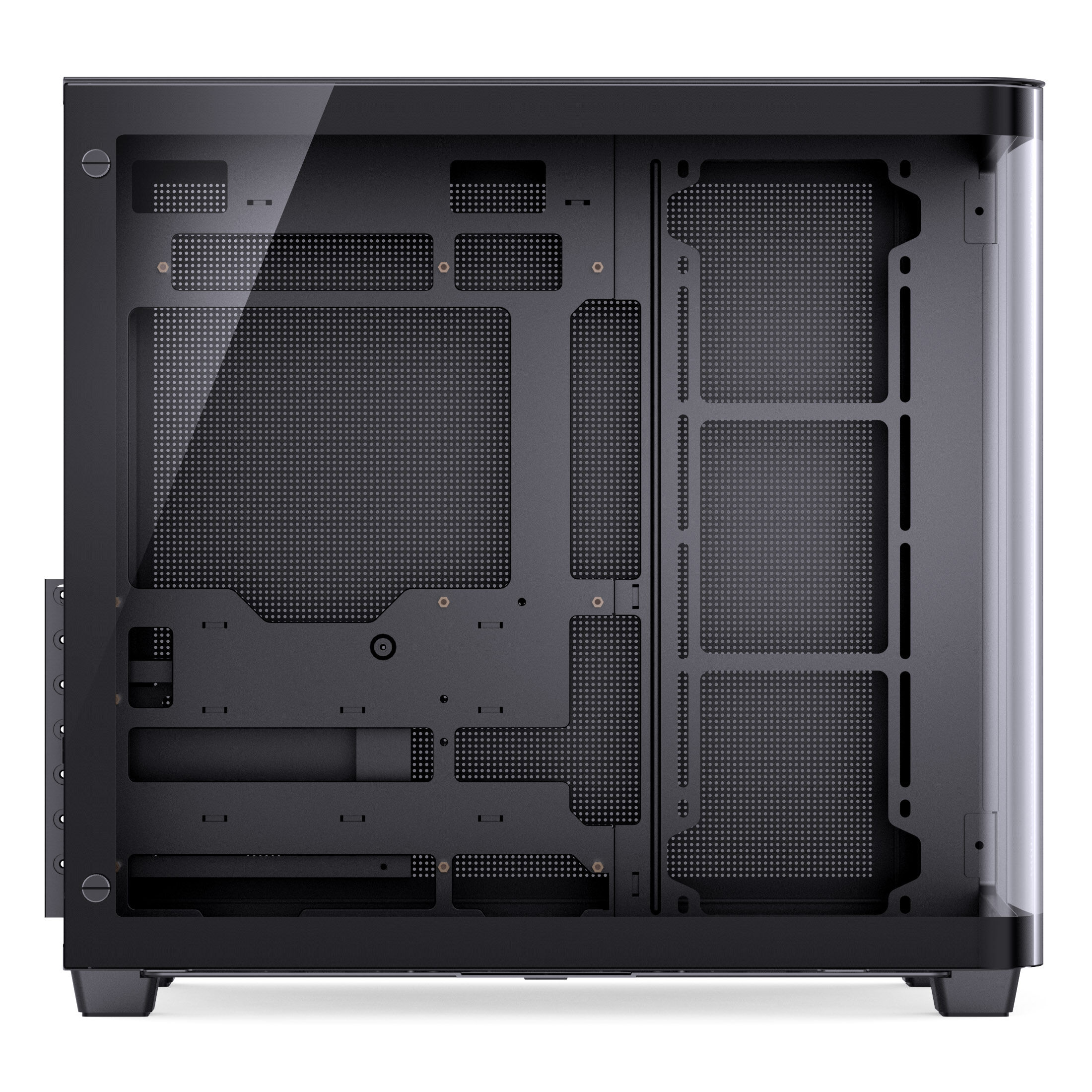

The Jonsbo TK-3 puts your gaming hardware in the spotlight. At first glance you can see that not only the side of the tower is made of glass, but also a large part of the front. The curved tempered glass allows a 270 degrees panoramic view of the inside of your PC, which means you can show off your hardware very well.
Plenty of space for powerful PC components

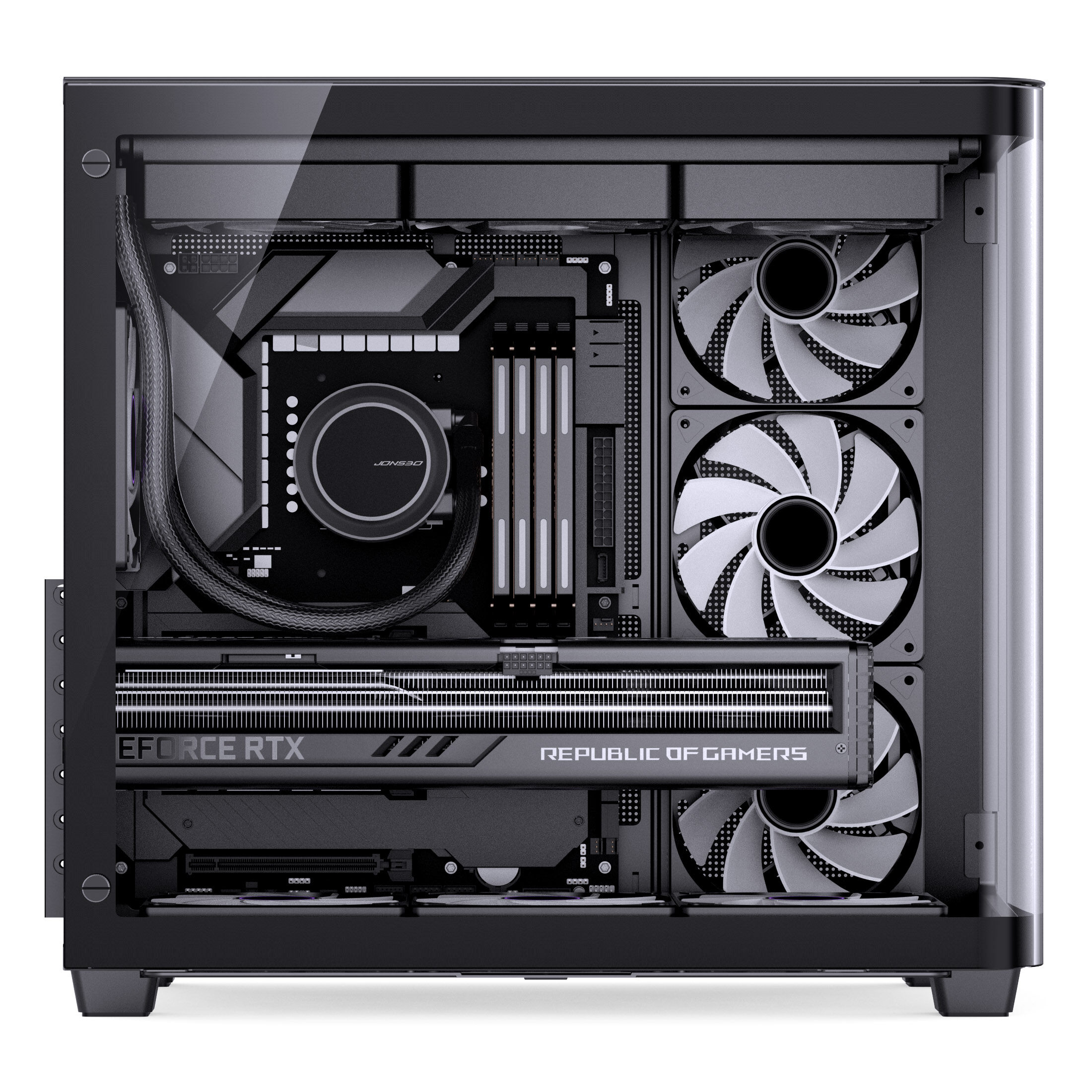

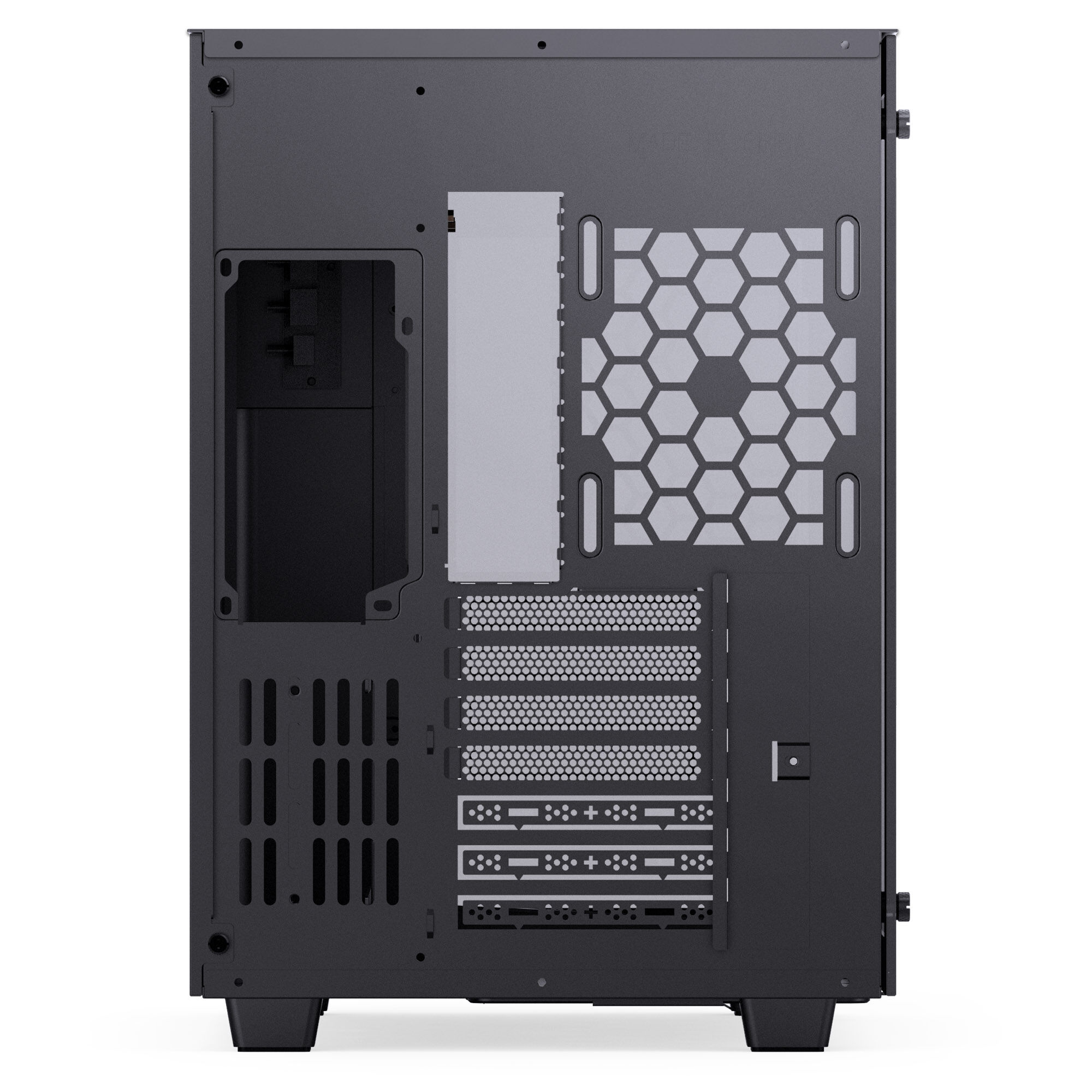

So that there is something to see, this PC case supports the installation of graphics cards up to 420 mm long. This gives you the freedom of choice, because every imaginable model fits into the case. The Jonsbo TK-3 offers space for an ATX power supply up to 220 mm long, so that the Jonsbo TK-3 offers the necessary space for powerful power supplies. The mainboard tray has space for mainboards from Mini-ITX to ATX. The Jonsbo TK-3 offers a total of 7 PCI slots for expansion cards.
This case supports Back Connect in the ASUS BTF and MSI Project Zero variants.
PC cooling: space for fans, CPU coolers and radiators

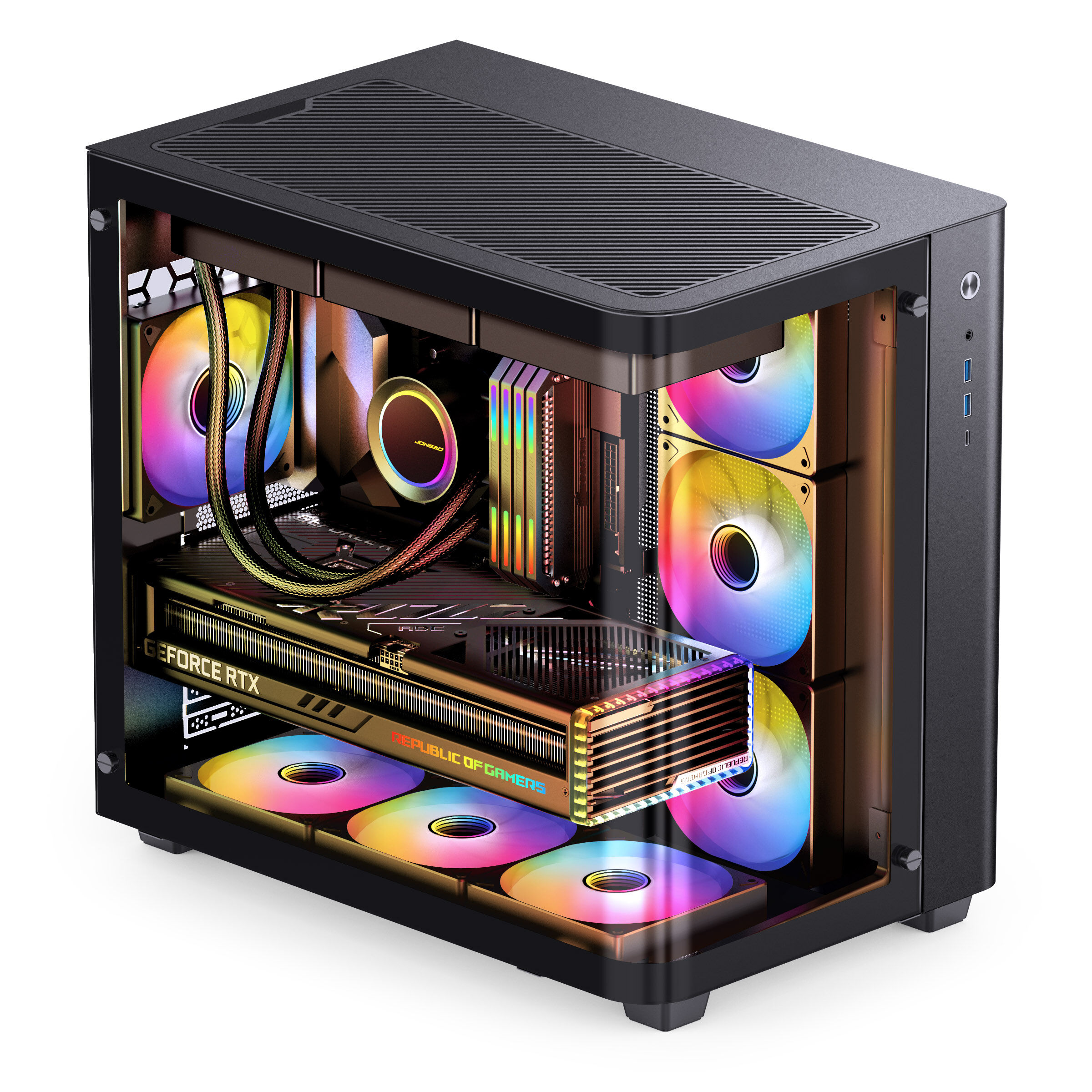

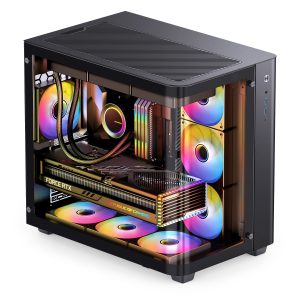

High-performance PC parts require excellent cooling and the Jonsbo TR-3 offers appropriate options for installing them. A total of ten 120 mm fans can be accommodated in this midi tower and ensure excellent air circulation. There is also space for large CPU coolers up to 165 mm high. A radiator up to 360 mm in size can be attached to the top and bottom.

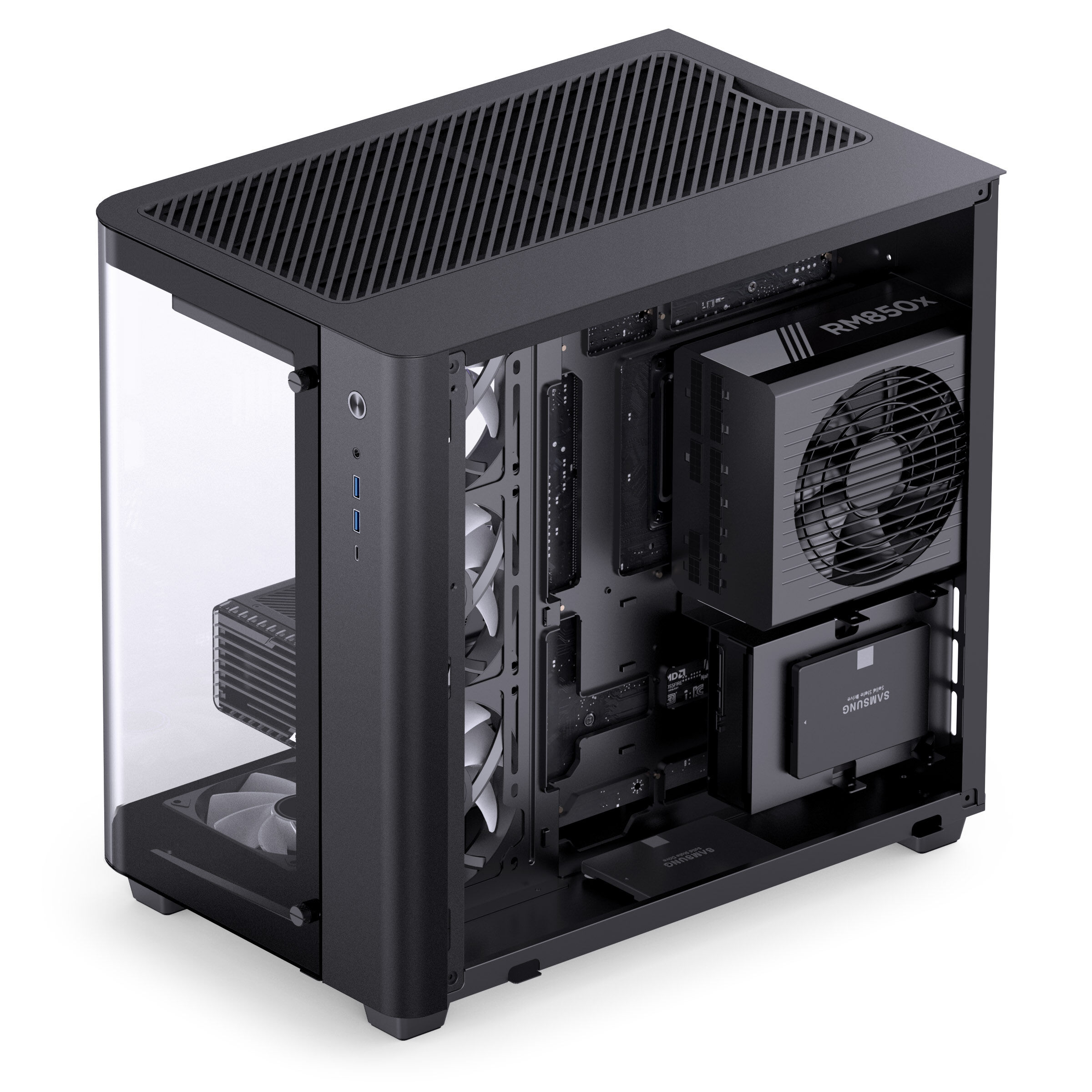

Drives: Options for hard drives and SSDs
A total of three SATA hard drives and SSDs can be installed in the second chamber. A 3.5 inch HDD and a 3.5 or 2.5 inch drive in the hard drive cage and a 2.5 inch SSD on the bottom of the case.

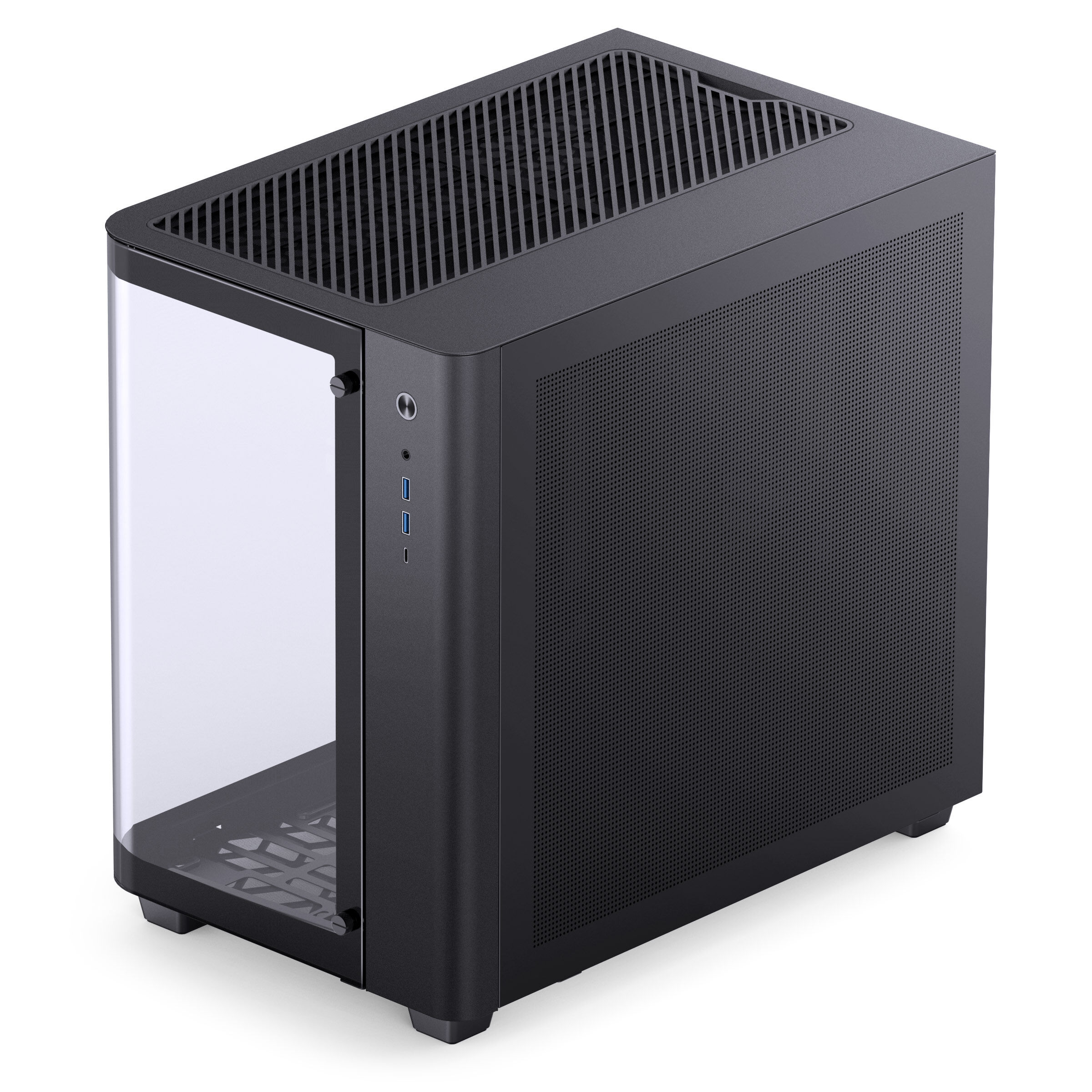

On the front of the case there is a fast USB-C port, two USB-A ports and a combined 3.5 mm jack socket for your gaming headset.
Technical Details
| Colour | Black |
|---|---|
| Materials | Steel, Plastic, Tempered Glass |
| Dimensions | Width: 288 mm Height: 415 mm Depth: 438 mm |
| Weight | 7.3 kg |
| Form Factor | ATX, Micro-ATX, ITX |
| Back Connect | Yes (ASUS BTF, MSI Project Zero) |
| Fan Support | Top: 3× 120 mm / 2× 140 mm Bottom: 3× 120 mm Side: 3× 120 mm Rear: 1× 120 mm |
| Radiator Support | Top: 1× 360 mm / 280 mm Bottom: 1× 360 mm |
| Drive Bays | 1× 3.5″ 1× 3.5″ / 2.5″ (combined) 1× 2.5″ |
| Power Supply | Type: ATX (optional) Max. PSU Length: 220 mm |
| Expansion Slots | 7 |
| I/O Panel | 1× USB-C 3.1 (USB 3.2 Gen 2, 10 Gbit/s) 2× USB-A 3.0 (USB 3.2 Gen 1, 5 Gbit/s) 1× 3.5 mm jack (4-pole, TRRS, audio in/out) |
| Internal Dimensions | Max. GPU Length: 420 mm Max. CPU Cooler Height: 165 mm Max. PSU Length: 220 mm |
Specifications
| Colour | Primary Colour: Black |
|---|---|
| Dimensions | Length / Depth: 438 mm Width: 288 mm Height: 415 mm Weight: 7.3 kg |
| Case | Case Type: Mid Tower |
| Motherboard Support | Compatible Formats: ATX, ITX, Micro-ATX Max. Motherboard Format: ATX |
| Internal Dimensions | Max. CPU Cooler Height: 165 mm Max. GPU Length: 420 mm Max. PSU Length: 220 mm |
| Power Supply | PSU Included: No PSU Format: ATX |
| Fan Support | 120 mm Fans: 10 140 mm Fans: 2 |
| Radiator Support | Max. Radiator Compatibility: 360 mm |
| Drive Bays | 2.5″ Internal: 1 3.5″ Internal: 1 Combined: 1× 3.5″ / 1× 2.5″ |
| External Ports | 1× USB 3.1 Type-C 2× USB 3.0 Type-A 1× 3.5 mm audio in/out (4-pin TRRS) |
| Case Features | I/O Position: Front Side Panel: With window Cable Management: Yes Filters Included: Yes Noise Dampening: No Mainboard Slide / Tray: No Remote Included: No |
| Back Connect | Back-Connect Support: Yes Compatibility: ASUS BTF, MSI Project Zero |
| Expansion Slots | 7 |
| Materials | Steel, Tempered Glass |
| Lighting | RGB / Lighting: No Fan / RGB Control: No |
| Additional Contents | Included Fans: None |
£84.49£70.41 Inc VatEx Vat
