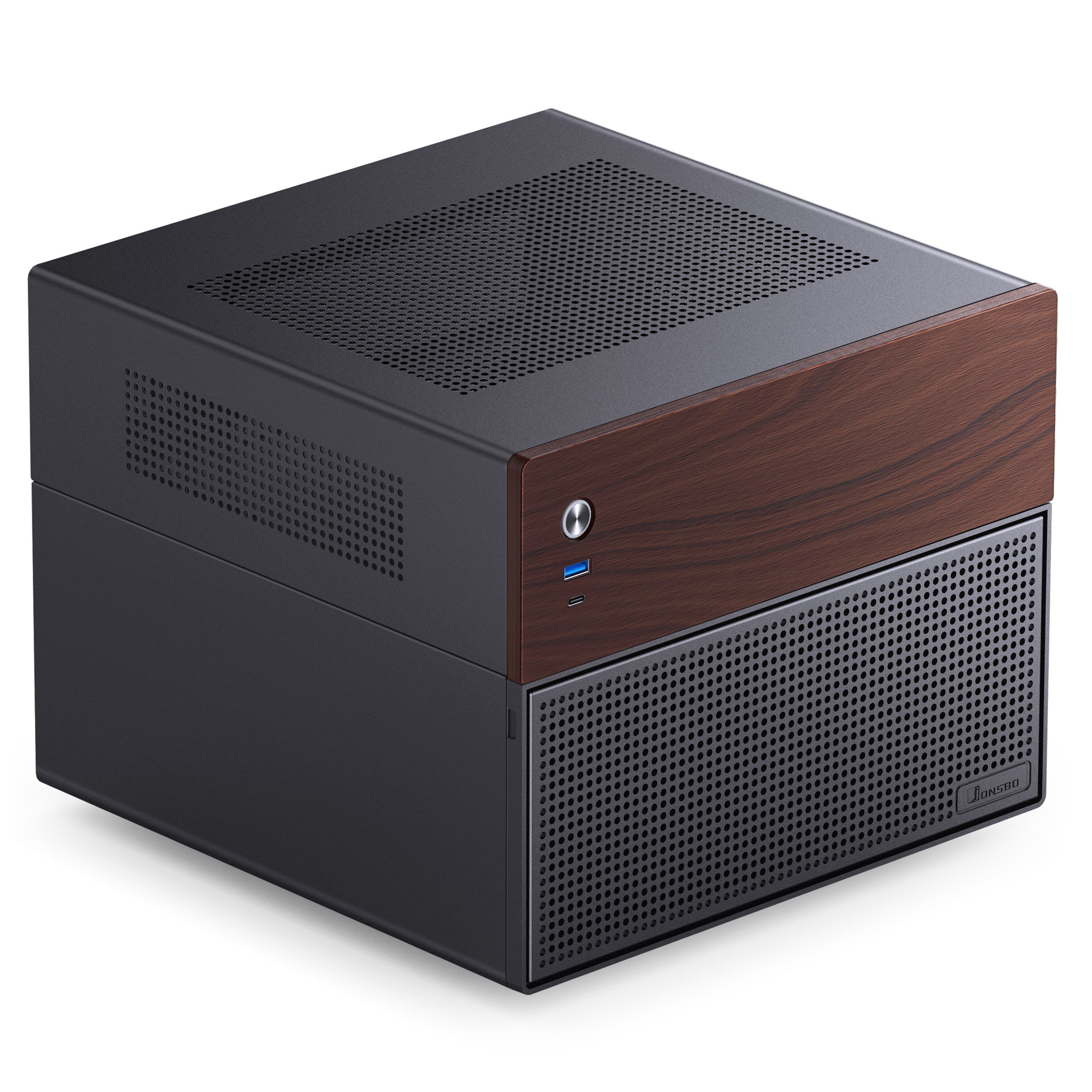

Jonsbo N4: Black NAS housing with wood decor

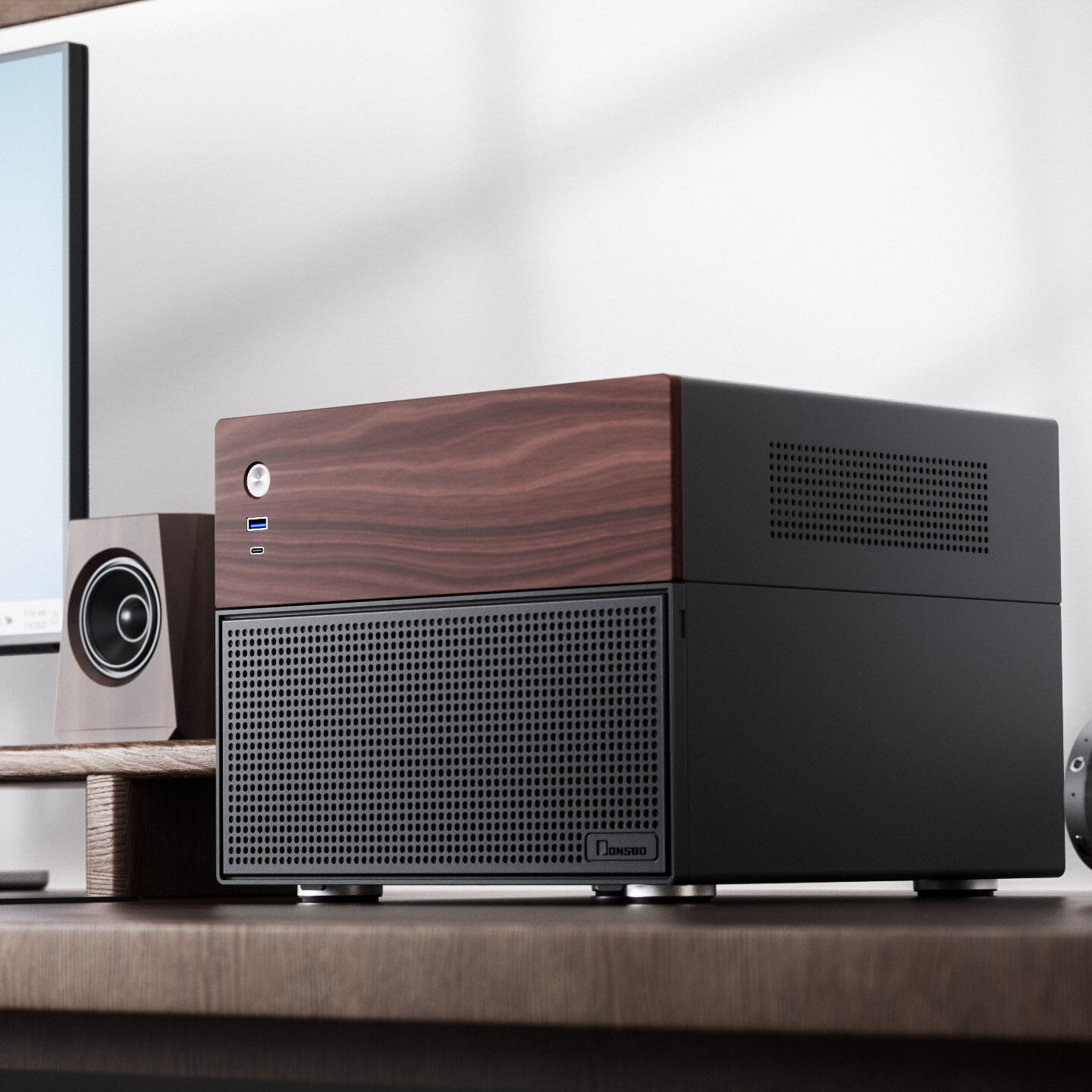

The Jonsbo N4 is a cube-shaped Micro-ATX housing for DIY NAS servers. The NAS housing has a chic design with an elegant dark walnut trim, which makes it even more appealing.
Hardware options

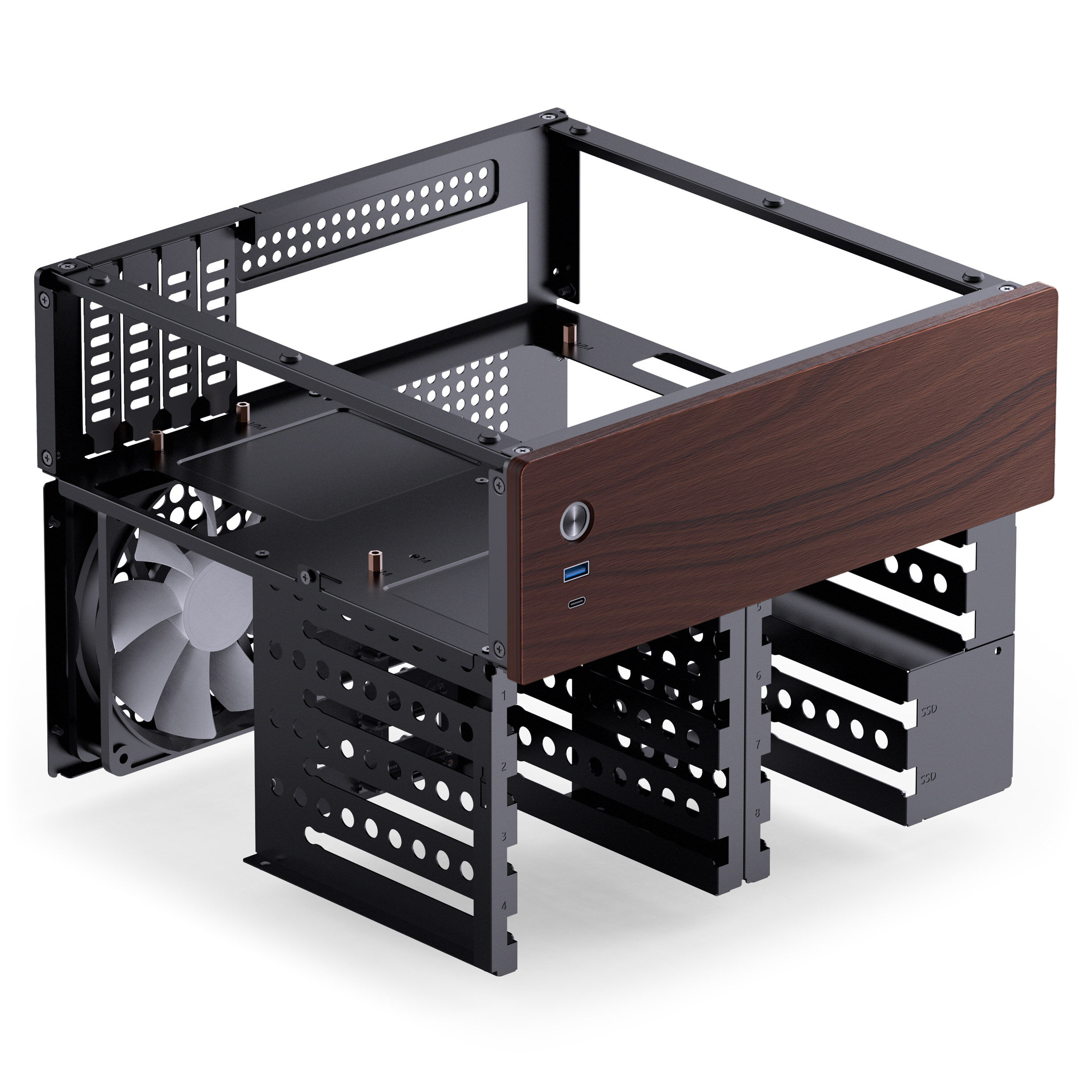

The Jonsbo N4 offers four half-height expansion slots and supports the installation of expansion cards such as RAID controllers, host bus adapters (HBA) and network interface cards (NIC) up to a length of 230 mm.

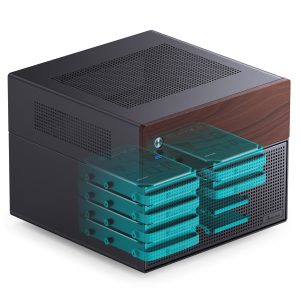

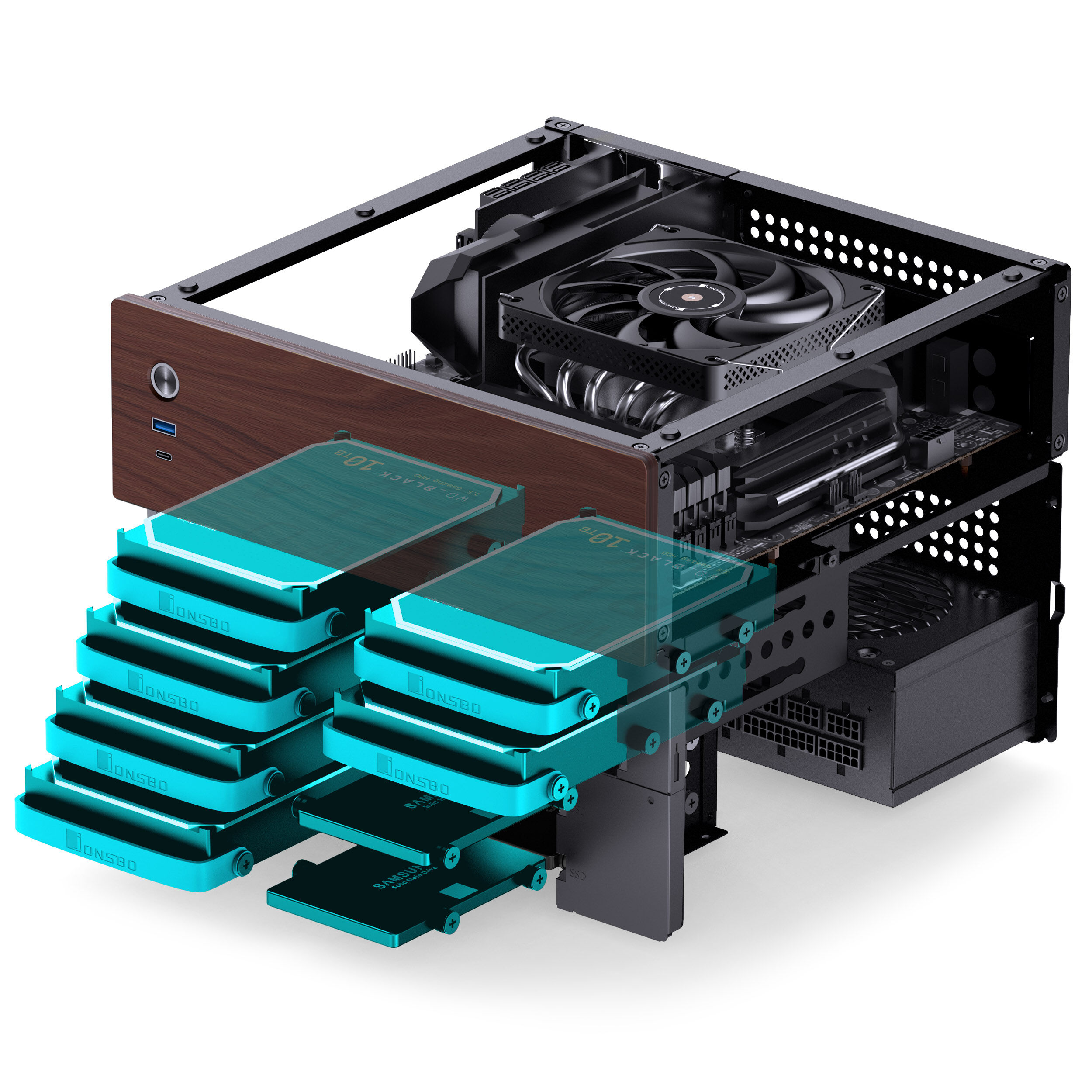

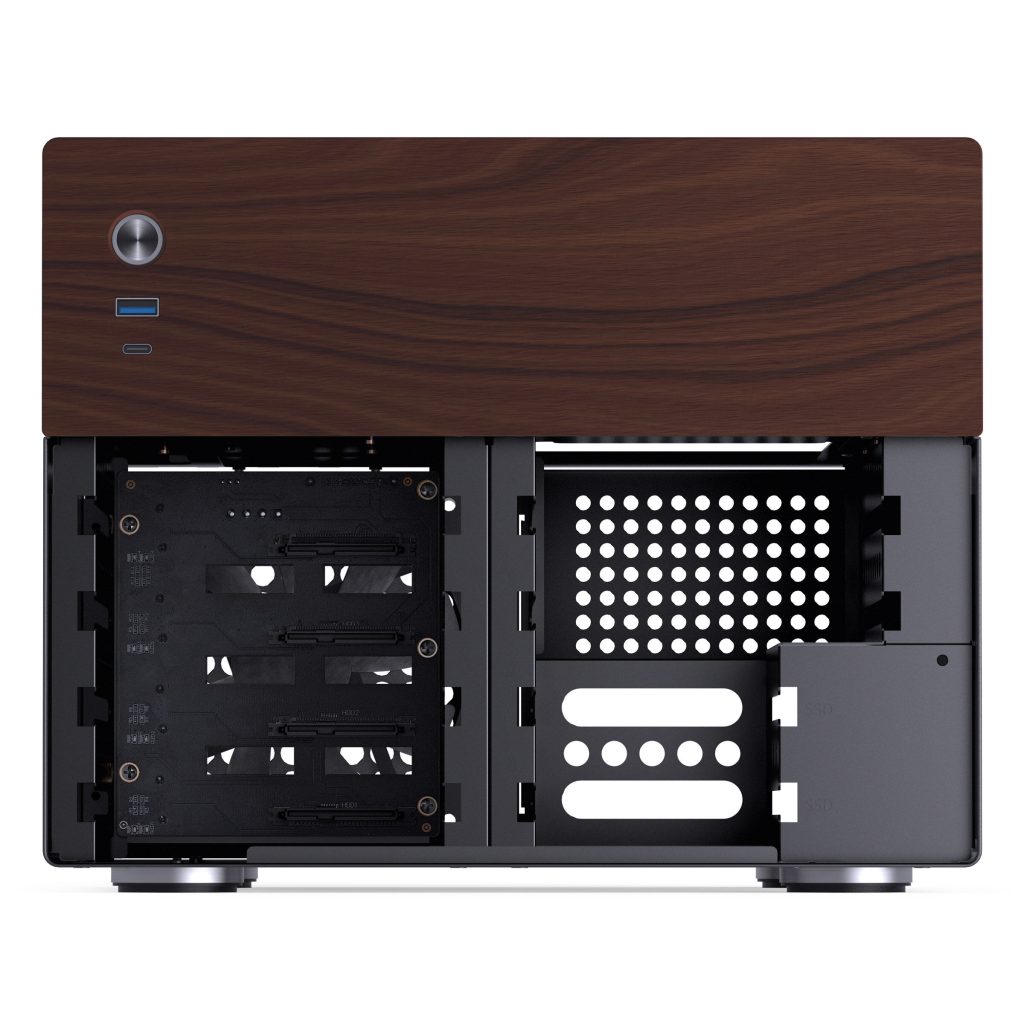

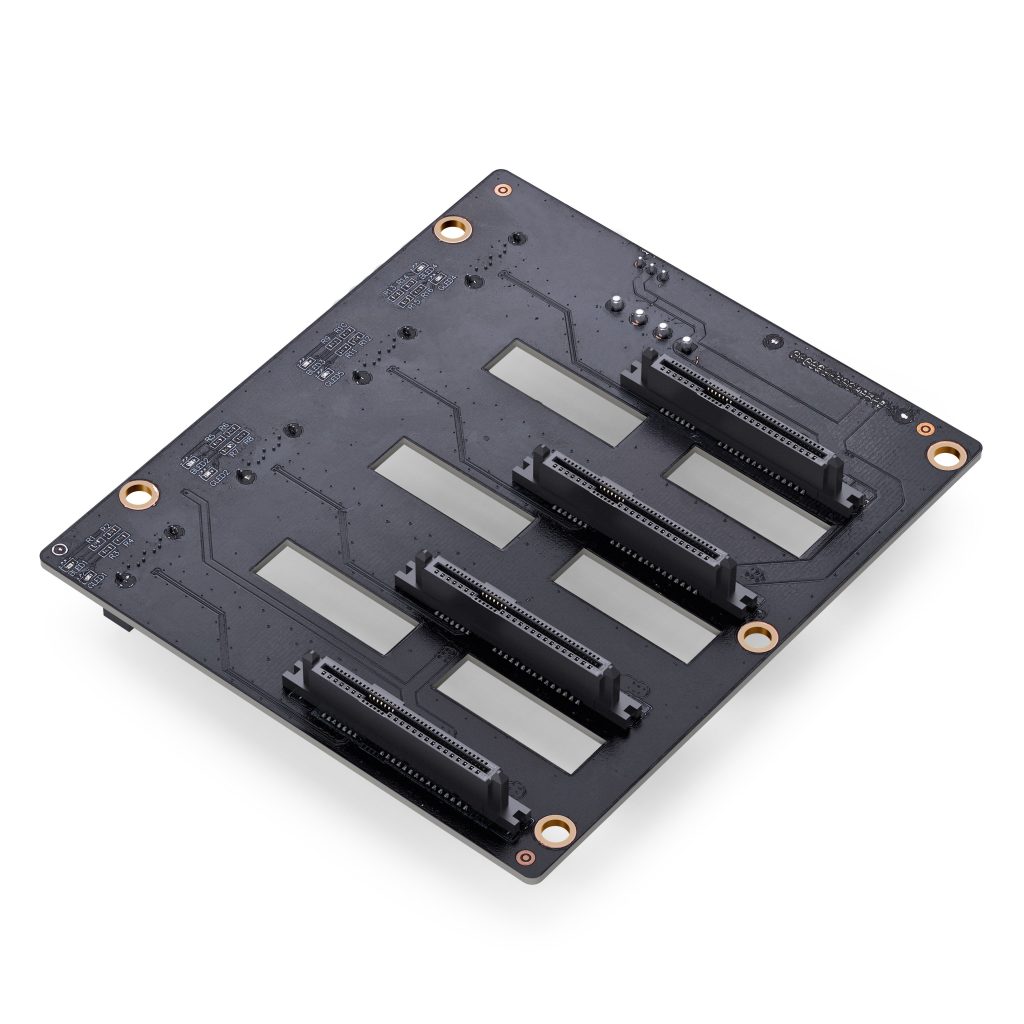

The key factor, however, is the storage capacity, as you can install up to six 3.5-inch hard drives and two 2.5-inch drives at the same time. The backplanes are already built in, making them easy to plug in.
Effective cooling for continuous operation

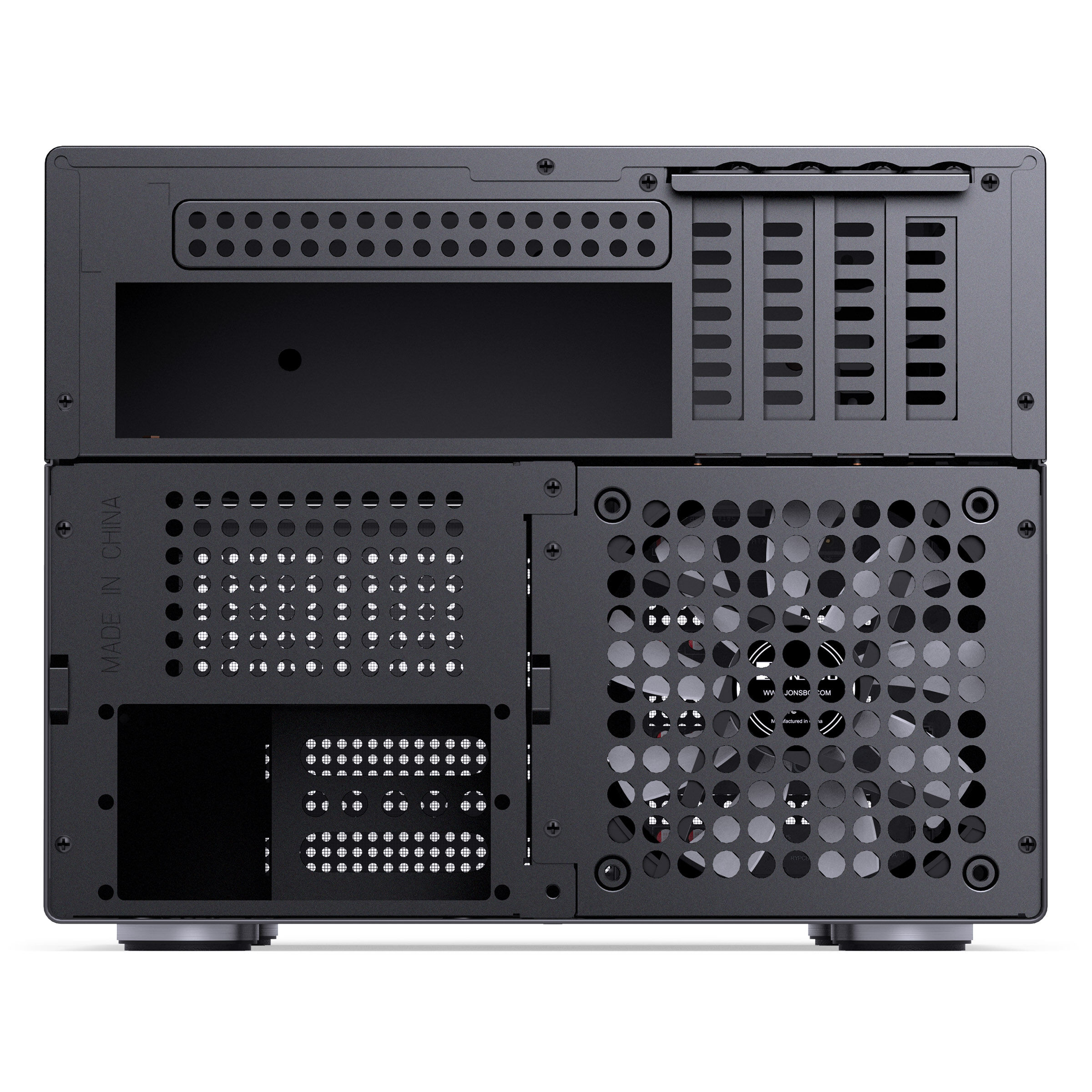

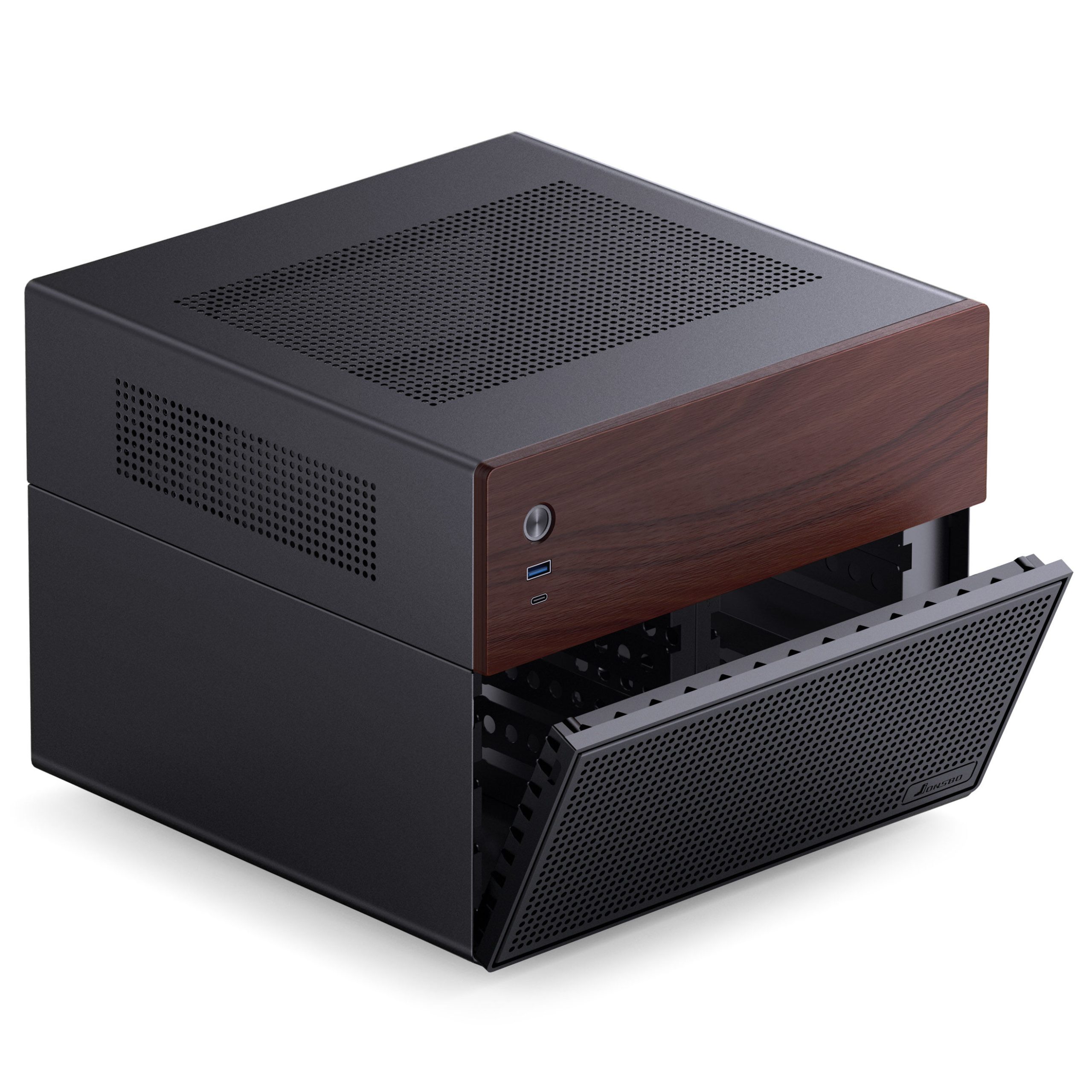

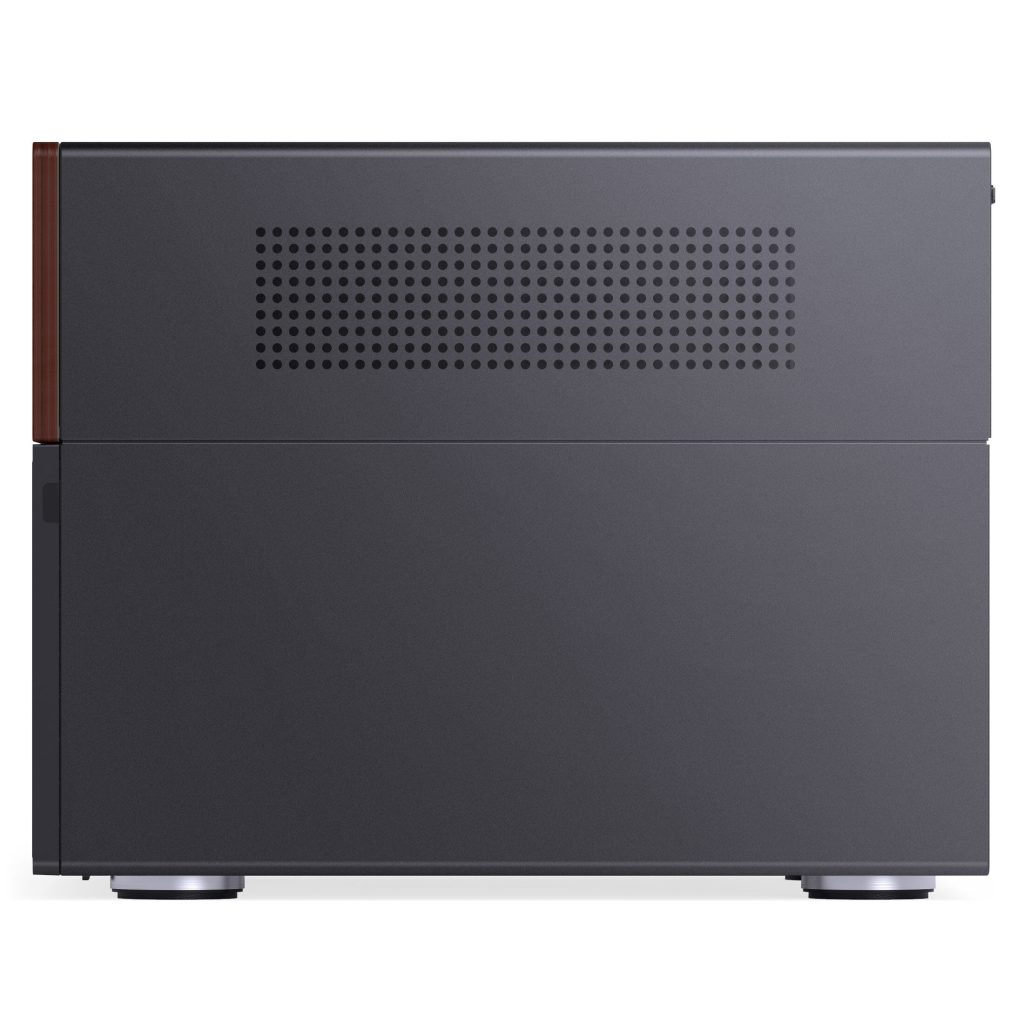

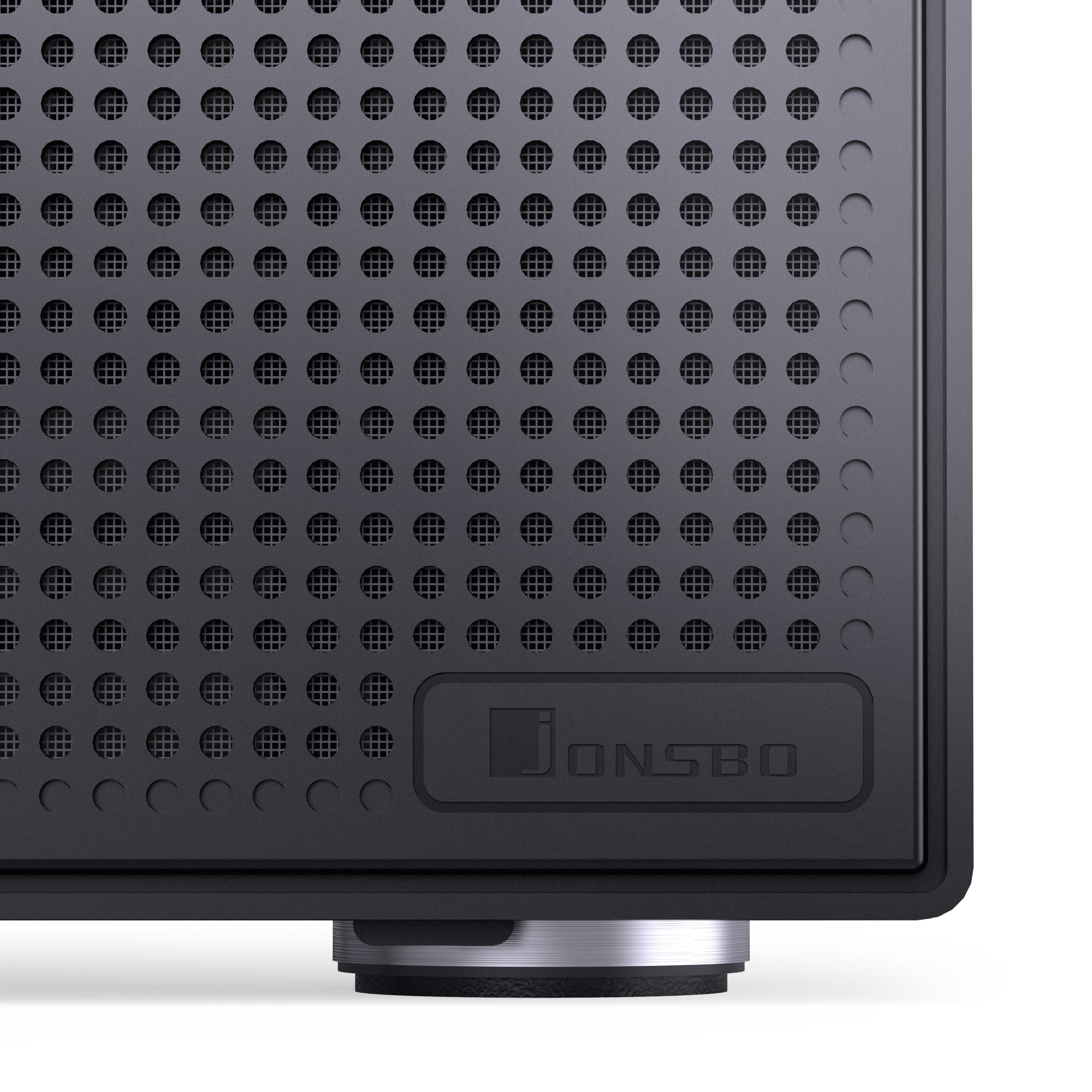

The CPU cooler can be up to 70 mm high. A built-in 120 mm fan on the back ensures optimal cooling of your NAS hardware. The perforated front panel in front of the drive compartment and additional perforations on the sides and top also help to ensure that your NAS system is sufficiently cooled, thus ensuring longevity.

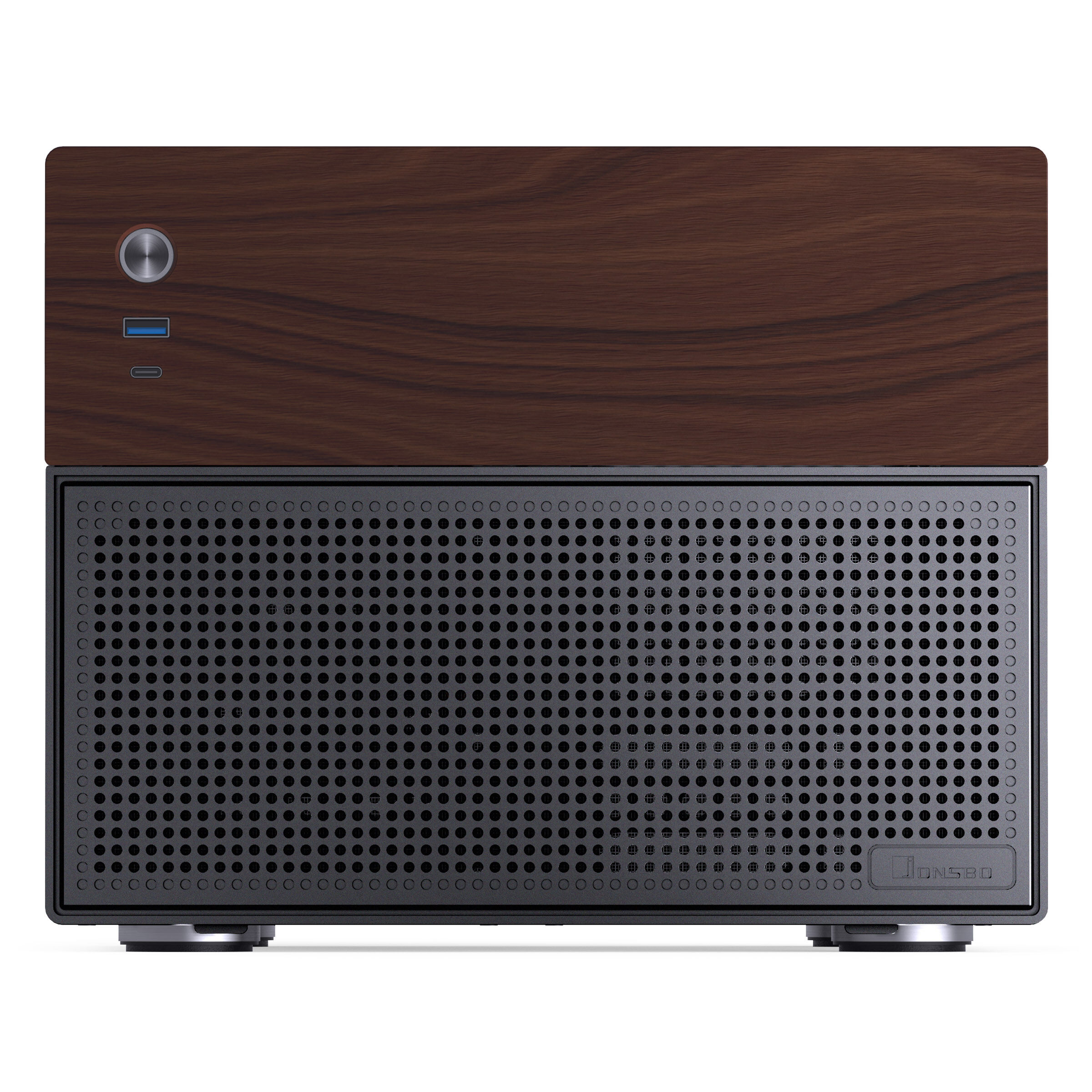

There is a USB-C port with 10 Gbit/s and a USB-A port with 5 Gbit/s on the wooden panel.
| Technical Details | |
|---|---|
| Dimensions (W x H x D) | 286 x 228 x 300 mm |
| Weight | 3.75 kg |
| Primary Colour | Black |
| Secondary Colour | Brown |
| Materials | Steel, Wood |
| Form Factor | ITX / Micro-ATX |
| Total Possible Fans | 1x 120 mm (pre-installed) |
| 3.5″ Drive Bays | 6 |
| 2.5″ Drive Bays | 2 |
| Power Supply Support | SFX (optional) |
| Max. PSU Length | 125 mm |
| Expansion Slots | 4 (Low Profile) |
| USB-C 3.1 (USB 3.2 Gen 2) | 1x (10 Gbit/s) |
| USB-A 3.0 (USB 3.2 Gen 1) | 1x (5 Gbit/s) |
| Max. GPU Length | 230 mm |
| Max. CPU Cooler Height | 70 mm |
| Specification | |
|---|---|
| Primary Colour | Black |
| Secondary Colour | Dark Brown |
| Length / Depth | 300 mm |
| Width | 286 mm |
| Height | 228 mm |
| Weight | 3.75 kg |
| Case Type | Server Case |
| Compatible Motherboard Formats | ITX, Micro-ATX |
| Max. Motherboard Format | Micro-ATX |
| Max. CPU Cooler Height | 70 mm |
| Max. GPU Length | 230 mm |
| Max. PSU Length / Depth | 125 mm |
| Display Included | No |
| PSU Included | No |
| PSU Format | SFX |
| Riser Cable Included | No |
| Max. Number of Fans | 1 |
| 120 mm Fans | 1 |
| Max. Radiator Compatibility | No |
| Max. 2.5 Inch Drives | 2 |
| Max. 3.5 Inch Drives | 6 |
| 2.5 Inch Internal Drive Bay | 2 |
| 3.5 Inch External Drive Bay | 6 |
| Hot Swap Drive Bays | Yes |
| USB 3.1 Type-C (external) | 1 |
| USB 3.0 Type-A (external) | 1 |
| Card Reader | No |
| I/O Position | Front |
| Side Panel | Closed |
| Front Door | Yes |
| Vertical GPU Mount | No |
| Adjustable Vertical GPU Bracket | No |
| Noise Dampening | No |
| Mainboard Slide / Tray | No |
| Remote Included | No |
| Transport System | No |
| Back Connect | No |
| Expansion Slots / PCI Slots | 4 |
| Fan Controller / Fan Hub | No |
| Case VESA Mountable | No |
| Internal Monitor Mount | No |
| Materials | Steel, Wood |
| Lighting / RGB | No |
| Fan / RGB Control | No |
| Included Fans | 1x 120 mm |
£108.98£90.82 Inc VatEx Vat
