The black aluminum housing for mini-ITX mainboards cools CPUs and APUs with a TDP of up to 65 watts completely passively and silently.
The Akasa Maxwell Pro is very compact and cuts a good figure on any desk or in any HiFi or HTPC setup thanks to its minimalist design.
The features of the Akasa Maxwell Pro at a glance
– Compact aluminum housing in black
– Passive cooling through heat pipes and large cooling fins
– For mini-ITX mainboards + CPUs up to 65 watt TDP
– Four USB port openings in the front
– Various rear connections possible, including 2 antenna ports
– Space-saving HTPC housing for a variety of connections
Akasas Maxwell Pro case is designed for mini-ITX boards. Specially tailored to the aforementioned Mini-ITX boards, it is very space-saving and, above all, has a flat design, but in addition to these purely practical aspects, it also brings a very elegant look to the table. The specialty of the case is the elegant look and the well thought-out cooling concept.

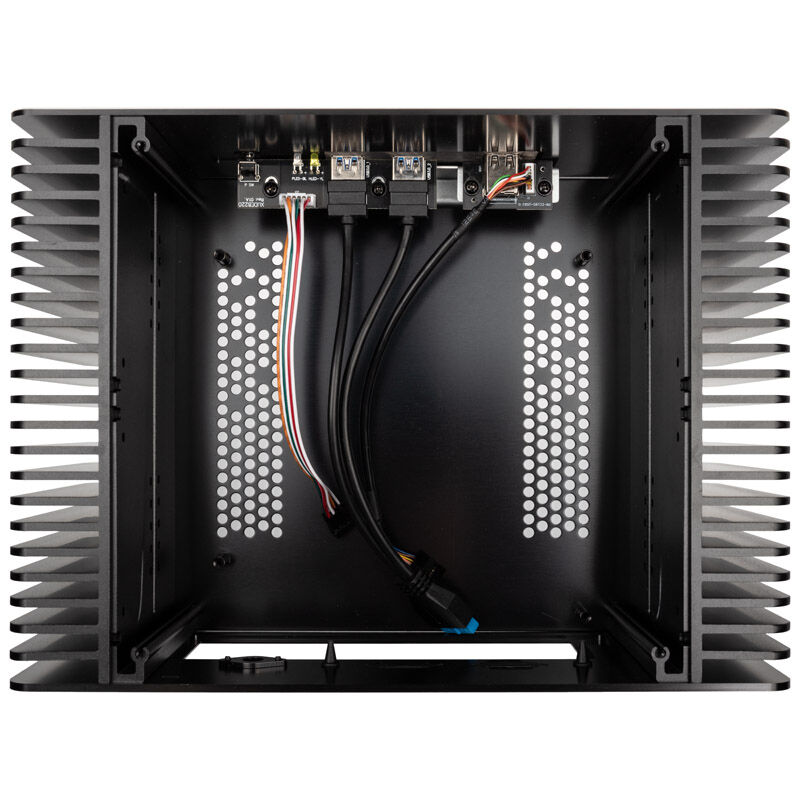

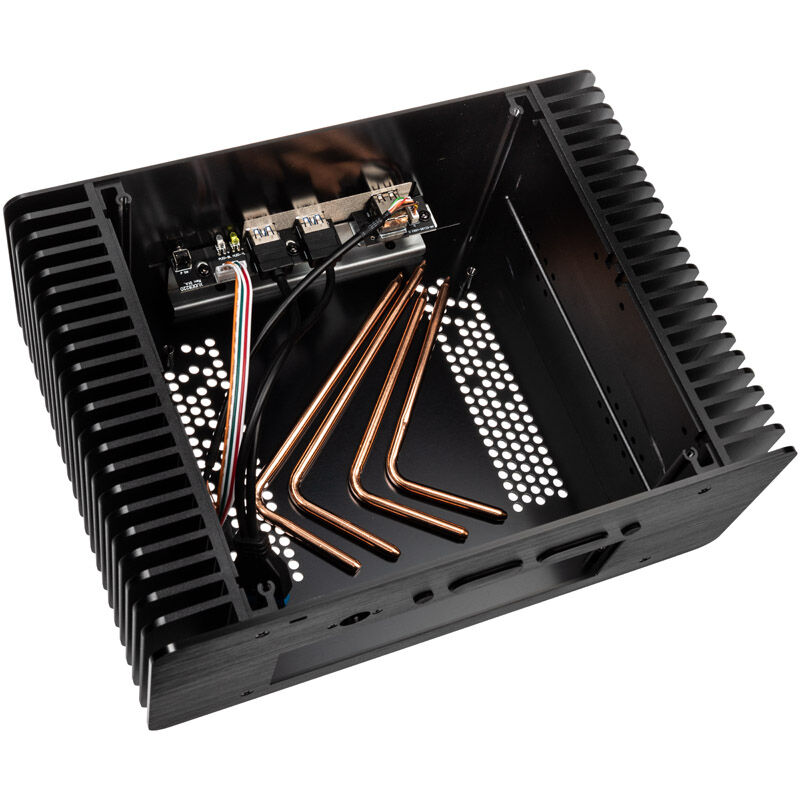

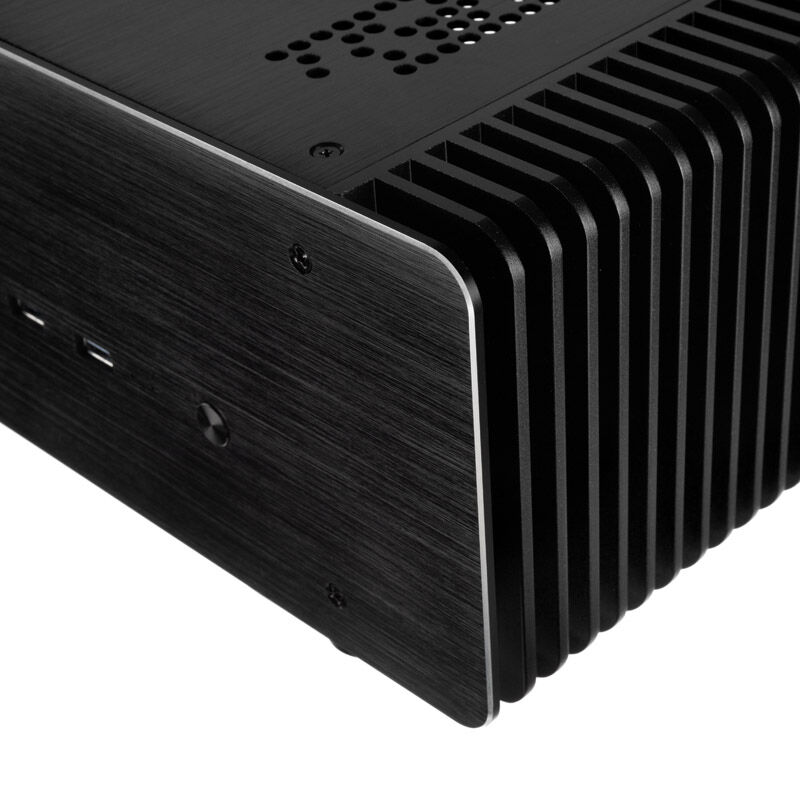

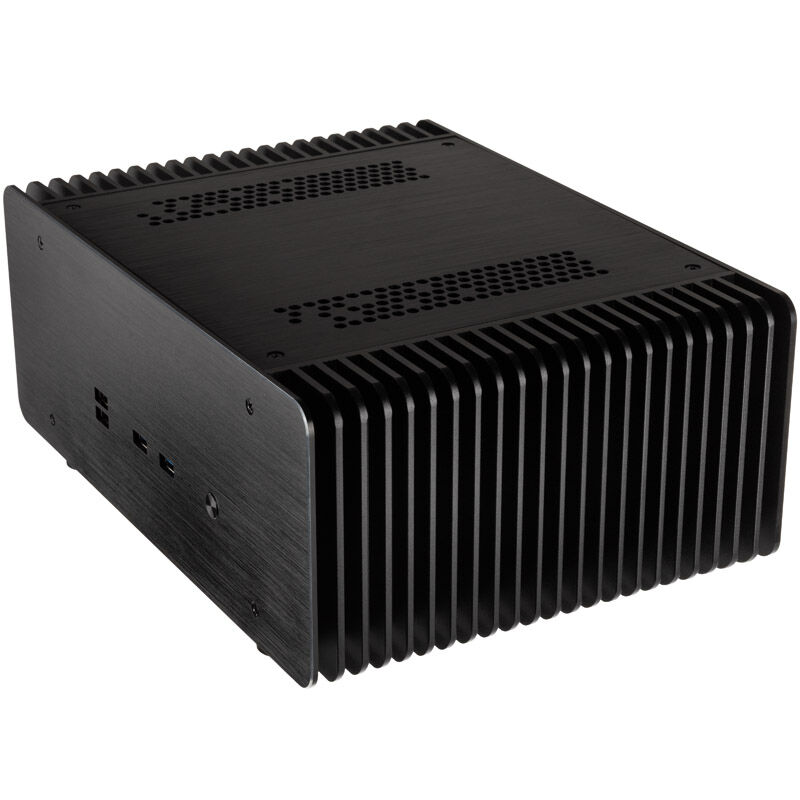

The Maxwell Pro relies on completely passive cooling of the processor. For this purpose, the two lateral outer edges are completely provided with aluminum cooling fins and the CPU comes into direct contact with the housing via heat pipes. The waste heat from the CPU is released into the surrounding air via the large cooling fins on the sides of the Maxwell Pro. Since the case itself acts as a CPU cooler, it works completely without a fan. This means that the Mini-ITX system in the Akasa Maxwell Pro works completely silently.

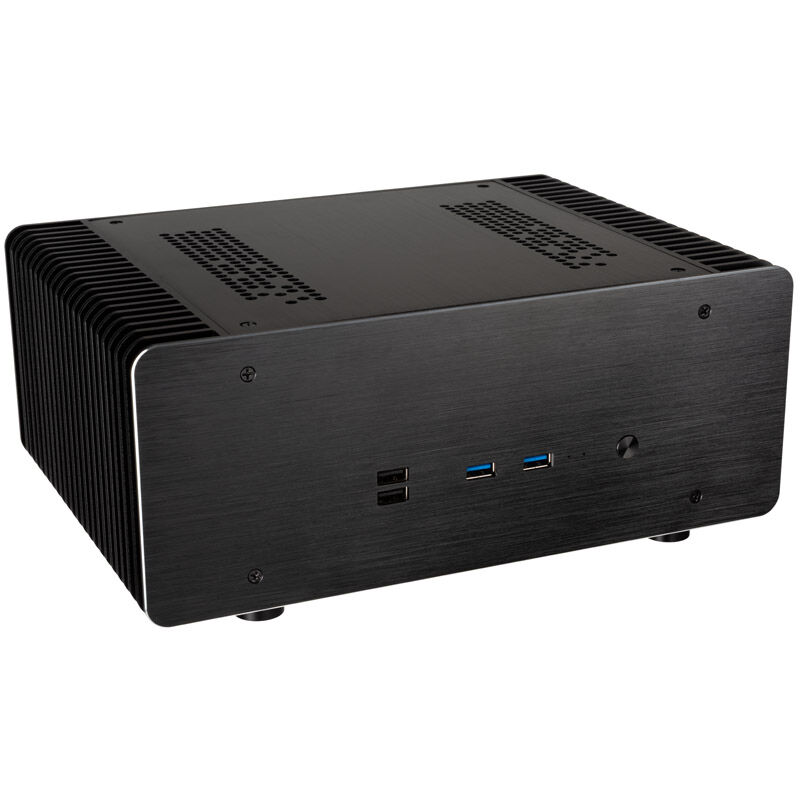

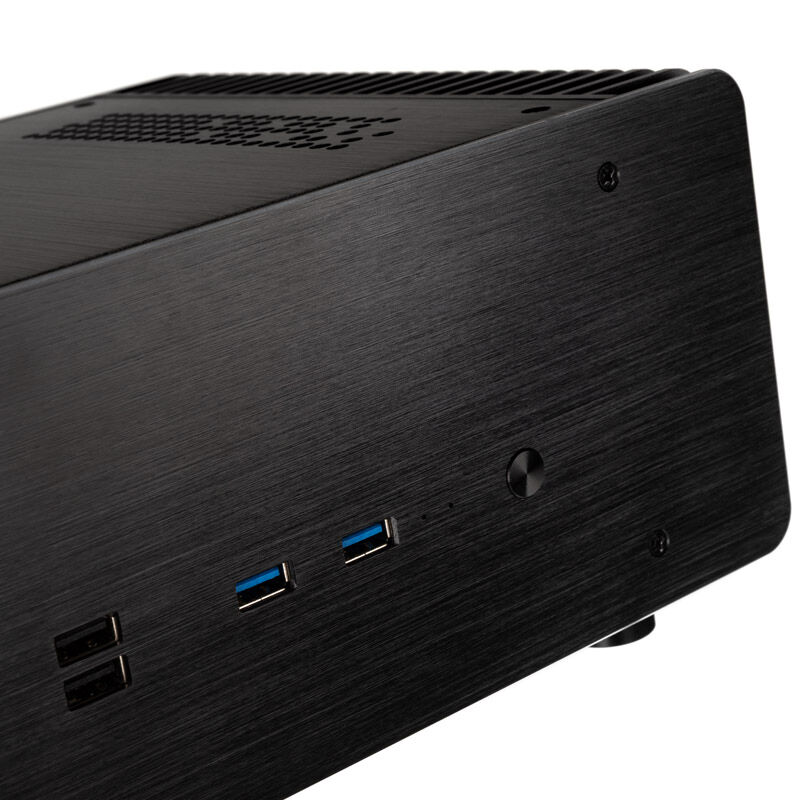

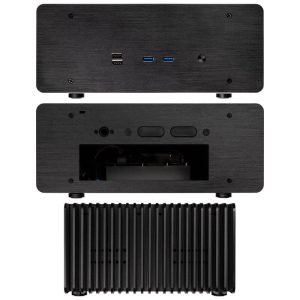

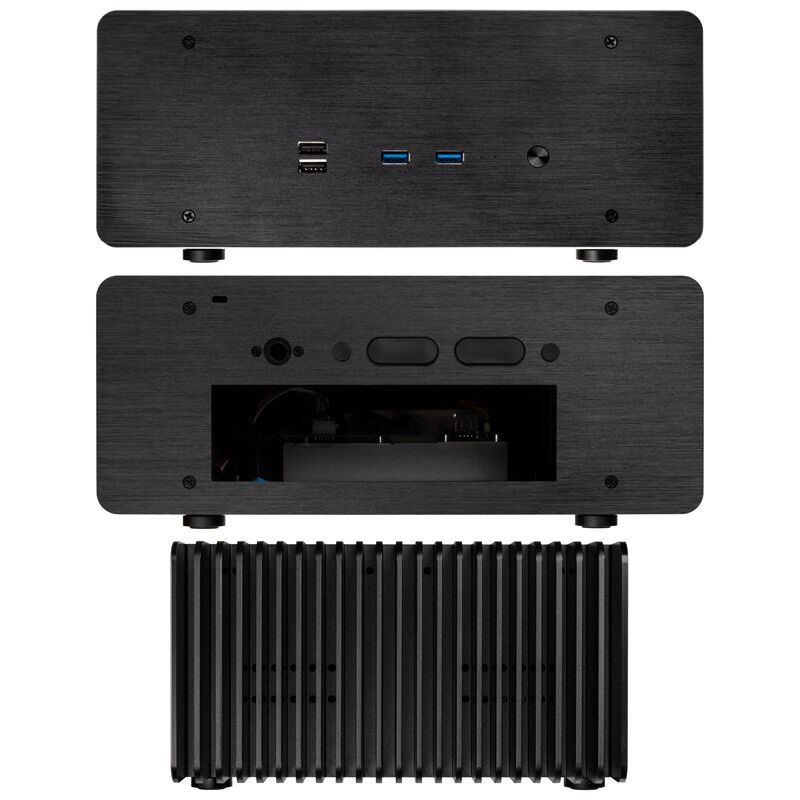

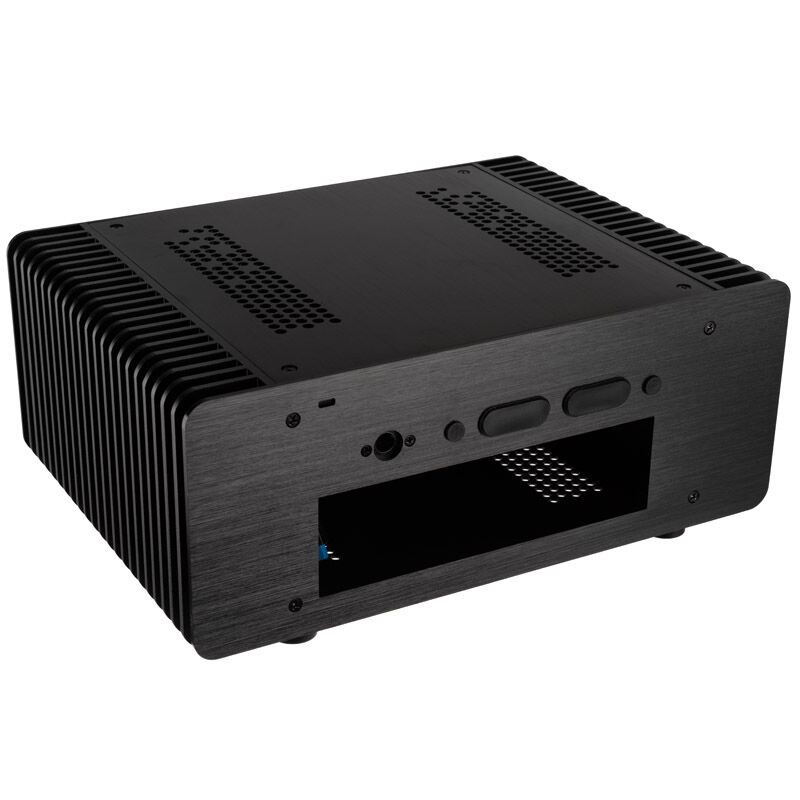

A front made of brushed aluminum makes the black Akasa Maxwell Pro a restrained yet stylish contemporary, which also fits inconspicuously into any hi-fi landscape as an HTPC housing. The front is only broken by four USB port openings and the on / off switch. In addition to the recess for the mainboard I / O panel, there are cut-outs for two WLAN antennas, the connection for an external power supply, two serial ports and a Kensington lock on the back.
Technical details:
– Dimensions: 280 x 110 x 209 mm (W x H x D)
– Weight: 3.03 kg
– Material: aluminum
– Color: Black
– Total fan possible: passive
– Drive bays:
– 2x 2.5 inches (internal)
– Power supply: external
– Front I / O: power button, 1x HDD LED, 1x power LED, 2x USB 3.0, 2x USB 2.0
– Rear I / O: 2x antenna, 1x Kensington lock, 2x serial port, 1x power supply connector (external)
Compatibility:
– Mainboard: Mini-ITX
– CPU: Intel 1151/1200, AMD AM4, max. 65W TDP
– Scope of delivery:
– 1x Akasa Maxwell Pro
– 4x copper heat pipes
– 5x aluminum module
– Mounting material
– Thermal paste
– Intel backplate
– AMD backplate
– HDD-SSD mounting bracket
